CommonControls (Replacement of the MS common controls)

Quote:

---

Originally Posted by DEXWERX

do you have this thread link? trying to find it.

---

http://www.vbforums.com/showthread.p...ry-slow-in-VB6
(was a few post here ago)

As said the unloading will be fast soon.
However, loading is no real change.
Seems to be no diff between..
..Current:

Code:

---

Dim NewListItem As New LvwListItem

---

..and new approach:

Code:

---

Dim NewListItem As LvwListItem
Set NewListItem = New_LvwListItem ' Olaf's function

---

But of course that change in loading will drastically improve unloading.

The MS ListView also suffer from this performance hit when too many rows/items are displayed. Perhaps MS did not intend ListView for such usage. I believe their Windows Explorer also do not read all files in the beginning but only read the folders/items as and when required (when node is selected). This gives the UI a good user experience.

vbVision has a sample project called Virtual ListView Demo that seems to load 1,000,000 rows in a flash but it is not really that. Instead it merely "displays on-demand" the info that is viewable. The info can be in an array or in recordset.

http://www.mvps.org/vbvision/Sample_..._ListView_Demo

Quote:

---

Originally Posted by Krool

Memory leak solved. :)

---

Hi Krool,

can you give us the step you used to diagnosed and find the memory leak ?
it could be usefull for debuging.

I'm fighting with a nasty one using MsFlexGrid... trying to find out if that's coming from my component or not.
thanks

In the meanwhile I did some tests with the previously attached project.
Intent was to check if slowness might be related to the ListSubItems only or by defining several columns (data fields) or both.
Volume C: about 280000 files in 45000 directories = 325000 rows

1st test:
Still defined four columns for the listview.
But writing all data fields of my UD-Array into one column only (.ListItems.Add,,srcArr(Z).FName & "|" & srcArr(Z).FLen & "|" & srcArr(Z).FSize & "|" & srcArr(Z).FType).
Result: Loading takes about 25-35 secs only in IDE. Clearing is not significantly reduced (still 100-120 secs).

2nd test:
Listview contains only one column.
Writing all data fields of my UD-Array into this column (.ListItems.Add,,srcArr(Z).FName & "|" & srcArr(Z).FLen & "|" & srcArr(Z).FSize & "|" & srcArr(Z).FType).
Result: Loading takes about 15-25 secs only in IDE. Clearing time is the same as in the 1st test.

3rd test:
Listview contains only one column.
Writing filepaths only of my UD-Array into this column (.ListItems.Add,,srcArr(Z).FName).
Result: mainly the same as in the 2nd test.

So, would it be "bold" to say that chsok is right - but in general only?
It seems that loading and unloading time is also influenced by the number of data fields used (columns/.ListSubItems).?
But maybe my testing approach is also faulty and doesn't say anything.
Again, this is an undiscovered area for me. I just do a little more than guessing.

Will now try to implement Schmidts approach into my example project.
While having a first look into his code I see that it is far beyond my skills.
But leastwise, I think that I understand how to use it.
Will report if this is of any interest.

Krool,
wouldn't it speed up things if you try to implement your working solution (including your memory leak solution) into one of the next updates?
I'm convinced that this will greatly enhance your project (...just a suggestion).

removed as performance boost for ListView control was "false measured". Sorry..

I found this in snippets I collected over the years. This one is from Randy Birch This will clear the listview in a jiffy. I see if I can find loading. If I recall vaguely, it is also using API but I am not sure. I know I did API add with ComboBox and it speed up a lot.

In a Module:

Code:

---

Public Declare Function SendMessage Lib "user32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal Msg As Long, ByVal wParam As Long, lParam As Any) As Long

---

In Private Sub cmdClear_Click():

Code:

---

    TimeStart

    Const LVM_FIRST As Long = &H1000
    Const LVM_DELETEALLITEMS  As Long = (LVM_FIRST + 9)

    Dim r As Long

    r = SendMessage(lvwData.hWnd, LVM_DELETEALLITEMS, 0&, ByVal 0&)

    Me.StatusBar.Panels(3).Text = TimeEnd

---

Quote:

---

Originally Posted by chosk

I found this in snippets I collected over the years. This one is from Randy Birch This will clear the listview in a jiffy. I see if I can find loading. If I recall vaguely, it is also using API but I am not sure. I know I did API add with ComboBox and it speed up a lot.

In a Module:

Code:

---

Public Declare Function SendMessage Lib "user32" Alias "SendMessageA" (ByVal hWnd As Long, ByVal Msg As Long, ByVal wParam As Long, lParam As Any) As Long

---

In Private Sub cmdClear_Click():

Code:

---

    TimeStart

    Const LVM_FIRST As Long = &H1000
    Const LVM_DELETEALLITEMS  As Long = (LVM_FIRST + 9)

    Dim r As Long

    r = SendMessage(lvwData.hWnd, LVM_DELETEALLITEMS, 0&, ByVal 0&)

    Me.StatusBar.Panels(3).Text = TimeEnd

---

---

Chosk..

I am doing this already since beginning.

Code:

---

Public Sub Clear()
ShadowListView.FListItemsClear
Set PropListItem = New Collection
End Sub

---

Code:

---

Friend Sub FListItemsClear()
If ListViewHandle <> 0 Then SendMessage ListViewHandle, LVM_DELETEALLITEMS, 0, ByVal 0&
Call CheckItemFocus(0)
End Sub

---

However, LVM_DELETEALLITEMS will not cleanup the Collection to free up the memory.

Hi Krool,

Normally, I do not look into your codes. I am not aware you are using this already. It so happen that I found the code and substitute it into Sub cmdClear_Click() and the result was 1.97 sec vs 260 sec for nearly 600,000 rows. I just tested again and you are right that memory was not free up.

I do not know what cause the difference in clearing speed when used in the Sub.

I think I will not implement Schmidts approach for fast class allocation and destruction because there is an risk for an memory leak.
If it would be an isolated area with no outside influence I would go that way. But here we have influence of "outside", means the end-user developing with the ListView control.
When the end-user developer now caches the ListItems and call .Clear then Schmidts approach will fail as the RefCounter was influenced by the end-user developer.
So there is always a risk here..

The only way I see to get an real performance boost in general is to get rid of the 1 Class usage per Row in the ListView control. (go the UDT way)
However, the down-side of this is that the end-user developer cannot compare two items if there are the same, e.g.

Code:

---

Private Sub ListView1_ItemClick(ByVal Item As LvwListItem, ByVal Button As Integer)
If Item Is ListView1.ListItems(1) Then MsgBox "test123"
End Sub

---

would not work anymore.

So question to everyone, which way to go? Or keep like it is?

Quote:

---

Originally Posted by Krool

Code:

---

Private Sub ListView1_ItemClick(ByVal Item As LvwListItem, ByVal Button As Integer)
If Item Is ListView1.ListItems(1) Then MsgBox "test123"
End Sub

---

would not work anymore.

So question to everyone, which way to go? Or keep like it is?

---

Go the UDT road.

Quote:

---

Originally Posted by Karl77

Go the UDT road.

---

To be honest I have no mood to go that road either.. :)
It is so convenient the current way as the 1 class per row is stored as ObjPtr in the lParam member of LVITEM.
Changing this has for sure other perfomance drawbacks.

So I am likely to suggest for such large lists: go virtual.

Quote:

---

Originally Posted by Krool

To be honest I have no mood to go that road either.. :)
It is so convenient the current way as the 1 class per row is stored as ObjPtr in the lParam member of LVITEM.
Changing this has for sure other perfomance drawbacks.

So I am likely to suggest for such large lists: go virtual.

---

Yes, you are right.
Especially for this seldom case.

I'm still on testing, but I would like to post a preliminary opinion here:
In case the claimed performance boost affects loading only I would also say No, don't change anything.

In general - does one optimisation justifies a dependent drawback of a program?
I think Yes- but only if strength of optimisation is better than the drawback on the other side.
Is this the case here?

For me and and in practical terms, loading time for big data is not so important as long as it is complies
to general/common rules (vb standards).
Anybody of us knows that loading big data takes its time before you can do some further actions in a programm.

In contrast, the unloading slowness has a much bigger weight for me.
It does NOT comply to general vb standards here and is much more annoying than any kind of loading speed.
Not just that you can't do anything while your program is running, it also still consumes cpu performance
and resides in memory the time it takes to unload the listview after you tried to close the program
(tested by procexp - or use taskmgr if you want).

So, unless anybody finds a reliable AND valid solution for an unloading slowness I tend to say that
Krool shouldn't change anything here (test results will follow).

hi krool ,
in listview , setting the forecolor property at runtime affects only the first column. A bug or I am missing something ?

Edit 1

another notice .

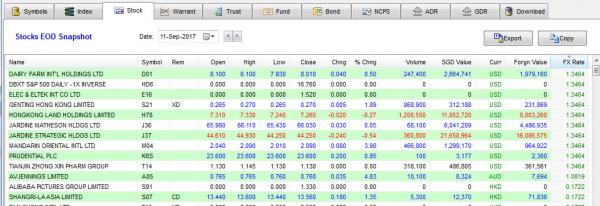

if I set the forecolor for the first item in column 1 to green and then changed the listview forecolor to red , besides the point that it only affects the first column , it also does not affect the item which is colored green which I colored by code .

Attachment 151657

ListView1.ListItems(r).ListSubItems(c).ForeColor = whatevercoloryouwant

r for row
c for column

Quote:

---

Originally Posted by chosk

ListView1.ListItems(r).ListSubItems(c).ForeColor = whatevercoloryouwant

r for row
c for column

---

no problem with this , I mean setting the forecolor for the listview in general . Or it is designed for setting forecolor item by item

Quote:

---

Originally Posted by Hosam AL Dein

no problem with this , I mean setting the forecolor for the listview in general . Or it is designed for setting forecolor item by item

---

I was replying to your post before you made the edit. Note the time of my post and your edit.

Quote:

---

Originally Posted by Hosam AL Dein

Edit 1

another notice .

if I set the forecolor for the first item in column 1 to green and then changed the listview forecolor to red , besides the point that it only affects the first column , it also does not affect the item which is colored green which I colored by code .

Attachment 151657

---

OMG. You are right. How can this be...

Update released. Was a very tiny bugfix as can be seen below: (red marked)

Code:

---

Friend Sub FListSubItemsAdd(ByRef SubItemIndex As Long, ByVal Index As Long, Optional ByVal Key As String, Optional ByVal Text As String, Optional ByVal ReportIconIndex As Long)
PropShadowListSubItemsCount = PropShadowListSubItemsCount + 1
If Index = 0 Then
    SubItemIndex = PropShadowListSubItemsCount
Else
    SubItemIndex = Index
End If
ReDim Preserve PropShadowListSubItems(1 To PropShadowListSubItemsCount) As ShadowListSubItemStruct
If SubItemIndex < PropShadowListSubItemsCount Then
    Dim i As Long
    For i = PropShadowListSubItemsCount To SubItemIndex + 1 Step -1
        LSet PropShadowListSubItems(i) = PropShadowListSubItems(i - 1)
    Next i
    LSet PropShadowListSubItems(i) = PropShadowDefaultListSubItem
Else
    LSet PropShadowListSubItems(SubItemIndex) = PropShadowDefaultListSubItem
End If
With PropShadowListSubItems(SubItemIndex)
.Key = Key
.Text = Text
.ReportIconIndex = ReportIconIndex
End With
End Sub

---

OCX was also updated of course.

it is worth effort this awesome listview

still the point of the edit in my post krool . if you set a different color by code to an item , and then changed the forecolor again , the forecolor now applies to all the items except the one you changed by code . the bug fix solved the point that it only colors the first column .

like

Code:

---

listview1.listitems(1).forecolor=vbgreen

listview1.forecolor=vbred

---

now all the items will have the red color except item 1 which you have previously set its color to green

Edit 1 :

this includes listitems and listsubitems

Quote:

---

Originally Posted by Hosam AL Dein

still the point of the edit in my post krool . if you set a different color by code to an item , and then changed the forecolor again , the forecolor now applies to all the items except the one you changed by code . the bug fix solved the point that it only colors the first column .

like

Code:

---

listview1.listitems(1).forecolor=vbgreen

listview1.forecolor=vbred

---

now all the items will have the red color except item 1 which you have previously set its color to green

Edit 1 :

this includes listitems and listsubitems

---

That behavior is expected to be. To reset an fore color of an list item or list sub item set to -1.

shouldn`t forecolor paint all items ?
I am performing a conditional formatting on the items . Each matched item will have a specific different color . To reset it to the default color , I will have to loop and paint item by item with the default forecolor .

and what does this mean

Quote:

---

To reset an fore color of an list item or list sub item set to -1.

---

set which value to -1 ?

Attachment 151669

When you have set ListView1.ListItems(r).ForeColor and/or ListView1.ListItems(r).ListSubItems(c).ForeColor it will be painted with that color, regardless what is defined by ListView1.ForeColor.
To "reset" the color at ListView1.ListItems(r).ForeColor and/or ListView1.ListItems(r).ListSubItems(c).ForeColor set them to -1. Then they will again "inherit" the ListView1.ForeColor.

I think the normal behavior should be : forecolor will paint all items .. this is the main case or original need for this property

but you use this logic : forecolor will paint all the items except those whose fore color has been previously set despite the fact that the majority will set a different forecolor for a specific item for less reasons and in very specific situations . I mean this is the exception not the main case .

example : in my case here , this will force me to loop and check for item fore color if it is not equal the main forecolor then I will set it to -1 despite I have already looped for a specific condition on all items . now ,to set their color back I will have to loop again . but why do that while I have a forecolor property which should apply the whole thing . I mean conditions are exceptions but forecolor means paint all the items and this seems more logic to me . what do you think ?

Quote:

---

Originally Posted by Hosam AL Dein

I think the normal behavior should be : forecolor will paint all items .. this is the main case or original need for this property

but you use this logic : forecolor will paint all the items except those whose fore color has been previously set despite the fact that the majority will set a different forecolor for a specific item for less reasons and in very specific situations . I mean this is the exception not the main case .

example : in my case here , this will force me to loop and check for item fore color if it is not equal the main forecolor then I will set it to -1 despite I have already looped for a specific condition on all items . now ,to set their color back I will have to loop again . but why do that while I have a forecolor property which should apply the whole thing . I mean conditions are exceptions but forecolor means paint all the items and this seems more logic to me . what do you think ?

---

That is the same behavior as in the original MS ListView.
The specific overrides the general.
It would be terrible if changing the ListView1.ForeColor would reset all ListItems and ListSubItems ForeColor settings.

say 1000 rows :: filter some(50) to color red . so I will filter after setting the general . I will loop to preform this . I dont need to loop again to set the 1000 color to original .

the logic if I want to perform this

1- set the forecolor (if we want to color all items)
2- filter loop for exceptions (which surely will be less than all the items count)

so yes , specific overrides the general , thats why there is a method for changing the item forecolor .but also this method should be called after we generally set the main forecolor . so forecolor will paint all and if we want to color some other items, we have made you a method to color the specific item and it surely will override the general but also should be called after the genaral beacuse if you use it you are willing to filter only some items which are less than the all surely .

your consider it terrible and you are right if I set the item fore color before setting the general forecolor . the opposite should be done and will be more logic and also will not face the problem you mentioned above

Is this convincing ? or I am totally wrong or what ?

Quote:

---

Originally Posted by Krool

That is the same behavior as in the original MS ListView.
The specific overrides the general.
It would be terrible if changing the ListView1.ForeColor would reset all ListItems and ListSubItems ForeColor settings.

---

Hi Krool,

I hope you keep to the original MS behaviour. Because I have preference setting for users to change forecolor and row backcolor, while keeping those cells already colored unchanged. Example, for alternate row backcolors of white and green the forecolor usually black. For alternate row backcolors of gray and black the forecolor usually white. Those cells already colored before the change maintain their cell colors. If you change away from original MS behaviour, not only will I be screwed but others also using your controls who are coding according to MS behaviour.

A ResetAllColors method could be added, which would do what Hosam AL Dein requests.

This will reset the ListView ForeColor.

Code:

---

'Private Sub ResetListViewForeColor(lvw As VBCCR14.ListView, FColor As Long)
Private Sub ResetListViewForeColor(lvw As ListView, FColor As Long)
    Dim i As Long
    Dim j As Long

    lvw.ForeColor = FColor

    lvw.Visible = False
    For i = 1 To lvw.ListItems.Count
        lvw.ListItems(i).ForeColor = lvw.ForeColor
        For j = 1 To lvw.ColumnHeaders.Count - 1
            lvw.ListItems(i).ListSubItems(j).ForeColor = lvw.ForeColor
        Next
    Next
    lvw.Visible = True
End Sub

---

Usage:

Code:

---

ResetListViewForeColor ListView1, vbBlack

---

This should be neater. Do away with the lvw.ForeColor = FColor

Code:

---

'Private Sub ResetListViewForeColor(lvw As VBCCR14.ListView, FColor As Long)
Private Sub ResetListViewForeColor(lvw As ListView, FColor As Long)
    Dim i As Long
    Dim j As Long

    lvw.Visible = False
    For i = 1 To lvw.ListItems.Count
        lvw.ListItems(i).ForeColor = FColor
        For j = 1 To lvw.ColumnHeaders.Count - 1
            lvw.ListItems(i).ListSubItems(j).ForeColor = FColor
        Next
    Next
    lvw.Visible = True
End Sub

---

Quote:

---

Originally Posted by chosk

This should be neater. Do away with the lvw.ForeColor = FColor

Code:

---

'Private Sub ResetListViewForeColor(lvw As VBCCR14.ListView, FColor As Long)
Private Sub ResetListViewForeColor(lvw As ListView, FColor As Long)
    Dim i As Long
    Dim j As Long

    lvw.Visible = False
    For i = 1 To lvw.ListItems.Count
        lvw.ListItems(i).ForeColor = FColor
        For j = 1 To lvw.ColumnHeaders.Count - 1
            lvw.ListItems(i).ListSubItems(j).ForeColor = FColor
        Next
    Next
    lvw.Visible = True
End Sub

---

---

I would suggest as following. (Red marked)

Code:

---

'Private Sub ResetListViewForeColor(lvw As VBCCR14.ListView)
Private Sub ResetListViewForeColor(lvw As ListView)
    Dim i As Long
    Dim j As Long

    lvw.Redraw = False
    For i = 1 To lvw.ListItems.Count
        With lvw.ListItems(i)
        .ForeColor = -1
        For j = 1 To lvw.ColumnHeaders.Count - 1
            .ListSubItems(j).ForeColor = -1
        Next
        End With
    Next
    lvw.Redraw = True
End Sub

---

EDIT: I will not change the behavior. It will remain like in the original MS ListView.

Guys , I do not have a problem with code here , I was talking about something which I thought ( and still - according to my little knowledge - ) to be more logical . ِِِِِAnyway , seems that I could not propose it or it is having some side effects which I do not recognize .

Quote:

---

Originally Posted by Hosam AL Dein

Guys , I do not have a problem with code here , I was talking about something which I thought ( and still - according to my little knowledge - ) to be more logical . ِِِِِAnyway , seems that I could not propose it or it is having some side effects which I do not recognize .

---

It would be "too much" to make these changes in functionality to such a "simple" method/property. That's why we proposed a new method for what you ask.

I will retry to make my point more clear by some questions :

1 - What is the purpose of this explanation ?

the purpose of this explanation is to make a comparison between two behaviors being discussed about the way we should follow when calling this line of code listview1.forecolor=.... .

2 - what are the two ways being compared ?

way1

• Setting the listview forecolor should be applied to all items and sub items of a listview regardless of the specifically colored items . So , when we call listview1.forecolor=vbrgreen , we expect all items to be colored by green including specifically colored items

way2

• Setting the listview forecolor should be applied to all items and sub items of a listview except the specifically colored items . So , when we call listview1.forecolor=vbrgreen , we expect all items to colored by green excluding specifically colored items . And to reset any item to its original forecolor (green) , we should use listview1.listitem(i).forecolor = -1 to set item i color to be the main forecolor for the listview (green) .

3 - why do I think that way2 is not the appropriate one (according to my opinion ) ?

If I have a listview with forecolor green and has - say - 1000 items and I want to color some few items to be red (based on some condition) . I will run a loop through 1000 records and do comparison and set the item color to red if it met the condition and nothing wrong with that in both ways .

The problem will rise up at this next point . When I intend to Re-run conditional formatting function , I should add a line of code before setting any specific items colors . This line should reset all items forecolors to its default using listview1.forecolor=listview1.forecolor and I expect all items to be colored to default as way1 suggests .
On the other hand , using way2 , will force me to write another loop through 1000 items and perform this instruction listview1.listitem(i).forecolor = -1 to reset the 1000 items forecolor the listview main forecolor or add it to an existing loop which is not guaranteed in all of the cases and situations as loop may exist or not . Even if it existed , then we have added to it more 1000 * n instructions execution time through usercontrol classes , collections and properties and this will surely deteriorate its performance in large scale listviews.

way1

Code:

---

Dim i as integer
listview1.forecolor=listview1.forecolor
for i=1 to 1000

if number(i) > 7 then listview1.listitems(i).forecolor=vbred

next i

---

way2

Code:

---

Dim i as integer
for i=1 to 1000

listview1.listitems(i).forecolor= -1

if number(i) > 7 then listview1.listitems(i).forecolor=vbred

next i

---

Also consider , in the previous code , I have made use of the already running loop to escape creating another loop to set colors to default . But in some cases not related to this example , this loop might not be available.


4 - can items populating loop implicate or act as an already running loop to host item by item coloring ?

yes , but in some cases , - like mine - which is also very common , this can not be done as the user calls a window where he can select the column and the condition for conditional formatting . So , this can not be done during items population phase . And also I dont want to repopulate the list view before running the conditional format function causing another loop to run before conditional formatting function loop to guarantee that all items colors are set to default .

Note 1 : Items population after listview clearing method sets forecolors to the deafult

5 - why did Microsoft provide a forecolor property for a lsitview ?

to apply the color to all listview items .

6 - why did Microsoft provide an item.forecolor property for a lsitview ?

also to apply the color to all listview items ???!!!!! No . the one up there handles this mission . So , the answer is : they thought some users will need to color some specific items by some different color while keeping the general forecolor to handle all the items . So it is made for EXCEPTIONS . Seems logic to me .

7 - what about the MS original list view which uses the same behavior ?

At this moment , I feel like it is some type of bug or un-handled analysis which they did not take care of . Otherwise , there is a piece of information I dont know which made it necessary while setting the forecolor property to leave all specifically colored items as they are . I thought about one issue but I also dont find it a complete answer . I thought of they said : "Set the forecolor as you want by the general forecolor . Now for exceptions use item.forecolor and don`t worry when you reset the general forecolor again we will not touch your exceptions to not oblige you to re-run the code for coloring exceptions again (saving performnce) and if you want to reset your exceptions to default use the value -1 to the item.forecolor using likely a loop (no performance saving here) " . But this has many more questions to be asked about the way they implemented it . Could it has been done more easier and logical and also performance-considerations aware ? . why dont I pass -1 to the general forecolor ? why to keep my exceptions while mainly in the level of items re-populating it erases all settings (this happens more often than just passing a forecolor to the listview) so I will anyway populate the items (now all colors removed see note 1 above) and I will color my exceptions again each time I refresh my data .

To simplify : Which one of these scenarios occur more often than the other ?

1- setting the general forecolor at runtime for a listview . (there where Microsoft wants to keep specific forecolors)
2- refreshing list items and repopulating the list view . (which will remove all specific forecolors)

surely the second case with a ratio about 300 :1

What is the worth of protecting exceptions while they will be demolished 300 times before it is even needed to be protected . Not only this is not useful , but also this protection operation will cost more performance load to recover from.

I mean , the general forecolor setting occurrance which will happen 1 time to 300 times repopulating which will demolish your protection to the (1 occurrance ) which also cost you over performance load . Why did not they even design this protection in a better way to recover from ? if I even consider this protection was necessary . They saved your effort in one time and you will exert it 300 times each time you repopulate the items .

So , It is an open discussion for everybody who can provide us with a case where he could not do without this feature or cases supporting my point . Maybe we can change the mind about going original MS road . If it was badly designed , can we improve this issue ?

This is not a personal demand , even about this performance issue , it will not exhaust my apps which dont usually load more then 30 to 60 thousands records where such loops will not heavily affect performance . I opened the discussion just to improve it IF AND ONLY IF we agree to the point I have declared above . And of course you are free to decide krool .

Maybe I am missing something which makes my post totally wrong , but I will be glad to learn if so . I created my opinion based on that I did not find any reason for keeping these exceptions not affected by the general forecolor and the negative effect on performance while trying to recover from this protection .

@chosk @Cube8 . Firstly thanks for trying to help by code but it was not the problem for me . I was talking about performance . Thanks again

Quote:

---

Hi Krool,

I hope you keep to the original MS behaviour. Because I have preference setting for users to change forecolor and row backcolor, while keeping those cells already colored unchanged. Example, for alternate row backcolors of white and green the forecolor usually black. For alternate row backcolors of gray and black the forecolor usually white. Those cells already colored before the change maintain their cell colors. If you change away from original MS behaviour, not only will I be screwed but others also using your controls who are coding according to MS behaviour.

---

This is not an issue to be affected by any of the two methods chosk . It is a visual matter which can be solved by assigning the appropriate colors to each theme .

Quote:

---

Originally Posted by Hosam AL Dein

This is not an issue to be affected by any of the methods chosk . It is a visual matter which can be solved by assigning the appropriate colors to each theme .

---

You are not getting it. It is not about color themes. It is about there is no existing color themes and the user have the freedom to choose any combination of colors.

The problem I see here is that you are putting your arguments against the way MS designed their controls and insisting MS is wrong and therefore any developers of controls that follow MS controls behaviors are also wrong.

Please take a step back and look at your own post carefully. I am sorry if I am rude which I think I am.

I normally don't like to show off. But I make an exception yet still taming my own mind.

I have done this for more than 10 years now from as long as VB6 was borned, first using MS controls and then using Krool's. Every row can be any color (in this case the chosen ones are black, blue and red) and they can change from one day to the next. Some cells on the right have another color different from the row. There are several ListViews and I don't have performance problem.

Attachment 151707

Quote:

---

Originally Posted by Hosam AL Dein

This is not a personal demand

---

Then why are you so insistence on changing the .Forecolor behaviour? Perhaps you should politely with respect to Krool put forth a feature request instead of insisting that .Forecolor behaviour is wrong and therefore must be changed to your liking.

I would like to be able to copy codes from the Internet to test and explore whenever I encountered a coding problem and they just work with Krool's controls . No one will be able to do this if Krool's controls are not to MS behavior.

Quote:

---

Originally Posted by Hosam AL Dein

way1

Code:

---

Dim i as integer
listview1.forecolor=listview1.forecolor
for i=1 to 1000

if number(i) > 7 then listview1.listitems(i).forecolor=vbred

next i

---

way2

Code:

---

Dim i as integer
for i=1 to 1000

listview1.listitems(i).forecolor= -1

if number(i) > 7 then listview1.listitems(i).forecolor=vbred

next i

---

---

How about this? Then listview1.listitems(i).ForeColor = -1 will not be executed when not necessary.

way 2

Code:

---

Dim i As Integer
For i = 1 To 1000
    If Number(i) > 7 Then
        listview1.listitems(i).ForeColor = vbRed
    Else
        listview1.listitems(i).ForeColor = -1
    End If
Next i

---

Sorry if I am rude again although I know you like to say you don't have problem with coding.

Quote:

---

Originally Posted by chosk

No one will be able to do this if Krool's controls are not to MS behavior.

---

Full agree.
100% compatibility is the very main thing.
This makes it 'simple' to refresh an old app with the Krool's new controls.
If this wouldn't be the case, and we would have to think about every nitty-gritty detail, it would be more cumbersome.
Even with this 100% compatibility, there is enough to consider and re-code.

Which doesn't mean there shall be no new features.
There are a LOT of new and better features in the Krool controls.
If they were not there, the replacement wouldn't make any sense.

So all is right.

---

I myself fell into the 'break compatibility' trap, as I thought in #1691.
That was not a good idea.

Sorry, Krool.

I shall stop now.

Sorry.

The source code is also available, so if you want to create a personal version I think you are free to do so!

.
.

I was just typing a reply till I saw your posts . I have nothing to say here . Although I am holding much .

About krool ,
he can read and determine if I said he was wrong or not . I am not (technically) in a position to judge krool or Microsoft . I was opening a discussion accepting the fact that I might be totally wrong due to a missing info .


About

Quote:

---

feature request

---

I do not find it shameless to me to ask for any type of help . So , if I needed it , I would have asked for it because I am here to learn and I have already asked in the way which I find too clean and you suspect "my intentions" , go ahead . Also , I appreciate what krool is doing and for free helping all folks here including you . No need to be the bad guy here . Also , everyone can see that I did not do anything wrong to you or to anybody .


About being

Quote:

---

polite

---

I think it is me who can teach you such thing .

Quote:

---

How about this? Then listview1.listitems(i).ForeColor = -1 will not be executed when not necessary.

---

.
this line was intentionally written like this because it was in a separate clear_format function where this method for comparison could not be done due to the changing operands , operators , parameters , colors and columns being tested . So , I had to clear all and set all to -1 before assigning new colors and I had copied it in here . So , you Just wanted to show off and fix what you considered an error . Even if it is , I do not mind . I am totally self-confident and do not need to search and seek for a kiddy comment to prove something .

Quote:

---

Sorry if I am rude again although I know you like to say you don't have problem with coding

---

Seems we both have problems but yours is the one I find shameless to have .


Such type of speech is time-wasting . I will not reply to any of your posts or whatever you say here for many reasons .

Quote:

---

Originally Posted by Arnoutdv

The source code is also available, so if you want to create a personal version I think you are free to do so!

---

yes Arnoutdv , but I am not even willing to do so . As I said it is not a problem for me (the performance issue) . I have no problem with looping affecting performance in my apps level as I said . So , I thought this might be useful to anyone . It might be right or wrong .

Quote:

---

Originally Posted by Hosam AL Dein

yes Arnoutdv , but I am not even willing to do so . As I said it is not a problem for me (the performance issue) . I have no problem with looping affecting performance in my apps level as I said . So , I thought this might be useful to anyone . It might be right or wrong .

---

You've made a great and logical argument, and no one is saying you are wrong on those merits.
However considering it is subjective behavior (arguable either way), Microsoft chose differently.
Considering this project is a replacement of Microsoft's controls - compatibility completely over rides any subjective differences in logic.

And now comes the beauty of open source - If you want a behavior that's different from how Microsoft has done it for the last 20+ years, anyone can fork / change it.

I don't want to deepen the discussion about the forecolor in the ListView too much further, but:
Like others said it is essential that an replacement set does replace as flawless as possible.
So in fact it doesn't matter who is right or wrong with the ListView ForeColor'ing, the replacement must fulfill the MS behavior.

As an example even that can be tricky. For example the ListView 5.0 does have in one point an other behavior than the ListView 6.0
The ListView 5.0 will not autoselect the first listitem added to the list, whereas the ListView 6.0 does.
So which behavior should I take? Both seems to be "correct"?
I then decided to bring up a property called "AutoSelectFirstItem". It's default value is True.
When True it behaves like MS ListView 6.0, when False it does behave like MS ListView 5.0.
So everyone can decide which behavior to follow. I have chosen the MS ListView 6.0 behavior as default because my assumption was that the most will likely replace the MS ListView 6.0 and not an 5.0 one.

I think that we should be able to make everybody happy with this. I am not convinced that Hosam necessarily wants his desired feature to be the default and break compatibility with the MS version. I am guessing that if there were a new method added that is separate from and in addition to the MS methods that could be called then Hosam would be happy because he could do what he wants to do and everyone else should be happy because they can keep the MS compatibility and also have the option to use the new "Hosam method." Krool, this doesn't sound too hard to add another method (my guess is that would be better than creating a new fork), is this something you would like to add?

MountainMan

Quote:

---

Originally Posted by MountainMan

I think that we should be able to make everybody happy with this. I am not convinced that Hosam necessarily wants his desired feature to be the default and break compatibility with the MS version. I am guessing that if there were a new method added that is separate from and in addition to the MS methods that could be called then Hosam would be happy because he could do what he wants to do and everyone else should be happy because they can keep the MS compatibility and also have the option to use the new "Hosam method." Krool, this doesn't sound too hard to add another method (my guess is that would be better than creating a new fork), is this something you would like to add?

MountainMan

---

After thinking this through, I can see why Microsoft decided to go the way they did. To me it seems non-intuitive that by setting a default ForeColor - you are also resetting all previously set individual colors. It's kind of like completely erasing the bitmap on a form, by setting the BackColor. (which is the default behavior)

So what you/ Hosam are proposing is something like a ForeColorReset(), which removes all individual colors.

Quote:

---

Originally Posted by DEXWERX

After thinking this through, I can see why Microsoft decided to go the way they did. To me it seems non-intuitive that by setting a default ForeColor - you are also resetting all previously set individual colors. It's kind of like completely erasing the bitmap on a form, by setting the BackColor. (which is the default behavior)

So what you/ Hosam are proposing is something like a ForeColorReset(), which removes all individual colors.

---

As far as I also understood is that he needs a method to erase all customizing colors of the listitems (and subitems).

I have in mind a "ResetForeColors" method in .ListItems.
Means (syntax):

Code:

---

ListView1.ListItems.ResetForeColors

---

That method would actually just set the ForeColor of all ListItems and ListSubItems back to -1. (equal ListView.ForeColor)

The same could be done for the TreeView:

Code:

---

TreeView1.Nodes.ResetForeColors

---

Quote:

---

Originally Posted by Krool

I have in mind a "ResetForeColors" method in .ListItems.
Means (syntax):

Code:

---

ListView1.ListItems.ResetForeColors

---

---

Best of both world.... not breaking compatibility and offering a good feature... just like you did with all your component.

Quote:

---

Originally Posted by DEXWERX

You've made a great and logical argument, and no one is saying you are wrong on those merits.
However considering it is subjective behavior (arguable either way), Microsoft chose differently.
Considering this project is a replacement of Microsoft's controls - compatibility completely over rides any subjective differences in logic.
And now comes the beauty of open source - If you want a behavior that's different from how Microsoft has done it for the last 20+ years, anyone can fork / change it.

---

This was the main reason for opening this discussion DEXWERX . We put all merits and demerits on a scale and then come up with a solution which takes main and essential functions into consideration . Is this right ? what is the reason for this behavior ? can we change it ? if no , so what can we do to solve it ? how will this solution affect the control ? and so on . This was the way of discussion I was expecting and asking for and it seems we have reached to this point and I am happy with that .

Quote:

---

Originally Posted by Krool

Like others said it is essential that an replacement set does replace as flawless as possible.

---

Totally agree with this point , krool .

Quote:

---

Originally Posted by MountainMan

I think that we should be able to make everybody happy with this. I am not convinced that Hosam necessarily wants his desired feature to be the default and break compatibility with the MS version.

---

You got the main point and said all what I want to express ,MountainMan

Quote:

---

Originally Posted by DEXWERX

After thinking this through, I can see why Microsoft decided to go the way they did. To me it seems non-intuitive that by setting a default ForeColor - you are also resetting all previously set individual colors. It's kind of like completely erasing the bitmap on a form, by setting the BackColor. (which is the default behavior).

---

Yes DEXWERX , regardless of the solution and its effects , I have been asking myself why they had choosen this behavior and this maybe some logic they adopted .

Quote:

---

Originally Posted by Krool

As far as I also understood is that he needs a method to erase all customizing colors of the listitems (and subitems).

I have in mind a "ResetForeColors" method in .ListItems.
Means (syntax):

Code:

---

ListView1.ListItems.ResetForeColors

---

That method would actually just set the ForeColor of all ListItems and ListSubItems back to -1. (equal ListView.ForeColor)
The same could be done for the TreeView:

Code:

---

TreeView1.Nodes.ResetForeColors

---

---

Thanks krool for providing a suitable solution but does this mean you are going to add it or you suggest this solution to be added by anyone who wants this feature ?

Anyway , thanks all for getting us to a useful end point and lets continue to work to a next step forward

Quote:

---

Originally Posted by Hosam AL Dein

but does this mean you are going to add it or you suggest this solution to be added by anyone who wants this feature ?

---

The method ResetForeColors is now included into the ListView control. (also TreeView control)
I have put it now directly to the ListView and not to .ListItems.
Means (syntax)

Code:

---

ListView1.ResetForeColors

---

The method should be quite fast, even on large lists.

Attachments were not updated krool .

Quote:

---

Originally Posted by Hosam AL Dein

Attachments were not updated krool .

---

Std-EXE version was updated. OCX not as new feature. It will be included into version 1.5.

When will you release v1.5 ? What did you decide to about incorporating FlexGrid into this project or leaving it separate?

I use a Krool toolbar which is changed by code quite often while it is visible.
The toolbar flickers in it's whole size when I set another image for a single button.
It also flickers when I set the same image that was already set.

Toolbar1.Buttons(i).Image = "otherimage"

The image comes from a Krool imagelist.
I already tried to set the toolbar to DoubleBuffer = true.
Still flickers.

The MS original via comctl32.ocx does not flicker, not a little bit.

Is there a special trick to get rid of the flicker with the Krool toolbar?
Perhaps I miss something...

Thanks,
Karl

Hi, Krool !

Can you please append VisualStyles.bas module with *_W2K functions of subclassing like you done in 'ComCtlBase' ?

Also, I noticed that program crashes if OS has no installed printers and you click => RichTextBox Demo => Page Setup => Cancel.

P.S. Again, thanks a lot for your project !!!
Alex.

Quote:

---

Originally Posted by MountainMan

When will you release v1.5 ? What did you decide to about incorporating FlexGrid into this project or leaving it separate?

---

v1.5 will be released still this year imo. The FlexGrid will remain separated.

Quote:

---

Originally Posted by Dragokas

Can you please append VisualStyles.bas module with *_W2K functions of subclassing like you done in 'ComCtlBase' ?

---

There is no need to include *_W2K functons in VisualStyles.bas module as those will be used only when "GetComCtlVersion >= 6".
And this is not the case in W2K. That's why there will be no subclassing applied.

Quote:

---

Originally Posted by Dragokas

Also, I noticed that program crashes if OS has no installed printers and you click => RichTextBox Demo => Page Setup => Cancel.

---

The dialog returns CdlPrinterNotFound error. This can be easily fixed in the RichTextBox Demo by adding an Error Handler. Will do that. Thx

Quote:

---

Originally Posted by Karl77

The toolbar flickers in it's whole size when I set another image for a single button.
It also flickers when I set the same image that was already set.

---

I see. I have a solution in mind and will be fixed very soon.

Quote:

---

There is no need to include *_W2K functons in VisualStyles.bas module as those will be used only when "GetComCtlVersion >= 6".
And this is not the case in W2K. That's why there will be no subclassing applied.

---

Your program crashes on Win2k currently (checked on Win 2k Server SP4 Rollup 2). I added aliases #410/412/413, and it works fine now. I didn't dig deeply to know how and where your subclassing is initiated.
But I know that aliases solved problem for me.
