three questions about DirectDraw
Hello I have three questions regarding DirectDraw
The first one, how can I get the bit array from Dim cMemBitmap As ID2D1Bitmap
Code:
Set cMemTarget = cRenderTarget.CreateCompatibleRenderTarget(D2D1.SizeF(100, 100), ByVal 0&, _
ByVal 0&, D2D1_COMPATIBLE_RENDER_TARGET_OPTIONS_NONE)
Set cBrush = cMemTarget.CreateSolidColorBrush(D2D1.ColorF(Brown), ByVal 0&)
cMemTarget.BeginDraw
cMemTarget.FillRoundedRectangle D2D1.RoundedRect(D2D1.RectF(10, 10, 100, 100), 10, 10), cBrush
cMemTarget.EndDraw ByVal 0&, ByVal 0&
Set cMemBitmap = cMemTarget.GetBitmap()
Dim dBytes() As Byte
ReDim dBytes(cMemBitmap.GetSize.Width * 4 - 1&, cMemBitmap.GetSize.Height - 1&)
'how do i copy it to dBytes()
the second question:
I want to round the corners of an image (RenderTarget.DrawBitmap), I think my two options are to put it in an ID2D1BitmapBrush and then use FillRoundedRectangle, but I still can't solve being able to resize the Bitmap, and the other way is to Clip with (CreatePathGeometry cSink.AddArc DrawGeometry) but I didn't know how building a round rectangle with AddArc, is very different from how it is done with GDI
And the third question, I am using the libraries (I think they are from The trick or at least its examples)
https://www.vbforums.com/showthread....=1#post5290635
Is there something newer or better that I'm missing? I'm asking this now so that I don't have to modify many things later.
Re: three questions about DirectDraw
Quote:
Originally Posted by
LeandroA
Is there something newer or better that I'm missing? I'm asking this now so that I don't have to modify many things later.
Instead of DirectDraw, use Direct3D, and do not mix it with GDI unless absolutely necessary, do everything using Direct3D.
Re: three questions about DirectDraw
Quote:
The first one, how can I get the bit array from Dim cMemBitmap As ID2D1Bitmap
You should use a WIC bitmap instead. See SaveImage example.
Quote:
I want to round the corners of an image (RenderTarget.DrawBitmap), I think my two options are to put it in an ID2D1BitmapBrush and then use FillRoundedRectangle, but I still can't solve being able to resize the Bitmap, and the other way is to Clip with (CreatePathGeometry cSink.AddArc DrawGeometry) but I didn't know how building a round rectangle with AddArc, is very different from how it is done with GDI
See Clip example. You should create a clipping path.
Quote:
Is there something newer or better that I'm missing? I'm asking this now so that I don't have to modify many things later.
OLEEXP seems contains a newer version. With all due respect to fafalone, I do not use it for rendering due to not using VB6-call semantics (out,retval attributes, optional parameters etc.)
Re: three questions about DirectDraw
I've never seen a TLB where functions have optional parameters...
Re: three questions about DirectDraw
Quote:
Originally Posted by
VanGoghGaming
I've never seen a TLB where functions have optional parameters...
See D2DVB.tlb, DX9VB.tlb
Re: three questions about DirectDraw
Quote:
Originally Posted by
The trick
You should use a WIC bitmap instead. See SaveImage example.
Thank you for your answers, regarding the first one. I do not want to save the image, my idea is to work with the bitarray to apply a blur and thus create a shadow of a round rectangle, this routine I use in gdi + but I was looking for a way not to depend on gdi and do it clearly with DirectDraw. now maybe you are suggesting that with WIC I can get the bitarray (without the file headers)? If so, I will look for an example.
Quote:
Originally Posted by
The trick
See Clip example. You should create a clipping path.
I'm basing myself on his example, but as I mentioned before I don't know how to make a round rectangle using AddArc
Quote:
Originally Posted by
The trick
OLEEXP seems contains a newer version. With all due respect to fafalone, I do not use it for rendering due to not using VB6-call semantics (out,retval attributes, optional parameters etc.)
Thank you, I will see if it is not very complicated for me to migrate the functions, otherwise I will continue with your tlb.
Thank you forum for this professional level
Re: three questions about DirectDraw
The issue is MKTYPLIB doesn't support optional and most people use that for VB6 typelibs, because midl is a colossal pain in the ass and forbids you from redefining anything in the IDL files it force-includes with no way to disable, and trying to get around that eventually dead-ends with it telling you it can't create the typelib, but can't tell you what the error is or where it's occurring. So you can't use it for typelibs that include anything low level from oaidl.idl.
Re: call semantics... I tend to not like rewriting things to be different from the documentation and how it's called in every other language... plus it's much more involved going through and doing it. It does make more sense in some ways, but matching other references is more important to me.
oleexp uses The trick's definitions for what was in D2DVB.tlb (minus optionals because of the need to compile with mktypelib), but for the rest of Direct 2D I recently added I don't rewrite things to out,retval.
Re: three questions about DirectDraw
hi leandro. look for VBC_D2D1Effects.zip in the upload/download area on activevb The ZIP contains all the D2D1 effects shown here -> https://docs.microsoft.com/en-us/win...ilt-in-effects There is also a blur effect included. For rounded corners, you could overlay two images (D2D1-Alpha mask effect or D2D1-Composite effect) or use the D2D1-Vignette effect. You can also combine multiple D2D1 effects.
Re: three questions about DirectDraw
Quote:
Originally Posted by
-Franky-
hi leandro. look for VBC_D2D1Effects.zip in the upload/download area on activevb The ZIP contains all the D2D1 effects shown here ->
https://docs.microsoft.com/en-us/win...ilt-in-effects There is also a blur effect included. For rounded corners, you could overlay two images (D2D1-Alpha mask effect or D2D1-Composite effect) or use the D2D1-Vignette effect. You can also combine multiple D2D1 effects.
Hello Frank, it's good to see you here, I was looking at your work. D2D1Effects is very, very good, that shadow is very pretty, it has a very real border, now using your class I think I would have a conflict between mixing tlb and non-tlb, I'm not sure if you could combine them. and writing the rest of the functions (DispCallFunc) would take me a long time.
unfortunately oleexp56.tlb and D2DVB.tlb have not yet included D2D1Effects
In any case, I think I was able to find a solution by reviewing your old CreateSvgDocument code. I came across the CreateWicBitmapRenderTarget function and with that I can now obtain the array of bits
Thank you, surely later I will take advantage of D2D1Effects
1 Attachment(s)
Re: three questions about DirectDraw
Well, I think my questions have been solved, I have also learned something else along the way, for the shadow the best would be D2D1Effects but well for now I think it will not be easy for me, so I will continue with my old method of applying a blur to a shape, as soon as I clipped the image after several attempts I was able to apply AddArc.
and sorry for calling DirectDraw I meant Direct2D

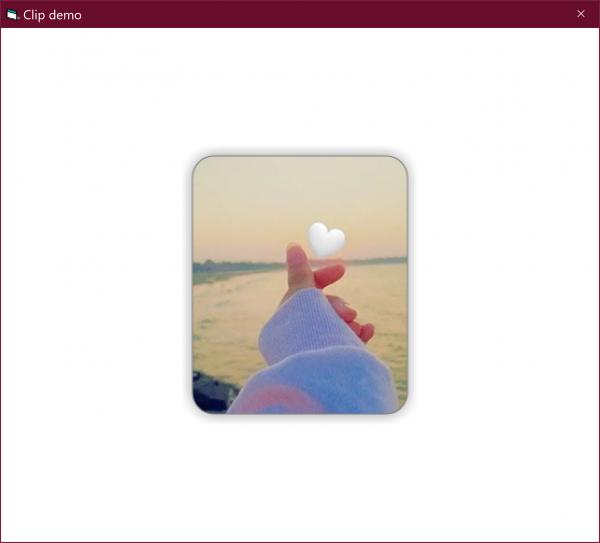

Attachment 186997
I leave the code in case someone else can use it.
Code:
Option Explicit
Private Declare Sub FillMemory Lib "Kernel32.dll" Alias "RtlFillMemory" (ByRef Destination As Any, ByVal Length As Long, ByVal Fill As Byte)
Private Declare Function GetSysColor Lib "user32.dll" (ByVal nIndex As Long) As Long
Private Const GENERIC_READ As Long = &H80000000
Dim cFactory As ID2D1Factory
Dim cWICFactory As WICImagingFactory
Dim cRenderTarget As ID2D1HwndRenderTarget
Dim cBitmap As ID2D1Bitmap
Dim cShadowBitmap As ID2D1Bitmap
Dim Radius As Single
Dim Rect As D2D1_RECT_F
Dim RectShadow As D2D1_RECT_F
Dim ImgWidth As Long
Dim ImgHeight As Long
Dim ShadowBlur As Long
Dim ShadowOpacity As Single
Dim ShadowColor As Long
Private Sub Form_Load()
Dim pLeft As Single
Dim pTop As Single
' // Create a factory
Set cFactory = D2D1.CreateFactory()
' // Create render target
Set cRenderTarget = cFactory.CreateHwndRenderTarget(D2D1.RenderTargetProperties(D2D1.PixelFormat()), _
D2D1.HwndRenderTargetProperties(Me.hWnd, D2D1.SizeU()))
cRenderTarget.Resize D2D1.SizeU(Me.ScaleWidth, Me.ScaleHeight)
'load image
Set cBitmap = LoadImageFromFile(cRenderTarget, App.Path & "/image.jpg")
ImgWidth = cBitmap.GetSize.Width
ImgHeight = cBitmap.GetSize.Height
pLeft = Me.ScaleWidth / 2 - ImgWidth / 2
pTop = Me.ScaleHeight / 2 - ImgHeight / 2
ShadowBlur = 10
Radius = 20
ShadowOpacity = 0.5
ShadowColor = vbBlack
Rect = D2D1.RectF(pLeft, pTop, pLeft + ImgWidth, pTop + ImgHeight)
RectShadow = D2D1.RectF(pLeft - ShadowBlur, pTop - ShadowBlur, pLeft + ImgWidth + ShadowBlur, pTop + ImgHeight + ShadowBlur)
'Create bitmap shadow
Set cShadowBitmap = CreateRoundRectShadow(cRenderTarget, ImgWidth, ImgHeight, Radius, ShadowColor, ShadowOpacity, ShadowBlur)
End Sub
Private Function LoadImageFromFile(cTarget As ID2D1HwndRenderTarget, sPath As String) As ID2D1Bitmap
Dim cDecoder As IWICBitmapDecoder
Dim cFrameDecode As IWICBitmapFrameDecode
Dim cConverter As IWICFormatConverter
Set cWICFactory = New WICImagingFactory
Set cDecoder = cWICFactory.CreateDecoderFromFilename(sPath, ByVal 0&, GENERIC_READ, WICDecodeMetadataCacheOnLoad)
Set cFrameDecode = cDecoder.GetFrame(0)
Set cConverter = cWICFactory.CreateFormatConverter()
cConverter.Initialize cFrameDecode, GUID_WICPixelFormat32bppPBGRA, WICBitmapDitherTypeNone, Nothing, 0, WICBitmapPaletteTypeMedianCut
Set LoadImageFromFile = cTarget.CreateBitmapFromWicBitmap(ByVal cConverter, ByVal 0&)
End Function
Private Sub Form_Paint()
Dim cPath As ID2D1PathGeometry
Dim cSink As ID2D1GeometrySink
Dim cBrush As ID2D1SolidColorBrush
Dim cLayer As ID2D1Layer
cRenderTarget.BeginDraw
'fill background
cRenderTarget.Clear D2D1.ColorF(D2D1_COLORS.White)
'Draw Shadow
cRenderTarget.DrawBitmap cShadowBitmap, RectShadow, , D2D1_BITMAP_INTERPOLATION_MODE_NEAREST_NEIGHBOR, ByVal 0&
'Create RoundRect Path
Set cPath = cFactory.CreatePathGeometry
Set cSink = cPath.Open
cSink.BeginFigure Rect.Left + Radius, Rect.Top, D2D1_FIGURE_BEGIN_FILLED
cSink.AddLine Rect.Right - Radius, Rect.Top
cSink.AddArc D2D1.ArcSegment(D2D1.Point2F(Rect.Right, Rect.Top + Radius), D2D1.SizeF(Radius, Radius), 0, _
D2D1_SWEEP_DIRECTION_CLOCKWISE, D2D1_ARC_SIZE_SMALL)
cSink.AddLine Rect.Right, Rect.bottom - Radius
cSink.AddArc D2D1.ArcSegment(D2D1.Point2F(Rect.Right - Radius, Rect.bottom), D2D1.SizeF(Radius, Radius), 0, _
D2D1_SWEEP_DIRECTION_CLOCKWISE, D2D1_ARC_SIZE_SMALL)
cSink.AddLine Rect.Left + Radius, Rect.bottom
cSink.AddArc D2D1.ArcSegment(D2D1.Point2F(Rect.Left, Rect.bottom - Radius), D2D1.SizeF(Radius, Radius), 0, _
D2D1_SWEEP_DIRECTION_CLOCKWISE, D2D1_ARC_SIZE_SMALL)
cSink.AddLine Rect.Left, Rect.Top + Radius
cSink.AddArc D2D1.ArcSegment(D2D1.Point2F(Rect.Left + Radius, Rect.Top), D2D1.SizeF(Radius, Radius), 0, _
D2D1_SWEEP_DIRECTION_CLOCKWISE, D2D1_ARC_SIZE_SMALL)
cSink.EndFigure D2D1_FIGURE_END_CLOSED
cSink.Close
'Clip
Set cLayer = cRenderTarget.CreateLayer(ByVal 0&)
cRenderTarget.PushLayer D2D1.LayerParameters(D2D1.RectF_InfiniteRect, cPath, D2D1_ANTIALIAS_MODE_PER_PRIMITIVE, _
D2D1.Matrix3x2F_Identity), cLayer
'Draw Image
cRenderTarget.DrawBitmap cBitmap, Rect, , D2D1_BITMAP_INTERPOLATION_MODE_NEAREST_NEIGHBOR, ByVal 0&
cRenderTarget.PopLayer
'Fill Border
Set cBrush = cRenderTarget.CreateSolidColorBrush(D2D1.ColorF(D2D1_COLORS.Gray), ByVal 0&)
cRenderTarget.DrawGeometry cPath, cBrush, 1
cRenderTarget.EndDraw ByVal 0&, ByVal 0&
End Sub
Private Function CreateRoundRectShadow(cTarget As ID2D1HwndRenderTarget, ShadowWidth As Long, ShadowHeight As Long, _
ByVal Radius As Single, ShadowColor As Long, _
ByVal Opacity As Single, ByVal blurDepth As Long) As ID2D1Bitmap
Dim cWICFactory As WICImagingFactory
Dim cWicBitmap As IWICBitmap
Dim cMemTarget As ID2D1RenderTarget
Dim tRTP As D2D1_RENDER_TARGET_PROPERTIES
Dim tRBP As D2D1_BITMAP_PROPERTIES
Dim cBrush As ID2D1SolidColorBrush
Dim tWICRect As WICRect
Dim DestRect As WICRect
Dim lStride As Long
Dim lBuffSize As Long
Dim srcBytes() As Byte
Dim dBytes() As Byte
Dim t2xBlur As Long
Dim vTally() As Long
Dim R As Long, G As Long, B As Long
Dim tAlpha As Long, tColumn As Long, tAvg As Long
Dim initY As Long, initYstop As Long, initYstart As Long
Dim X As Long, Y As Long
If cFactory Is Nothing Then Exit Function
If (ShadowColor And &H80000000) Then ShadowColor = GetSysColor(ShadowColor And &HFF&)
R = ShadowColor And &HFF
G = (ShadowColor \ &H100&) And &HFF
B = (ShadowColor \ &H10000) And &HFF
Set cWICFactory = New WICImagingFactory
Set cWicBitmap = cWICFactory.CreateBitmap(ShadowWidth, ShadowHeight, _
GUID_WICPixelFormat32bppPBGRA, WICBitmapCacheOnDemand)
tRTP.PixelFormat.Format = DXGI_FORMAT_B8G8R8A8_UNORM
tRTP.PixelFormat.alphaMode = D2D1_ALPHA_MODE_PREMULTIPLIED
Set cMemTarget = cFactory.CreateWicBitmapRenderTarget(cWicBitmap, tRTP)
Set cBrush = cMemTarget.CreateSolidColorBrush(D2D1.ColorF(ShadowColor, Opacity), ByVal 0&)
cMemTarget.BeginDraw
cMemTarget.FillRoundedRectangle D2D1.RoundedRect(D2D1.RectF(0, 0, _
ShadowWidth, ShadowHeight), Radius, Radius), cBrush
cMemTarget.EndDraw ByVal 0&, ByVal 0&
With tWICRect
.Width = ShadowWidth
.Height = ShadowHeight
End With
ReDim srcBytes(tWICRect.Width * 4 - 1&, tWICRect.Height - 1&)
lStride = tWICRect.Width * 4 ' 32bppARGB!!!
lBuffSize = tWICRect.Height * lStride
cWicBitmap.CopyPixels tWICRect, lStride, lBuffSize, srcBytes(0, 0)
t2xBlur = blurDepth * 2
DestRect.Width = tWICRect.Width + t2xBlur
DestRect.Height = tWICRect.Height + t2xBlur
ReDim dBytes(DestRect.Width * 4 - 1&, DestRect.Height - 1&)
tAvg = (t2xBlur + 1) * (t2xBlur + 1) ' how many pixels are being blurred
ReDim vTally(0 To t2xBlur) ' number of blur columns per pixel
For Y = 0 To tWICRect.Height + t2xBlur - 1 ' loop thru shadow dib
FillMemory vTally(0), (t2xBlur + 1) * 4, 0 ' reset column totals
If Y < t2xBlur Then ' y does not exist in source
initYstart = 0 ' use 1st row
Else
initYstart = Y - t2xBlur ' start n blur rows above y
End If
' how may source rows can we use for blurring?
If Y < tWICRect.Height Then initYstop = Y Else initYstop = tWICRect.Height - 1
tAlpha = 0 ' reset alpha sum
tColumn = 0 ' reset column counter
' the first n columns will all be zero
' only the far right blur column has values; tally them
For initY = initYstart To initYstop
tAlpha = tAlpha + srcBytes(3, initY)
Next
' assign the right column value
vTally(t2xBlur) = tAlpha
For X = 3 To (tWICRect.Width - 2) * 4 - 1 Step 4
' loop thru each source pixel's alpha
' set shadow alpha using blur average
dBytes(X, Y) = tAlpha \ tAvg
' and set shadow color
Select Case dBytes(X, Y)
Case 255
dBytes(X - 1, Y) = R
dBytes(X - 2, Y) = G
dBytes(X - 3, Y) = B
Case 0
Case Else
dBytes(X - 1, Y) = R * dBytes(X, Y) \ 255
dBytes(X - 2, Y) = G * dBytes(X, Y) \ 255
dBytes(X - 3, Y) = B * dBytes(X, Y) \ 255
End Select
' remove the furthest left column's alpha sum
tAlpha = tAlpha - vTally(tColumn)
' count the next column of alphas
vTally(tColumn) = 0&
For initY = initYstart To initYstop
vTally(tColumn) = vTally(tColumn) + srcBytes(X + 4, initY)
Next
' add the new column's sum to the overall sum
tAlpha = tAlpha + vTally(tColumn)
' set the next column to be recalculated
tColumn = (tColumn + 1) Mod (t2xBlur + 1)
Next
' now to finish blurring from right edge of source
For X = X To (tWICRect.Width + t2xBlur - 1) * 4 - 1 Step 4
dBytes(X, Y) = tAlpha \ tAvg
Select Case dBytes(X, Y)
Case 255
dBytes(X - 1, Y) = R
dBytes(X - 2, Y) = G
dBytes(X - 3, Y) = B
Case 0
Case Else
dBytes(X - 1, Y) = R * dBytes(X, Y) \ 255
dBytes(X - 2, Y) = G * dBytes(X, Y) \ 255
dBytes(X - 3, Y) = B * dBytes(X, Y) \ 255
End Select
' remove this column's alpha sum
tAlpha = tAlpha - vTally(tColumn)
' set next column to be removed
tColumn = (tColumn + 1) Mod (t2xBlur + 1)
Next
Next
tRBP.PixelFormat.Format = DXGI_FORMAT_B8G8R8A8_UNORM
tRBP.PixelFormat.alphaMode = D2D1_ALPHA_MODE_PREMULTIPLIED
Set CreateRoundRectShadow = cTarget.CreateBitmap(DestRect.Width, DestRect.Height, ByVal VarPtr(dBytes(0&, 0&)), DestRect.Width * 4, tRBP)
End Function
Re: three questions about DirectDraw
Quote:
Originally Posted by
LeandroA
Hello Frank, it's good to see you here, I was looking at your work. D2D1Effects is very, very good, that shadow is very pretty, it has a very real border, now using your class I think I would have a conflict between mixing tlb and non-tlb, I'm not sure if you could combine them. and writing the rest of the functions (DispCallFunc) would take me a long time.
unfortunately oleexp56.tlb and D2DVB.tlb have not yet included D2D1Effects
In any case, I think I was able to find a solution by reviewing your old CreateSvgDocument code. I came across the CreateWicBitmapRenderTarget function and with that I can now obtain the array of bits
Thank you, surely later I will take advantage of D2D1Effects
Hi Leandro. It should definitely be possible to use a mix of TLB and non-TLB (DispCallFunc). Haven't needed that yet. My examples don't use TLBs. ;) fafalone is in the process of importing missing and newer D2D1 interfaces into the D2DVB.tlb.
Re: three questions about DirectDraw
The initial pass of that is done; they're all in oleexp. I started by merging D2DVB so those use the same definitions, with the exception MKTYPLIB doesn't support 'optional' so those were removed. I'm probably going to have to go back and change some of those to 'as any' so ByVal 0 can be passed.
