[VB6] Properly Eject CD/DVD and USB Drives Safely

Updated 20-January-2017

See post #20 for the attachment

There is a lot of code floating around the Web for programatically ejecting CD/DVDs and removable drives such as USB flash drives. Much of it is a bit flaky, and some of it works by using disapproved approaches involving registry spelunking and calls to APIs that are not meant for use by applications (worst offender: setupapi.dll).

In any case, Microsoft documented the proper process many years ago in the KB Support Article Q165721: How To: Ejecting Removable Media in Windows NT/Windows 2000/Windows XP


Of course the code example there is written in C, but it is easily converted to VB6 and refactored to remove a bunch of layered procedure calls. The result is a small static module EjectVolMod.bas with one public function:

EjectVolume(Driveletter)


I have wrapped this in a demo Project EjectDrive that you can try out. There are notes in MainMod.bas and in the ReadMe file to explain how to do IDE testing and compile this as a fully-functioning command line EXE. These notes only apply to the demo Project and are not required when using EjectVolume in your own programs.

There are constants relating to drive locking timeouts that you may wish to adjust. I found the KB Article's 10 seconds a bit long and shaved it to 3 seconds.

The code works in Vista and Windows 7. I assume since it was written for Win2K and XP it still works there too!


One thing the ReadMe fails to mention about the demo:

You can test in the IDE, or you can compile and prepare the EXE (as described in the ReadMe) for command line execution. There is no point in double-clicking the EXE, it is meant to be run from the command line passing the drive to eject as an argument, as in:

C:\Users\Fred\Desktop\EjectVolume>EjectDrive E

I hope that clarifies that point.

Excellent code, the only example I've found that works on windows 8.1

Many Many thanks.

I downloaded this the other day but have no idea how to use it in vb 6.3. I have a ms basic compiler, i know how to call a program from vbasic but i don't understand the directions at all.

What I want to do is to eject the flash drive after backing up one excel file to it. the path is hardcoded for the usb drive X:\XL\file.xls), but the Drive letter is not etched in stone. i have a vb6 routine that
searches for a removable drive type and checks to see if the drive is ready. if it is, it saves a copy to the hardcoded directory but the drive could be F: or G: or whatever. The routine I wrote works fine,
but I want to be able to run or call a program that ejects drive "X:" after the aforementioned file is written to it.

How do I go about doing that? I wrote software for a living a while back but Never did anything along these lines.

Just include the EjectVolMod.bas and when you want to eject the drive call the EjectVolume() function passing the drive letter and examine the returned result to determine success or failure.

Aside from that you may want to tweak:

Code:

---

Private Const LOCK_TIMEOUT = 3000 '3 seconds.
Private Const LOCK_RETRIES = 10

---

Quote:

---

Originally Posted by dilettante

Just include the EjectVolMod.bas and when you want to eject the drive call the EjectVolume() function passing the drive letter and examine the returned result to determine success or failure.

Aside from that you may want to tweak:

Code:

---

Private Const LOCK_TIMEOUT = 3000 '3 seconds.
Private Const LOCK_RETRIES = 10

---

---

Include the .bas file? How?? Where?
CALL EjectVolume(driveletter)??

I have never done this before, none of it...

Link of zip file is broken.

Weird. This is the second thread where attachments have disappeared.

I uploaded it again (above).

can not download the zip.you can chected it link?

No idea what's going wrong, but here is EjectVolMod.bas posted as inline text:

Code:

---

Option Explicit

Private Const INVALID_HANDLE_VALUE = -1

Private Const DRIVE_REMOVABLE = 2
Private Const DRIVE_CDROM = 5

Private Const GENERIC_READ = &H80000000
Private Const GENERIC_WRITE = &H40000000

Private Const FILE_SHARE_READ = 1
Private Const FILE_SHARE_WRITE = 2

Private Const OPEN_EXISTING = 3

Private Const FILE_ATTRIBUTE_NORMAL = &H80&

Private Const LOCK_TIMEOUT = 3000 '3 seconds.
Private Const LOCK_RETRIES = 10

Private Const FSCTL_DISMOUNT_VOLUME = &H90020
Private Const FSCTL_LOCK_VOLUME = &H90018

Private Const IOCTL_STORAGE_MEDIA_REMOVAL = &H2D4804
Private Const IOCTL_STORAGE_EJECT_MEDIA = &H2D4808

Public Enum EjectVolumeResults
    evrEjected = 0
    evrCanBeRemoved = 1
    evrDriveTypeWrong = 10
    evrCreateFileErr = 11
    evrCloseHandleErr = 12
    evrInUse = 100
End Enum
'Preserve case of Enum value names:
#If False Then
Dim evrEjected, evrCanBeRemoved, evrDriveTypeWrong
Dim evrCreateFileErr, evrCloseHandleErr, evrInUse
#End If

Private Declare Function CloseHandle Lib "kernel32" (ByVal hObject As Long) As Long

Private Declare Function CreateFile Lib "kernel32" Alias "CreateFileW" ( _
    ByVal lpFileName As Long, _
    ByVal dwDesiredAccess As Long, _
    ByVal dwShareMode As Long, _
    ByVal lpSecurityAttributes As Long, _
    ByVal dwCreationDisposition As Long, _
    ByVal dwFlagsAndAttributes As Long, _
    ByVal hTemplateFile As Long) As Long

Private Declare Function DeviceIoControl Lib "kernel32" ( _
    ByVal hDevice As Long, _
    ByVal dwIoControlCode As Long, _
    ByVal lpInBuffer As Long, _
    ByVal nInBufferSize As Long, _
    ByVal lpOutBuffer As Long, _
    ByVal nOutBufferSize As Long, _
    ByRef lpBytesReturned As Long, _
    ByVal lpOverlapped As Long) As Long

Private Declare Function GetDriveType Lib "kernel32" Alias "GetDriveTypeW" ( _
    ByVal nDrive As Long) As Long

Private Declare Sub Sleep Lib "kernel32" (ByVal dwMilliseconds As Long)

Private Function DevCtl(ByVal hVolume As Long, ByVal IOCtlCode As Long) As Boolean
    Dim dwBytesReturned As Long
    Dim PMRBuffer As Long 'PREVENT_MEDIA_REMOVAL struct, really only used when
                          'IOCtlCode = IOCTL_STORAGE_MEDIA_REMOVAL.

    'PMRBuffer = 0
    DevCtl = CBool(DeviceIoControl(hVolume, _
                                  IOCtlCode, _
                                  VarPtr(PMRBuffer), LenB(PMRBuffer), _
                                  0, 0, dwBytesReturned, 0))
End Function

Public Function EjectVolume(ByVal DriveLetter As String) As EjectVolumeResults
    Dim uDriveType As Long
    Dim szVolumeName As String
    Dim szRootName As String
    Dim dwAccessFlags As Long
    Dim hVolume As Long
    Dim dwSleepAmount As Long
    Dim nTryCount As Long
    Dim fRemoveSafely As Boolean
    Dim fAutoEject As Boolean

    DriveLetter = UCase$(Left$(DriveLetter, 1))
    szRootName = DriveLetter & ":\"
    uDriveType = GetDriveType(StrPtr(szRootName))
    Select Case uDriveType
        Case DRIVE_REMOVABLE
            dwAccessFlags = GENERIC_READ Or GENERIC_WRITE
        Case DRIVE_CDROM
            dwAccessFlags = GENERIC_READ
        Case Else
            EjectVolume = evrDriveTypeWrong
            Exit Function
    End Select

    szVolumeName = "\\.\" & DriveLetter & ":"
    hVolume = CreateFile(StrPtr(szVolumeName), _
                        dwAccessFlags, _
                        FILE_SHARE_READ Or FILE_SHARE_WRITE, _
                        0, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0)
    If hVolume = INVALID_HANDLE_VALUE Then
        EjectVolume = evrCreateFileErr
        Exit Function
    End If

    dwSleepAmount = LOCK_TIMEOUT / LOCK_RETRIES
    For nTryCount = 1 To LOCK_RETRIES
        If DevCtl(hVolume, FSCTL_LOCK_VOLUME) Then
            If DevCtl(hVolume, FSCTL_DISMOUNT_VOLUME) Then
                fRemoveSafely = True
                If DevCtl(hVolume, IOCTL_STORAGE_MEDIA_REMOVAL) Then
                    fAutoEject = DevCtl(hVolume, IOCTL_STORAGE_EJECT_MEDIA)
                End If
            End If
            Exit For
        End If
        Sleep dwSleepAmount
    Next

    If CloseHandle(hVolume) = 0 Then
        EjectVolume = evrCloseHandleErr
        Exit Function
    End If

    If fAutoEject Then
        If dwAccessFlags = GENERIC_READ Or GENERIC_WRITE Then
            EjectVolume = evrCanBeRemoved
        Else
            EjectVolume = evrEjected
        End If
    ElseIf fRemoveSafely Then
        EjectVolume = evrCanBeRemoved
    Else
        EjectVolume = evrInUse
    End If
End Function

---

Here is MainMod.bas:

Code:

---

Option Explicit
'Test in the IDE by putting your drive string ("E" or "E:" etc.) into:
'
'  IDE Menu:          Project|EjectDriveDemo Properties...
'  Properties Dialog: Make tab
'  Field:            Command Line Arguments
'
'AFTER COMPILING: The compiled EXE must be relinked for the Console
'subsystem.  Do this by dragging and dropping the EXE onto the supplied
'LinkConsole.vbs script, which may need editing if you installed VB6
'to an unusual location (see remarks in the script).
'

Private Const STD_OUTPUT_HANDLE = -11

Private Declare Function GetStdHandle Lib "kernel32" ( _
    ByVal nStdHandle As Long) As Long

Private Declare Function WriteFile Lib "kernel32" ( _
    ByVal hFile As Long, _
    ByVal lpBuffer As Long, _
    ByVal nNumberOfBytesToWrite As Long, _
    ByRef lpNumberOfBytesWritten As Long, _
    ByVal lpOverlapped As Long) As Long

Public Property Get IDEMode() As Boolean
    On Error Resume Next
    Debug.Assert CBool(1 / 0)
    IDEMode = CBool(Err.Number)
End Property

Private Sub Main()
    Dim Drive As String
    Dim Result As EjectVolumeResults
    Dim Response As String

    Drive = Trim$(Command$())
    If Len(Drive) < 1 Then
        Response = "Missing drive letter command line argument"
    Else
        Result = EjectVolume(Drive)
        Select Case Result
            Case evrEjected
                Response = "Ejected!"
            Case evrCanBeRemoved
                Response = "Can safely be removed!"
            Case evrDriveTypeWrong
                Response = "Error, wrong drive type!"
            Case evrCreateFileErr
                Response = "Error, CreateFile failed!"
            Case evrCloseHandleErr
                Response = "Error, Closehandle failed!"
            Case evrInUse
                Response = "Failed, device is in use!"
        End Select
        Response = "Result = " & CStr(Result) & ": " & Response
    End If
    If IDEMode() Then
        MsgBox Response
    Else
        Response = StrConv(Response, vbFromUnicode)
        WriteFile GetStdHandle(STD_OUTPUT_HANDLE), _
                  StrPtr(Response), LenB(Response), Result, 0
    End If
End Sub

---

Here is LinkConsole.vbs:

Code:

---

Option Explicit
'LinkConsole.vbs
'
'This is a WSH script used to make it easier to edit
'a compiled VB6 EXE using LINK.EXE to create a console
'mode program.
'
'Drag the EXE's icon onto the icon for this file, or
'execute it from a command prompt as in:
'
'        LinkConsole.vbs <path>\my.exe
'
'Be sure to set up LINK to match your VB6 installation.

Const LINK = """C:\Program Files\Microsoft Visual Studio\VB98\LINK.EXE"""
Dim strEXE, WshShell

strEXE = """" & WScript.Arguments(0) & """"
Set WshShell = CreateObject("WScript.Shell")
WshShell.Run LINK & " /EDIT /SUBSYSTEM:CONSOLE " & strEXE, 0, True
WScript.Echo "Relinking complete!"

---

Here is ReadMe.txt:

Code:

---

===================================
EjectVolume and the EjectDrive Demo
===================================

Using EjectVolume
-----------------

EjectVolMod.bas can be added to your projects and you can simply call
the function:

    Public Function EjectVolume(ByVal DriveLetter As String) As EjectVolumeResults

Also note the enum:

    Public Enum EjectVolumeResults
        evrEjected = 0
        evrCanBeRemoved = 1
        evrDriveTypeWrong = 10
        evrCreateFileErr = 11
        evrCloseHandleErr = 12
        evrInUse = 100
    End Enum

Testing and Compiling the EjectDrive Demo
-----------------------------------------

Test in the IDE by putting your drive string ("E" or "E:" etc.) into:

  IDE Menu:          Project|EjectDriveDemo Properties...
  Properties Dialog: Make tab
  Field:            Command Line Arguments

AFTER COMPILING: The compiled EXE must be relinked for the Console
subsystem.  Do this by dragging and dropping the EXE onto the supplied
LinkConsole.vbs script, which may need editing if you installed VB6
to an unusual location (see remarks in the script).

TESTING THE COMPILED DEMO: This is done by opening a console window
and running the program passing the drive letter to eject as the
command line argument:

    C:\Users\Fred\Desktop\EjectVolume>EjectDrive F

---

Not sure what's going on with the link. It's broken for me, as well, which shouldn't be a surprise. I've elevated the question to the admins in hope of getting some clarification on it.

Quote:

---

Originally Posted by Shaggy Hiker

Not sure what's going on with the link. It's broken for me, as well, which shouldn't be a surprise. I've elevated the question to the admins in hope of getting some clarification on it.

---

Can you try to upload the file again? It isn't showing on our server based on the attachment ID.

One more try! ;)

Seems to have been blackholed yet again. :mad:

Quote:

---

Originally Posted by Shaggy Hiker

Not sure what's going on with the link. It's broken for me, as well, which shouldn't be a surprise. I've elevated the question to the admins in hope of getting some clarification on it.

---

Also, I have the problem that any link I send in message , the message will be rejected! :eek:

Quote:

---

Originally Posted by dilettante

One more try! ;)

Seems to have been blackholed yet again. :mad:

---

Email me the file and I'll see if it will upload for me.

Quote:

---

Originally Posted by gibra

Also, I have the problem that any link I send in message , the message will be rejected! :eek:

---

Try adding a link to your post without using the link bbCode or the link button. Simply include it as text.

www.vbforums.com

Quote:

---

Originally Posted by brad jones

Try adding a link to your post without using the link bbCode or the link button. Simply include it as text.

---

This work, of course, only when I send as text only.
But:
1) If I modify the message before to send, in preview mode the text-link become a true-link (automatically), so I can't send.
2) If I reply to a message which contains any link, I can't send reply. To reply to your message, I had to remove your link www-vbforums-com!

Because on both cases I riceive this message:

Something went wrong!

Sadly, you’ve reached a page that can’t be displayed.
We’ve logged this action, so we are aware there is an issue!
At this time, please hit your browser’s back button or simply close this page!
The incident ID is: N/A.


http://www.vbcorner.net/images/vbforums/err_link.png

If I send the reply directly (without preview) then the message is accepted.

Uploading the file:

Attachment 144339

Brad's link worked for me.

Worked for me as well.

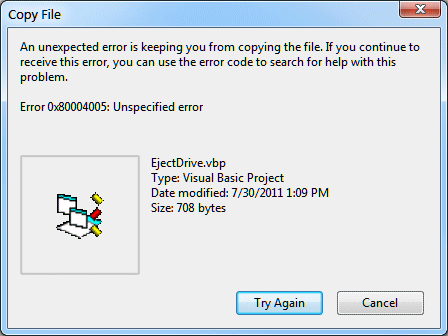

The link in post #20 isn't working for me. No matter what I try, I get an error similar to the following:

Attachment 144371

I downloaded it multiple times. That part seems to go fine. However, when I attempt to open it, no cigar. I tried with Windows Explorer and 7-Zip. 7-Zip just hangs up, whereas Windows Explorer gives the above error.

I also tried downloading and unzipping another file from these forums, and that worked just fine.

Not sure what's going on, but it ain't workin' here.

Regards,
Elroy

You're right!

I should have gone further with me testing. When I said "it worked" above I only meant that the download downloaded... something. I didn't try to use it.

The original ZIP file is 4437 bytes long.

Maybe at some level some security software is triggering on the file name or something? There are no binaries within the ZIP.

Weird.

I just downloaded it again, changed it from .zip to .txt, and checked the size and opened it and everything looked good.

Then I renamed it back to .zip and it opened in Explorer just fine, listing the contents. But it won't extract.

The original .zip file I created still extracts just fine.

Quote:

---

Originally Posted by Elroy

The link in post #20 isn't working for me. No matter what I try, I get an error...

---

Me, also.
I can download the zip file, but when extract them 7-zip says me that some files are corrupted, i.e.

- EjectVolMod.bas contains 1 row only:
Attribute VB_Name = "EjectVolModgfU
-------------------------------------------------
- EjectDrive.vbp contains 2 rows:
Type=Exe
Reference=*\G{00020430-----sG
-------------------------------------------------
- LinkConsole.vbs contains:
Option Explicit
'LinkConsole.vbs
'
'This is a WSH script used
-------------------------------------------------

:(

Files are messed up in the zip file for me too. We'll have to look into this. Is this the only download messing up right now?

It's the only one that has messed up for me that I can remember. I don't download ZIPs from this site everyday, but I do often enough that I'd remember if something seemingly more systemic was going wrong.

Testing....


EDIT: I am able to download - unzip and read the text tile.
