[VB6] - Kernel mode driver.
http://www.youtube.com/watch?v=XizH8FODgRY
Hello everyone (sorry my English). There was a time, and decided to write something unusual on VB6, namely to try to write a driver. I must say before that I never wrote a driver and have no programming experience in kernel mode. The driver, according to my idea, will have to read the memory is not available in user mode, namely in the range 0x80000000 - 0xffffffff (in default mode, without IMAGE_FILE_LARGE_ADDRESS_AWARE). Immediately give the driver source code which is obtained:
Code:
' // modTrickMemReader.bas - driver module
' // © Krivous Anatoly Anatolevich (The trick), 2014
Option Explicit
Public Enum NT_STATUS
STATUS_SUCCESS = 0
STATUS_INVALID_PARAMETER = &HC000000D
End Enum
Public Type UNICODE_STRING
Length As Integer
MaximumLength As Integer
lpBuffer As Long
End Type
Public Type LIST_ENTRY
Flink As Long
Blink As Long
End Type
Public Type KDEVICE_QUEUE
Type As Integer
Size As Integer
DeviceListHead As LIST_ENTRY
Lock As Long
Busy As Long
End Type
Public Type KDPC
Type As Byte
Importance As Byte
Number As Integer
DpcListEntry As LIST_ENTRY
DeferredRoutine As Long
DeferredContext As Long
SystemArgument1 As Long
SystemArgument2 As Long
DpcData As Long
End Type
Public Type DISPATCHER_HEADER
Lock As Long
SignalState As Long
WaitListHead As LIST_ENTRY
End Type
Public Type KEVENT
Header As DISPATCHER_HEADER
End Type
Public Type IO_STATUS_BLOCK
StatusPointer As Long
Information As Long
End Type
Public Type Tail
DriverContext(3) As Long
Thread As Long
AuxiliaryBuffer As Long
ListEntry As LIST_ENTRY
lpCurStackLocation As Long
OriginalFileObject As Long
End Type
Public Type IRP
Type As Integer
Size As Integer
MdlAddress As Long
Flags As Long
AssociatedIrp As Long
ThreadListEntry As LIST_ENTRY
IoStatus As IO_STATUS_BLOCK
RequestorMode As Byte
PendingReturned As Byte
StackCount As Byte
CurrentLocation As Byte
Cancel As Byte
CancelIrql As Byte
ApcEnvironment As Byte
AllocationFlags As Byte
UserIosb As Long
UserEvent As Long
Overlay As Currency
CancelRoutine As Long
UserBuffer As Long
Tail As Tail
End Type
Public Type DEVICEIOCTL
OutputBufferLength As Long
InputBufferLength As Long
IoControlCode As Long
Type3InputBuffer As Long
End Type
Public Type IO_STACK_LOCATION
MajorFunction As Byte
MinorFunction As Byte
Flags As Byte
Control As Byte
' Поле DeviceIoControl из объединения
DeviceIoControl As DEVICEIOCTL
pDeviceObject As Long
pFileObject As Long
pCompletionRoutine As Long
pContext As Long
End Type
Public Type DRIVER_OBJECT
Type As Integer
Size As Integer
pDeviceObject As Long
Flags As Long
DriverStart As Long
DriverSize As Long
DriverSection As Long
DriverExtension As Long
DriverName As UNICODE_STRING
HardwareDatabase As Long
FastIoDispatch As Long
DriverInit As Long
DriverStartIo As Long
DriverUnload As Long
MajorFunction(27) As Long
End Type
Public Type DEVICE_OBJECT
Type As Integer
Size As Integer
ReferenceCount As Long
DriverObject As Long
NextDevice As Long
AttachedDevice As Long
CurrentIrp As Long
Timer As Long
Flags As Long
Characteristics As Long
Vpb As Long
DeviceExtension As Long
DeviceType As Long
StackSize As Byte
Queue(39) As Byte
AlignRequirement As Long
DeviceQueue As KDEVICE_QUEUE
Dpc As KDPC
ActiveThreadCount As Long
SecurityDescriptor As Long
DeviceLock As KEVENT
SectorSize As Integer
Spare1 As Integer
DeviceObjExtension As Long
Reserved As Long
End Type
Private Type BinaryString
D(255) As Integer
End Type
Public Const FILE_DEVICE_UNKNOWN As Long = &H22
Public Const IO_NO_INCREMENT As Long = &H0
Public Const IRP_MJ_CREATE As Long = &H0
Public Const IRP_MJ_CLOSE As Long = &H2
Public Const IRP_MJ_DEVICE_CONTROL As Long = &HE
Public Const FILE_DEVICE_MEMREADER As Long = &H8000&
Public Const IOCTL_READ_MEMORY As Long = &H80002000
Public DeviceName As UNICODE_STRING ' // Device name unicode string
Public DeviceLink As UNICODE_STRING ' // Device link unicode string
Public Device As DEVICE_OBJECT ' // Device object
Dim strName As BinaryString ' // Device name string
Dim strLink As BinaryString ' // Device link string
Public Sub Main()
End Sub
' // If error - false
Public Function NT_SUCCESS( _
ByVal Status As NT_STATUS) As Boolean
NT_SUCCESS = Status >= STATUS_SUCCESS
End Function
' // Get pointer to IRP stack
Public Function IoGetCurrentIrpStackLocation( _
ByRef pIrp As IRP) As Long
IoGetCurrentIrpStackLocation = pIrp.Tail.lpCurStackLocation
End Function
' // Entry point of driver
Public Function DriverEntry( _
ByRef DriverObject As DRIVER_OBJECT, _
ByRef RegistryPath As UNICODE_STRING) As NT_STATUS
Dim Status As NT_STATUS
' // Strings initialization
Status = Init()
' // This checking is not required but i left it because you can improve Init function
If Not NT_SUCCESS(Status) Then
DriverEntry = Status
Exit Function
End If
' // Create new device
Status = IoCreateDevice(DriverObject, 0, DeviceName, FILE_DEVICE_MEMREADER, 0, False, Device)
' // Check if device has been created
If Not NT_SUCCESS(Status) Then
DriverEntry = Status
Exit Function
End If
' // Create link, in order to access to object from user mode
Status = IoCreateSymbolicLink(DeviceLink, DeviceName)
' // Check if link has been created
If Not NT_SUCCESS(Status) Then
' // If is not created then delete device
IoDeleteDevice Device
DriverEntry = Status
Exit Function
End If
' // Set callback functions
DriverObject.DriverUnload = GetAddr(AddressOf DriverUnload) ' // Driver unloading
DriverObject.MajorFunction(IRP_MJ_CREATE) = GetAddr(AddressOf DriverCreateClose) ' // When CreateFile is being called
DriverObject.MajorFunction(IRP_MJ_CLOSE) = GetAddr(AddressOf DriverCreateClose) ' // When CloseHandle is being called
DriverObject.MajorFunction(IRP_MJ_DEVICE_CONTROL) = GetAddr(AddressOf DriverDeviceControl) ' // When DeviceIoControl is being called
' // Everything fine
DriverEntry = STATUS_SUCCESS
End Function
' // Unloading driver procedure
Public Sub DriverUnload( _
ByRef DriverObject As DRIVER_OBJECT)
' // Delete link
IoDeleteSymbolicLink DeviceLink
' // Delete device
IoDeleteDevice ByVal DriverObject.pDeviceObject
End Sub
' // This function is being called during opening/closing driver
Public Function DriverCreateClose( _
ByRef DeviceObject As DEVICE_OBJECT, _
ByRef pIrp As IRP) As NT_STATUS
pIrp.IoStatus.Information = 0
pIrp.IoStatus.StatusPointer = STATUS_SUCCESS
' // Return IRP packet to IO manager
IoCompleteRequest pIrp, IO_NO_INCREMENT
' // Success
DriverCreateClose = STATUS_SUCCESS
End Function
' // IOCTL processing procedure
Public Function DriverDeviceControl( _
ByRef DeviceObject As DEVICE_OBJECT, _
ByRef pIrp As IRP) As NT_STATUS
Dim lpStack As Long
Dim ioStack As IO_STACK_LOCATION
' // Get pointer to IRP stack
lpStack = IoGetCurrentIrpStackLocation(pIrp)
' // If valid pointer
If lpStack Then
' // Copy to local variable
memcpy ioStack, ByVal lpStack, Len(ioStack)
' // Check IOCTL and AssociatedIrp union that contains SystemBuffer
' // SystemBuffer contains the buffer passed from DeviceIoControl
If ioStack.DeviceIoControl.IoControlCode = IOCTL_READ_MEMORY And _
pIrp.AssociatedIrp <> 0 Then
Dim lpPointer As Long
Dim DataSize As Long
' // Copy parameters from SystemBuffer
memcpy lpPointer, ByVal pIrp.AssociatedIrp, 4
memcpy DataSize, ByVal pIrp.AssociatedIrp + 4, 4
' П// Check buffer size
If DataSize <= ioStack.DeviceIoControl.OutputBufferLength Then
' // Get the number of allowed pages
Dim lpStart As Long
Dim pgCount As Long
Dim pgSize As Long
Dim pgOfst As Long
' // Get first address of page
lpStart = lpPointer And &HFFFFF000
' // Get offset at beginning of page
pgOfst = lpPointer And &HFFF&
' // Go thru pages and check PageFault error
Do While MmIsAddressValid(ByVal lpStart) And (pgSize - pgOfst < DataSize)
lpStart = lpStart + &H1000
pgCount = pgCount + 1
pgSize = pgSize + &H1000
Loop
' // If there are allowed pages
If pgCount Then
' // Get size in bytes
pgSize = pgCount * &H1000 - pgOfst
' // Fix size
If DataSize > pgSize Then DataSize = pgSize
' // Return total read bytes
pIrp.IoStatus.Information = DataSize
' // Success to DeviceIoControl
pIrp.IoStatus.StatusPointer = STATUS_SUCCESS
' Copy data to system buffer
memcpy ByVal pIrp.AssociatedIrp, ByVal lpPointer, DataSize
' // Return IRP packet to IO manager
IoCompleteRequest pIrp, IO_NO_INCREMENT
' // Success
DriverDeviceControl = STATUS_SUCCESS
' // Exit
Exit Function
End If
End If
End If
End If
' // Return real size of read bytes
pIrp.IoStatus.Information = 0
' // Error to DeviceIoControl
pIrp.IoStatus.StatusPointer = STATUS_INVALID_PARAMETER
' // Return IRP packet to IO manager
IoCompleteRequest pIrp, IO_NO_INCREMENT
' // Error
DriverDeviceControl = STATUS_INVALID_PARAMETER
End Function
' // Initialize all strings
Private Function Init() As NT_STATUS
' // Initialize device name "\Device\TrickMemReader"
strName.D(0) = &H5C: strName.D(1) = &H44: strName.D(2) = &H65: strName.D(3) = &H76: strName.D(4) = &H69:
strName.D(5) = &H63: strName.D(6) = &H65: strName.D(7) = &H5C: strName.D(8) = &H54: strName.D(9) = &H72:
strName.D(10) = &H69: strName.D(11) = &H63: strName.D(12) = &H6B: strName.D(13) = &H4D: strName.D(14) = &H65:
strName.D(15) = &H6D: strName.D(16) = &H52: strName.D(17) = &H65: strName.D(18) = &H61: strName.D(19) = &H64:
strName.D(20) = &H65: strName.D(21) = &H72
' // Fill UNICODE_STRING structure
RtlInitUnicodeString DeviceName, strName
' // Initialize device link for user mode "\DosDevices\TrickMemReader"
strLink.D(0) = &H5C: strLink.D(1) = &H44: strLink.D(2) = &H6F: strLink.D(3) = &H73: strLink.D(4) = &H44:
strLink.D(5) = &H65: strLink.D(6) = &H76: strLink.D(7) = &H69: strLink.D(8) = &H63: strLink.D(9) = &H65:
strLink.D(10) = &H73: strLink.D(11) = &H5C: strLink.D(12) = &H54: strLink.D(13) = &H72: strLink.D(14) = &H69:
strLink.D(15) = &H63: strLink.D(16) = &H6B: strLink.D(17) = &H4D: strLink.D(18) = &H65: strLink.D(19) = &H6D:
strLink.D(20) = &H52: strLink.D(21) = &H65: strLink.D(22) = &H61: strLink.D(23) = &H64: strLink.D(24) = &H65
strLink.D(25) = &H72
' // Fill UNICODE_STRING structure
RtlInitUnicodeString DeviceLink, strLink
End Function
' // Return passed value
Private Function GetAddr( _
ByVal Value As Long) As Long
GetAddr = Value
End Function
So, the driver must have an entry point DriverEntry, which causes the controller I/O driver is loaded. In the parameters of a pointer to an object-driver and a pointer to a string containing the name of the registry key corresponding to the loadable driver. In the Init procedure, we create two lines, one with the name of the device, the other with reference to the device name. Because we can not use the runtime kernel mode, it is necessary to create a string in the form of a static array, wrapped in a user-defined type, thereby VB6 allocates memory for the array on the stack. If you use a string that will inevitably be caused by one of the functions for runtime and copy assignment line, and we can not allow that. Then we can call IoCreateDevice, which creates a device object. Device object is the recipient of I/O requests and to him we will access when calling CreateFile function from user mode.
-
1 Attachment(s)
Re: [VB6] - Kernel mode driver.
The first parameter is a pointer to an object-driver; the second parameter is 0, then since we do not have the structure of the expansion device, and we do not need to allocate memory; the third parameter we pass the name of the device, it is we need to implement access to the device; fourth parameter passed to the device type (see below). in the fifth, we pass 0 as we have "non-standard device"; in the sixth pass False, because We do not need single-user mode; the last parameter - the output. As the name of the device we have to use a string like \Device\DeviceName (where DeviceName - TrickMemReader), is the name we need to ensure that we can create a link to it, which in turn need to access the device from user mode.

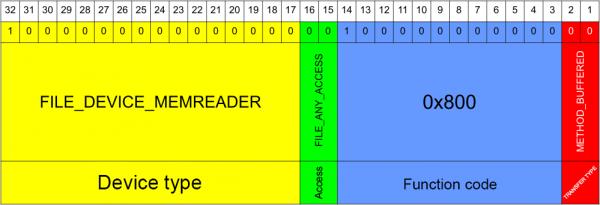

Device type - FILE_DEVICE_MEMREADER. All non-standard devices must be of type or FILE_DEVICE_UNKNOWN, or the number of 0x8000 - 0xffff. I created FILE_DEVICE_MEMREADER constant with a value of 0x8000, which corresponds to the first free number. On success, the device is created and filled structure DEVICE_OBJECT. After the need to create a connection between the device name of the kernel mode and user mode. As the name we use \DosDevices\TrickMemReader, from user mode, we will refer to it via the link '\\.\TrickMemReader". The link is created through IoCreateSymbolicLink. Next we define callback-procedure that will be called when certain events occur:
- DriverUnload - deinitialize driver;
- DriverCreateClose - when opening and closing device;
- DriverDeviceControl - when calling DeviceIoControl.
And So. Now we return STATUS_SUCCESS, which corresponds to the successful implementation.* Now consider the procedure DriverUnload. It's simple - we remove the connection and set up the device. In the processing functions of opening and closing device DriverCreateClose, the status of the request, we return a success, and return the IRP packet I/O manager. Exchange of data between an application and device via the IRP-packets. IRP-package consists of 2 parts: a header and a stack of variable length. Part of the structure represented by the type of IRP. So now we add functionality to our driver function DriverDeviceControl. In this function I/O Manager will send IRP-data packet transmitted from the client application, which we will generate a call to DeviceIoControl. The parameters we pass 2 Long numbers: 1st address, where produce reading, 2nd number of bytes to read. Also one of the parameters passed to IRP-bag, when calling DeviceIoControl, a control code input / output (IOCTL), which represents the structure of the device type, function number, the type of data and the type of access. You can define several such codes for different operations and use them. I defined the code so IOCTL_READ_MEMORY = 0x80002000, 8000 - corresponds to the type of our device (FILE_DEVICE_MEMREADER); function number = 0x800, values below are reserved for user-defined functions allowed values 0x800 - 0xFFF; the type of data transmission - 0x0 (METHOD_BUFFERED), it means that we will receive / transmit data through the buffer that is specified SystemBuffer IRP-package); access type - FILE_ANY_ACCESS. visually:
Attachment 139801
So, as a function of DriverDeviceControl we get a pointer to the I/O stack IRP-query using the IoGetCurrentIrpStackLocation, which returns the parameter of lpCurStackLocation. When Successes (if non-zero pointer) is copied to the local structure IO_STACK_LOCATION parameters are referenced by the pointer. Now we check the IOCTL-code field AssociatedIrp, which is a union (in VB6 no associations) which stores a pointer to SystemBuffer. Because we have the type of data corresponds METHOD_BUFFERED, in parameter SystemBuffer contains a pointer to the buffer with the parameters (address and size) DeviceIoControl, in this buffer, we can also recover data that is written to the output buffer DeviceIoControl. Now, if we have data contains the correct values (IOCTL and SystemBuffer), then we copy into local variables (lpPointer, DataSize). Next, check the size of the buffer. Size of the system I/O buffer is contained in the parameter DeviceIoControl.OutputBufferLength. If the requested number of bytes is not larger than the size of the system buffer, then everything is fine. Now we need to calculate the number of memory pages occupied by the data that we want to copy. To do this, we define the virtual address of the beginning of the page corresponding to pass a pointer, and because page size is a multiple of 4 KB (0x1000) we simply vanish 12-bit pointer. Next, we check in the cycle will not be whether an exception is thrown Page fault using the MmIsAddressValid. If the page is not in memory, the function returns False. Thus we check the number of pages that you want us to take a piece of memory and the number of pages that we can read. Then we calculate the actual size of the data that we will be able to read and, if necessary, adjust the size. Next to the title of IRP-package we copy the data size that we can read and a successful status. IoStatus.Information field matches the value returned by DeviceIoControl parameter lpBytesReturned. Next copy in SystemBuffer right amount of bytes using RtlMoveMemory and return IRP-package I/O manager. Return the status of a successful operation. In all other cases, return error STATUS_INVALID_PARAMETER and zero data size. All the driver code is ready.
-
Re: [VB6] - Kernel mode driver.
Proceed to the compilation. Because we can not use the runtime, all the API-functions, we declare a TLB, so that they fall into the import:
Code:
[uuid(0000001F-0000-0000-0000-000000000AAB)]
library ImportFunctionsForTrickMemReaderDriver
{
[dllname("Ntoskrnl.exe")]
module Ntoskrnl
{
[entry("IoCreateDevice")]int IoCreateDevice
(void *DriverObject,
int DeviceExtensionSize,
void *DeviceName,
int DeviceType,
int DeviceCharacteristics,
int Exclusive,
void *DeviceObject);
[entry("IoCreateSymbolicLink")]int IoCreateSymbolicLink
(void *SymbolicLinkName,
void *DeviceName);
[entry("IoDeleteDevice")]void IoDeleteDevice
(void *DeviceObject);
[entry("IoDeleteSymbolicLink")]int IoDeleteSymbolicLink
(void *SymbolicLinkName);
[entry("IoCompleteRequest")]void IoCompleteRequest
(void *pIrp,
unsigned char PriorityBoost);
[entry("RtlInitUnicodeString")]int RtlInitUnicodeString
(void *UnicodeString,
void *StringPtr);
[entry("RtlMoveMemory")]void memcpy
(void *Destination,
void *Source,
int Length);
[entry("MmIsAddressValid")]int MmIsAddressValid
(void *VirtualAddress);
[entry("InterlockedExchange")]int InterlockedExchange
(void *Target,
void *Value);
}
}
PS. InterlockedExchange - I left because first driver had a bit of a different structure, subsequently left the ad in the TLB. In the driver, it does not fall into imports.
To the driver worked to do three things:
- In the field Subsystem, structure IMAGE_OPTIONAL_HEADER PE-driver file should be the value that corresponds to IMAGE_SUBSYSTEM_NATIVE kernel-mode driver.
- Specify as the entry point of our procedure DriverEntry
- Add a relocation section, in order that the driver can be loaded at any address.
- Exclude MSVBVM60 of imports.
For the first 3 points are added to the compilation keys vbp-file with the following contents:
Code:
[VBCompiler]
LinkSwitches= /ENTRY:DriverEntry /SUBSYSTEM:NATIVE /FIXED:NO
Compile the project with all the default optimization. To exclude the runtime of the import, I use a utility Patch, I used here. I'm a little modify it, as initially could not start the driver and long puzzled because of what it does, and the reason was the checksum. After exclusion of the import library checksum has changed, and I do not update it. And EXE, DLL, etc. this field is not checked, and the driver checks. To check the watch imports in any viewer PE:
http://s7.hostingkartinok.com/upload...672ff966ad.png
As you can see there is no runtime. What we required.
-
Re: [VB6] - Kernel mode driver.
To test driver I wrote a simple program that loads the driver and works with him.
Code:
' // frmTestTrickVBDriver.frm - test form for driver
' // © Krivous Anatoly Anatolevich (The trick), 2014
Option Explicit
Private Type SERVICE_STATUS
dwServiceType As Long
dwCurrentState As Long
dwControlsAccepted As Long
dwWin32ExitCode As Long
dwServiceSpecificExitCode As Long
dwCheckPoint As Long
dwWaitHint As Long
End Type
Private Declare Function ControlService Lib "advapi32.dll" ( _
ByVal hService As Long, _
ByVal dwControl As Long, _
ByRef lpServiceStatus As SERVICE_STATUS) As Long
Private Declare Function OpenSCManager Lib "advapi32.dll" _
Alias "OpenSCManagerW" ( _
ByVal lpMachineName As Long, _
ByVal lpDatabaseName As Long, _
ByVal dwDesiredAccess As Long) As Long
Private Declare Function CloseServiceHandle Lib "advapi32.dll" ( _
ByVal hSCObject As Long) As Long
Private Declare Function OpenService Lib "advapi32.dll" _
Alias "OpenServiceW" ( _
ByVal hSCManager As Long, _
ByVal lpServiceName As Long, _
ByVal dwDesiredAccess As Long) As Long
Private Declare Function CreateService Lib "advapi32.dll" _
Alias "CreateServiceW" ( _
ByVal hSCManager As Long, _
ByVal lpServiceName As Long, _
ByVal lpDisplayName As Long, _
ByVal dwDesiredAccess As Long, _
ByVal dwServiceType As Long, _
ByVal dwStartType As Long, _
ByVal dwErrorControl As Long, _
ByVal lpBinaryPathName As Long, _
ByVal lpLoadOrderGroup As String, _
ByRef lpdwTagId As Long, _
ByVal lpDependencies As Long, _
ByVal lp As Long, _
ByVal lpPassword As Long) As Long
Private Declare Function StartService Lib "advapi32.dll" _
Alias "StartServiceW" ( _
ByVal hService As Long, _
ByVal dwNumServiceArgs As Long, _
ByVal lpServiceArgVectors As Long) As Long
Private Declare Function DeleteService Lib "advapi32.dll" ( _
ByVal hService As Long) As Long
Private Declare Function CreateFile Lib "kernel32" _
Alias "CreateFileW" ( _
ByVal lpFileName As Long, _
ByVal dwDesiredAccess As Long, _
ByVal dwShareMode As Long, _
ByRef lpSecurityAttributes As Any, _
ByVal dwCreationDisposition As Long, _
ByVal dwFlagsAndAttributes As Long, _
ByVal hTemplateFile As Long) As Long
Private Declare Function CloseHandle Lib "kernel32" ( _
ByVal hObject As Long) As Long
Private Declare Function DeviceIoControl Lib "kernel32" ( _
ByVal hDevice As Long, _
ByVal dwIoControlCode As Long, _
ByRef lpInBuffer As Any, _
ByVal nInBufferSize As Long, _
ByRef lpOutBuffer As Any, _
ByVal nOutBufferSize As Long, _
ByRef lpBytesReturned As Long, _
ByRef lpOverlapped As Any) As Long
Private Const ERROR_SERVICE_ALREADY_RUNNING As Long = 1056&
Private Const ERROR_SERVICE_EXISTS As Long = 1073&
Private Const SERVICE_CONTROL_STOP As Long = &H1
Private Const SC_MANAGER_ALL_ACCESS As Long = &HF003F
Private Const SERVICE_ALL_ACCESS As Long = &HF01FF
Private Const SERVICE_KERNEL_DRIVER As Long = &H1
Private Const SERVICE_DEMAND_START As Long = &H3
Private Const SERVICE_ERROR_NORMAL As Long = &H1
Private Const GENERIC_READ As Long = &H80000000
Private Const GENERIC_WRITE As Long = &H40000000
Private Const FILE_SHARE_READ As Long = &H1
Private Const FILE_SHARE_WRITE As Long = &H2
Private Const OPEN_EXISTING As Long = 3
Private Const FILE_ATTRIBUTE_NORMAL As Long = &H80
Private Const INVALID_HANDLE_VALUE As Long = -1
Private Const IOCTL_READ_MEMORY As Long = &H80002000
Private Const DriverName As String = "TrickMemReader"
Private Const NumOfRows As Long = 32
Private DriverFile As String
Private hMgr As Long
Private hSrv As Long
Private hDev As Long
Private buffer() As Byte
Private bufLen As Long
Private Address As Long
' // Read memory from kernel space
Private Sub cmdRead_Click()
Dim param(1) As Long
On Error GoTo Cancel
Address = CLng("&H" & Trim(txtAddress.Text))
' // Make parameters
param(0) = Address
param(1) = 16 * NumOfRows
' // Send request
If DeviceIoControl(hDev, IOCTL_READ_MEMORY, param(0), 8, buffer(0), UBound(buffer) + 1, bufLen, ByVal 0&) = 0 Then
bufLen = 0
End If
Update
Cancel:
End Sub
Private Sub Form_Load()
Dim sw As Long
Dim sh As Long
' // Allocate buffer
ReDim buffer(16 * NumOfRows - 1)
' // Get driver file name
DriverFile = App.Path & "\" & DriverName & ".sys"
' // Open SC manager database
hMgr = OpenSCManager(0, 0, SC_MANAGER_ALL_ACCESS)
If hMgr = 0 Then
MsgBox "Unable to establish connection with SC manager"
End
End If
' // Create servise
hSrv = CreateService(hMgr, StrPtr(DriverName), StrPtr(DriverName), SERVICE_ALL_ACCESS, _
SERVICE_KERNEL_DRIVER, SERVICE_DEMAND_START, SERVICE_ERROR_NORMAL, StrPtr(DriverFile), _
0, 0, 0, 0, 0)
' // If service already has beend launched
If hSrv = 0 And Err.LastDllError = ERROR_SERVICE_EXISTS Then
' // Open existing service
hSrv = OpenService(hMgr, StrPtr(DriverName), SERVICE_ALL_ACCESS)
End If
If hSrv = 0 Then
MsgBox "Unable to create service"
Unload Me
End
End If
' // Launch driver
If StartService(hSrv, 0, 0) = 0 Then
If Err.LastDllError <> ERROR_SERVICE_ALREADY_RUNNING Then
MsgBox "Unable to start service"
Unload Me
End
End If
End If
' // Connect to driver
hDev = CreateFile(StrPtr("\\.\" & DriverName), GENERIC_READ Or FILE_SHARE_WRITE, FILE_SHARE_READ Or FILE_SHARE_WRITE, ByVal 0&, _
OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0)
If hDev = INVALID_HANDLE_VALUE Then
MsgBox "Unable to connect to driver"
Unload Me
End
End If
' // Determine control size and position
sw = picDump.TextWidth("_")
sh = picDump.TextHeight("_")
picDump.Move 5, 5, (sw * 77) + (picDump.Width - picDump.ScaleWidth), (sh * NumOfRows) + (picDump.Height - picDump.ScaleHeight)
lblAddress.Top = picDump.Top + picDump.Height + 5
txtAddress.Top = lblAddress.Top
cmdRead.Top = txtAddress.Top
Me.Width = (picDump.Width + 10 - Me.ScaleWidth) * Screen.TwipsPerPixelX + Me.Width
Me.Height = (txtAddress.Top + 5 + txtAddress.Height - Me.ScaleHeight) * Screen.TwipsPerPixelY + Me.Height
Update
End Sub
' // Refresh data on window
Private Sub Update()
Dim col As Long
Dim row As Long
Dim ptr As Long
Dim hxd As String
Dim asi As String
Dim adr As String
Dim out As String
For row = 0 To NumOfRows - 1
adr = Hex(Address + row * 16)
adr = String(8 - Len(adr), "0") & adr
asi = ""
hxd = ""
For col = 0 To 15
If ptr < bufLen Then
hxd = hxd & " " & IIf(buffer(ptr) < &H10, "0" & Hex(buffer(ptr)), Hex(buffer(ptr)))
asi = asi & IIf(buffer(ptr) >= 32, Chr$(buffer(ptr)), "?")
Else
hxd = hxd & " ??"
asi = asi & "?"
End If
ptr = ptr + 1
Next
If row Then out = out & vbNewLine
out = out & adr & ":" & hxd & " | " & asi
Next
picDump.Cls
picDump.Print out
End Sub
Private Sub Form_Unload( _
ByRef Cancel As Integer)
Dim Status As SERVICE_STATUS
' // Disconnect driver
CloseHandle hDev
' // Stop driver
ControlService hSrv, SERVICE_CONTROL_STOP, Status
' // Remove service
DeleteService hSrv
' // Close handles
CloseServiceHandle hSrv
CloseServiceHandle hMgr
End Sub
The driver must be in the same folder as the program. Code is commented, so I will not describe his work.
-
1 Attachment(s)
Re: [VB6] - Kernel mode driver.
To debug a driver you want to use the kernel-mode debugger. Debug going on a virtual system (VMware) - Windows XP. As a debugger take Syser, choose our driver and click Load. The system stops and we go to the debugger:
http://s7.hostingkartinok.com/upload...7a0a451265.png
We are in the beginning of the function DriverEntry. The first "CALL" corresponds to a function call Init. If we follow step by step (F8) what's inside, we see how to complete the structure and called RtlInitUnicodeString for the device name and a symbolic link. The second "CALL" corresponds to the function "NT_SUCCESS", look it returns TRUE (in the register EAX) and code jumps after checking (TEST EAX, EAX) zero (False) on:
http://s7.hostingkartinok.com/upload...a89c3b2a84.png
As can be seen code pushes the stack parameters for the IoCreateDevice from last to first using the instructions "PUSH". We start checking parameters. Check the name of the device (the third parameter - PUSH 0f8a2c010), for example, type "d 0f8a2c010" (which means to view a memory dump at f8a2c010, addresses are valid only for the current debugging) and see the contents:
http://s7.hostingkartinok.com/upload...2e86fd18c1.png
the first 8 bytes - this is our variable DeviceName. The first two words - respectively the length of the line and the maximum length of the string in bytes. Next double word - a pointer to a string, look (d f8a2c0d8 consider the byte order little-endian):
http://s7.hostingkartinok.com/upload...8ed4abc175.png
there Unicode string with the name of the device. If you look at parameter Device (last output parameter - PUSH 0f8a2c020), we can see that it is different from the name on the 0x10 byte. Now look at the declaration of variables, the variable "Device" is declared after the DeviceName and DeviceLink, a total length of 8 + 8 = 0x10 bytes. Ie the order of the variables in the memory corresponds to the order in the ad code. Check the first non-const parameter ESI, in the beginning it is copied to the value at ESP + 0xC. Register ESP - points to the top of the stack. If you walk to the top function DriverEntry, you can see the preservation of the stack of two registers ESI and EDI (by agreement StdCall these registers are saved in the list, ie, the procedure should not change them after the call). DriverObject transmitted in the first variable, i.e. closest to the top of the stack, and after all the settings saved return address - ie DriverObject parameter before executing the first instruction in the DriverEntry function is located at ESP + 4 (the stack grows downward addresses), after two instructions "PUSH" he accordingly shifted by 8 bytes, as a result DriverObject located at ESP + 0C, all right . Correct settings, you can call the function. Hit F10 to not go inside and look IoCreateDevice value of the EAX register after the call, there must be a non-negative integer that indicates that the function worked without error. I have it returned 0 (STATUS_SUCCESS), everything is fine. Next comes the familiar procedure at 0xF8A2B750 - NT_SUCCESS:
http://s7.hostingkartinok.com/upload...0002b5cd9b.png
If successful, go jump on 0xf8a2b7bf, where there is the pushing of the stack parameters for the function IoCreateSymbolicLink. Parameter DeviceName we have checked, check DeviceLink:
http://s7.hostingkartinok.com/upload...2df58dc0aa.png
What you need. Hit F10, test EAX, if successful go further if it fails, remove the device and exit with an error. Procedure at 0xf8a2bbb0 - it GetAddr, which simply returns its this value:
http://s7.hostingkartinok.com/upload...289fe49468.png
Next there is copying of addresses at offsets DriverObject, if you look at the declaration you can see that at offset 0x34 is written address DriverUnload, at offset 0x38 - MajorFunction (0), etc. Recorded values correspond to the address of the function in our driver. Then there is zero EAX (the returned value) and exit from the procedure DriverEntry. Everything works without error, go ahead. So, to track the performance of the driver we will put a breakpoint on the function DriverDeviceControl. Address it is possible to take on the newly written offsets in the structure of DRIVER_OBJECT or find easy viewing and by analyzing the code. In my test, the address is 0xf8a2b870, go to him (. 0xf8a2b870) and press F9, set breakpoints. On the contrary instructions to set a marker:
http://s7.hostingkartinok.com/upload...2173421e37.png
Now, when this function is called the debugger will stop code execution and enables us to step through the code. Function "DriverCreateClose" and "DriverUnload" I will not describe, because everything is simple. Hit F5, thereby continuing to perform normally. We were immediately transferred back to Windows. Now we run our test application, enter any address (eg 81234567) and click on the button Read. Our challenge intercepts debugger and we can continue to test the function code DriverDeviceControl. Details inside I will not describe the code will focus on the copy:
http://thetrick.esy.es/Images/Syser9_eng.png
Immediately look at the stack (register ESP), we see that the correct parameters are passed. In any case, do a dump, then compare:
http://s7.hostingkartinok.com/upload...8cfaf17dcd.png
Press F5 - and return to Windows. We look at the dump is already in our program:
http://s7.hostingkartinok.com/upload...4f01457be2.png
As you can see everything is fine copy. Let's try to copy the data to a page boundary, so that one page was missing. Experimental method was found such a page that's what we get:
http://s7.hostingkartinok.com/upload...95c2bfe984.png
As we can see that the data is copied correctly, which did not work there, we displayed a question mark. The output parameter DeviceIoControl we actually returns the number of bytes read, we use it to display a question mark. _________________________________________________________________
As you can see on VB6, you can write a simple driver, and if you use inline assembly can be more serious and write something. Thank you for your attention. Good Luck!
-
Re: [VB6] - Kernel mode driver.
New version.
I've translated all the sources to English.
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
The trick
To test driver I wrote a simple program that loads the driver and works with him.
Code:
' // frmTestTrickVBDriver.frm - test form for driver
' // © Krivous Anatoly Anatolevich (The trick), 2014
Option Explicit
Private Type SERVICE_STATUS
dwServiceType As Long
dwCurrentState As Long
dwControlsAccepted As Long
dwWin32ExitCode As Long
dwServiceSpecificExitCode As Long
dwCheckPoint As Long
dwWaitHint As Long
End Type
Private Declare Function ControlService Lib "advapi32.dll" ( _
ByVal hService As Long, _
ByVal dwControl As Long, _
ByRef lpServiceStatus As SERVICE_STATUS) As Long
Private Declare Function OpenSCManager Lib "advapi32.dll" _
Alias "OpenSCManagerW" ( _
ByVal lpMachineName As Long, _
ByVal lpDatabaseName As Long, _
ByVal dwDesiredAccess As Long) As Long
Private Declare Function CloseServiceHandle Lib "advapi32.dll" ( _
ByVal hSCObject As Long) As Long
Private Declare Function OpenService Lib "advapi32.dll" _
Alias "OpenServiceW" ( _
ByVal hSCManager As Long, _
ByVal lpServiceName As Long, _
ByVal dwDesiredAccess As Long) As Long
Private Declare Function CreateService Lib "advapi32.dll" _
Alias "CreateServiceW" ( _
ByVal hSCManager As Long, _
ByVal lpServiceName As Long, _
ByVal lpDisplayName As Long, _
ByVal dwDesiredAccess As Long, _
ByVal dwServiceType As Long, _
ByVal dwStartType As Long, _
ByVal dwErrorControl As Long, _
ByVal lpBinaryPathName As Long, _
ByVal lpLoadOrderGroup As String, _
ByRef lpdwTagId As Long, _
ByVal lpDependencies As Long, _
ByVal lp As Long, _
ByVal lpPassword As Long) As Long
Private Declare Function StartService Lib "advapi32.dll" _
Alias "StartServiceW" ( _
ByVal hService As Long, _
ByVal dwNumServiceArgs As Long, _
ByVal lpServiceArgVectors As Long) As Long
Private Declare Function DeleteService Lib "advapi32.dll" ( _
ByVal hService As Long) As Long
Private Declare Function CreateFile Lib "kernel32" _
Alias "CreateFileW" ( _
ByVal lpFileName As Long, _
ByVal dwDesiredAccess As Long, _
ByVal dwShareMode As Long, _
ByRef lpSecurityAttributes As Any, _
ByVal dwCreationDisposition As Long, _
ByVal dwFlagsAndAttributes As Long, _
ByVal hTemplateFile As Long) As Long
Private Declare Function CloseHandle Lib "kernel32" ( _
ByVal hObject As Long) As Long
Private Declare Function DeviceIoControl Lib "kernel32" ( _
ByVal hDevice As Long, _
ByVal dwIoControlCode As Long, _
ByRef lpInBuffer As Any, _
ByVal nInBufferSize As Long, _
ByRef lpOutBuffer As Any, _
ByVal nOutBufferSize As Long, _
ByRef lpBytesReturned As Long, _
ByRef lpOverlapped As Any) As Long
Private Const ERROR_SERVICE_ALREADY_RUNNING As Long = 1056&
Private Const ERROR_SERVICE_EXISTS As Long = 1073&
Private Const SERVICE_CONTROL_STOP As Long = &H1
Private Const SC_MANAGER_ALL_ACCESS As Long = &HF003F
Private Const SERVICE_ALL_ACCESS As Long = &HF01FF
Private Const SERVICE_KERNEL_DRIVER As Long = &H1
Private Const SERVICE_DEMAND_START As Long = &H3
Private Const SERVICE_ERROR_NORMAL As Long = &H1
Private Const GENERIC_READ As Long = &H80000000
Private Const GENERIC_WRITE As Long = &H40000000
Private Const FILE_SHARE_READ As Long = &H1
Private Const FILE_SHARE_WRITE As Long = &H2
Private Const OPEN_EXISTING As Long = 3
Private Const FILE_ATTRIBUTE_NORMAL As Long = &H80
Private Const INVALID_HANDLE_VALUE As Long = -1
Private Const IOCTL_READ_MEMORY As Long = &H80002000
Private Const DriverName As String = "TrickMemReader"
Private Const NumOfRows As Long = 32
Private DriverFile As String
Private hMgr As Long
Private hSrv As Long
Private hDev As Long
Private buffer() As Byte
Private bufLen As Long
Private Address As Long
' // Read memory from kernel space
Private Sub cmdRead_Click()
Dim param(1) As Long
On Error GoTo Cancel
Address = CLng("&H" & Trim(txtAddress.Text))
' // Make parameters
param(0) = Address
param(1) = 16 * NumOfRows
' // Send request
If DeviceIoControl(hDev, IOCTL_READ_MEMORY, param(0), 8, buffer(0), UBound(buffer) + 1, bufLen, ByVal 0&) = 0 Then
bufLen = 0
End If
Update
Cancel:
End Sub
Private Sub Form_Load()
Dim sw As Long
Dim sh As Long
' // Allocate buffer
ReDim buffer(16 * NumOfRows - 1)
' // Get driver file name
DriverFile = App.Path & "\" & DriverName & ".sys"
' // Open SC manager database
hMgr = OpenSCManager(0, 0, SC_MANAGER_ALL_ACCESS)
If hMgr = 0 Then
MsgBox "Unable to establish connection with SC manager"
End
End If
' // Create servise
hSrv = CreateService(hMgr, StrPtr(DriverName), StrPtr(DriverName), SERVICE_ALL_ACCESS, _
SERVICE_KERNEL_DRIVER, SERVICE_DEMAND_START, SERVICE_ERROR_NORMAL, StrPtr(DriverFile), _
0, 0, 0, 0, 0)
' // If service already has beend launched
If hSrv = 0 And Err.LastDllError = ERROR_SERVICE_EXISTS Then
' // Open existing service
hSrv = OpenService(hMgr, StrPtr(DriverName), SERVICE_ALL_ACCESS)
End If
If hSrv = 0 Then
MsgBox "Unable to create service"
Unload Me
End
End If
' // Launch driver
If StartService(hSrv, 0, 0) = 0 Then
If Err.LastDllError <> ERROR_SERVICE_ALREADY_RUNNING Then
MsgBox "Unable to start service"
Unload Me
End
End If
End If
' // Connect to driver
hDev = CreateFile(StrPtr("\\.\" & DriverName), GENERIC_READ Or FILE_SHARE_WRITE, FILE_SHARE_READ Or FILE_SHARE_WRITE, ByVal 0&, _
OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0)
If hDev = INVALID_HANDLE_VALUE Then
MsgBox "Unable to connect to driver"
Unload Me
End
End If
' // Determine control size and position
sw = picDump.TextWidth("_")
sh = picDump.TextHeight("_")
picDump.Move 5, 5, (sw * 77) + (picDump.Width - picDump.ScaleWidth), (sh * NumOfRows) + (picDump.Height - picDump.ScaleHeight)
lblAddress.Top = picDump.Top + picDump.Height + 5
txtAddress.Top = lblAddress.Top
cmdRead.Top = txtAddress.Top
Me.Width = (picDump.Width + 10 - Me.ScaleWidth) * Screen.TwipsPerPixelX + Me.Width
Me.Height = (txtAddress.Top + 5 + txtAddress.Height - Me.ScaleHeight) * Screen.TwipsPerPixelY + Me.Height
Update
End Sub
' // Refresh data on window
Private Sub Update()
Dim col As Long
Dim row As Long
Dim ptr As Long
Dim hxd As String
Dim asi As String
Dim adr As String
Dim out As String
For row = 0 To NumOfRows - 1
adr = Hex(Address + row * 16)
adr = String(8 - Len(adr), "0") & adr
asi = ""
hxd = ""
For col = 0 To 15
If ptr < bufLen Then
hxd = hxd & " " & IIf(buffer(ptr) < &H10, "0" & Hex(buffer(ptr)), Hex(buffer(ptr)))
asi = asi & IIf(buffer(ptr) >= 32, Chr$(buffer(ptr)), "?")
Else
hxd = hxd & " ??"
asi = asi & "?"
End If
ptr = ptr + 1
Next
If row Then out = out & vbNewLine
out = out & adr & ":" & hxd & " | " & asi
Next
picDump.Cls
picDump.Print out
End Sub
Private Sub Form_Unload( _
ByRef Cancel As Integer)
Dim Status As SERVICE_STATUS
' // Disconnect driver
CloseHandle hDev
' // Stop driver
ControlService hSrv, SERVICE_CONTROL_STOP, Status
' // Remove service
DeleteService hSrv
' // Close handles
CloseServiceHandle hSrv
CloseServiceHandle hMgr
End Sub
The driver must be in the same folder as the program. Code is commented, so I will not describe his work.
Hi The trick,
Thank you for the post. I run the project on Windows 7 32bit, the system seemed to hang a bit (But only on the first run), then gave the message: "Unable to start service". I think the problem is in Driver, because with the same "TestDriver" project, I have successfully started another Kernel Driver written in C ++.
Can you please help me handle this problem?
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
The trick
To test driver I wrote a simple program that loads the driver and works with him.
Code:
' // frmTestTrickVBDriver.frm - test form for driver
' // © Krivous Anatoly Anatolevich (The trick), 2014
Option Explicit
Private Type SERVICE_STATUS
dwServiceType As Long
dwCurrentState As Long
dwControlsAccepted As Long
dwWin32ExitCode As Long
dwServiceSpecificExitCode As Long
dwCheckPoint As Long
dwWaitHint As Long
End Type
Private Declare Function ControlService Lib "advapi32.dll" ( _
ByVal hService As Long, _
ByVal dwControl As Long, _
ByRef lpServiceStatus As SERVICE_STATUS) As Long
Private Declare Function OpenSCManager Lib "advapi32.dll" _
Alias "OpenSCManagerW" ( _
ByVal lpMachineName As Long, _
ByVal lpDatabaseName As Long, _
ByVal dwDesiredAccess As Long) As Long
Private Declare Function CloseServiceHandle Lib "advapi32.dll" ( _
ByVal hSCObject As Long) As Long
Private Declare Function OpenService Lib "advapi32.dll" _
Alias "OpenServiceW" ( _
ByVal hSCManager As Long, _
ByVal lpServiceName As Long, _
ByVal dwDesiredAccess As Long) As Long
Private Declare Function CreateService Lib "advapi32.dll" _
Alias "CreateServiceW" ( _
ByVal hSCManager As Long, _
ByVal lpServiceName As Long, _
ByVal lpDisplayName As Long, _
ByVal dwDesiredAccess As Long, _
ByVal dwServiceType As Long, _
ByVal dwStartType As Long, _
ByVal dwErrorControl As Long, _
ByVal lpBinaryPathName As Long, _
ByVal lpLoadOrderGroup As String, _
ByRef lpdwTagId As Long, _
ByVal lpDependencies As Long, _
ByVal lp As Long, _
ByVal lpPassword As Long) As Long
Private Declare Function StartService Lib "advapi32.dll" _
Alias "StartServiceW" ( _
ByVal hService As Long, _
ByVal dwNumServiceArgs As Long, _
ByVal lpServiceArgVectors As Long) As Long
Private Declare Function DeleteService Lib "advapi32.dll" ( _
ByVal hService As Long) As Long
Private Declare Function CreateFile Lib "kernel32" _
Alias "CreateFileW" ( _
ByVal lpFileName As Long, _
ByVal dwDesiredAccess As Long, _
ByVal dwShareMode As Long, _
ByRef lpSecurityAttributes As Any, _
ByVal dwCreationDisposition As Long, _
ByVal dwFlagsAndAttributes As Long, _
ByVal hTemplateFile As Long) As Long
Private Declare Function CloseHandle Lib "kernel32" ( _
ByVal hObject As Long) As Long
Private Declare Function DeviceIoControl Lib "kernel32" ( _
ByVal hDevice As Long, _
ByVal dwIoControlCode As Long, _
ByRef lpInBuffer As Any, _
ByVal nInBufferSize As Long, _
ByRef lpOutBuffer As Any, _
ByVal nOutBufferSize As Long, _
ByRef lpBytesReturned As Long, _
ByRef lpOverlapped As Any) As Long
Private Const ERROR_SERVICE_ALREADY_RUNNING As Long = 1056&
Private Const ERROR_SERVICE_EXISTS As Long = 1073&
Private Const SERVICE_CONTROL_STOP As Long = &H1
Private Const SC_MANAGER_ALL_ACCESS As Long = &HF003F
Private Const SERVICE_ALL_ACCESS As Long = &HF01FF
Private Const SERVICE_KERNEL_DRIVER As Long = &H1
Private Const SERVICE_DEMAND_START As Long = &H3
Private Const SERVICE_ERROR_NORMAL As Long = &H1
Private Const GENERIC_READ As Long = &H80000000
Private Const GENERIC_WRITE As Long = &H40000000
Private Const FILE_SHARE_READ As Long = &H1
Private Const FILE_SHARE_WRITE As Long = &H2
Private Const OPEN_EXISTING As Long = 3
Private Const FILE_ATTRIBUTE_NORMAL As Long = &H80
Private Const INVALID_HANDLE_VALUE As Long = -1
Private Const IOCTL_READ_MEMORY As Long = &H80002000
Private Const DriverName As String = "TrickMemReader"
Private Const NumOfRows As Long = 32
Private DriverFile As String
Private hMgr As Long
Private hSrv As Long
Private hDev As Long
Private buffer() As Byte
Private bufLen As Long
Private Address As Long
' // Read memory from kernel space
Private Sub cmdRead_Click()
Dim param(1) As Long
On Error GoTo Cancel
Address = CLng("&H" & Trim(txtAddress.Text))
' // Make parameters
param(0) = Address
param(1) = 16 * NumOfRows
' // Send request
If DeviceIoControl(hDev, IOCTL_READ_MEMORY, param(0), 8, buffer(0), UBound(buffer) + 1, bufLen, ByVal 0&) = 0 Then
bufLen = 0
End If
Update
Cancel:
End Sub
Private Sub Form_Load()
Dim sw As Long
Dim sh As Long
' // Allocate buffer
ReDim buffer(16 * NumOfRows - 1)
' // Get driver file name
DriverFile = App.Path & "\" & DriverName & ".sys"
' // Open SC manager database
hMgr = OpenSCManager(0, 0, SC_MANAGER_ALL_ACCESS)
If hMgr = 0 Then
MsgBox "Unable to establish connection with SC manager"
End
End If
' // Create servise
hSrv = CreateService(hMgr, StrPtr(DriverName), StrPtr(DriverName), SERVICE_ALL_ACCESS, _
SERVICE_KERNEL_DRIVER, SERVICE_DEMAND_START, SERVICE_ERROR_NORMAL, StrPtr(DriverFile), _
0, 0, 0, 0, 0)
' // If service already has beend launched
If hSrv = 0 And Err.LastDllError = ERROR_SERVICE_EXISTS Then
' // Open existing service
hSrv = OpenService(hMgr, StrPtr(DriverName), SERVICE_ALL_ACCESS)
End If
If hSrv = 0 Then
MsgBox "Unable to create service"
Unload Me
End
End If
' // Launch driver
If StartService(hSrv, 0, 0) = 0 Then
If Err.LastDllError <> ERROR_SERVICE_ALREADY_RUNNING Then
MsgBox "Unable to start service"
Unload Me
End
End If
End If
' // Connect to driver
hDev = CreateFile(StrPtr("\\.\" & DriverName), GENERIC_READ Or FILE_SHARE_WRITE, FILE_SHARE_READ Or FILE_SHARE_WRITE, ByVal 0&, _
OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0)
If hDev = INVALID_HANDLE_VALUE Then
MsgBox "Unable to connect to driver"
Unload Me
End
End If
' // Determine control size and position
sw = picDump.TextWidth("_")
sh = picDump.TextHeight("_")
picDump.Move 5, 5, (sw * 77) + (picDump.Width - picDump.ScaleWidth), (sh * NumOfRows) + (picDump.Height - picDump.ScaleHeight)
lblAddress.Top = picDump.Top + picDump.Height + 5
txtAddress.Top = lblAddress.Top
cmdRead.Top = txtAddress.Top
Me.Width = (picDump.Width + 10 - Me.ScaleWidth) * Screen.TwipsPerPixelX + Me.Width
Me.Height = (txtAddress.Top + 5 + txtAddress.Height - Me.ScaleHeight) * Screen.TwipsPerPixelY + Me.Height
Update
End Sub
' // Refresh data on window
Private Sub Update()
Dim col As Long
Dim row As Long
Dim ptr As Long
Dim hxd As String
Dim asi As String
Dim adr As String
Dim out As String
For row = 0 To NumOfRows - 1
adr = Hex(Address + row * 16)
adr = String(8 - Len(adr), "0") & adr
asi = ""
hxd = ""
For col = 0 To 15
If ptr < bufLen Then
hxd = hxd & " " & IIf(buffer(ptr) < &H10, "0" & Hex(buffer(ptr)), Hex(buffer(ptr)))
asi = asi & IIf(buffer(ptr) >= 32, Chr$(buffer(ptr)), "?")
Else
hxd = hxd & " ??"
asi = asi & "?"
End If
ptr = ptr + 1
Next
If row Then out = out & vbNewLine
out = out & adr & ":" & hxd & " | " & asi
Next
picDump.Cls
picDump.Print out
End Sub
Private Sub Form_Unload( _
ByRef Cancel As Integer)
Dim Status As SERVICE_STATUS
' // Disconnect driver
CloseHandle hDev
' // Stop driver
ControlService hSrv, SERVICE_CONTROL_STOP, Status
' // Remove service
DeleteService hSrv
' // Close handles
CloseServiceHandle hSrv
CloseServiceHandle hMgr
End Sub
The driver must be in the same folder as the program. Code is commented, so I will not describe his work.
Hi The trick,
Thank you for the post. I run the project on Windows 7 32bit, the system seemed to hang a bit (But only on the first run), then gave the message: "Unable to start service". I think the problem is in Driver, because with the same "TestDriver" project, I have successfully started another Kernel Driver written in C ++.
Can you please help me handle this problem?
-
Re: [VB6] - Kernel mode driver.
-
Re: [VB6] - Kernel mode driver.
Hi The Trick,
I'm sorry to have to bother you again, but the fact is that I searched a lot on the Internet and found that almost no one deeply understands the system Kernel in VB6 like you.
I have a problem with Kernel mode driver, want to ask for your help.
In the project that I attached, everything works fine: Driver OK (Tested), Start Service OK, Connect to driver OK. However, when sending a request with the DeviceIoControl function, I do not receive a response from the Driver.
I send you both the source code of the program written in C ++, by Naveen (link: https://www.codeproject.com/Articles...ing-Used-Files), it is working fine. My project is rewritten in VB6, which is based on that source code. As for Driver, I still keep the original file written in Naveen's C ++, and if you can help me convert it to VB6 it is great.
Note: The operating system I am using is Windows 7 32bit
Best regards,
ferrmask
-
Re: [VB6] - Kernel mode driver.
Hi, ferrmask.
You have an error with the declarations.
As you can see the C code has the following declaration:
Code:
typedef struct _FILE_INFO
{
USHORT tcDeviceName[260];
USHORT tcFilleName[260];
ULONG uType;
}FILE_INFO;
260 is the number of the elements in the array. On the contrary, you have the following declaration in the VB code:
Code:
Private Type HANDLE_INFO
tcDeviceName(260) As Integer
tcFileName(260) As Integer
uType As Long
End Type
260 is the top bound of the arrays. If you don't have the Option Base 1 statement (and you don't have one) it means 261 elements (ie. from 0 to 260 inclusive). The proper declaration is:
Code:
Private Type HANDLE_INFO
tcDeviceName(259) As Integer
tcFileName(259) As Integer
uType As Long
End Type
Then it'll work.
Quote:
and if you can help me convert it to VB6 it is great.
It's possible but if you want to use only the pure VB you couldn't implement try/catch behavior (with rough approximation you can use MmIsAddressValid function).
-
Re: [VB6] - Kernel mode driver.
Typo:
Private Type HANDLE_INFO
tcDeviceName(259) As Integer
tcFileName(259) As Integer
uType As Long
End Type
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
DaveDavis
Typo:
Private Type HANDLE_INFO
tcDeviceName(259) As Integer
tcFileName(259) As Integer
uType As Long
End Type
Thank you.
-
Re: [VB6] - Kernel mode driver.
Thank you very much, The trick
Thank you very much, DaveDavis
Thank you for spending time with me :)
Best regards,
ferrmask
-
Re: [VB6] - Kernel mode driver.
A couple questions as I set out trying to write a file filter driver:
Is there a particular reason for defining structures in the module when you have to declare APIs in a TLB?
It's weird using void* for typed parameters lol... and it would save a lot of time with fewer conversion changes to types to have them in TLB.
Second: Since I can't use the runtime, I can't use VarPtr, correct? (Unless it can possibly be called as a regular DLL import?) How could I get the address of a structure without it, for the purpose of assigning a pointer to a FAST_IO_DISPATCH type to DRIVER_OBJECT.FastIoDispatch?
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
Is there a particular reason for defining structures in the module when you have to declare APIs in a TLB?
No. You can declare structures (UDTs) in a module as well.
Quote:
Originally Posted by
fafalone
Since I can't use the runtime, I can't use VarPtr, correct? (Unless it can possibly be called as a regular DLL import?) How could I get the address of a structure without it, for the purpose of assigning a pointer to a FAST_IO_DISPATCH type to DRIVER_OBJECT.FastIoDispatch?
You can't use any user-mode libraries in the kernel. You can get the address using several ways. For example use InterlockedExchange with void* parameter.
-
Re: [VB6] - Kernel mode driver.
I'm a bit confused by where to import it from; Windows driver documentation suggests "OneCoreUAP.lib", if I imported from kernel32.dll where it's also listed, would that count as user mode or kernel mode as it's described as running in both, or could it be imported from ntoskrnl.exe, as other things suggest? I loaded ntoskrnl.exe in an export viewer and it's not coming up as exported in either Windows 10 or Windows 7, which contradicts other documentation (although Geoff Chappell's export list flags it as 'x86', perhaps meaning *only* 32bit Windows), so that just made me even more confused.
Another question...
How is the 64bit issue being dealt with here? I thought drivers needed to be 64bit on 64bit Windows. But some pointers in your declarations I know to be 64bits internally are declared as 32bits (e.g. as I had to deal with in my ETW project, FILE_OBJECT pointers have to be declared as 64bit). Is there some undocumented support for 32bit and it is able to successfully run 32bit drivers... or is something else going on here? Because I get 64bit IRP pointers too, but clearly your project here is working with 32bit ones. If it does recognize 32bit drivers, will this extend to API calls... e.g. if I call ZwCreateFile(PHANDLE FileHandle, ...), although as I understand it Windows will always use handles that fit in 32bits, it would still mean it's expected 8 bytes on the stack for each 64bit type like HANDLE.
Sorry, very new to drivers but trying to learn, doesn't help that in C all I'd need is an include statement.
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
I'm a bit confused by where to import it from;
From ntoskrnl.exe.
Quote:
although Geoff Chappell's export list flags it as 'x86', perhaps meaning *only* 32bit Windows
Yes, you could use x86 version of ntoskrnl.exe. You can't use a 32 bit driver in a 64 bit system. So your target OS should be 32 bit one.
Quote:
How is the 64bit issue being dealt with here?
32 bit drivers won't work on 64 bit systems. There is no WOW64 layer in the kernel mode.
-
Re: [VB6] - Kernel mode driver.
Ah I see. I saw Windows 10 in the video and forgot there even was a 32bit edition, since it was so uncommon and MS said they weren't doing 32bit anymore after Win10 2004, although it appears they've backtracked on that. (and the VM I was testing this project in was 32bit).
-
Re: [VB6] - Kernel mode driver.
Putting the APIs in a typelib-- is this because the runtime is needed for the late binding, or because they're late bound at all, rather than in the import table?
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
Putting the APIs in a typelib-- is this because the runtime is needed for the late binding, or because they're late bound at all, rather than in the import table?
APIs in a typelib fall to import table. So i used a typelib to avoid of runtime usage (DllFunctionCall)
-
Re: [VB6] - Kernel mode driver.
How did you get anything to work from VB6 in a driver? The first thing that any VB6 EXE program does is to run something called ThunRTMain, which is a function in the VB6 runtime DLL. How did you make that not happen? From my understanding, a driver (SYS file) is just an EXE file designed to run in kernel mode, instead of user mode. And VB6 doesn't have a special driver building mode to directly create a SYS file with no dependencies on the runtime. All kinds of auto-generated code within a function in VB6, contain various references to the VB6 runtime.
Also how do you run a driver like this? It's certainly unsigned.
Also how do you even install it? Drivers need to be associated with a specific piece of hardware, so when you plug it in Windows detects the hardware. When you plug in a device for which Windows doesn't have a builtin driver results in it asking you to manually locate the driver files. In fact, plugging in a device is really the only time Windows asks you to select a driver to install.
So how did you make and install a driver that has no association with any external hardware?
-
Re: [VB6] - Kernel mode driver.
Did you even read the post? The trick made it pretty easy to follow, all the code is there, and a link to the tool to remove msvbvm60.
The vbp makes use of an undocumented option to provide instructions to the linker. This is used to override the default entry point (making it DriverEntry instead of ThunRTMain), and specify native subsystem instead of GUI.
The trick created a tool that then removes the msvbvm60.dll dependency (obviously, this means tons of stuff isn't useable for instance I had to use the InterlockedExchange API to replace VarPtr).
Hardware isn't the only thing that has drivers. Windows comes with numerous drivers unrelated to hardware. I'm working on file system filter drivers now... antivirus tools like Windows Defender use these, among others.
The project comes with code that loads it. It's in post #4. You use the Service API; CreateService with SERVICE_KERNEL_DRIVER.
There's ways to load unsigned drivers; obviously developers can't send every single test build off to Microsoft for signing. There's an advanced boot option to allow them; or attaching a kernel debugger. Earlier Windows versions allow you to enable installing unsigned drivers.
This is still the coolest VB6 project I've ever seen, and I've run the project myself and am working on my own--- I've got Wayne interested and it looks like we'll get this functionality easier in twinBasic, so that should mean being able to compile them for x64 Windows too (you need 32bit Windows for VB6 projects like this).
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
Did you even read the post? The trick made it pretty easy to follow, all the code is there, and a link to the tool to remove msvbvm60.
The vbp makes use of an undocumented option to provide instructions to the linker. This is used to override the default entry point (making it DriverEntry instead of ThunRTMain), and specify native subsystem instead of GUI.
The trick created a tool that then removes the msvbvm60.dll dependency (obviously, this means tons of stuff isn't useable for instance I had to use the InterlockedExchange API to replace VarPtr).
Hardware isn't the only thing that has drivers. Windows comes with numerous drivers unrelated to hardware. I'm working on
file system filter drivers now... antivirus tools like Windows Defender use these, among others.
The project comes with code that loads it. It's in post #4. You use the Service API; CreateService with SERVICE_KERNEL_DRIVER.
There's ways to
load unsigned drivers; obviously developers can't send every single test build off to Microsoft for signing. There's an advanced boot option to allow them; or attaching a kernel debugger. Earlier Windows versions allow you to enable installing unsigned drivers.
This is still the coolest VB6 project I've ever seen, and I've run the project myself and am working on my own--- I've got Wayne interested and it looks like we'll get this functionality easier in twinBasic, so that should mean being able to compile them for x64 Windows too (you need 32bit Windows for VB6 projects like this).
So does the CreateService API function require a signed driver (or alternatively enabling test-signing mode) to function? It also clearly runs runs it as a service, which usually means adding it to the registry. Right? So how do you uninstall (remove the registry entries) for the driver when you don't want to use it anymore? And regarding test-signing mode, does enabling test-signing mode disable the signing requirement altogether, or does it now mean you need to generate your own self signed certificate, and then sign the driver manually? If so, how do you do that (easiest way to generate cert, and sign your own driver)?
-
Re: [VB6] - Kernel mode driver.
Driver signing is enforced at a lower level; I don't think the service manager itself cares. You could presumably use a .inf to put it into the startup to load it that way too.
The demo here removes it when you stop it; you just use the DeleteService API like removing any other service.
The signing requirement is disabled all together if you boot into test mode; otherwise from the link I posted,
Quote:
Enforcing Kernel-Mode Signature Verification in Kernel Debugging Mode
However, there are situations in which a developer might need to have a kernel debugger attached, yet also need to maintain load-time signature enforcement. For example, when a driver stack has an unsigned driver (such as a filter driver) that fails to load it may invalidate the entire stack. Because attaching a debugger allows the unsigned driver to load, the problem appears to vanish as soon as the debugger is attached. Debugging this type of issue may be difficult.
In order to facilitate debugging such issues, the kernel-mode code signing policy supports the following registry value:
C++
Copy
HKLM\SYSTEM\CurrentControlSet\Control\CI\DebugFlags
This registry value is of type REG_DWORD, and can be assigned a value based on a bitwise OR of one or more of the following flags:
0x00000001
This flag value configures the kernel to break into the debugger if a driver is unsigned. The developer or tester can then choose to load the unsigned driver by entering g at the debugger prompt.
0x00000010
This flag value configures the kernel to ignore the presence of the debugger and to always block an unsigned driver from loading.
There's endless contradictory information about self-signing out there. Boot vs not boot, x64 vs x86, SecureBoot... I honestly have no idea under what conditions self-signing will work for kernel mode.
There might be an undocumented, unlicensed method.
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
Driver signing is enforced at a lower level; I don't think the service manager itself cares. You could presumably use a .inf to put it into the startup to load it that way too.
The demo here removes it when you stop it; you just use the DeleteService API like removing any other service.
The signing requirement is disabled all together if you boot into test mode; otherwise from the link I posted,
There's endless contradictory information about self-signing out there. Boot vs not boot, x64 vs x86, SecureBoot... I honestly have no idea under what conditions self-signing will work for kernel mode.
There might be an undocumented, unlicensed
method.
I looked at that, and it looked WAY too complicated for testing this one VB6 driver.
-
Re: [VB6] - Kernel mode driver.
Well when it's just yourself testing it you can use one of the methods for unsigned driver testing.
-
Re: [VB6] - Kernel mode driver.
Btw, you can PM me if you need code-signing an executable with a valid certificate (for testing purposes).
cheers,
</wqw>
-
Re: [VB6] - Kernel mode driver.
Some questions about declarations... (not suggesting they're wrong as I'm just learning about kernel mode, but want to understand why they are as they are so I can apply it in new scenarios)
- Why is the Exclusive argument in IoCreateDevice declared as 'int'?
[in] BOOLEAN Exclusive,
and
typedef UCHAR BOOLEAN; // winnt
?
- In KDPC, DpcListEntry As LIST_ENTRY, but it's a SINGLE_LIST_ENTRY, which is
Code:
typedef struct _SINGLE_LIST_ENTRY {
struct _SINGLE_LIST_ENTRY *Next;
} SINGLE_LIST_ENTRY, *PSINGLE_LIST_ENTRY;
LIST_ENTRY has two members like that.
I think it works because KAFFINITY ProcessorHistory; is missing (the next member).
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
[*]Why is the Exclusive argument in IoCreateDevice declared as 'int'?
There is no difference if you pass UCHAR (a byte) or int (four bytes) in STDCALL convention because the both cases uses 4 bytes in the stack. The proper variant is a byte of course. I don't remember why i used that probably i forgot to change the type. You could use a byte of course.
Quote:
Originally Posted by
fafalone
[*]In KDPC, DpcListEntry As LIST_ENTRY, but it's a SINGLE_LIST_ENTRY
Definition from WDM.h (Windows Driver Kit version 7.1.0):
Code:
typedef struct _KDPC {
UCHAR Type;
UCHAR Importance;
volatile USHORT Number;
LIST_ENTRY DpcListEntry;
PKDEFERRED_ROUTINE DeferredRoutine;
PVOID DeferredContext;
PVOID SystemArgument1;
PVOID SystemArgument2;
__volatile PVOID DpcData;
} KDPC, *PKDPC, *PRKDPC;
-
Re: [VB6] - Kernel mode driver.
Oh good, I love it when Microsoft redefines things in seemingly incompatible ways without explanation lol
In WDM.h from WDK 10.0.2261.1 I have
Code:
typedef struct _KDPC {
union {
ULONG TargetInfoAsUlong;
struct {
UCHAR Type;
UCHAR Importance;
volatile USHORT Number;
} DUMMYSTRUCTNAME;
} DUMMYUNIONNAME;
SINGLE_LIST_ENTRY DpcListEntry;
KAFFINITY ProcessorHistory;
PKDEFERRED_ROUTINE DeferredRoutine;
PVOID DeferredContext;
PVOID SystemArgument1;
PVOID SystemArgument2;
__volatile PVOID DpcData;
} KDPC, *PKDPC, *PRKDPC;
-
Re: [VB6] - Kernel mode driver.
I couldn't figure out why a similar driver I made based on this method was bluescreening; and I eventually worked all the way back to trying to compile the sample simply with a name change. That worked. But in a new VBP (again, only your code besides name change) it does not; blue screen. I compared the VBPs;
TrickMemReader.vbp
NoAliasing=-1
BoundsCheck=-1
OverflowCheck=-1
FlPointCheck=-1
FDIVCheck=-1
UnroundedFP=-1
Defaults (in my vbp; "Compile with all default optimizations", so I changed nothing)
NoAliasing=0
BoundsCheck=0
OverflowCheck=0
FlPointCheck=0
FDIVCheck=0
UnroundedFP=0
I'm not sure which one(s) are mandatory, but at least one is, and it's not mentioned. When I enabled them all like your project, the bluescreening was resolved and my own code (to do something different) now works.
-
Re: [VB6] - Kernel mode driver.
fafalone, thank you to pointing out the issue. The 'default' i meant 'Optimize for Fast Code' entry with all optimizations.
-
Re: [VB6] - Kernel mode driver.
So I did some experimenting.
Only "Remove integer overflow checks' is required.
But checking 'No optimizations' and leaving "Remove integer overflow checks" blue screens.
Do you know if 'No optimizations' is overriding 'Remove integer overflow checks'; or is this a different issue?
(Note... Further testing for the floating point ops might be needed if you actually use floating point operations)
-
Re: [VB6] - Kernel mode driver.

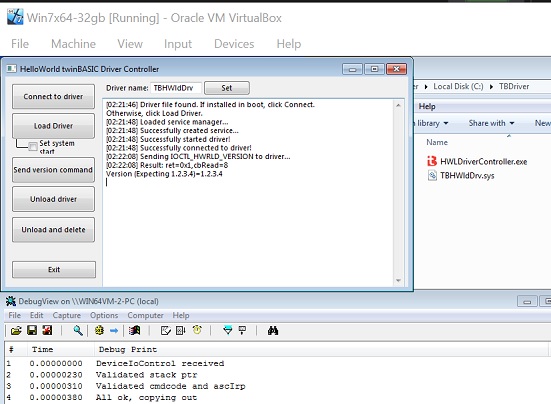

Thanks to the techniques and information from this project, I created a (simpler) x64-compatible kernel mode driver in twinBASIC :)
https://www.vbforums.com/attachment....hmentid=185544
This project has been quite the inspiration. The_trick figured out how to hack VB to do this and posted this brilliant project... I was endlessly fascinated with the possibilities, I got Wayne interested, he added the ability to target the native subsystem in tB... and now it's possible for VB programmers to make drivers for the dominant 64-bit Windows versions :afrog:
There's a lot fewer limitations in tB... the lack of runtime means things like VarPtr can be used directly, and it looks like soon it'll have a way to use String literals instead of the manually-defined arrays here.
-
Re: [VB6] - Kernel mode driver.
Forgive me as I'm very bad at this kind of logic: For 64bit addresses, would lpStart be extended to &HFFFFFFFFFFFFF000, or the same? I'd assume pgOfst &HFFF and the &H1000 count would stay the same as that's just for the 4KB page size (which is the same on x64).
I'm making a utility driver with a number of functions and wanted to include the memory reading command from this.
-
Re: [VB6] - Kernel mode driver.
Interlocked Exchange API to replace VarPtr
Excuse me, how to write this code?
Did you make any driver for the write driver? What is the specific purpose?
Maybe now the 32-bit driver can only run in a virtual machine?
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
xiaoyao
Interlocked Exchange API to replace VarPtr
Excuse me, how to write this code?
Did you make any driver for the write driver? What is the specific purpose?
Maybe now the 32-bit driver can only run in a virtual machine?
Does hijacking threads work for you? Do you get more responses this way?
Can you exercise some common sense when posting in these forums?
cheers,
</wqw>
-
Re: [VB6] - Kernel mode driver.
The trick's typelib for this project already answers the question anyway.
Note that if you're doing code verification/bug checking between VB for 32bit and tB for 64bit, InterlockedExchange is not exported on x64, but you can use VarPtr in tB as it doesn't rely on an outside runtime.
-
Re: [VB6] - Kernel mode driver.
Quote:
Originally Posted by
fafalone
Forgive me as I'm very bad at this kind of logic: For 64bit addresses, would lpStart be extended to &HFFFFFFFFFFFFF000, or the same? I'd assume pgOfst &HFFF and the &H1000 count would stay the same as that's just for the 4KB page size (which is the same on x64).
I'm making a utility driver with a number of functions and wanted to include the memory reading command from this.
Yes. The kernel address space is negative numbers.
