NewTab: tab control for VB6

Quote:

---

Originally Posted by taishan

In TDI mode, it would be helpful to have a ntFindTabFormhWnd in Enum NTFindTabMethodConstants.
Cheers

---

There are two functions:

TDIGetTabByFormHwnd
TDIGetFormHwndByTab

Quote:

---

Originally Posted by Eduardo-

You can do it in the TDIFormsShowTabIcon event:

Code:

---

Private Sub NewTab1_TDIFormsShowTabIcon(ByVal TabNumber As Long, ByVal FormCaption As String, ByVal FormhWnd As Long, IconPicture As Object, IconLeftOffset As Long, IconTopOffset As Long, IconWidth As Long, IconHeight As Long, UseIconFont As Boolean, IconFont As Object, IconChar As Variant, IconColor As Long, IconColorHovered As Long, IconColorSelected As Long, NoIcon As Boolean)
    UseIconFont = True
    IconChar = ChrW(&H2665)
End Sub

---

But I see that there is an issue with the character position. I'll see to fix that and issue an update.

---

The issue seems to be in the Segoe MDL2 Assets font with some upper characters.
Use the IconTopOffset parameter to center the font in the position that you want in that cases.
Anyway I updated the OCX to allow to draw the character lower.

For example:

Code:

---

Private Sub NewTab1_TDIFormsShowTabIcon(ByVal TabNumber As Long, ByVal FormCaption As String, ByVal FormhWnd As Long, IconPicture As Object, IconLeftOffset As Long, IconTopOffset As Long, IconWidth As Long, IconHeight As Long, UseIconFont As Boolean, IconFont As Object, IconChar As Variant, IconColor As Long, IconColorHovered As Long, IconColorSelected As Long, NoIcon As Boolean)
    UseIconFont = True
    IconChar = &H1F9E1
    IconTopOffset = -7
End Sub

---

IconChar is a variant that can accept the Unicode character itself like ChrW(&HE00B&), the String representation of the character number, like "&HE00B&" or the character number like &HE00B& (the long value).

IconFont is the StdFont object, passed as Object to avoid issues with typelib dependency to stdole2.tlb.
You can change the font name, size, etc.

Quote:

---

Originally Posted by Eduardo-

I will read the themes with the previous property names saved.
Did you experience any issues?

---

After I changed the names, there were no issues that I have seen. It's probably ok to change the names. I suppose anyone that upgrades and finds their projects broken can figure out how to fix it. Chers

Quote:

---

Originally Posted by Eduardo-

I will need a minimum sample project that reproduces the issue.

---

I cannot reproduce it with a new project, so the problem must be in my code. thanks

Quote:

---

Originally Posted by taishan

After I changed the names, there were no issues that I have seen. It's probably ok to change the names. I suppose anyone that upgrades and finds their projects broken can figure out how to fix it. Chers

---

The themes store property names.
The names of the old properties are in the themes that are saved into the themes collection property (the custom themes only).
They (the custom themes that maybe someone made) can be also saved locally from the Themes property page for to be used in other projects.
That was what I thought you were worried about. Well, that is what should be backward compatible with the old names, the saved custom themes.

Also the saved properties with old names should be read properly in the ReadProperties procedure (I also added code for that).

About the properties themselves, yes, if someone used those property names in code, she/he will have to change their names in the code. I don't think that many did, but yes, may be some.

Thanks for adding the ability to show an MDL2 Asset font as the tab Icon instead of the form Icon in TDI Mode:

Code:

---

Private Sub NewTab1_TDIFormsShowTabIcon( _
            ByVal TabNumber As Long, _
            ByVal FormCaption As String, _
            ByVal FormhWnd As Long, _
            ByRef IconPicture As Object, _
            ByRef IconLeftOffset As Long, _
            ByRef IconTopOffset As Long, _
            ByRef IconWidth As Long, _
            ByRef IconHeight As Long, _
            ByRef UseIconFont As Boolean, _
            ByRef IconFont As Object, _
            ByRef IconChar As Variant, _
            ByRef IconColor As Long, _
            ByRef IconColorHovered As Long, _
            ByRef IconColorSelected As Long, _
            ByRef NoIcon As Boolean)
    UseIconFont = True
    IconChar = &H1F9E1
    IconTopOffset = -7
End Sub

---

These procedure parameters are already quite numerous, but it would be great if we could add:

ByRef useFormCaption As Boolean
ByRef sFormCaption As String

or maybe add a new sub like

Code:

---

Private Sub NewTab1_TDIFormsShowUnicodeCaption( etc. )

---

So then we could replace the limitations of showing Unicode chars in the form Caption, and the sFormCaption could replace the tab caption with Unicode chars. Especially helpful if the form caption is translated to a different language at runtime.

Cheers

In the TDIBeforeNewTab event you can change the tab Caption.

Not sure if it would be a good idea to allow to change the caption here in the TDIFormsShowTabIcon event too, since there is already a FormCaption parameter, read only, that comes with the original form caption, without "(2)", "(3)" at the end, so it is not always the tab caption and could not be used for changing it.

Quote:

---

Originally Posted by Eduardo-

In the TDIBeforeNewTab event you can change the tab Caption.

---

That's great news. What would be the best way to do this? Can you give me an example?
Thanks

Quote:

---

Originally Posted by taishan

What would be the best way to do this?
Thanks

---

It depends on how you are going to identify the forms.

Quote:

---

Originally Posted by taishan

Can you give me an example?
Thanks

---

Based on its previous caption:

Code:

---

Private Sub NewTab1_TDIBeforeNewTab(ByVal TabType As NewTabCtl.NTTDINewTabTypeConstants, ByVal TabNumber As Long, TabCaption As String, LoadControls As Boolean, Cancel As Boolean)
    If TabCaption = "Form2" Then
        TabCaption = "New caption " & ChrW(&H2665)
    End If
End Sub

---

Thanks! Is there a way to update the caption of a tab after it has been loaded?
This will allow the user to change the language of the UI (English to Chinese, etc.) at runtime, and not have to restart the app.
Cheers

Quote:

---

Originally Posted by taishan

Thanks! Is there a way to update the caption of a tab after it has been loaded?
This will allow the user to change the language of the UI (English to Chinese, etc.) at runtime, and not have to restart the app.
Cheers

---

You can change the tab captions normally, as in non TDI mode:

Code:

---

NewTab1.TabCaption(1) = "New caption"

---

Excellent. Thank you Eduardo for all of your hard work on this control.
Have you tested it in TwinBasic?
Cheers

Quote:

---

Originally Posted by taishan

Excellent. Thank you Eduardo for all of your hard work on this control.
Have you tested it in TwinBasic?
Cheers

---

I know that Wayne has been fixing things in tB to make it work, even in 64 bits, but I could not connect to Discord to see in the last days because where I am I don't have the Discord login details.

https://github.com/twinbasic/twinbasic/releases
maybe check there to download the latest version, new major update 12 hours ago...
Cheers

Hello, Wayne already imported it and it is available as a package (experimental).

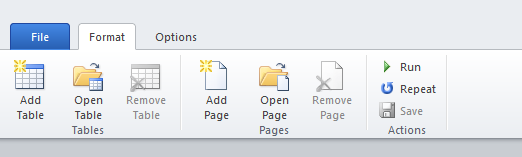

Hi Eduardo, thank you for your efforts, it would be great if you could add the ribbon to the menu.
I'm using html for the ribbon as well as NewTab, but it's getting too complicated and inconsistent, it would be great if both were in NewTab.
This is a suggestion if you have time to work on it

Attachment 193921

Quote:

---

Originally Posted by Mojtaba

Hi Eduardo, thank you for your efforts, it would be great if you could add the ribbon to the menu.
I'm using html for the ribbon as well as NewTab, but it's getting too complicated and inconsistent, it would be great if both were in NewTab.
This is a suggestion if you have time to work on it

Attachment 193921

---

Hello Mojtaba, have you seen this project?: [VB6/Win7+] Using the Windows UI Ribbon Framework

Quote:

---

Originally Posted by Eduardo-

Hello Mojtaba, have you seen this project?: [VB6/Win7+] Using the Windows UI Ribbon Framework

---

I saw it today, but it was complicated to add items
I've used html in some cases and even flash in places to create a menu, each of which has its own problems.
In .NET and C# languages, there are very good controls in the field of toolbars and menus But vb6 is weak in my opinion
This NewTab control solved many of my problems, especially the MDI menu strip feature
Just now, an idea hit me to make a ribbon with newtab
I will create a test project and put it here

Quote:

---

Originally Posted by Eduardo-

I'm not sure, I think it was: Insert Image, From URL, not checked "Retrieve locally", and I set the URL of the image in GitHub.

---

Every time I upload a picture, its clarity is reduced and it turns into a very low quality JPG. But your picture is either in PNG format. Online upload is also very clear, I do not know why.

Quote:

---

Originally Posted by smileyoufu

Hello Eduardo!
Thank you for your quick response, and for helping me!
1. The new version is tested normally and has been used in my project, which solves the problem in the project and helps me a lot. Thank you very much!
2. Regarding the value of "TabKey", my personal suggestion is that it should have "uniqueness (there should be no duplicate values)"
3. For example, the "Key" value in the "ToolBar or TabStrip" property page can not be filled, if filled, the filled "Key" value is not allowed to be repeated, as shown in the screenshot below.
Thank you very much!

---

It is very convenient to switch automatically through key search.
The.net framework, TreeView control, one with only the title text. However, the text of each item may be duplicated, so the search can not be accurately located.Then I wrote a lot of code to loop through each item. It is also convenient to use a unique numeric ID or key to locate directly.

Quote:

---

Originally Posted by xiaoyao

Every time I upload a picture, its clarity is reduced and it turns into a very low quality JPG. But your picture is either in PNG format. Online upload is also very clear, I do not know why.

---

Post questions about the forum here.

Hi Eduardo, the new update has a problem in the form section
When you open the form as vbModal, the form does not open independently and opens in the same tab
The latest update on GitHub has this problem, previous versions did not have this problem
-------------------------------------------------------------------------------------------------------
And another problem that exists at the beginning of the movie is the closing of the main page tab.
When you close another tab and double-click, the main page is also closed and nothing remains.
https://youtu.be/Oaqm24JoiSg

Hello Mojtaba, OK, please test now.

Quote:

---

Originally Posted by Eduardo-

Hello Mojtaba, OK, please test now.

---

vbModal problem solved
But the problem of closing the home tab still exists

Quote:

---

Originally Posted by Mojtaba

But the problem of closing the home tab still exists

---

I can't recreate that one. Could you make a sample project?

Quote:

---

Originally Posted by Eduardo-

I can't recreate that one. Could you make a sample project?

---

This happens when we have two or more tabs and we move to the home tab and other tabs several times and close the tabs, it happens and the home tab is also closed.
Move between the home tab and form 2 a couple of times, then close form 2 and click again in the same place where you closed form 2, and the home tab will also close.
--------------------------------------------

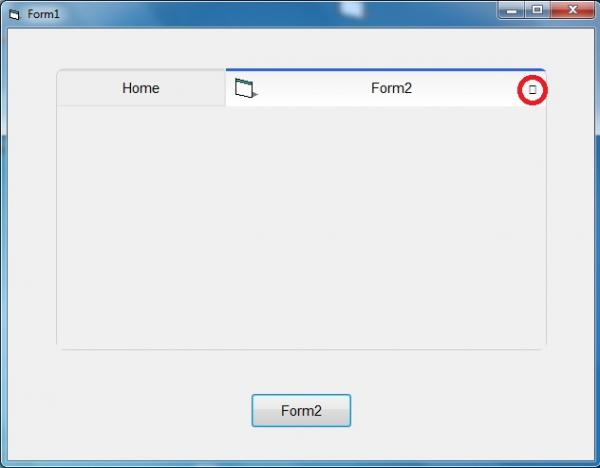

In Windows 7, the close icon is not displayed due to the lack of the correct font. What font do you use for the icons?
This problem does not exist in Windows 8, 10, 11
Attachment 194004

OK, thanks. Please test now.

Quote:

---

Originally Posted by Eduardo-

OK, thanks. Please test now.

---

Thank you, Eduardo, these two problems have been solved :)
I have seen these problems before, but I wanted to express all the problems in one post
Only about the X tab closing icon in Windows 7 is not displayed correctly
Of course, I solved this problem by installing the SEGMDL2 font

Attachment 194004

Attachment 194006

OK, I see the issue. I'll study it later or tomorrow.

Updated. Please test now.

Quote:

---

Originally Posted by Eduardo-

Updated. Please test now.

---

successful
In terms of size, X is different, it is smaller in Windows 7, but the display problem has been solved

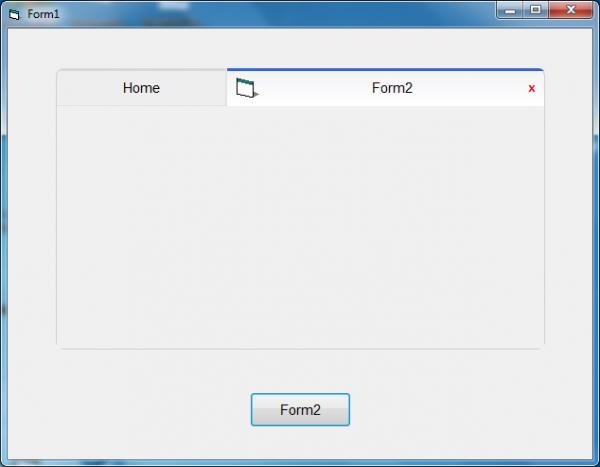

Windows 7
Updated version of NewTab
Attachment 194010

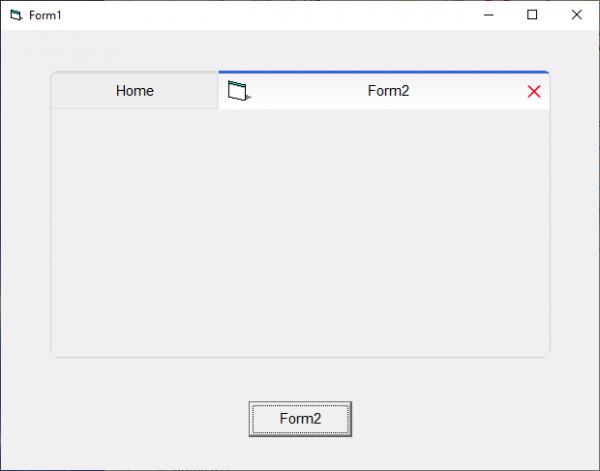

Windows 10
Updated version of NewTab
Attachment 194011

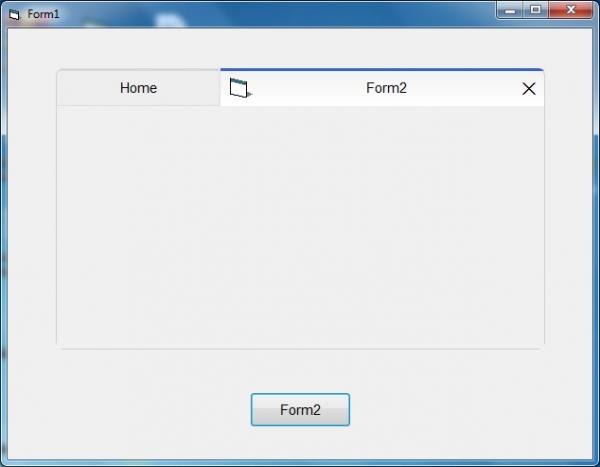

But in the previous version, with the font installed in Windows 7 SEGMDL2, the X size is equal to the Windows 10 image..
Windows 7
Previous version of NewTab
By installing the font
Attachment 194006

Updated again. Let's see the size of the x now.
It will still be smaller because it uses the regular 'x', but not that much smaller.

Quote:

---

Originally Posted by Mojtaba

But in the previous version, with the font installed in Windows 7 SEGMDL2, the X size is equal to the Windows 10 image..
Windows 7
Previous version of NewTab
By installing the font
Attachment 194006

---

In this version also, installing the "Segoe MDL2 Assets" font in Windows 7, it should work as in Windows 10.
Isn't it working?

Quote:

---

Originally Posted by Eduardo-

Updated again. Let's see the size of the x now.
It will still be smaller because it uses the regular 'x', but not that much smaller.
In this version also, installing the "Segoe MDL2 Assets" font in Windows 7, it should work as in Windows 10.
Isn't it working?

---

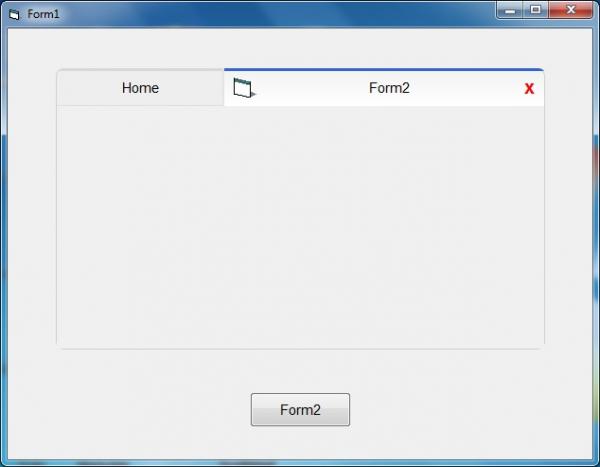

Updated NewTab Windows7
Now it's good, X size has become bigger
This is when the font is not installed

Attachment 194021

Updated NewTab Windows7
If the font is installed in Windows 7

Attachment 194006

There is no problem in other versions of Windows 8,10,11

Eduardo, I found a solution to the problem
as I said, this problem in Windows 7 is due to the lack of the Segoe MDL2 Assets font.
Well, use another font called MS Mincho. It is installed by default on all systems from XP to 11.
I put the character font X in the picture

Attachment 194022

Hello. I checked in an old machine that I have with XP and the MS Mincho font is not installed.

That image that you posted is from Windows 7 or from Windows 10?

Because it is not only if the font is installed, but also if it supports that character. You are using Unicode 2715 that is very high. In older Windows versions, the font may exists but not including the upper characters.

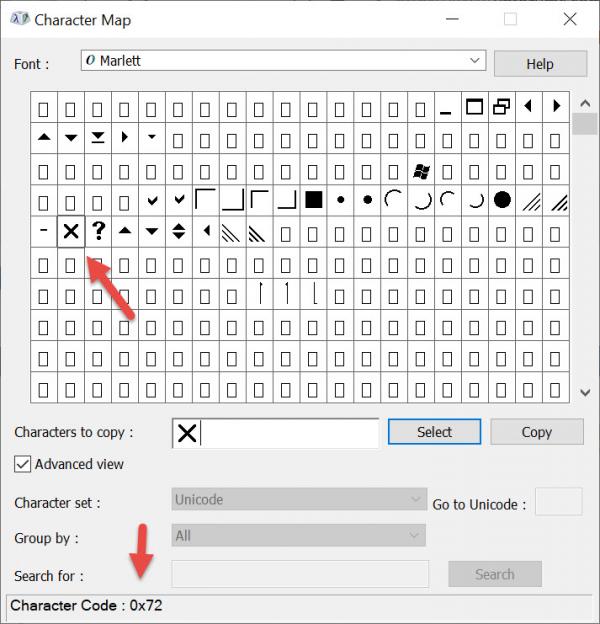

How about the Marlett font? The Close button icon is mapped to the "r" character:

Attachment 194023

Available since Win95:

https://en.wikipedia.org/wiki/Marlett

Ohh, I already disconnected the XP machine...
I'll check it later. But that seems a good option, thanks jpbro.

Quote:

---

Originally Posted by jpbro

Attachment 194023

---

What program do you use to draw the arrows in the image?

Quote:

---

Originally Posted by Eduardo-

What program do you use to draw the arrows in the image?

---

An older version of SnagIt (V11 from 2014-ish).

Quote:

---

Originally Posted by jpbro

an older version of snagit (v11 from 2014-ish).

---

ok..

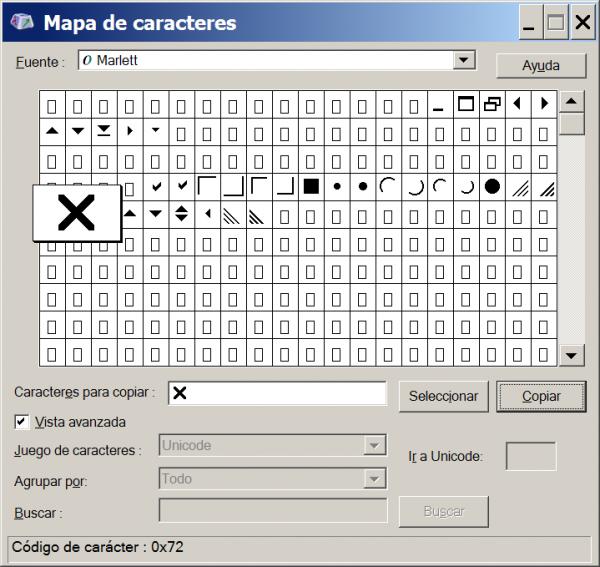

Marlett on XP:

Attachment 194024
