CommonControls (Replacement of the MS common controls)

Quote:

---

Originally Posted by Krool

The tooltip class will be considered in the VisualStyles property in VBCCR16..

---

That would avoid to loop through all controls on a form everytime you open the form and save a lot of time opening a form with hundreds of controls on it :afrog:

Hi Krool
I downloaded the MDI_ToolBar Demo but I can't figure outhow to make the ToolBar control accessible per shortcut key on a MDIForm
For example what code I need to show Form2 and where shall I place this code as it is not possible to place it in KeyDown event of the MDIForm

Quote:

---

Originally Posted by samer22

I downloaded the MDI_ToolBar Demo but I can't figure outhow to make the ToolBar control accessible per shortcut key on a MDIForm
For example what code I need to show Form2 and where shall I place this code as it is not possible to place it in KeyDown event of the MDIForm

---

If you download the demo then run and test it out.
If it does what you expect then study the demo project how it's done. (E.g. what's for code in the Form, how are the properties set etc.)
It should be all self-explaining. I would just repeat here what's shown in the demo project..

Quote:

---

Originally Posted by Mith

That would avoid to loop through all controls on a form everytime you open the form and save a lot of time opening a form with hundreds of controls on it :afrog:

---

Not "would". It is.

Quote:

---

Originally Posted by Krool

If you download the demo then run and test it out.
If it does what you expect then study the demo project how it's done. (E.g. what's for code in the Form, how are the properties set etc.)
It should be all self-explaining. I would just repeat here what's shown in the demo project..

---

Sorry sir I'm a beginner
I downloaded the demo and tested it
I was expecting I could do something like that

Code:

---

If KeyCode = vbKeyF1 Then FormChild.Show

---

The same thing I do in a form Form_KeyDown event.
But since a MdiForm doesn't have a KeyDown event, I couldn't figure out how to make use of shortcut keys.

Quote:

---

Originally Posted by samer22

Sorry sir I'm a beginner
I downloaded the demo and tested it
I was expecting I could do something like that

Code:

---

If KeyCode = vbKeyF1 Then FormChild.Show

---

The same thing I do in a form Form_KeyDown event.
But since a MdiForm doesn't have a KeyDown event, I couldn't figure out how to make use of shortcut keys.

---

Yes, an MDIFrom doesn't have a KeyDown event.
The MDI_ToolBar demo is therefore using a WH_KEYBOARD_LL hook to detect WM_SYSKEYDOWN and with flag LLKHF_ALTDOWN and pass to ToolBar1.ContainerKeyDown. ToolBar1.ContainerKeyDown is a convinient method that will trigger a button click, when there is a button caption with an Ampersand (e.g. "&New Doc", which displays "New Doc") an key code matching it. (of course the button also must be enabled, not disabled)
However, what you want is then independent from ToolBar1.ContainerKeyDown.
To reach your behavior I just changed the hook, see below:

Code:

---

Private Type KBDLLHOOKSTRUCT
VKCode As Long
ScanCode As Long
Flags As Long
Time As Long
dwExtraInfo As Long
End Type
Private Declare Sub CopyMemory Lib "kernel32" Alias "RtlMoveMemory" (ByRef Destination As Any, ByRef Source As Any, ByVal Length As Long)
Private Declare Function GetActiveWindow Lib "user32" () As Long
Private Const WM_KEYDOWN As Long = &H100
Implements IHook

Private Sub IHook_Before(ByRef Handled As Boolean, ByRef RetVal As Long, ByVal HookType As HookTypeConstants, ByVal HookCode As HookCodeConstants, ByVal wParam As Long, ByVal lParam As Long)
If HookType = WH_KEYBOARD_LL Then
    If HookCode = HC_ACTION Then
        If wParam = WM_KEYDOWN Then
            If GetActiveWindow() = Me.hWnd Then
                Dim KBDLLHS As KBDLLHOOKSTRUCT
                CopyMemory KBDLLHS, ByVal lParam, LenB(KBDLLHS)
                Dim KeyCode As Integer
                KeyCode = KBDLLHS.VKCode And &HFF&
                If KeyCode = vbKeyF1 Then
                    With New FormChild
                    .Show vbModeless
                    End With
                    Handled = True
                    RetVal = 1
                End If
            End If
        End If
    End If
End If
End Sub

Private Sub IHook_After(ByRef RetVal As Long, ByVal HookType As HookTypeConstants, ByVal HookCode As HookCodeConstants, ByVal wParam As Long, ByVal lParam As Long)
End Sub

Private Sub MDIForm_Load()
Call SetHook(Me, WH_KEYBOARD_LL)
End Sub

Private Sub MDIForm_Unload(Cancel As Integer)
Call RemoveHook(Me, WH_KEYBOARD_LL)
End Sub

---

To make this user-friendly you could include in the button caption in the ToolBar an "(F1)". Even when in real it's totally disconnected.

Thank you sir
now it works as I was expecting

Quote:

---

Originally Posted by Krool

Quote Originally Posted by Mith View Post
That would avoid to loop through all controls on a form everytime you open the form and save a lot of time opening a form with hundreds of controls on it

Not "would". It is.

---

It is? Do you mean the VisualStyles property has already included a newer modern version of the tooltip class? :confused:

Quote:

---

Originally Posted by Mith

It is? Do you mean the VisualStyles property has already included a newer modern version of the tooltip class? :confused:

---

Yes. (?)

Quote:

---

Originally Posted by Krool

Yes. (?)

---

No...

CommandButtonW with the standard ToolTipText property:

Attachment 170497

CommandButtonW using my extra ToolTip-Class:

Attachment 170499

As you can see the standard ToolTipText property still shows tooltips with the old ugly style...

Tested with v1.6.41

Quote:

---

Originally Posted by Mith

No...

CommandButtonW with the standard ToolTipText property:

Attachment 170497

CommandButtonW using my extra ToolTip-Class:

Attachment 170499

As you can see the standard ToolTipText property still shows tooltips with the old ugly style...

Tested with v1.6.41

---

You talked about the ListView ListItems and ListSubItems !!!!!

Quote:

---

Originally Posted by Krool

You talked about the ListView ListItems and ListSubItems !!!!!

---

no, i wrote this at one of my posts:

Quote:

---

Now i use a tooltip class and replace the tooltiptext property of all controls on the form for a more fresh look.

---

I guess there is no "modern look" tooltiptext with all the vbccr16 controls possible without using an extra tooltip class...

Quote:

---

Originally Posted by Mith

no, i wrote this at one of my posts:



I guess there is no "modern look" tooltiptext with all the vbccr16 controls possible without using an extra tooltip class...

---

For the Control.ToolTipText your right. This was already discussed before and an idea was to include an .ToolTipTextW property that supports Unicode and theming. It's not possible to overwrite .ToolTipText because it's handled by VBControlExtender.

Quote:

---

Originally Posted by Krool

This was already discussed before and an idea was to include an .ToolTipTextW property that supports Unicode and theming. It's not possible to overwrite .ToolTipText because it's handled by VBControlExtender.

---

if the current .ToolTipText property can save unicode text it would be better to add a new option to select the using of the .ToolTipText property:

1. standard VB ToolTipText
2. new ToolTipText class with modern look

but i guess if the .ToolTipText is handled by VBControlExtender you cant save unicode text, or?

I use a form with a white background and the TabStrip uses a grey background color:

Attachment 170511

Does anyone know how to change the background color of the TabStrip control or to change the control background to transparent?

I cant find any property to do this...

Quote:

---

I cant find any property to do this...

---

There is no such property.
I asked for this some time ago as well.

The COMCTL32 doesn't offer a possibility.
And all other means require a major effort to be reliable.

Changing backcolor on tab-strip's tabs can be implemented on *parent* WM_PRINTCLIENT msg like this

Code:

---

    Case WM_PRINTCLIENT
        '--- for tab-strip integration
        If (lParam And PRF_CLIENT) <> 0 Then
            Call GetClientRect(m_hWnd, rc)
            Call FillRect(wParam, rc, m_hBackBrush)
            Exit Function
        End If

---

This is just an idea for Krool so he can can look to it if possible to impl here.

cheers,
</wqw>

Quote:

---

Originally Posted by wqweto

Changing backcolor on tab-strip's tabs can be implemented on *parent* WM_PRINTCLIENT msg like this

Code:

---

    Case WM_PRINTCLIENT
        '--- for tab-strip integration
        If (lParam And PRF_CLIENT) <> 0 Then
            Call GetClientRect(m_hWnd, rc)
            Call FillRect(wParam, rc, m_hBackBrush)
            Exit Function
        End If

---

This is just an idea for Krool so he can can look to it if possible to impl here.

cheers,
</wqw>

---

Wow, I didn't know that. This works and is straight-forward. Is this an implementation on later OS ?
Though, it only works with VisualStyles set to True and with style 'Tabs' (all other styles are anyway not themed)

I thought it needs to be "hacked" via WM_PAINT with calculation of all the item rects and glitching around…

That the parent needs to handle WM_PRINTCLIENT reminds me of the ListView control. There was something similar added since Vista.

Thank you. Will consider this one.

Quote:

---

Originally Posted by wqweto

Changing backcolor on tab-strip's tabs can be implemented on *parent* WM_PRINTCLIENT msg like this

---

Very interesting.
Do you have a small working example?

EDIT:
Just saw Krool's answer.
So an example for me is not needed.

So, the WM_PRINTCLIENT trick works for themed TabStrip back to Windows XP. So that is great. Thanks again wqweto. How did you come to this?

For the other styles, unthemed or when owner drawn the workaround to catch WM_PAINT and draw in memory dc would work sufficient as the item rect's are meaningful to get by API's, no rounded corners and assumptions(!) like in the themed tab.

Quote:

---

Originally Posted by Karl77

Do you have a small working example?

---

When somebody can't wait for the official BackColor property, then you may apply the following in the function "WindowProcUserControl":

Code:

---

Case WM_PRINTCLIENT
    ' hard-coded as no BackColor property there yet. :) Just a demo.
    If TabStripHandle <> 0 Then
        If WindowFromDC(wParam) = TabStripHandle Then
            Dim RC As RECT, Brush As Long
            GetClientRect TabStripHandle, RC
            Brush = CreateSolidBrush(vbRed)
            FillRect wParam, RC, Brush
            DeleteObject Brush
            Exit Function
        End If
    End If

---

Two minor modification compared to wqweto.
1. no PRF_CLIENT flag check needed because WM_PRINTCLIENT is per definition always PRF_CLIENT.
2. added a check that the associated wParam (DC) is really linked to the TabStrip and not any other window..

Quote:

---

Originally Posted by Krool

When somebody can't wait for the official BackColor property

---

I could not.
Works flawless.

Thanks to Mith's question, wqweto's hint, and Krool's implementation.

I loaded a file with a BOM header FFFE using the flag RtfLoadSaveFormatUnicodeText into a RichTextBox.
The BOM header was removed and not shown up at the text window.
Everything was fine until here.

Later i saved the file with the flag RtfLoadSaveFormatUnicodeText but the BOM header FFFE not have been added to file again!
I thought using the flag RtfLoadSaveFormatUnicodeText when saving a file would always add the BOM header to the file...

Is this a bug or how can i save the file including the BOM header again?

Quote:

---

Originally Posted by Mith

I loaded a file with a BOM header FFFE using the flag RtfLoadSaveFormatUnicodeText into a RichTextBox.
The BOM header was removed and not shown up at the text window.
Everything was fine until here.

Later i saved the file with the flag RtfLoadSaveFormatUnicodeText but the BOM header FFFE not have been added to file again!
I thought using the flag RtfLoadSaveFormatUnicodeText when saving a file would always add the BOM header to the file...

Is this a bug or how can i save the file including the BOM header again?

---

Thanks. Fixed.

That was a "bug". Not really a bug because the rich edit control just handle streams. It does not care about BOM header.
So it was an oversight by me to not write the BOM header when saving a Unicode file.

I also slightly modified LoadFile for RichTextBox.
It will load unicode file even when there is no BOM.
Prior to this change (when there is no BOM) it fall backs to ANSI text. But that does not make sense at all when specifying RtfLoadSaveFormatUnicodeText. It should read Unicode for BOM and no BOM cases without unlogic fall back to ANSI when there is no BOM.

Im missing the reverse flag at the the Find function of the RichTextBox to search a document backwards.

See https://docs.microsoft.com/en-us/dotnet
/api/system.windows.forms.richtextboxfinds?view=netframework-4.8

Or does the RichTextBox of the CommonControls not support this flag?

.redraw property

Currently i use my own reverse search function but the backward search can be very slow when using large files and the search text isnt found.

I guess a .redraw property for the RichTextBox would be very nice to speed up the search.

Maybe this code helps you to implement a .redraw property:
https://stackoverflow.com/questions/...ng-its-display

Quote:

---

Originally Posted by Krool

Yes, an MDIFrom doesn't have a KeyDown event.
The MDI_ToolBar demo is therefore using a WH_KEYBOARD_LL hook to detect WM_SYSKEYDOWN and with flag LLKHF_ALTDOWN and pass to ToolBar1.ContainerKeyDown. ToolBar1.ContainerKeyDown is a convinient method that will trigger a button click, when there is a button caption with an Ampersand (e.g. "&New Doc", which displays "New Doc") an key code matching it. (of course the button also must be enabled, not disabled)
However, what you want is then independent from ToolBar1.ContainerKeyDown.
To reach your behavior I just changed the hook, see below:

Code:

---

Private Type KBDLLHOOKSTRUCT
VKCode As Long
ScanCode As Long
Flags As Long
Time As Long
dwExtraInfo As Long
End Type
Private Declare Sub CopyMemory Lib "kernel32" Alias "RtlMoveMemory" (ByRef Destination As Any, ByRef Source As Any, ByVal Length As Long)
Private Declare Function GetActiveWindow Lib "user32" () As Long
Private Const WM_KEYDOWN As Long = &H100
Implements IHook

Private Sub IHook_Before(ByRef Handled As Boolean, ByRef RetVal As Long, ByVal HookType As HookTypeConstants, ByVal HookCode As HookCodeConstants, ByVal wParam As Long, ByVal lParam As Long)
If HookType = WH_KEYBOARD_LL Then
    If HookCode = HC_ACTION Then
        If wParam = WM_KEYDOWN Then
            If GetActiveWindow() = Me.hWnd Then
                Dim KBDLLHS As KBDLLHOOKSTRUCT
                CopyMemory KBDLLHS, ByVal lParam, LenB(KBDLLHS)
                Dim KeyCode As Integer
                KeyCode = KBDLLHS.VKCode And &HFF&
                If KeyCode = vbKeyF1 Then
                    With New FormChild
                    .Show vbModeless
                    End With
                    Handled = True
                    RetVal = 1
                End If
            End If
        End If
    End If
End If
End Sub

Private Sub IHook_After(ByRef RetVal As Long, ByVal HookType As HookTypeConstants, ByVal HookCode As HookCodeConstants, ByVal wParam As Long, ByVal lParam As Long)
End Sub

Private Sub MDIForm_Load()
Call SetHook(Me, WH_KEYBOARD_LL)
End Sub

Private Sub MDIForm_Unload(Cancel As Integer)
Call RemoveHook(Me, WH_KEYBOARD_LL)
End Sub

---

To make this user-friendly you could include in the button caption in the ToolBar an "(F1)". Even when in real it's totally disconnected.

---

Hello sir
I noticed that when I call the function SetHook I will be unable to use keyboard keys.
Hence, Impossible to write in textboxes
thanks

Quote:

---

Originally Posted by Krool

Yes, an MDIFrom doesn't have a KeyDown event.
The MDI_ToolBar demo is therefore using a WH_KEYBOARD_LL hook to detect WM_SYSKEYDOWN and with flag LLKHF_ALTDOWN and pass to ToolBar1.ContainerKeyDown. ToolBar1.ContainerKeyDown is a convinient method that will trigger a button click, when there is a button caption with an Ampersand (e.g. "&New Doc", which displays "New Doc") an key code matching it. (of course the button also must be enabled, not disabled)
However, what you want is then independent from ToolBar1.ContainerKeyDown.
To reach your behavior I just changed the hook, see below:

Code:

---

Private Type KBDLLHOOKSTRUCT
VKCode As Long
ScanCode As Long
Flags As Long
Time As Long
dwExtraInfo As Long
End Type
Private Declare Sub CopyMemory Lib "kernel32" Alias "RtlMoveMemory" (ByRef Destination As Any, ByRef Source As Any, ByVal Length As Long)
Private Declare Function GetActiveWindow Lib "user32" () As Long
Private Const WM_KEYDOWN As Long = &H100
Implements IHook

Private Sub IHook_Before(ByRef Handled As Boolean, ByRef RetVal As Long, ByVal HookType As HookTypeConstants, ByVal HookCode As HookCodeConstants, ByVal wParam As Long, ByVal lParam As Long)
If HookType = WH_KEYBOARD_LL Then
    If HookCode = HC_ACTION Then
        If wParam = WM_KEYDOWN Then
            If GetActiveWindow() = Me.hWnd Then
                Dim KBDLLHS As KBDLLHOOKSTRUCT
                CopyMemory KBDLLHS, ByVal lParam, LenB(KBDLLHS)
                Dim KeyCode As Integer
                KeyCode = KBDLLHS.VKCode And &HFF&
                If KeyCode = vbKeyF1 Then
                    With New FormChild
                    .Show vbModeless
                    End With
                    Handled = True
                    RetVal = 1
                End If
            End If
        End If
    End If
End If
End Sub

Private Sub IHook_After(ByRef RetVal As Long, ByVal HookType As HookTypeConstants, ByVal HookCode As HookCodeConstants, ByVal wParam As Long, ByVal lParam As Long)
End Sub

Private Sub MDIForm_Load()
Call SetHook(Me, WH_KEYBOARD_LL)
End Sub

Private Sub MDIForm_Unload(Cancel As Integer)
Call RemoveHook(Me, WH_KEYBOARD_LL)
End Sub

---

To make this user-friendly you could include in the button caption in the ToolBar an "(F1)". Even when in real it's totally disconnected.

---

Hello sir
I noticed that when I call the function SetHook I will be unable to use keyboard keys.
Hence, Impossible to write in textboxes
thanks

Quote:

---

Originally Posted by Mith

Im missing the reverse flag at the the Find function of the RichTextBox to search a document backwards.

---

There is no reverse flag, right.
However, you can search backwards by flipping the parameters. It's demonstrated in the Demo:

Code:

---

If (CommonDialogFind.Flags And CdlFRDown) = CdlFRDown Then
    RetVal = RichTextBox1.Find(CommonDialogFind.FindWhat, RichTextBox1.SelStart + RichTextBox1.SelLength, , Options)
Else
    RetVal = RichTextBox1.Find(CommonDialogFind.FindWhat, , RichTextBox1.SelStart, Options)
End If

---

So if Down is selected in the Find common dialog the search in RichTextBox is forward.
If Up is selected then the search appears backward.
But if two hit results are found it's the first from start and not the first from SelStart.
So it's not real backward but for most cases appear ok.
Whatsoever I will look to include Reverse flag soon.

Quote:

---

Originally Posted by Krool

So it's not real backward but for most cases appear ok.

---

Currently i use the following function for a real backward search:

Code:

---

Public Function RTB_FindReverse(ByRef cRTB As VBCCR16.RichTextBox, ByVal sFindText As String, Optional ByVal lStartPos As Long = -1, Optional ByVal lSearchFlags As Long) As Long

      Dim I As Long
      Dim lPos As Long
      Dim TextLen As Long

20    TextLen = Len(sFindText)

30    Call LockWindowUpdate(cRTB.hwnd)

40    If lStartPos = -1 Then
50      lStartPos = Len(cRTB.Text) 'end of file
60    End If

70    For I = lStartPos To 0 Step -1

80      lPos = cRTB.Find(sFindText, I, I + TextLen, lSearchFlags)
90      If lPos <> -1 Then Exit For

100  Next I

110  Call LockWindowUpdate(0)

120  RTB_FindReverse = lPos

End Function

---

I hope the new reverse flag will help to speed up backward searching through large files...

Quote:

---

Originally Posted by Mith

Im missing the reverse flag at the the Find function of the RichTextBox to search a document backwards.

See https://docs.microsoft.com/en-us/dotnet
/api/system.windows.forms.richtextboxfinds?view=netframework-4.8

Or does the RichTextBox of the CommonControls not support this flag?

---

Thanks Mith. You become a good tester. :)

The flag 'RtfFindOptionReverse' is now included for the Find method.
It has the same value 16 (&H10) as in the .net RichTextBoxFinds Enum.

Your RTB_FindReverse helper function is slow because you call the .Find method in a loop.
Also in each loop the control blinks as the text is selected unless the NoHighlight enum option was specified.
So please try 'RtfFindOptionReverse'. It should work fast without any need to turn off redrawing.

Quote:

---

Originally Posted by samer22

I noticed that when I call the function SetHook I will be unable to use keyboard keys.
Hence, Impossible to write in textboxes
thanks

---

I tested the code snipped I provided to you again in my MDI_ToolBar demo and it was no problem to write in the textbox of the child form.
Please provide a demo project showing your issue.

sorry again sir
I was using select case mistakengly

Code:

---

Select Case KeyCode
              Case vbKeyF1

                  FormChild.Show

                End Select

                    Handled = True
                    RetVal = 1

---

Quote:

---

Originally Posted by Krool

Thanks Mith. You become a good tester. :)

---

I guess more reports will come n the future because i use your controls to convert a very large vb6 project to unicode :)

I wish we had a unicode TreeGrid control...does anyone known a TreeGrid control with unicode support?

Quote:

---

Originally Posted by Krool

The flag 'RtfFindOptionReverse' is now included for the Find method.

---

The new flag works very well and fast! Thanks for the implementation!

Quote:

---

I wish we had a unicode TreeGrid control...does anyone known a TreeGrid control with unicode support?

---

I use the vsFlexGrid from ComponentOne
Seems it's called Grapecity nowadays...
https://www.grapecity.com/activex

Quote:

---

a TreeGrid control with unicode support

---

http://www.vbforums.com/showthread.p...xGrid-control)

EDIT:
Oops, TreeGrid <> Flexgrid
Don't know what you mean by TreeGrid.

Quote:

---

I wish we had a unicode TreeGrid control...does anyone known a TreeGrid control with unicode support?

---

Does the vbFlexGrid also supports a Treeview in a given column?

Quote:

---

Originally Posted by Arnoutdv

Does the vbFlexGrid also supports a Treeview in a given column?

---

How should that look like?

"Official" screenshot here:
https://www.componentsource.com/prod...nshots/2196344

The attached image is from one of my applications

BackColor property in the TabStrip now included.

Also the OCX got updated. I don't like it as it is a functional jump, even it's still binary compatibility.
However, I also found the alternative to wait for 1.7 too stupid. As this feature was so often asked and wqweto now provided a solution... :)

So still until today OCX is still in sync with Std-EXE version.

The BackColor property in TabStrip will be enriched in future so it also works when VisualStyles is False or DrawMode is OwnerDrawn. This was just the first step.

Also bugfix for "TabStrip1.DrawBackground(hWnd, hDC)" method in this update. The bug was was that an offset could happen due to difference between window rect and client rect.
The new routine is also simplified. It's now directly mapped between client hWnd and TabStrip.
Also instead of SendMessage WM_PAINT it now uses WM_PRINT with PRF_CLIENT + PRF_ERASEBKGND. (for correct result even when theming is off)

Code:

---

Public Sub DrawBackground(ByVal hWnd As Long, ByVal hDC As Long)
If TabStripHandle <> 0 And hWnd <> 0 And hDC <> 0 Then
    Dim RC As RECT, P As POINTAPI
    GetClientRect hWnd, RC
    MapWindowPoints hWnd, TabStripHandle, RC, 2
    P.X = RC.Left
    P.Y = RC.Top
    SetViewportOrgEx hDC, -P.X, -P.Y, P
    SendMessage TabStripHandle, WM_PRINT, hDC, ByVal PRF_CLIENT Or PRF_ERASEBKGND
    SetViewportOrgEx hDC, P.X, P.Y, P
End If
End Sub

---

Quote:

---

Originally Posted by Krool

BackColor property in the TabStrip now included.

---

Confirmed, it works very nice! Good job!

Now i can set the TabStrip background color to the form background color:

Attachment 170619

At the beginning i was confused because at the IDE your dont see the defined background color.

There exists a ListItem property named "UseItemStyleForSubItems" that enables you to change the backcolor of ListItems and SubItems.

Is it possible to add this property to the ListView control?

See https://www.google.com/search?q=list...yleForSubItems

i created a listview with report mode and defined that the first and fifth column is right-aligned.
i also used FullRowSelect=False and AutoSelectFirstItem=False

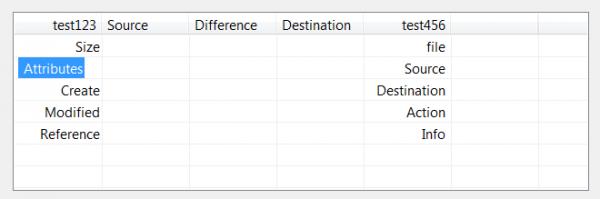

after i created the report i get this:

Attachment 170621

the first item is auto selected but i used AutoSelectFirstItem=False and the alignment is switched from right to left because the item was autoselect...

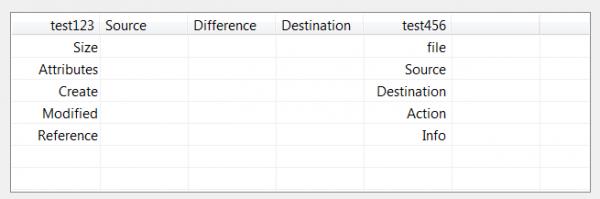

normally it should look like this:

Attachment 170623

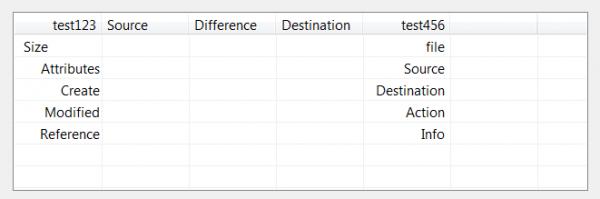

after i click on another item it looks like this:

Attachment 170625

1. i can avoid this alignment-swapping when i set FullRowSelect=True.

2. if AutoSelectFirstItem is set to False the control should not autoselect the first item ,or?

3. is it somehow possible to lock the listview without using enable=false to prevent user mouse clicks or keyboard inputs? i guess a .locked property would help here...

Example project: Attachment 170627
