[vb6]Alpha Image Control v2 - Final Update (15 Jan 2012)

Quote:

---

Originally Posted by Cube8

After your last update, the TransparencyPct property is not working at all. No matter what I type, it behaves as if it was 100.

---

Ugh, thanx. Simple fix for me. Unfortunately, that portion of the matrix was moved into a section that is activated only if other parts of the matrix are valid. Bad on me. I'll move it out of that section where it should've been. Will update it today.

Edited: Patch uploaded now

Updated control today. Enhancement-only updates

- New BorderShape property allows borders to have round corners vs. just sharp corners

- Can now drag & paste files from Explorer when zip/compressed files are viewed as "Compressed Folders" (XP and above)

- If dragging multiple files onto control (OLEDropMode=vbOLEDropAutomatic), each file will be processed, as needed, until image successfully loaded. Same logic used if pasting multiple files and loading image via the Clipboard. Previous behavior was to process only the 1st file, do or die

Edited: After playing around with the rounded borders, I can see where non-blended corners may be more desirable than blended corners. The next update will offer a choice between blended & non-blended
As for the size of the rounded corners, I chose to replicate VB's shape control with rounded corners and the results should be nearly identical. If anyone wishes to apply their own border shape, its just a matter of using the Pre-PostPaint events and assigning a clipping region during PrePaint and drawing the custom border in PostPaint. To assist in that regard and to prevent you from having to offset the image and/or adjust dimensions of control to accommodate a 1-pixel border, I'll also include an optional UserDefinedBorder member of the BorderShape property

Another enhancement update coming 1st/2nd of October & will include these options
- BorderShape property: will include rough & blended rounded corner border options. Will also include a UserDefined setting as described above
- Gradient background: For images that use transparency, the control's background can be gradient filled in 8 directions, using 2 colors
: New GradientForeColor will be provided. Gradients start with this color and end with the control's BackColor property
: Horizontally left to right, Vertically top to bottom, Diagonally from top/left to bottom/right, Diagonally from bottom/left to top/right
: To reverse above 4 directions, just swap out GradientForeColor & BackColor properties

Hi, another bug. I noticed as i was using the control that the Mouse Enter event would fire like crazy sometimes. After looking into it I've found that every timer the control's picture is changed (even if the mouse is already over the control) the Mouse Enter event will fire. If I make so that the control's picture changes in the Mouse Move event the Mouse Enter event will fire every time.

Quote:

---

Originally Posted by cheesebrother

Hi, another bug. I noticed as i was using the control that the Mouse Enter event would fire like crazy sometimes... If I make so that the control's picture changes in the Mouse Move event the Mouse Enter event will fire every time.

---

Yep, by design. But as I just revisited that routine, I can't tell you for sure why I designed it that way.... Thinking on this and unless I can rediscover why I coded it that way, I'll remove it in next update due this weekend.

If you wish to remove that for right now, rem out the following lines in the Set Picture property

Code:

---

        If Not m_MouseTracker Is Nothing Then          ' fire mouse leave event if needed
            Call m_MouseTracker.ReleaseMouseCapture(True, ObjPtr(Me))
            Set m_MouseTracker = Nothing
        End If                                          ' assign new image & set render flags

---

Edited: I may have been thinking in the context of the image vs. the control. Yes, I'm tap dancing a bit. I do agree that the current logic can be counter-productive in this case & will re-work the logic a tad.

Note: That if you set the HitTest property to other than default, you can experience this situation also because the HitTest area can change when the image changes. That is by design also and, in my opinion, is still applicable and sound logic

Quote:

---

Originally Posted by LaVolpe

Yep, by design. But as I just revisited that routine, I can't tell you for sure why I designed it that way.... Thinking on this and unless I can rediscover why I coded it that way, I'll remove it in next update due this weekend.

If you wish to remove that for right now, rem out the following lines in the Set Picture property

Code:

---

        If Not m_MouseTracker Is Nothing Then          ' fire mouse leave event if needed
            Call m_MouseTracker.ReleaseMouseCapture(True, ObjPtr(Me))
            Set m_MouseTracker = Nothing
        End If                                          ' assign new image & set render flags

---

Edited: I may have been thinking in the context of the image vs. the control. Yes, I'm tap dancing a bit. I do agree that the current logic can be counter-productive in this case & will re-work the logic a tad.

Note: That if you set the HitTest property to other than default, you can experience this situation also because the HitTest area can change when the image changes. That is by design also and, in my opinion, is still applicable and sound logic

---

Thanks for the fix, in a program that i'm making it will be much appreciated. I also had a suggestion for a possible addition to the control. What if you made it so that a user could crop the picture? It would go something along the lines of this - AlphaImageCtl1.Picture.CropImage(X as integer, Y as integer, Width as integer, Height as integer). It would be a lot like segment image except it would give the user all of the control in the world.

Regarding cropping: Well, you can already do that with existing methods:

1. Set AutoSize property so no AutoSizing takes effect & size control to the dimensions of the cropping, i.e., Width, Height
2. May want to set the AlignCenter property to False in this case, so image is drawn at 0,0
3. Set the XOffset & YOffset properties as needed, i.e., (-X, -Y)

The above steps can be placed in a simple user-defined sub within your project. Also by setting these properties during design time, you can see what the cropped image will look like in advance

Edited: A simple user-defined cropping routine

Code:

---

Option Explicit
' in this example, the control's parent scalemode is pixels

Private Sub AlphaImgCtl1_Click()
    CropImage AlphaImgCtl1, 30, 30, 100, 100
End Sub

Private Sub CropImage(theImage As AlphaImgCtl, X As Long, Y As Long, _
                        Width As Long, Height As Long)

    ' the AlignCenter property should already be set to False for better runtime visual change
    With theImage
        .SetRedraw = False
        .AlignCenter = False
        .AutoSize = lvicNoAutoSize
        ' ensure X, Y are pixel scalemode
        .SetOffsets -X, -Y
        ' ensure X, Y, Width, Height are appropriate container scalemode
        .Move .Left + X, .Top + Y, Width, Height
        .SetRedraw = True
    End With

End Sub

---

Edited yet again. The above code works extremely well if Aspect is actual size; otherwise, it doesn't because resizing the control changes the dimensions of rendered image which means it isn't really designed to crop while stretched or scaled without a lot of extra calculations from you, including drawing in the PrePaint event (or saving the image to a new GDIpImage object with scaled dimensions ahead of time)

I'm not sure about hardcoding function in the control. In the mean time, this solution should work perfectly, since it doesn't mess with any control settings or rendering options, but does require using the advanced PrePaint & PostPaint events. It also give the coder better control since the cropping area/shape is user-defined and not restricted to rectangular. If one can build a region, one can crop

Code:

---

Private Declare Function CreateRectRgn Lib "gdi32.dll" (ByVal X1 As Long, ByVal Y1 As Long, ByVal X2 As Long, ByVal Y2 As Long) As Long
Private Declare Function SelectClipRgn Lib "gdi32.dll" (ByVal hDC As Long, ByVal hRgn As Long) As Long
Private Declare Function DeleteObject Lib "gdi32.dll" (ByVal hObject As Long) As Long

Dim bCropping As Boolean

Private Sub AlphaImgCtl1_Click()
    bCropping = Not bCropping
    AlphaImgCtl1.WantPrePostEvents = bCropping
    AlphaImgCtl1.Refresh
End Sub

Private Sub AlphaImgCtl1_PrePaint(hDC As Long, Left As Long, Top As Long, Width As Long, Height As Long, HitTestRgn As Long, Cancel As Boolean)
    ' obviously, one would have a way of caching whether cropping is in effect and what those dimensions were
    ' and also devised simple method to determine if cropping was applicable to this control instance
    If bCropping Then
        Dim hRgn As Long
        hRgn = CreateRectRgn(30, 30, 100, 100) ' relative to the control dimensions (in pixels)
        SelectClipRgn hDC, hRgn
        DeleteObject hRgn
    End If
End Sub

Private Sub AlphaImgCtl1_PostPaint(hDC As Long, Left As Long, Top As Long, Width As Long, Height As Long, HitTestRgn As Long)
    ' same notes from the PrePaint event apply
    SelectClipRgn hDC, 0& ' remove any selected clipping region
End Sub

---

Quote:

---

Originally Posted by LaVolpe

Regarding cropping: Well, you can already do that with existing methods:

1. Set AutoSize property so no AutoSizing takes effect & size control to the dimensions of the cropping, i.e., Width, Height
2. May want to set the AlignCenter property to False in this case, so image is drawn at 0,0
3. Set the XOffset & YOffset properties as needed, i.e., (-X, -Y)

The above steps can be placed in a simple user-defined sub within your project. Also by setting these properties during design time, you can see what the cropped image will look like in advance

---

Great, I tried the cropping routines and they work quite well. I just had one problem with it. Is it possible to give another alpha image control the cropped picture? I tried doing this, "Set AlphaImgCtl2.Picture = AlphaImgCtl1.SaveImageAsDrawnToGDIpImage" but it gave the whole picture to the receiving control. Thanks.

Quote:

---

Originally Posted by cheesebrother

...Is it possible to give another alpha image control the cropped picture?

---

This should work ok. I can think of a couple of other alternatives too, but not without making you declare a bunch of APIs

Code:

---

        Dim PMS As PICTUREMERGESTRUCT
        With PMS
            .CanvasHeight = 100 ' crop width
            .CanvasWidth = 100 ' crop height
            .Pictures = 1
            ReDim PMS.MIS(0 To .Pictures - 1)
            .MIS(0).Left = -30 ' crop left * -1
            .MIS(0).Top = -30 ' crop top * -1
            Set .MIS(0).Picture = AlphaImgCtl1.SaveImageAsDrawnToGDIpImage()
        End With
        Set AlphaImgCtl2.Picture = MergePictureGDIplus(PMS)

---

P.S. I'm going to include your suggestion in update this weekend. The function will be called SetClipRect vs. CropImage
By including that new function, users won't have to mess with the Pre/PostPaint events

Control updated today for the following reasons

1. Added gradient background option. Gradients start with the GradientForeColor property & end in BackColor property. GradientStyle property has 4 directions. To reverse those directions, simply swap GradientForeColor & BackColor property values and you'll have a total of 8 direction options. In order for gradients to be enabled, the BackStyleOpaque property must also be true

2. The rounded corner border option now allows choice between blended and non-blended corners

3. New SetClipRect function added to the control. This function will clip the rendered output without modifying the image itself or any control properties. Border, if used, is always exempt from clipping

4. The control could fire a MouseExit/MouseEnter event whenever image changes & mouse is over the control. This behavior is not desirable if you are changing images on mouse events. Control no longer fires them in this specific case, unless the HitTest property setting results in a MouseExit event

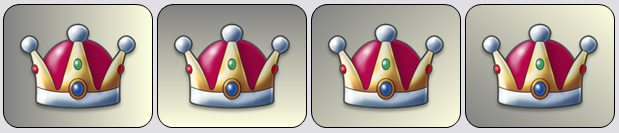

Gradient examples:
Attachment 86022

Thanks, I have everything working and it now does all that I want (at the moment). By the way the new gradient thing for the control is beautiful.

Quote:

---

Originally Posted by cheesebrother

By the way the new gradient thing for the control is beautiful.

---

Thanx, but I already found an anomaly with the GDI API used to create the gradients. It can fail in a specific situation & will replace that routine with one that uses GDI+ instead. Testing same scenarios with GDI+ did not fail where the GDI API did fail.

Control updated today to fix a gradient anomaly, a bonehead mistake, and for enhancements...

- Added BkgImage property. BkgImage will paint over solid/gradient background (if applies) and under the control's Picture property
- Added BkgImageStretch property. BkgImage will be clipped in the control or stretched
- Added AsyncDownloadDoneBkgImg event to support async download of BkgImage
- Added SetFixedSizeAspect method to enable aspect of fixed-size during runtime
- Modified main property page to allow insertion of BkgImage
- Rewrote gradient routine to use GDI+ vs. msimg32.dll
- Bonehead mistake: last update somehow broke the PrePaint event (mistakenly deleted a line of code)

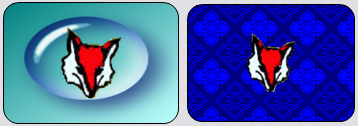

Example of layered backgrounds:
The following image has a gradient background and the new BkgImage property (semi-transparent bubble png) drawn over the gradients, then the actual control's Picture (my avatar) drawn over the BkgImage.
Attachment 86070
1. The BkgImage property is limited in how it is drawn. It is either drawn clipped by the control (if applicable) or stretched to the control's dimensions. Since the BkgImage property is a GDIpImage class, you have full access to it for other properties, like setting the ImageIndex and/or segmenting it if desired. If you desire a specifically, run-time, drawn image that is rendered with custom attributes/effects, sizes, etc, you'll want to create a new image and assign it to the BkgImage property; i.e., use SavePictureGDIplus, MergePictureGDIplus or maybe TilePictureGDIplus

2. The right-side image above was done using the PrePaint event. The PrePaint & PostPaint events will always give you far more control. Sample code looked like this:
- AlphaImgCtl1 had my avatar in it. WantPrePostEvents property is True
- AlphaImgCtl2 was hidden and had a 48x48 blue tile in it
- PrePaint & PostPaint events are runtime events only, so image not displayed as drawn while in design

Code:

---

Private Sub AlphaImgCtl1_PrePaint(hDC As Long, Left As Long, Top As Long, Width As Long, Height As Long, HitTestRgn As Long, Cancel As Boolean)
    Dim xOffset As Long
    If AlphaImgCtl1.Border Then xOffset = 1
    TilePictureGDIplus AlphaImgCtl2.Picture, hDC, xOffset, xOffset, _
        AlphaImgCtl1.ScaleWidth, AlphaImgCtl1.ScaleHeight, _
        AlphaImgCtl2.Picture.Width, AlphaImgCtl2.Picture.Height
End Sub

---

hi lavolpe.

Thanks for creating a great control for vb6.

I want to ask if how can i move the Alpha Image Control to Back of Textboxes?

Are you asking how you can draw an image on a textbox? If so, it isn't that easy. Here's an example on vbAccelerator

Otherwise, the control is windowless. Being windowless, it can never be placed above a textbox. It will always be behind a textbox or any other windowed control

thanks about that.

Is there any way i can make it a "windowed" control?

Quote:

---

Originally Posted by xnipher

Is there any way i can make it a "windowed" control?

---

Yes, but you'll lose its transparency and/or alphablending ability and then you'll have to draw the control's background manually. If wanting to play with that idea, open the control in design view and find its Windowless property & change it to False. Also change the BackStyle property to Opaque. But you'll have to do the background drawing via the PrePaint event....

Here's how the control accomplishes transparency. It relies on Windowless being true & of course, BackStyle being Transparent. By being windowless, the control borrows its container's device context (DC) to draw on. Since VB knows this, every time whatever is behind the control changes, VB sends the control a snapshot of what is under it. The control then copies that and draws whatever it wants on top of that and then paints it back to the container's DC. Because VB sends the control this information, the control never has to guess or determine when it should be updated, VB informs it. Niffty, easy (more or less) and perfect transparency effects.

Unfortunately, making the control windowed breaks all of this. By being windowed, the control does not use the container's DC. It has its own or is given one on the fly, as needed. The control will never have any knowledge of what is behind it on the container. You will have to basically draw, yourself, whatever is behind it, onto the control. Also, the control will never know that anything behind it was changed and will only rederaw itself when told do via a Refresh command or when it becomes covered/uncovered by other windows.

What you are asking for is basically a transparent picturebox. There is no simple way to create a transparent windowed control. There are methods to fake/simulate transparency and some work well, while others not so much. In either case, those methods rarely update themselves. Rather the owner of the project back-paints onto the control or sends the control some static bitmap to use as a background. Searching for transparent picturebox or transparent textbox may prove useful or fruitless

Quote:

---

Originally Posted by LaVolpe

Yes, but you'll lose its transparency and/or alphablending ability and then you'll have to draw the control's background manually. If wanting to play with that idea, open the control in design view and find its Windowless property & change it to False. Also change the BackStyle property to Opaque. But you'll have to do the background drawing via the PrePaint event....

Here's how the control accomplishes transparency. It relies on Windowless being true & of course, BackStyle being Transparent. By being windowless, the control borrows its container's device context (DC) to draw on. Since VB knows this, every time whatever is behind the control changes, VB sends the control a snapshot of what is under it. The control then copies that and draws whatever it wants on top of that and then paints it back to the container's DC. Because VB sends the control this information, the control never has to guess or determine when it should be updated, VB informs it. Niffty, easy (more or less) and perfect transparency effects.

Unfortunately, making the control windowed breaks all of this. By being windowed, the control does not use the container's DC. It has its own or is given one on the fly, as needed. The control will never have any knowledge of what is behind it on the container. You will have to basically draw, yourself, whatever is behind it, onto the control. Also, the control will never know that anything behind it was changed and will only rederaw itself when told do via a Refresh command or when it becomes covered/uncovered by other windows.

What you are asking for is basically a transparent picturebox. There is no simple way to create a transparent windowed control. There are methods to fake/simulate transparency and some work well, while others not so much. In either case, those methods rarely update themselves. Rather the owner of the project back-paints onto the control or sends the control some static bitmap to use as a background. Searching for transparent picturebox or transparent textbox may prove useful or fruitless

---

It seems that i can't find the Windowless Property of Alpha Image Control.

Quote:

---

Originally Posted by xnipher

It seems that i can't find the Windowless Property of Alpha Image Control.

---

1. Open the alpha image control project
2. In the project treeview, double click on AlphaImgCtl (AlphaImgCtl.ctl)
3. You'll now see a gray square. In the property sheet you see its core properties.

Just a coding note... Updates expected to be posted around end of October
Now is the time to offer any additional suggestions/ideas

1. Will recognize the PNM family of image formats (pbm, pgm, ppm) for reading and writing
-- will not support rare multiple image formats, though first image will always be processed

2. Planning to include PAM format also, but not having much luck finding a variety of sample images

3. Extracted 32bpp bitmaps from binaries (dll/exe/etc) did not honor alpha channel. Will be fixed

4. Extracted PNGs from binaries (as icon resources) were not being created correctly. Will be fixed

5. Will minimally support AVI (image only) for reading only. I will not include a SaveAs method to AVI
-- these can be added via file name or extracted from dll/exe (i.e., Shell32.dll)
-- I will recommend you do not distribute AVI sources to be used with this control. AVI requires that the destination pc has appropriate video decompressors installed to read your AVI. Uncompressed or RLE AVIs are an exception since any pc should be able to read those
-- I will include a method of converting AVI to animated PNG or animated GIF. This would allow you to distribute AVI frames that can be displayed on your pc to other pc's. However, I'd suspect the GIF/PNG file may be significantly larger than source AVI. And color loss may occur with AVI to GIF, but no color loss with AVI to PNG

Updated control today, to address enhancements/issues noted in previous reply.

See post #1, 1st page, for more info

Hallo Master,

Could you fix the HitTest problem please?
I want to use this control as a custom shape button, but the HitTest is not working correctly.

ps: I've been using your AlphaImageControl.ocx (v1.0) for my projects. THANK YOU! :D

You'll have to give me more details, or better yet, whip up a quick sample project & post it so I can test it. Be sure to provide details.

The problem is even if I set the .HitTest to lvicTrimmedImage, the AlphaImgCtl_MouseEnter() event is still fire even the mouse is in the transparent pixels area.

attached is the sample project, images and AlphaImageControl v1.0 I'm using

(the sample project also need alpha image project v2.1.23 which I don't included)

Attachment 86265

I don't use WinRar, zip would be better. Let me explain trimmed image better and it may answer your question.

There are 4 hit test settings available
1) lvicPerimeter: The entire control
2) lvicEntirelImage: The image bounds, including any buffered/transparent pixels that may exist
3) lvicTrimmedImage: Any excess buffered/transparent pixels are trimmed off the image by creating a tight rectangle around the image.
4) lvicRunTimeRegion: Passing a valid region handle will result in this setting

In other words, the hit test is always rectangular, except for the 4th option which is user-defined.

Attached image explains the difference between the 1st 3 hit test options. Any mouse actions within the thick rectangle bounds will be registered; whether they are over transparent, partially trannsparent or opaque pixels.

I think what you are looking for is a shaped region that includes only non-transparent areas. That option is not offered with the control. However, nothing saying you can't create your own and pass that.

Attachment 86268

Well... with that explaination there's no problem then :D
Thank you for your effort to give such detail explanation, you are a good person.

By the way, do you still have a source code of Alpha Image Control v1.x? The control name is aicAlphaImage. I could use some code in there to make my dream come true :p

Attachment 86279

Though I do have the source for my older control, it was based off of my old c32bppDIBsuite project. This version of the control is based nearly 100% off of GDI+. So, you'd need to do a lot of tweaking to get the routines for shaping a region around a GDI+ bitmap.

To make it easy on you & anyone else that wants to do what you are trying to do, I'll simply post what you need here. It could probably be optimized a bit more, but as is, it is super fast.

1. Strongly recommend the AlphaImgCtl's AlignCenter property is FALSE, or if rotating make AutoSize property single angle. Otherwise, you will have to offset the created region so it aligns with a center-drawn image in the control

2. If you are using anything but actual size images, or mirroring/rotating, you'll want to draw the control to a temporary GDIpImage object and process that. Example provided

3. The control does not copy the region you pass as the HitTest property. But it owns it, so you must not delete the region

4. Here are the API declarations you'll need

Code:

---

Private Declare Function ExtCreateRegion Lib "gdi32" (lpXform As Any, ByVal nCount As Long, lpRgnData As Any) As Long
Private Type RECT
    Left As Long
    Top As Long
    Right As Long
    Bottom As Long
End Type

---

5. Here is a routine that is designed to be used with my control

Code:

---

Private Function CreateShapedRegion(imgBytes() As Byte, Width As Long, Height As Long, Optional OpaquenessTolerance As Long = 255) As Long

    ' returns a Windows region handle, or zero if failure
    ' the imgBytes array must be one returned from GDIpImage.AlphaMask function
    ' the OpaquenessTolerance must be a value between 0 and 255
    '  if the pixel opaqueness is < OpaquenessTolerance then that pixel not included in the region

    Dim X As Long, Y As Long, a As Long, lAppendFlag As Long
    Dim r() As RECT, rIndex As Long, rCount As Long

    If UBound(imgBytes) <> Width * Height - 1& Then Exit Function
    ' array returned from GDIpImage.AlphaMask (byte aligned mask), top down format
    rCount = Height                            ' initialize with arbitrary count of RECT structures
    ReDim r(-2 To rCount - 1&)                  ' 1st 2 RECTs are used as the region's 32 byte header
    r(-1).Left = Width                          ' set invalid max value

    For Y = 0& To Height - 1&
        lAppendFlag = 0&                        ' reset for each row
        For X = 0& To Width - 1&
            If imgBytes(a) < OpaquenessTolerance Then ' pixel excluded from region
                If (lAppendFlag And 1&) Then    ' currently appending
                    r(rIndex).Right = X        ' close out the RECT
                    rIndex = rIndex + 1&        ' increment
                    If rIndex = rCount Then    ' redim if needed
                        rCount = rCount + Height
                        ReDim Preserve r(-2 To rCount - 1&)
                    End If
                    lAppendFlag = lAppendFlag Xor 1& ' reset
                End If
            ElseIf (lAppendFlag And 1&) = 0& Then
                r(rIndex).Left = X              ' starting new RECT
                r(rIndex).Top = Y: r(rIndex).Bottom = Y + 1&
                lAppendFlag = 3&                ' appending and a new row will be added to region
            End If
            a = a + 1&                          ' move array pointer along
        Next
        If (lAppendFlag And 1&) Then            ' handle situations where last pixel in row terminates a RECT
            r(rIndex).Right = X                ' close out the RECT
            rIndex = rIndex + 1&                ' increment index & redim if necessary
            If rIndex = rCount And Y < Height - 1& Then
                rCount = rCount + Height
                ReDim Preserve r(-2 To rCount - 1&)
            End If
        End If
        If (lAppendFlag And 2&) Then            ' row added: update region bounds
            With r(rIndex - 1&)
                If .Right > r(-1).Right Then r(-1).Right = .Right
                If .Left < r(-1).Left Then r(-1).Left = .Left
            End With
        End If
    Next

    If rIndex Then                          ' we have rectangles; therefore, a region to be created
        r(-1).Top = r(0).Top                ' r(-1) is the overall bounds of the region
        r(-1).Bottom = r(rIndex - 1&).Bottom
        With r(-2)
            .Left = 32&                    ' length of region header in bytes
            .Top = 1&                      ' required cannot be anything else
            .Right = rIndex                ' number of rectangles for the region
            .Bottom = .Right * 16&          ' byte size used by the rectangles
        End With

        ' call function to create region from our byte (RECT) array
        CreateShapedRegion = ExtCreateRegion(ByVal 0&, (rIndex + 2&) * 16&, ByVal VarPtr(r(-2).Left))
    End If

End Function

---

6. Here are 2 examples of usage

Code:

---

    ' if needing to render the image (as drawn) before creating a region
        Dim b() As Byte, hRgn As Long
        Dim tImg As GDIpImage
        Set tImg = AlphaImgCtl1.SaveImageAsDrawnToGDIpImage()
        If tImg.AlphaMask(b(), False) Then
            hRgn = CreateShapedRegion(b(), tImg.Width, tImg.Height, 128)
            If hRgn Then AlphaImgCtl1.HitTest = hRgn
        End If

    ' if using actual size image, no rotation nor mirroring
        Dim b() As Byte, hRgn As Long
        If AlphaImgCtl1.Picture.AlphaMask(b(), False) Then
            hRgn = CreateShapedRegion(b(), AlphaImgCtl1.Picture.Width, AlphaImgCtl1.Picture.Height, 128)
            If hRgn Then AlphaImgCtl1.HitTest = hRgn
        End If

---

Edited: In playing with above code, found a bug that will have to be addressed.
When form is displayed and if control's Visible=False or control is hidden off the viewable form, SaveImageAsDrawnToGDIpImage will fail. This is due to a flag that is only set when the control is first painted & of course, if it isn't visible, it'll never get painted so flag is never set. Same problem will apply to PaintImageAsDrawnToHDC

WOOOWWWWW :eek2: (mind-blowing)

I think I'm gonna start experiencing Insomnia :D

THANK YOU :afrog:

Hope all works well for you. Note that if you set the Border property, or toggle the Border property, you may need to offset your region by 1 pixel both vertically & horizontally. I didn't include that possibility in the routine I provided in post #266. If this is the case, you can always use the OffsetRgn API to adjust for that 1 pixel

My gut reaction was that if you are wanting a shaped region, a border wouldn't be in use anyway

Code:

---

Private Declare Function OffsetRgn Lib "gdi32.dll" (ByVal hRgn As Long, ByVal X As Long, ByVal Y As Long) As Long

---

Edited: Since I discovered 2 new bugs (minor), I'll be updating the control. I'll also include the shaped region function in the GDIpImage class. This can reduce your overall code to just the following, after it has been updated:

Code:

---

    Dim hRgn As Long
    hRgn = AlphaImgCtl1.Picture.RegionFromImage(128)
    If hRgn Then AlphaImgCtl1.HitTest = hRgn

---

Ooo My GOD...

Just when I 'm about to ask for more pointers about shape area HitTest, you already did it. THANK YOU! :D

I don't know if it's a bug or not,
If I call a MsgBox on Form_Load(), AlphaImgCtl fail to draw properly, even if I call .Refresh method. But it can be fix if I toggle .Visible.

Quote:

---

Originally Posted by pelermeler

I don't know if it's a bug or not,
If I call a MsgBox on Form_Load(), AlphaImgCtl fail to draw properly, even if I call .Refresh method. But it can be fix if I toggle .Visible.

---

No, not a bug. It is a known issue that applies only while the control is uncompiled.

Actually any modal windows (MsgBox, CommondDialog, InputBox, etc) displayed while the control is uncompiled has the possibility of events not being sent to the control. These events can effect drawing, async downloads, and your form receiving events from the control. This is all the result of blocking actions IDE creates for uncompiled code

Hi LaVolpe. I have a situation where a scanner is outputting tiff images with compressed Jpeg. Have been trying GDI+ but to no avail. Also tried your user control and this too failed.

Then i tried the Freeimage.dll and this appears to work.
I am able to input compressed jpeg tif and load into a dib , then put this dib into a picture box.
Is it possible that something can be done with GDI+ or will this not be possible.

Many thanks

Quote:

---

Originally Posted by k_zeon

I have a situation where a scanner is outputting tiff images with compressed Jpeg. Have been trying GDI+ but to no avail.

---

Can you upload a sample tiff? I'll have to do a bit of playing and maybe some research too

Edited: Forget about the sample image. It's not gonna happen. The TIFF compression options that GDI+ supports are noted below. I suspect that if a different compression other than that listed, GDI+ isn't supporting it. A manual parsing/uncompression method would need to be employed or use of 3rd party tools.
- CCITT3
- CCITT4
- LZW
- RLE
- None

Edited yet again. Further reading on the net hints that lossy compressed tiffs may be supported in Win7 and Vista if current service packs are up to date -- don't know for sure.

And a quote from another forum (not verified as accurate)

Quote:

---

... By the way GDI+ reads some of tiffs compressed by JPEG, i suppose it depends on color depth or something else.

---

It does seem that the newer version of jpeg compression could be easily parsed out. But to get an idea at how messed up jpeg compression within tiff is/was, here is an interesting link

Hello,
this image control is realy amazing, very powerful.
Now i want to do some tests.
I want to use a picture from a standard vb6 PictureBox control, like:
Set AlphaImgCtl1.Picture = PictureBox1.Picture
but i am not successful.

Can you help?

Many thanks.

Quote:

---

Originally Posted by cromit

I want to use a picture from a standard vb6 PictureBox control, like:
Set AlphaImgCtl1.Picture = PictureBox1.Picture
but i am not successful.

Can you help?

Many thanks.

---

Take a few moments and read over the 2 RTF files that were included in the zip file you downloaded

Code:

---

Set AlphaImgCtl1.Picture = LoadPictureGDIplus(PictureBox1.Picture)

---

Control updated today - enhancements only. The following have been added.

1. WMA music files can be selected as source for images. These files, much like MP3 files, can contain embedded images that may be extracted.
Edited: Will wait for a bit before updating again. Found a WMA where Windows Media Player placed a WM/Picture tag in a block I wasn't parsing. I've modified my version to ensure all images were parsed & when updated, the control will include this new tweak

2. Control is now databound-capable. This means you can tie the control to a field within a database, assuming that field contains image data. The control can be bound during design-time with a configured Adodc (ADO data control). During run-time, it can be bound by an Adodc or ADO recordset. This control is not compatible with VB's DAO Data control. The LoadPictureGDIp.rtf file contains information on how to set the databound control's DataSource property during design-time and run-time; not as straightforward as one would think.

See post#1 for more

Control patched today. A logic bug in the mp3 tag parser could occur for tags less than 30 bytes. You should immediately download the updated/patched control if you were already using v2.1.25 posted on 3 Nov.

Hi Lavolpe,

thanks for all recent update. I found what seem to be a bug with the alpha transparency of PNG file.
If you get a 1x1 pixel png of color RED and you STRETCH it to 200x1 pixel, you'll get a line of 200x1 pixel of RED... wich is normal.

now, I take a 1x6 pixel RED with the following alpha transparency:

1x1: 15%
1x2: 30%
1x3: 45%
1x4: 60%
1x5: 75%
1x6: 90%

(in other word I got a 1x6 red line going to the White)

and I stretch it to 200x6 pixel and it give a reversed pattern from Y1 to Y6 starting red at X1 and ending transparent at X200

in other word the pattern is reversed from top to bottom from x1 to x200 instead of staying the same pattern (but stretched)

what do you think ?

Quote:

---

Originally Posted by VbNetMatrix

...
what do you think ?

---

My brain hurts.
Maybe a picture is worth a 1000 words, along with the source image uploaded too ;)

Edited:
Here's what I did and I get what I expected: a 6-pixel high line stretched to 200x wide. When zoomed in using PaintBrush or other app, one can clearly see the 6 bands; nothing unexpected. Maybe, however you created the line, you were thinking transparency, but the method you used was thinking opacity? Or when you loaded/saved the PNG, it was done upside down?

Code:

---

    Me.ScaleMode = vbPixels
    Dim ss As SAVESTRUCT, tImg As New GDIpImage
    ss.Width = 1: ss.Height = 6 ' create 1x6 blank image
    ss.ColorDepth = lvicConvert_TrueColor32bpp_ARGB
    SavePictureGDIplus Nothing, tImg, , ss
    SetPixelGDIplus tImg, 0, 0, vbRed, 255 * 0.85  ' set colors from 15% transparency
    SetPixelGDIplus tImg, 0, 1, vbRed, 255 * 0.7  ' to 90% transparency
    SetPixelGDIplus tImg, 0, 2, vbRed, 255 * 0.55  ' note this function uses opacity
    SetPixelGDIplus tImg, 0, 3, vbRed, 255 * 0.4  ' vs transparency; therefore
    SetPixelGDIplus tImg, 0, 4, vbRed, 255 * 0.25  ' 15% transparent = 85% opaque
    SetPixelGDIplus tImg, 0, 5, vbRed, 255 * 0.1
    SavePictureGDIplus tImg, tImg, lvicSaveAsPNG    ' convert to PNG
    aicLine.Picture = tImg                          ' apply image over white bkg
    aicLine.BackColor = vbWhite: aicLine.BackStyleOpaque = True
    aicLine.Interpolation = lvicNearestNeighbor    ' shows bands better (no blending)
    aicLine.Aspect = lvicStretch                    ' stretch image now
    aicLine.Move aicLine.Left, aicLine.Top, 200, 6

---

Attachment 86478

'm very sorry, I should have compiled the latest version before posting that bug that annoyed me for month...

you already fixed it. (I still got the old version though if you need it to see my problem)

however your answer raised another one in my head. You're talking like if opacity and transparency is not the same ?

Maybe I don't use the proper term. The zoomed picture you provided is a good exemple.
it's a red pixel wich you applyed a transparency layer, therefore changing the opacity of the red pixel from top to bottom. am I not correct ?

Quote:

---

Originally Posted by VbNetMatrix

however your answer raised another one in my head. You're talking like if opacity and transparency is not the same ?

---

Opacity = the degree to which light is not allowed to travel through a material
Transparency = the physical property of allowing light to travel through a material
Definitions provided from wikipedia, but almost any source will give similar definitions

They are opposites. 100% opacity is 0% transparency & 100% transparency is 0% opacity.
One could argue that they are the same when opacity or transparency is 50%, same as gray is both black & white

P.S. If you find a bug, especially one that annoys you, don't wait a month. I'm very receptive to bug reports :thumb:

Well... in my photo software program there is only 1 setting and it's called transparency, and I never saw a program with "both" feature, so I'm guessing it's 2 way of talking of the same thing but with different effect in mind...

Quote:

---

P.S. If you find a bug, especially one that annoys you, don't wait a month. I'm very receptive to bug reports

---

I Know you're very receptive to bug report, I just hate forum. I loved forum the way back in the '90 because they remembered exactly wich post you didn't read.... forum today don't do that and you're always trying to get where you where last time and it's time consuming for the least to say...

and I got very limited time ;)

I'm surprised though that when I mentionned that bug you didn't answer me to check if I had the latest version. I mean, it make sense to me that if you already fixed the bug, you knew about it... unless it was a logic bug that you fixed and you never saw it in action...

in any case, as always, thanks for your GREEEEEEEAT product and continue your good work!

I have some product too (not related to graphic though) on Vb6 but I never posted them because I thought I was the only one still programing on Vb6... maybe I shall do like you ... but I'm affraid I would not have as many time as you for the bug report (and documentation) ... ;)

take care.

Quote:

---

Originally Posted by VbNetMatrix

Well... in my photo software program there is only 1 setting and it's called transparency, and I never saw a program with "both" feature, so I'm guessing it's 2 way of talking of the same thing but with different effect in mind...

---

Agreed. Even in my code I use both terminology. For example, there is the TransparencyPct, TransparentColor & TransparentMode properties. And in the SetPixelGDIplus & GetPixelGDIplus functions, an opacity parameter is used.

But within my routines, the formula to determine the alpha value depends on whether an opacity value is expected or a transparency value is expected. A fully opaque pixel has an alpha value of 255 out of 255 while a fully transparent one has a value of 0 out of 255
To change pixel's opacity percentage (0-100%), we can simply use something like this: Alpha=255*(pctOpacity/100)
But if talking about transparency, then the formula is tweaked just a bit: Alpha=255*((100-pctTransparency)/100)
In either case, I think it is important to not confuse the two terms, opacity & transparency are antonyms not synonyms.

Quote:

---

Originally Posted by VbNetMatrix

...
I'm surprised though that when I mentionned that bug you didn't answer me to check if I had the latest version. I mean, it make sense to me that if you already fixed the bug, you knew about it... unless it was a logic bug that you fixed and you never saw it in action...

---

You mentioned you downloaded most recent version, so any bugs in prior versions are history. Whatever the problem was, obviously it was corrected either because I found the bug or because of re-writing routines which I will do from time to time. This control is a year old now and when I see some code that could be much more efficient, I'll take the time to tweak it or re-write it. That could be how the previous bug, you were describing, got fixed.

in any case, good control! and good work ;)

the current revision is .26, the control with the bug was .16
not so far away ;) (other version number was same)

Quote:

---

Originally Posted by VbNetMatrix

in any case, good control! and good work ;)

---

Thanks. I found another bug in the cFunctionsICO class. It will fail to use any icon that is loaded by handle or stdPicture containing an icon. I inadvertently broke that part of the class couple revisions ago; will be patched this weekend. Been wanting to update some of the sample projects to include some of the latest enhancements

cool that you can fix it that fast...

I noticed something, it's not a bug per say... more a typo error.

The TOP property in the control is named "TOp"

;)

I can live with it, maybe it's an Easter egg... ;)

also I was wondering if theses 2 commands following each other should work like on the VbPictureBox object (meaning change size and retain it):

because as soon as it execute the second line, it revert to his original size... :(

AlphaImgCtl1.AutoSize = lvicSingleAngle
AlphaImgCtl1.AutoSize = lvicNoAutoSize

Quote:

---

Originally Posted by VbNetMatrix

I noticed something, it's not a bug per say... more a typo error.
The TOP property in the control is named "TOp" ;)

... also I was wondering if theses 2 commands following each other should work like on the VbPictureBox object (meaning change size and retain it):

because as soon as it execute the second line, it revert to his original size... :(

AlphaImgCtl1.AutoSize = lvicSingleAngle
AlphaImgCtl1.AutoSize = lvicNoAutoSize

---

The TOp is annoying to me too. It's something I keep meaning to find & fix, but reverts back to TOp everytime I change it to Top. I'll find it & fix it once for all; probably a typo in the module somewhere.

Regarding changing size...
AlphaImgCtl1.AutoSize = lvicSingleAngle may have no effect, depending on the current control size & image size. Regardless, changing .AutoSize to lvicNoAutoSize will have no effect because the control will not resize again with that setting.

If you are attempting to resize the control based on the current image...
AlphaImgCtl1.Aspect = lvicActualSize
AlphaImgCtl1.AutoSize = lvicSingleAngle
If those properties were set during design-time, control will be self-sizing to whatever image is assigned during run-time

More details would be helpful

Edited: If you are discussing design-time, then what you are experiencing is by design. I've built the control using VB's image control as the model. If the Aspect property is lvicActualSize, then assigning a new image to the control will show the image actual size, regardless of the .AutoSize property. This is similar to VB's image control's Stretch property. If that property is False, any new image you assign to VB's image control will result in actual size image; otherwise, the control does not resize. At run-time, the behavior is not the same. The resizing of the control is completely dependent upon the .AutoSize property.

I don't think I made myself understandable about that Autosize problem.

I'll post an exemple soon, but it doesn't react the way you explained it "should"

That seem to confirm I have a problem.

as for the TOp property, I know how to fix. I had a similar problem in past.
You'll have to Edit the file from external source (Ex.: Notepad++) as Vb won't allow this change to occurs because it is case insensitive, therefore he doesn't see the difference. Or, you can (in Vb) temporarely change the property to a different name (let's say "TopB") and then, remove the added caracter. it will then understand the change.

Here I made a list, all you have to do is Change the "TOp" in the Declaration. Vb will correct it automatiquely all others place it appear.

here the list of Declaration with line number, use an external editor like Notepad++:

AlphaImgCtl.cls
79, 84 (Public Definition)

AicGlobals.ctl
100, 113 (struct definition)

GDIpImage.cls
434, 438, 440 (Public Property Get)

I fixed my side, it worked.

BIG WARNING THOUGH:
if compatibility is activated, UNREGISTER the file BEFORE compiling or you'll damage your registry.
fortunately, I knew how to fix manually but it was messy...
That's probably why Vb didn't wanted to allow the modification from inside IDE.

Quote:

---

Originally Posted by VbNetMatrix

BIG WARNING THOUGH:
if compatibility is activated, UNREGISTER the file BEFORE compiling or you'll damage your registry.

---

Not willing to break binary compatibility for such a small thing. I'll let others decide to do that for themselves.
Edited. I figured out how to make it stick without breaking compatibility. Next time I patch the control; I'll get that done too


For All: Uploaded patches today. Summary of changes

- Loading/saving of icons, pcx, tga, pnm, & pam files had a few logic flaws

- Can now save loaded AVIs to file, array, clipboard & another GDIpImage class. However, no support provided for creating AVIs

- Added a new RTF file that some may find useful: ControlProps.rtf

- Updated some of the sample projects (minor updates overall)

sharing your finding could be nice, it's not the first time myself I'm faced with this problem.

Quote:

---

Originally Posted by VbNetMatrix

sharing your finding could be nice, it's not the first time myself I'm faced with this problem.

---

Can't do that. My app lied to me. Once I recompiled, using binary compatibility, it once again reverted to TOp vs Top. It's just the way it will remain until a revision forces me to break binary compatibility. As I said before, not willing to break compatibility for a simple typo on my part.

P.S. Looking at the PDF source documentation & considering using them as a multi-image source. Will be playing with this over the next couple weeks as I find some time.

Regarding the "TOp" problem.
I've been in the same situation sometimes, but my case was about hWnd. Some people prefer it "hwnd" (small "w"), while I prefer it like this: "hWnd".
Normally, if you change the letter case in one part of the project, VB will change it everywhere. Unfortunately, there have been cases where tha change wasn't preserved after I reloaded the project.

What I do is: do a search & replace of TOp to Top, activating the case-sensitivity checkbox and setting it to search the whole project. Then, I save it, close VB and re-open it. Binary compatibility will not break just for changing the letter case, because COM is not case-sensitive. A very easy way to understand how it is possible, is late-binding, where we can type the procedure name using any combination of small and capital letters and it will still execute.

All you need to do after that is un-register and re-register the control.

Quote:

---

Originally Posted by Cube8

All you need to do after that is un-register and re-register the control.

---

Individual responsibility. Re-registering it will likely create a new GUID. New GUID may prevent pre-existing apps using the control to not be able to use the control once it is re-registered. Fixing it in my project is doable, but when recompiled using binary compatibility, it will revert to TOp unless one of the steps mentioned earlier, is performed. When & if I do make changes to break compatibility with earlier versions, I will fix the typo

You misunderstood. I meant registering with regsvr32. The GUID is already inside the ocx.

The reason for un-registering and then re-registering (regsvr32 /u and regsvr32 respectively) is because the control's interface is cached somewhere in the system and we force it to rebuild it.

Control patched today.

Error found and corrected. When loading black/white icons/cursors by handle or stdPicture, calculation error wrote color table offset by 8 bytes resulting in incorrectly colored image.

sorry to be such a noob.. but I just downloaded and compiled the ocx and then added it to a new project. What Id like to do now is to be able to feed the control a string variable which contains the binary data (in string format ... as if you would open a .gif file in notepad++). Can this be done? Also, is GetPixel, SetPixel available on the control as well?

Thanks!

Quote:

---

Originally Posted by SeoChamber

sorry to be such a noob.. but I just downloaded and compiled the ocx and then added it to a new project. What Id like to do now is to be able to feed the control a string variable which contains the binary data (in string format ... as if you would open a .gif file in notepad++). Can this be done? Also, is GetPixel, SetPixel available on the control as well?

---

1) String containing binary data. I wouldn't suggest that. There is always possibility that bytes can be converted incorrectly depending on how you are loading the string. The simple answer is no. The control only accepts 3 types of strings: a) file path/name, b) url, c) Base64 encoded string

What you can do is convert the string to a byte array first, then send that:

Code:

---

Dim bData() As Byte
bData() = StrConv(imageString, vbFromUnicode)

---

2) GetPixel/SetPixel. Yes. They are global functions found in the AICGlobals class. These functions are available when an alpha image control is added to any form. Those functions are: GetPixelGDIplus & SetPixelGDIplus

You are the best LaVolpe

Hey LaVolpe. You are the best person when it comes to Graphic usercontrols. I have a question. I am looking for a small simple usercontrol that i can display a bitmap or jpeg and mask a color. do you know of any such control. ( if not would you be able to create of advise code to use)
I know your Alpha Control can do this but dont need all the bells and whistles.
Many thanks
