Well, that would be possible for the UserControl version only. For the OCX (pre-compiled) all features must be enabled.Quote:
Originally Posted by Nouyana
Printable View
Well, that would be possible for the UserControl version only. For the OCX (pre-compiled) all features must be enabled.Quote:
Originally Posted by Nouyana
A Publically exposed "DefaultFormatsOnly"-Prop (defaulting to False), could help there...Quote:
Originally Posted by Krool
Olaf
I understand. But that would be w/o "conditional compilation".Quote:
Originally Posted by Schmidt
And having that would imply 2 different structure sets which means at the end to duplicate a lot of code.
Yeah, just tried to suggest an alternative for a "compiler-switch-boolflag"...Quote:
Originally Posted by Krool
As for "two different sets of code" - I wouldn't go there either -
perhaps instead I'd try to introduce a "sparse-matrix" instead (as suggested earlier by arnoutdv in #950), in two steps:
1) intruduce Read- and Write-functions like e.g. GetFmtInfoForCell(x, y) As myUDT
.. (where everything is routed over - and within these 2 helper-functions you are still using your UDT-Arrays)
Then test, that the Grid still shows the same behaviour as before
(whilst using only the 2 Helper-functions in the places where you read or write such extended fmt-info).
Once this was succesfull, change the "function-bodies" of these 2 Helpers-routines to a Collection, or Hashlist-based "sparse-matrix".
I don't expect for the performance to really suffer when you use a Collection inside these functions (instead of the prior UDT-arrays).
Olaf
Yes, I understand. Let it be only the UserControl version. Just document it well to understand what functions will not be avaliable, and what features we should not use when developing using the OCX version and the MountainMan compilation utility. If we will try to use them, we will get a compilation error, so there will be no critical problems here.Quote:
Originally Posted by Krool
In my opinion there should not be too many such functions. May be three or five of the most memory-consuming functions.
On the second thought I think using conditional compilation const for "DefaultFmtOnly" is a bad idea, even for UserControls only.
Because that UserControl is then having that setting for the whole project. And I can imagine that some projects want to use mixed grids. For the larger ones w/o custom cell formattings and for smaller ones with some colors, etc.
So, going forward there will be a "DefaultFmtOnly" (As Boolean) property which re-routes certain cell fmt info as described by Schmidt.
However, that's then nothing for the OCX 1.6. So someday there will be a 1.7 coming ;)
For sure! And, please, think about the ItemData functionality.Quote:
Originally Posted by Krool
About ItemData. in vsFlexGrid this can be integrated into the ComboItems property.
E.g.
would add two strings. "Charlie" and "Arnold" having item data 1234 and 5678.Code:#1234;Charlie|#5678;Arnold
However, what you do later on with it ? (extract via ComboItemData(ByVal Index As Long) property)
This should be the Primary Key using for relationships between tables. If user changes Charlie to Arnold, it means that you should change 1234 to 5678 in the recordset.Quote:
Originally Posted by Krool
Ok, Krool, Olaf, I need help.
I've almost made a universal CFlexDataSource class, that can be used with different types of recordsets in paged mode. I'll publish it in the Code bank when it's ready.
Attachment 187899
I have an issue here. See the scheme below. When user is changing the grid's cell from row 8 to row 9 the PageArray gets new values using the AbsolutePosition property (first line in the GetData sub). But if I just pass these values to the IVBFlexDataSource_GetData using Field and Record arguments then user will move from row 8 to row 15, not 9. So, I need to use the offset. I keep the full ofset in the PageInfo.Offset and the offset between two adjacent pages in the PageInfo.OffsetStep. Keep in mind that no matter how many pages the user has moved, the cursor should be shifted by only one offset step. The question is, how to move the cursor without invoking the GetData function?Code:Private Function IVBFlexDataSource_GetData(ByVal Field As Long, _
ByVal Record As Long) As String
AbsolutePosition = Record
#If PAGED_MODE Then
IVBFlexDataSource_GetData = PageArray(Field, Record)
With objVBFlexGrid
' Set .FlexDataSource = Nothing
' .Row = .Row - PageInfo.OffsetStep
' .Refresh
' Set .FlexDataSource = Me
End With
#Else
If RecordsetType = rstypVBSQLite Then
IVBFlexDataSource_GetData = objRecordset.Columns(Field + 1)
Else
IVBFlexDataSource_GetData = objRecordset.Fields(Field)
End If
#End If
PrevRecord = Record
End Function
Code:+---+---+---+ +-----------+
| | | |1 | |
| | | |2 | |
+---+---+---+ | |
| | | |3 | OFFSET |
| | | |4 | STEP |
+---+---+---+ | |
| PAGE #1 |5 | |
| | | |6 +-----------+
+---+---+---+ +---+---+---+
| | | |7 | PAGE CHAN-|7
| | | |8 | GING AREA |8
+---+---+---+ +---+---+---+
| PAGE CHAN-|9 | | | |9
| GING AREA |10 | | | |10
+---+---+---+ +---+---+---+
| PAGE #2 |11
| | | |12
+---+---+---+
| | | |13
| | | |14
+---+---+---+
| | | |15
| | | |16
+---+---+---+
New idea to overcome memory issue w/o a new property.
So, having a new TCELL as:
The member FmtgPtr would be a dynamic allocated memory block.Code:Private Type TCELL
Text As String
FmtgPtr As Long
End Type
If it's 0 (zero) then no memory is allocated = use default formatting values. If a cell get's custom formatted that memory block would be created and only freed when reducing rows/cols etc.
Sounds very good.Quote:
Originally Posted by Krool
Ok. Sounds also good.Quote:
Originally Posted by Schmidt
However I think you suggest to access such a Collection by a "key", right?
But how to build the key? A string of #row/#col would not be good due to sorting. So I would need an unique id string to read/write the collection.
Such a Collection sounds also good as really only needed memory is created.
But yeah I have doubts about the performance as a lot of OERN needs to happen. (If coll item does not exist)
Also removing coll items when reducing rows/cols sounds not so optimal.
The sorting-problem can be easily solved via an "indirect sort".Quote:
Originally Posted by Krool
Which requires only the "maintenance" of a properly redim-preserved Long-Array...
as e.g. SortRowIndex() As Long
This array will eat-up only FlexGrid.Rows * 4 bytes of memory.
The maintenance requires (via helper-functions),
that after redim-preserving it (in larger chunks),
you will "fill up" the "added Row-Range" with the (increasing) index-values (of that Row-Range).
e.g. a SortRowIndex(0 to 4) should contain the Values 0 to 4 in its "value-slots" (when it is yet unsorted).
If you read "current cell-information", you will then always go the little indirection over the SortRowIndex -
(which barely costs any CPU-cycles)
instead of: Cols(CurColIndex).GetRowValue(CurRowIndex)
now you do: Cols(CurColIndex).GetRowValue(SortRowIndex(CurRowIndex))
Within your Sort-Routine, you should now access the current "Compare-Values" also via that indirect SortRowIndex-array of course -
and when you do so, all you need to do in case "a swap is needed", is to exchange the stored Long-Values within SortRowIndex-array.
(which should increase also the Sort-Performance, because no expensive copying of the real Cell-Data is needed)
Regarding performance of the "Sparse-Matrix-Collection" -
(which can always maintain its "original order" now, due to the indirect sorting-approach)...
In read-direction (when you re-render the grid) - you will only need to access the "currently visible Cells"
(which in the "worst-case of a full-screen-grid" amounts to something like 200Rows x 20Cols = 4000 exists-checks to perform).
This should be barely noticable either (given the larger task of "re-rendering all visible cells graphically via GDI").
I've never studied your current code - but if you have "separated Col-structures" already
(which I assume you have, to support user-column-reordering) -
then you don't even need a "RowIdx:ColIdx"-KeyPair for this sparse-matrix -
but now a single MS-Dictionary (with RowIdxes as Long-Typed-Keys) can act as a "sparse-vector" instead.
(one each, as a member of your TCol-struct, assuming you have those split-up already and hold them in a "Cols-Array").
The first, very performant "Exists-Check" (on a single TCol) would then be,
to check whether the TCol.RowExtFmtsDict member is "still Nothing" (does not have any extended Formats stored, for this Column).
If it is not Nothing, you can still check pretty fast for specific Cell-Formats (in this current Col) by using:
If Cols(CurColIndex).RowExtFmtsDict.Exists(SortRowIndex(CurRowIndex)) Then ...
I've used this approach already in an "early Grid I've developed 20 years ago" -
and it did not disappoint (performance-wise).
Although the explanation may seem "wordy and kinda complicated" - it is not really rocket-science -
and can be implemented in a straight-forward way
(and as said, will be even easier, when you already have the Col-Infos separated in their own structs).
Olaf
Update released.
Major performance boost for InplaceMergeSort (.Sort) / BubbleSortIter (FlexSortCustom; Compare event) and .RowPosition property.
The TCOL elements are now swapped by the pointers only and not by copying the content over.
There were no problem with invoking the GetData function. The problem was here:Quote:
Originally Posted by Nouyana
I've deleted this routine. Now I can move freely around the grid using arrows. This is my GetData Function:Code:Private Sub VBFlexGrid1_SelChange()
oDataSource.AbsolutePosition = VBFlexGrid1.Row
End Sub
But now I have the next navigation issue - when I use the Ctrl+Up/Dn keys or a vertical scroll bar. I can't use objVBFlexGrid.Row when I'm scrolling. So I'm stuck. In my opinion it doesn't matter what to use - multiple recordsets or arrays. The scrolling problem should be the same.Code:Private Function IVBFlexDataSource_GetData(ByVal Field As Long, _
ByVal Record As Long) As String
Dim RealRecord As Long
RealRecord = Record + IIf(PageInfo.PageNumber > 1&, PageInfo.Offset, 0&)
AbsolutePosition = RealRecord
PrevRecord = RealRecord
IVBFlexDataSource_GetData = PageArray(Field, Record)
If bNeedGridOffset Then
bNeedGridOffset = False
If PageInfo.PageNumber > 1& Then
With objVBFlexGrid
If bIsMovingUp Then
If PageInfo.PageNumber = 1 Then
.Row = .Row + PageInfo.OffsetLastStep
Else
.Row = .Row + PageInfo.OffsetStep
End If
Else
If PageInfo.PageNumber = PageInfo.PagesCount Then
.Row = .Row - PageInfo.OffsetLastStep
Else
.Row = .Row - PageInfo.OffsetStep
End If
End If
Call .CellEnsureVisible(FlexVisibilityCompleteOnly)
End With
End If
End If
End Function
Does it make sense to anybody? My previous post was unreplied. Does anybody have a working sample of paged mode FlexDataSource class?
@Olaf. I haven't started creating a separate thread yet. It's not about type of datasets or programming techniques. It's about how to move the cursor if the Row property is unavaliable.
Attachment 187928
Attachment 187929
For me a paged mode is simple: having a left and right button below the grid and a label of how many pages are in there. If it's only 1 page the left and right paging button are disabled.
I see it the same way - the cMyBinding-class does not know about any "paging" (internally) -Quote:
Originally Posted by Krool
it only knows about the (record-reduced Sub-)Recordset internally
(the Grid reflecting only the RowCount which matches the reduced RecordCount of such a Sub-Recordset)
All the "Paged-Splitups" which result in a smaller "current Sub-Recordset" (along with the "Paging-Buttons" you mentioned) -
are happening outside (in the hosting Form).
And Ok, one might want to develop a UserControl for Paging (which then encapsulates the Left-Right-Buttons and a Label) -
to not clutter the Form too much...
Olaf
So, this is not a paged-mode Binding-class. Each programmer will have to independently handle all the events of deleting and changing records, moving through pages, searching, filtering and so on.Quote:
Originally Posted by Schmidt
This is very inconvenient. What if user needs to select and copy 10 records to the clipboard, but five of them are on the first page and five - on the second? This is not the only example.Quote:
Originally Posted by Krool
Nouyana,
soon the memory issue will be fixed, where formatting data will be allocated (HeapAlloc) at run-time when necessary only. (Via helper function GetCellFmtg/SetCellFmtg)
No, any normal "Rs-Binding-Class" (with support for Updates, Deletes, Inserts) will work *also* in paged mode.Quote:
Originally Posted by Nouyana
No - all of these actions will work on the "currently Bound Sub RecordSet" without problems.Quote:
Originally Posted by Nouyana
And only that requires a few (trivial) extra-lines in the Form-CodeQuote:
Originally Posted by Nouyana
(where also the "Paging-Buttons" with their Click-Events reside anyways).
I guess it is your not (yet) existing experience with Disconnected-Rs (and the UpdateBatch-method they support)?
All the CRUD-actions will accumulate "within" such an Rs - and will be synchronized with the DB,
when you call Rs.UpdateBatch (in the Form).
And it doesn't matter at all in this mode, whether the (currently bound) Rs represents:
- a whole table
- or if it's just a "Where Clause filtered SubSet" (derived from that table)
As for Filtering (on top of the Page-based SQL Limit-Filter-conditions) ...
If the Where-Clause (on a larger table) is restricting the returned Rs.Recordcount so much,
that it sits below your given "Max-Records-Per-Page limit" - then the paging-buttons will simply be disabled -
but the Binding (on that heavily filtered Rs) will work "as always" (supporting Update, Deletes, Inserts) on that smaller Rs.
Olaf
It seems that the Light and non-Light versions are reversed.
Attachment 187954
Code:Private Sub Command1_Click()
With FlexGrid1
.Font.Name = "Arial"
.Font.Size = 14
.Row = 1: .Col = 1
.CellTextStyle = FlexTextStyleRaisedLight
.Row = 2: .Col = 1
.CellTextStyle = FlexTextStyleRaised
.Row = 1: .Col = 2
.CellTextStyle = FlexTextStyleInsetLight
.Row = 2: .Col = 2
.CellTextStyle = FlexTextStyleInset
End With
End Sub
Update released.
Major memory reduction for default formatted cells. Once a cell gets custom formatted additional memory will be allocated.
It can only be freed by removing those cells or call .Clear method with FlexClearFormatting or FlexClearEverything.
The performance is tested to be nearly the same as before.
Major performance boost for AddItem/RemoveItem method. The TCOL elements are now moved by the pointers only and not by copying the content over.
The best results! Thank you, Krool!Quote:
Originally Posted by Krool
Attachment 187971

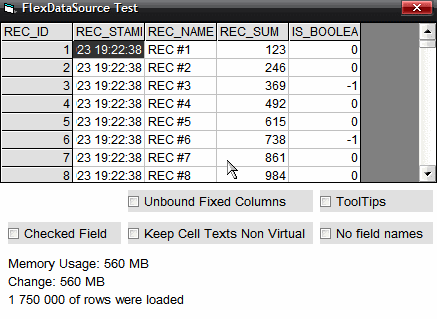

With v1.6.15 and using FlexDataSource VBFlexGrid loads 1 750 000 records in 1,2 seconds or 40 times faster then MSHFlexGrid consuming the same memory.Quote:
Originally Posted by Nouyana
I don't get this one. You mean it's different then in MSFlexGrid?Quote:
Originally Posted by Nouyana
Yes.Quote:
Originally Posted by Krool
Attachment 187978
Can you, please, give us an example for the CheckBoxOwnerDraw event handler or just list CheckBox-aware API functions to use/read about? May be some links.Quote:
Originally Posted by Krool
I meanQuote:
Originally Posted by Nouyana
FlexTextStyleRaisedLight should look like FlexTextStyleRaised, and
FlexTextStyleRaised should look like FlexTextStyleRaisedLight
The same with Insets.
Update released.Quote:
Originally Posted by Nouyana
Fixed. Thanks for reporting.
FlexTextStyleRaised/FlexTextStyleInset needed indeed 3 layers instead of only 2 like for FlexTextStyleRaisedLight/FlexTextStyleInsetLight.
The Clip property doesn't work correctly. The left-bottom cell is not pasted. There is a Ctrl+C/Ctrl+V example on the GIF below. I tried to use my own ClipboardText routine with the Clip property and got the same result.
Attachment 187987
Code:Private Sub Form_Load()
Dim i As Integer
With FlexGrid1
.FocusRect = FlexFocusRectNone
.FillStyle = FlexFillStyleRepeat
.AllowUserEditing = True
.AutoClipboard = True ' AutoClipboard
.Cols = 4
.Rows = 1
For i = 1 To 50
.AddItem i & vbTab & "Name " & i & vbTab & i * 100 & vbTab & "text"
Next i
.TextArray(0) = "ID"
.TextArray(1) = "NAME"
.TextArray(2) = "SUM"
.TextArray(3) = "DESCR"
End With
End Sub
Private Sub Command1_Click() ' This is my own routine, which
FlexGrid1.Clip = ClipboardText ' works with the same results
End Sub
Excel uses vbCrLf and VBFlexGrid (or MSFlexGrid) uses only vbCr.Quote:
Originally Posted by Nouyana
You can fix it by:
Code:VBFlexGrid1.ClipSeparatorRow = vbCrLf
I have no such a problem with MSFlexGridQuote:
Originally Posted by Krool
Attachment 187993
(use CommandButton for paste)
And it is something wrong with AutoSelection.
Code with vbCr (default):
Attachment 187994Code:.AutoClipboard = True
.ClipCopyMode = FlexClipCopyModeIncludeFixedAll
.ClipPasteMode = FlexClipPasteModeAutoSelection
Code with vbCrLf:
Attachment 187995Code:.AutoClipboard = True
.ClipCopyMode = FlexClipCopyModeIncludeFixedAll
.ClipSeparators = vbCrLf
.ClipSeparatorCol = vbTab
.ClipPasteMode = FlexClipPasteModeAutoSelection
.ClipSeparators = vbCrLf is wrong.Quote:
Originally Posted by Nouyana
Use ClipSeparatorRow = vbCrLf
.ClipSeparators is an old prop which defines row and col property at once. (1st and 2nd char)
It can be replaced by the newer props so a more lengthy row seperator can be used, such as vbCrLf for Excel.
Yes, it was my misprint. But there is another problem now. Three rows were selected instead of two, and the (3,1)-cell was cleaned out.Quote:
Originally Posted by Krool
Attachment 187996
That's because Excel isn't clean and puts an vbCrLf at the end of the string, even there is nothing.Quote:
Originally Posted by Nouyana
When you paste into notepad you can see it.
We would need an "BeforePaste" event which has a ByRef Text where we can fix this... Or another property which ignores last "empty row".
1. Can we somehow recognise the Excel buffer and process it right way?Quote:
Originally Posted by Krool
2. Can we change the default row separator to vbCrLf? We have the incompatibility with MSFlexGrid here.
Code:If (BufferColsCount * (BufferRowsCount - 1) + 1 = BufferCellsCount) _
And (BufferSeparator = vbCrLf) And (Len(LastBufferCell) = 0) Then
ThisIsExcelBuffer = True
End If
I'm a big fan of Before* events with a Cancel parameter, e.g.:Quote:
Originally Posted by Krool
Setting Cancel = True will abort the paste operation.Code:Public Event BeforePaste(ByRef Text As String, ByRef Cancel As Boolean)
Another advantage of a BeforePaste event is that you can "massage" the incoming data if necessary (for example, de-formatting currency strings, normalizing date string, etc...).
