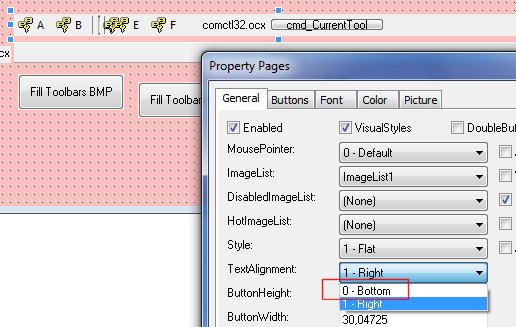

You have to set TextAlignment property to 'Bottom' instead of 'Right'.Quote:
Originally Posted by Karl77
Then you get the correct result.
Attachment 131351Attachment 131353
And, about the point with the MinButtonWidth and MaxButtonWidth. This is not a bug, but a value of 30 means 2 pixel. If you look exactly the buttons are then 2 pixel wide, also tooltip is displayed. But it looks ugly as the picture goes far beyond and it looks like the button is not working, but it is. ;-)
Attachment 131355
Thanks for the insights.
This way it works as well.Code:With MF.xbar(0)
.Buttons.Clear
.MinButtonWidth = 0
.MaxButtonWidth = 0
.TextAlignment = TbrTextAlignBottom
.ImageList = MF.imgl_BMP
Set Btn = .Buttons.Add(, "ppa", "First button", 0, 1)
Btn.ToolTipText = "14"
Set Btn = .Buttons.Add(, "ppb", , 0, 2)
Btn.ToolTipText = "15"
.TextAlignment = TbrTextAlignRight
End With

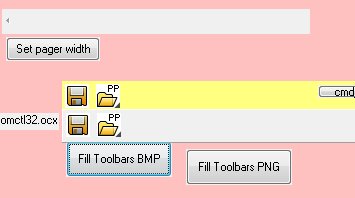

One can live with this 'solution'.
Attachment 131357
In some cases, yes.Quote:
a value of 30 means 2 pixel
When it comes to different DPI settings, then not.
The toolbar behaves strange on different DPI settings.
A snippet of the effort to handle this can be seen in xbar_MouseDown.
But that is another story.
2 issues left:
1) Transparency handling
2) Adressing the imagelist's picture by key as string.
To 1)
Quite important.
If this is not possible I can stop other effort.
To the latter:
No problem, I could write a small function to manage this.
It would be more elegant to do it in the usercontrol's code.
Up to now I didn't find the right place where such a thing can be done.
Could you give me an advice where to place such code?
Good night Krool.
Unfortunately I have found that placeholder is not available for a button.
Enough for today.
yes I know the white is in the picture itself, that's why you need to set the mask color to the same white color so the white will be used as the color that should be transparent, otherwise it will use the default color of the imagelist for the transparent color and it seems it ain't white..Quote:
Originally Posted by Karl77
Use the 'Separator' with a CustomWidth value set. then its same as placeholder.Quote:
Originally Posted by Karl77
This is not what I would name transparency.Quote:
Originally Posted by SuperDre
The maskcolor just replaces a certain color (white in our case) with nothing.
It gives the impression of transparency if you don't look close.
20 years AGO this was good enough.
Masking works ok for rectangular shapes, if you have round or angled shapes it just looks bad.
What we need today is real transparency, means respecting the alpha channel of the picture.
Comctl32.dll can handle the alpha channel.
Again, in this case the usage of BMP was meant as a test only.
Ah, good hint.Quote:
Originally Posted by Krool
But with TbrButtonStyleSeparator we get also a visible separator.
Attachment 131369
Regardless if the Divider property is set or not.
Not very wanted.
For compatibility reasons, you could introduce TbrButtonStylePlaceholder?
At best without the vertical line...
The Divider property is not for the buttons. Its for the control itself. (Displays a divider line at bottom)Quote:
Originally Posted by Karl77
Oh well, yes.Quote:
Originally Posted by Krool
I could have seen that myself.
Anyway, besides that, we get this vertical line.
I'll try a bit more to see if this also happens when a separator with zero size produces it as well.
For the placeholder usage the vertical line is not dramatic, I want to move a control to this place anyway.
This covers the vertical line then.
1)Quote:
Originally Posted by Karl77
I did some test on the ImageLists.
Here is the result when returning the 'Picture' property of a ListImage.
Attachment 131591
Here is the result when returning the 'ExtractIcon' property of a ListImage.
And this looks exactly what is the result on the ToolBar...
Attachment 131593
However, I did not figure out yet why the MS ToolBar is displaying the ListImage "transparent" and my Toolbar is displaying the background black from the MS ImageList and white from my ImageList..
2)
I thouht about this earlier. For TabStrip, ToolBar this could be done without any performance reduction. But for ListView this would result perfromance issues as the real image index is always provided in response to LVN_GETDISPINFO. And for the moment I am hesitating about this as this would cause a non-consistency.
No, it's not the same.Quote:
Originally Posted by Krool
The transparency is replaced by white now, not black.
(The white icons in the former examples are BMPs, the color itself is white - not transparent.)
I haven't yet follow the issue of toolbar. But I never had issue using maskcolor for my own-drawn toolbar (CreateWindowEx,"ToolbarWindow32") though it is not Krool's one.
on a side note guys, how do you use the replacment common dialog box for saving / loading files
Regarding the transparency of buttons on toolbar, any news or insights?
Probably this link helps you. "ImageList and the Safety Palette" written by dilettante.Quote:
Originally Posted by Karl77
Thanks, but I don't have problems handling the various image formats...Quote:
Originally Posted by Jonney
They just don't show as intended on the Krool toolbar.
While they do on the comctl32.dll toolbar via comctl32.ocx.
Doesn't matter, for now I gave up with the Krool toolbar.
Hi, Krool!!

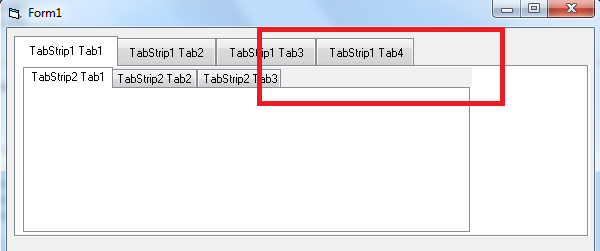

1. Event "TabClick" for control TabStrip don't work if it is an array of controls.
2. Is it possible to add transparency to the tab row?Code:Private Sub TabStrip1_TabClick(Index As Integer, ByVal TabItem As TbsTab)
MsgBox Index
End Sub
If you place one item to another, you can see the background of control
Attachment 132023
P.S. In addition can you add a property multiline to TabStrip.Tabs.Caption ?
1. The Event is firing by me, even in an array of controls. Please let me have your project to resolve.Quote:
Originally Posted by Romeo91
2. It's quite tricky to do it properly. And not straight forward. Because you need to intercept WM_PAINT, use WM_PRINTCLIENT to a memory DC, clip regions and fill background before. In XP it's different then on W7 (XP has rounded corners, W7 not). Thus I did not yet implement such a feature. Will change maybe in future.
Point P.S.: You can put 'vbLf' to a Tab caption by code. But in order to see the multiline text you may use 'TabWidthStyleFixed' and set TabFixedWidth/TabFixedHeight accordingly.
This is a test project - Attachment 132091Quote:
Originally Posted by Krool
I have identified, the event caught only since the second tab.
Thank you, it works. Now it seems to me is not enough text orientation. Orientation is only at the bottom.Quote:
Originally Posted by Krool
Please see also:

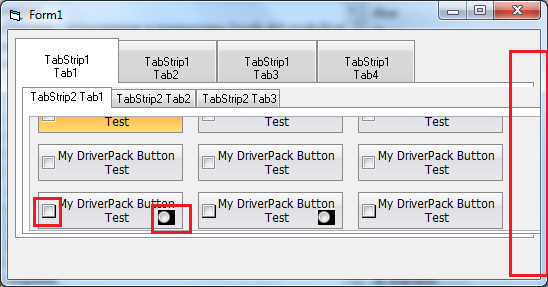

1. The behavior of the checkbox and option controls outside of the visible portion of the container.
2. Resizing Tabstrip when the form is resized.
I can not understand what went wrong, or other 3rd-party control or in your code. In this project, this behavior is present.
Attachment 132093
This is normal. TabClick event is firing in response to TCN_SELCHANGE. So whenever the selected tab changes the event is firing.Quote:
Originally Posted by Romeo91
This is because you have set the Transparent property of my CheckBoxW and OptionButtonW to True and at the time the controls are not visible, thus causing a black background. What you need to do is calling '.Refresh' on those controls in case you scroll.Quote:
Originally Posted by Romeo91

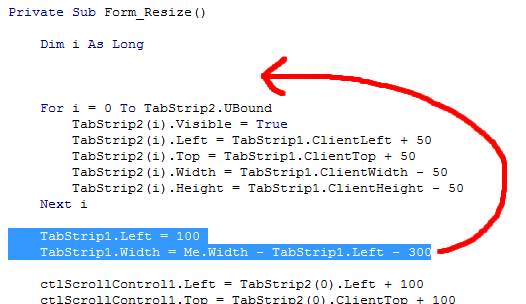

This is due to an error in your code. Look below image.Quote:
Originally Posted by Romeo91
Attachment 132139
I do not understand why this is normal?Quote:
Originally Posted by Krool
It turns out I can never catch the events TabClick for the TabStrip2(0) on all tabs which is "located on the first tab TabStrip1" ?
This code for first tab of TabStrip2(0) on TabStrip1 not work always
instead of returning an object, just goes to the function ComCtl Subclass Proc - and don't returns the object inQuote:
Case TCN_SELCHANGE
Index = SendMessage(TabStripHandle, TCM_GETCURSEL, 0, ByVal 0&)
If Index >= 0 Then RaiseEvent TabClick(Me.Tabs(Index + 1))
Quote:
Public Property Get Item(ByVal Index As Variant) As TbsTab
Set Item = PropTab(Index)
End Property
Thanks. I try it.Quote:
Originally Posted by Krool
ThanksQuote:
Originally Posted by Krool
I do now understand what you mean. Yes, the reason is indeed due to control array.Quote:
Originally Posted by Romeo91
The cause for this is a little bit complicated.
I will bring an update very soon to fix this issue on all controls.
Important update released.
Control arrays are now working properly on all controls.
Hi Krool,
I am using the CommonDialog.cls to .ShowPrinter. I am unable to find the .Orientation so that after choosing the orientation (portrait or landscape) in the dialog, I want to use it to set the Printer.Orientation = .Orientation.
Is there a way to do this?
Printer.Orientation will be set already after dialog automatically.Quote:
Originally Posted by chosk
Tks Krool.
Yes, Printer.Orientation is set automatically. I should have tested first.
Just one more question. How about .Copies? I just tested it to select 2 but printed only 1.
Hi Krool,
Using the CommonDialog.cls, I have a line:

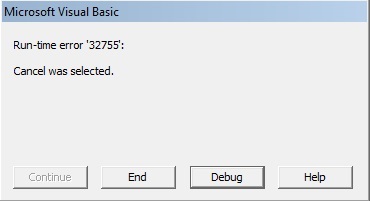

and originally with the VB6 CommonDialog, I have this code in ErrorHandler:Code:.CancelError = True
Is it correct that with the CommonDialog.cls, I change this to:Code:If Err.number = mscomdlg.CdlCancel Then Exit Sub
It seems to work but I want to be sure.Code:If Err.number = CdlErrorConstants.CdlCancel Then Exit Sub
Yes, you can do.Quote:
Originally Posted by chosk
You have to take care in your code to print more than once when .Copies is > 1.Quote:
Originally Posted by chosk
I already have prior codes to handle .Copies to print any number of copies selected in a For-Next loop when using the VB6 CommonDialog. But I am unable to find .Copies in CommonDialog.cls. I have also tested Printer.Copies and it is not automatically set.Quote:
Originally Posted by Krool
I have gone through the dropdown list of CommonDialog.cls and can't find anything that can be used. I am missing something on how to capture the number of copies selected and use it.
You need to specify the flag 'CdlPDUseDevModeCopiesAndCollate'.Quote:
Originally Posted by chosk
Then the VB.Printer.Copies will be set after the show printer dialog.
In the MS CommonDialog you also need to specify the flag 'cdlPDUseDevModeCopies' in order to get a meaningful value returned in the .Copies property.
I will include the constant 'CdlPDUseDevModeCopies' in my CommonDialog.cls to be compatible on that. (in fact 'CdlPDUseDevModeCopiesAndCollate' is same as 'CdlPDUseDevModeCopies', anyhow)
I don't so understand what chosk means exactly, but I did add "Copies","Orientation" and "PaperKind" public property for easier call:
Code:Private PropCopies As Long '***Add
Public Property Get Copies() As Long '***Add
Copies = PropCopies
End Property
Public Property Let Copies(ByVal value As Long) '***Add
If value < 0 Then err.Raise 380
PropCopies = value
End Property
Public Function ShowPrinterEx() As CdlPDResultConstants
Dim PDLGEX As PRINTDLGEX, PPAGERANGE As PRINTPAGERANGE, DMODE As DEVMODE, DNAMES As DEVNAMES
Dim lpDevMode As Long, lpDevNames As Long
Dim ObjPrinter As VB.Printer, NewPrinterName As String, Buffer As String
With PDLGEX
.lStructSize = LenB(PDLGEX)
If Not Screen.ActiveForm Is Nothing Then
.hWndOwner = Screen.ActiveForm.hWnd
Else
.hWndOwner = GetActiveWindow()
End If
.Flags = PropFlags
.nPageRanges = 1
.nMaxPageRanges = 1
PPAGERANGE.nFromPage = PropFromPage
PPAGERANGE.nToPage = PropToPage
.nMinPage = PropMin
.nMaxPage = PropMax
.lpPageRanges = VarPtr(PPAGERANGE)
Const START_PAGE_GENERAL As Long = &HFFFFFFFF
.nStartPage = START_PAGE_GENERAL
End With
If VB.Printers.Count > 0 And (PDLGEX.Flags And CdlPDReturnDefault) = 0 Then
With VB.Printer
DMODE.DMSize = LenB(DMODE)
Buffer = Strings.Left$(.DeviceName, CCHDEVICENAME)
CopyMemory DMODE.DMDeviceName(0), ByVal StrPtr(Buffer), LenB(Buffer)
DMODE.DMFields = DM_ORIENTATION Or DM_PAPERSIZE Or DM_COPIES Or DM_DEFAULTSOURCE Or DM_PRINTQUALITY Or DM_COLOR Or DM_DUPLEX Or DM_COLLATE
DMODE.DMOrientation = PropOrientation '.Orientation
DMODE.DMPaperSize = PropPaperKind ' .PaperSize
DMODE.DMCopies = PropCopies '.Copies
DMODE.DMDefaultSource = .PaperBin
DMODE.DMPrintQuality = .PrintQuality
DMODE.DMColor = .ColorMode
DMODE.DMDuplex = .Duplex
DMODE.DMCollate = IIf((PDLGEX.Flags And CdlPDCollate) <> 0, 1, 0)
DNAMES.wDriverOffset = 4
DNAMES.wDeviceOffset = DNAMES.wDriverOffset + Len(.DriverName) + 1
DNAMES.wOutputOffset = DNAMES.wDeviceOffset + Len(.DeviceName) + 1
DNAMES.wDefault = 0
Buffer = Strings.Left$(.DriverName & vbNullChar & .DeviceName & vbNullChar & .Port & vbNullChar, CCHDEVNAMESEXTRA)
CopyMemory DNAMES.wExtra(0), ByVal StrPtr(Buffer), LenB(Buffer)
PDLGEX.nCopies = .Copies
PDLGEX.hDevMode = GlobalAlloc(GMEM_MOVEABLE Or GMEM_ZEROINIT, LenB(DMODE))
lpDevMode = GlobalLock(PDLGEX.hDevMode)
CopyMemory ByVal lpDevMode, DMODE, LenB(DMODE)
GlobalUnlock PDLGEX.hDevMode
PDLGEX.hDevNames = GlobalAlloc(GMEM_MOVEABLE Or GMEM_ZEROINIT, LenB(DNAMES))
lpDevNames = GlobalLock(PDLGEX.hDevNames)
CopyMemory ByVal lpDevNames, DNAMES, LenB(DNAMES)
GlobalUnlock PDLGEX.hDevNames
End With
End If
Dim ErrVal As Long
If PropHookEvents = False Then
ErrVal = PrintDialogEx(PDLGEX)
Else
Call ComCtlsCdlPDEXSetHook(Me)
ErrVal = PrintDialogEx(PDLGEX)
Call ComCtlsCdlPDEXRemoveHook
End If
If ErrVal = S_OK Then
If PDLGEX.dwResultAction <> CdlPDResultCancel Then
lpDevMode = GlobalLock(PDLGEX.hDevMode)
CopyMemory DMODE, ByVal lpDevMode, LenB(DMODE)
GlobalUnlock PDLGEX.hDevMode
GlobalFree PDLGEX.hDevMode
lpDevNames = GlobalLock(PDLGEX.hDevNames)
CopyMemory DNAMES, ByVal lpDevNames, LenB(DNAMES)
GlobalUnlock PDLGEX.hDevNames
GlobalFree PDLGEX.hDevNames
NewPrinterName = Mid$(DNAMES.wExtra, DNAMES.wDeviceOffset - DNAMES.wDriverOffset + 1)
NewPrinterName = Strings.Left$(NewPrinterName, InStr(NewPrinterName, vbNullChar) - 1)
Dim PrinterFound As Boolean
If StrComp(VB.Printer.DeviceName, NewPrinterName, vbTextCompare) <> 0 Then
For Each ObjPrinter In VB.Printers
If StrComp(ObjPrinter.DeviceName, NewPrinterName, vbTextCompare) = 0 Then
Set VB.Printer = ObjPrinter
PrinterFound = True
Exit For
End If
Next ObjPrinter
Else
PrinterFound = True
End If
If PropPrinterDefault = True Then Call SetPrinterDefault(NewPrinterName)
If PrinterFound = True Then
On Error Resume Next
With VB.Printer
.Copies = DMODE.DMCopies
.Duplex = DMODE.DMDuplex
.Orientation = DMODE.DMOrientation
.PaperSize = DMODE.DMPaperSize
.PrintQuality = DMODE.DMPrintQuality
.ColorMode = DMODE.DMColor
.PaperBin = DMODE.DMDefaultSource
PropPaperKind = DMODE.DMPaperSize
PropOrientation = DMODE.DMOrientation
PropCopies = DMODE.DMCopies
End With
On Error GoTo 0
End If
PropFlags = PDLGEX.Flags
If (PropFlags And CdlPDUseDevModeCopiesAndCollate) <> 0 Then
If DMODE.DMCollate = 1 And (PropFlags And CdlPDCollate) = 0 Then PropFlags = PropFlags Or CdlPDCollate
End If
PropFromPage = PPAGERANGE.nFromPage
PropToPage = PPAGERANGE.nToPage
PropMin = PDLGEX.nMinPage
PropMax = PDLGEX.nMaxPage
If (PropFlags And (CdlPDReturnDC Or CdlPDReturnIC)) <> 0 Then PropDC = PDLGEX.hdc
ShowPrinterEx = PDLGEX.dwResultAction
Else
If PropCancelError = True Then err.Raise Number:=CdlCancel, description:="Cancel was selected."
End If
Else
If PDLGEX.hDevMode <> 0 Then GlobalFree PDLGEX.hDevMode
If PDLGEX.hDevNames <> 0 Then GlobalFree PDLGEX.hDevNames
Const E_OUTOFMEMORY As Long = &H8007000E, E_INVALIDARG As Long = &H80070057, E_POINTER As Long = &H80004003, E_HANDLE As Long = &H80070006, E_FAIL As Long = &H80004005
Select Case ErrVal
Case E_OUTOFMEMORY, E_INVALIDARG, E_POINTER, E_HANDLE, E_FAIL
err.Raise Number:=CdlInitFailure, description:="The PrintDlgEx function failed during initialization."
Case Else
err.Raise Number:=ErrVal, description:="Unexpected error."
End Select
End If
End Function
I agree with "Copies" and "Orientation". But there is no such "PaperKind" property in the MS CommonDialog control. (?)Quote:
Originally Posted by Jonney
I added PaperKind Enum. It serves my purpose. .NET has such stuff.Quote:
Originally Posted by Krool
running app in VB6 environment (design), I have the following code but when click cancel I get a pop up box that says
run-time error '32755"
cancel was selected
end/debug/help
if click on debug it opens commondialog file @
Case 0
If PropCancelError = True Then err.Raise Number:=CdlCancel, Description:="Cancel was selected."
how do I stop this and just capture the cancel button
-------------------------------------------------------------------------------------
On Error GoTo ErrHandler
Set CommonDialogShowOpen = New CommonDialog
With CommonDialogShowOpen
.CancelError = True
.Flags = CdlOFNOverwritePrompt
.Filter = "CSV"
.DialogTitle = "Open File"
.InitDir = App.Path & "\Survey Files"
.ShowOpen
If Err.number = CdlErrorConstants.CdlCancel Then Exit Sub
RepairFile.Text = .FileName
End With
.....
Exit Sub
ErrHandler:
Exit Sub
I get run-time error '32755"
cancel was selected
end/debug box
Move this line:
If Err.number = CdlErrorConstants.CdlCancel Then Exit Sub
to after ErrHandler.
ErrHandler:
If Err.number = CdlErrorConstants.CdlCancel Then Exit Sub
Because when cancel is selected, it is treated as an error (.CancelError) and you have first line "On Error GoTo ErrHandler" to take care of error in ErrHandler.
Hi Krool,
I do understand that Printer.Orientation is set automatically but I run into this problem.
The printer default is set to Portrait for normal use.
When printing in this particular project, I select Landscape in the dialog and select 2 copies. I am using the flag CdlPDUseDevModeCopiesAndCollate from few days ago. The number of copies is no problem, but the 2nd copy seem to lose the Landscape orientation.
Either I am doing something wrong or perhaps I need to set Printer.Orientation inside the For-Next loop that print multiple copies? And if so, then need the .Orientation.
Code:170 Dim CommonDialog1 As CommonDialog
180 Set CommonDialog1 = New CommonDialog
190 With CommonDialog1
200 .CancelError = True
210 .Flags = CdlPDReturnDC + CdlPDNoSelection + CdlPDNoPageNums + CdlPDUseDevModeCopiesAndCollate
220 .ShowPrinter
230 DoEvents
'Printer.Orientation and Printer.Copies already set automatically
240 CopyPicChart Me.picChart
250 For i = 1 To Printer.Copies
260 Printer.PaintPicture Clipboard.GetData(), 0, 0, Printer.ScaleWidth, Printer.ScaleHeight
270 Printer.EndDoc
280 Next i
290 End With
Hi Jonney,
Was trying out your code with .ShowPrinterEx but running into some errors. I think a bit more code needed for:
PropOrientation
PropPaperKind
Private Prop...... As ...
Let
Get
I'm not sure how to do it. I know Orientation is 1 or 2 (Integer?)
I was about to go to bed, it is 2:00am here. Then the solution came so I got back up and fire up my computer. The solution is since Printer.Orientation is automatically set, I use an Integer variable to capture Printer.Orientaion.
Happy now. Good night!
Code:
...
125 Dim Orientation As Integer
...
...
...
170 Dim CommonDialog1 As CommonDialog
180 Set CommonDialog1 = New CommonDialog
190 With CommonDialog1
200 .CancelError = True
210 .Flags = CdlPDReturnDC + CdlPDNoSelection + CdlPDNoPageNums + CdlPDUseDevModeCopiesAndCollate
220 .ShowPrinter
230 DoEvents
'Printer.Orientation and Printer.Copies already set automatically
235 Orientation = Printer.Orientation
240 CopyPicChart Me.picChart
250 For i = 1 To Printer.Copies
255 Printer.Orientation = Orientation
260 Printer.PaintPicture Clipboard.GetData(), 0, 0, Printer.ScaleWidth, Printer.ScaleHeight
270 Printer.EndDoc
280 Next i
290 End With
Hi,Quote:
Originally Posted by chosk
I tried that but still does same thing, when click cancel then a visual basic box appears with the information
Attachment 132411
Seems to only do this during design-run, when create compiled .exe file, then that works fine.
But during design it can be a pain, because it cause VB to crash every time and have to reopen project.
I think it has something todo with the error trapping settings. As you have this problem only in the IDE. Please advise what you have set.Quote:
Originally Posted by jpskiller

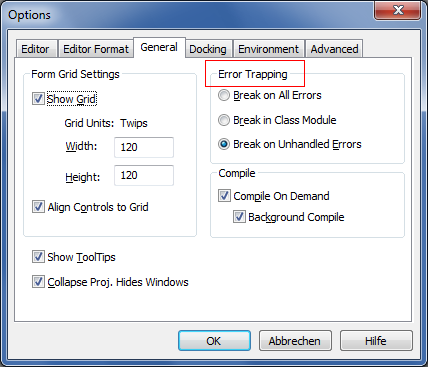

Tools -> Options... -> General -> Error Trapping
Attachment 132415
