I see, but how do you map your texels to your original texture?
I'm doing it this way, with the 3 trajectories...the two red trajectories are synchronised and move down a small amount each time the green trajectory has drawn a scan line of the image. From the red trajectories I can work out the the Y coordinate of the source pixel and from the green trajectory i can calculate the x coord.
Yeah I figured you did something like that, I did the same once until i realized what the problem was ;) The mapping of coordinates is trickier. The trick, which I consider a bit cheating, is doing reverse mapping along iterating the pixels, which can be shown in the code I posted earlier. That's why I have 4, or was it 3 loops instead of 2. The proper way to do it is find the perspective correct texture coordinate from the current pixel, which you can find here for instance:Quote:
Originally Posted by wossname
http://www.flipcode.com/articles/dem..._issue14.shtml
Riiiight. OK well can you give any hint as to how I can get rid of the black dots in the output I already have? We don't need perspective correction on the textures.Quote:
Originally Posted by kedaman
With the current method I have I suppose I could have another increment on the texture X and Y coordinates so i don't keep calculating then every pixel. It should jsut be texture (height (or width) / trajectory length).
Just as a side post. Not sure if anyone is interested at all, but just in case. I found some great tutorials on gamedev. One for perspective corect texture mapping, and one for the magic numbers as Keda talked about.
http://www.gamedev.net/reference/art...article331.asp
http://www.gamedev.net/reference/art...article334.asp
- ØØ -
No perspective correction? In that case the current isometric one would probably be fastest ;) Looking at the pictures posted so far, it doesn't seem too bad in fact :afrog: If you still want to hang on to the stretching method, then split up the polygon into trapezoids and do the spans.Quote:
Originally Posted by wossname
I think the fact that all our wallparts are square will limit the lack of perspective texturing, we aren't ussing any really long textures that would look weird.
Do you have a link for a tutorial about trapezoid splitting?
nah, tha trapezoid splitting was my own invention. It's especially usefull with all the clipping (if you need to access the bitmap bits then this is necessary.) First you need to sort all the points in your polygon (which has to be convex) by the screen y coordinate, and then make a horizontal split for each corner, except the first and the last (for a triangle, you only need to split once, a quad twice). This means that you need to calculate the endpoint or starting point of the other end of the split, which will make up the fourth point in your trapezoid. A triangle should make two trapezoids and a quad three. The upper most trapezoid will be a triangle with the the two upper points of the trapezoid joined, and similarly the lower most trapezoid will have the lower points joined. If you apply clipping, then you will need to split up into further trapezoids. Once you have the trapezoids done, for each trapezoid, calculate the endpoint and startpoint increments, which is done by dividing the height between the points with the width between the point (or vice versa), and then loop with these increments in the outher loop, and loop between the start and end point in the inner loop.
Here's a pic to illustrate what I mean with the splits and the startpoints and endpoints, and clipping if you want to squeeze in more frames. The algo is simplified and shows how you work with the start and end point increments.
btw, the horizontal clipping may not need any additional splits, depends on what sort of trapezoid and where the clipping applies.
OK, I have fixed rendering in the right order no matter where you are on the map (Screeny), but when I was taking this screenie I found 2 more bugs to fix...:(
ONE: I moved really close to a wall or two, and then triangles appeard from the top down about half the screen
TWO: On this screenie the cube in the middle is moving for EACH frame. Like shaking a tiny bit back and forth.

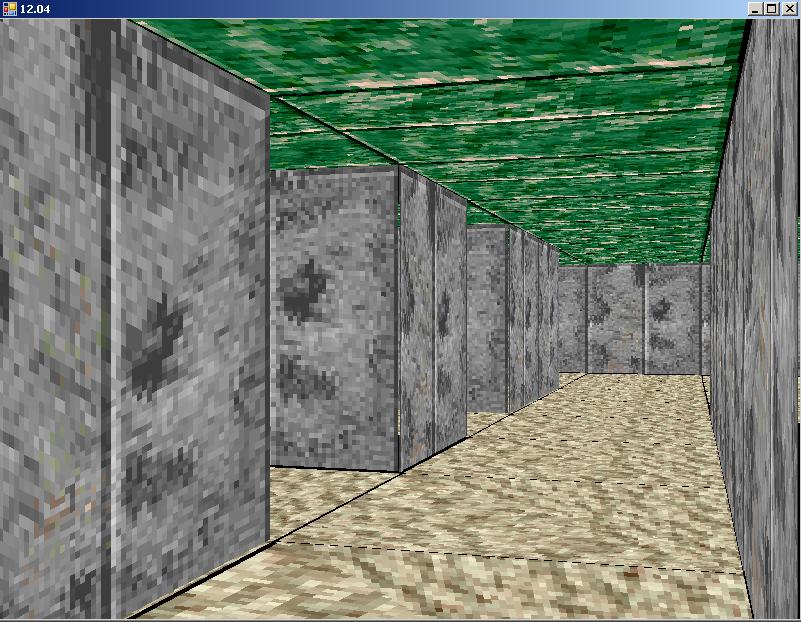

http://www.noteme.com/doomsharp/img/img047.jpg
hmmm...
ONE: what do you mean top down half the screen?
TWO: are you sure you aren't shaking the table? ;)
Hmmm...I can't recreate it now...when I manage to get the problem to show up again, then I will post a pic.Quote:
Originally Posted by kedaman
Quote:
Originally Posted by kedaman
Yeah, the rest of the picture was not shaking..:)
- ØØ -
No use posting that pic then, its neither shaking or showing the top down thingie ;)Quote:
Originally Posted by NoteMe
I know....I am a bit torn now...should I implement the camera class first or the culling...hmmm....I think I will try the camera....ok Wossy..stay tuned...
- ØØ -
W0o00ot! Just implemented a scrollable grid area! we can now have unlimited map sizes (in theory)
I have some problems finding the center of a bounding circle around the FOV...I can't belive that I can't do that simple math anymore..:(
- ØØ -
Ok, here is the problem.
The red dot is the position of the camera. The black lines out of it is the left side of the screen, and the right side is the right side of the screen. The black line they meet on the top is the far plane.
The imaginary blue line that goes straigt forward is 11 units long. You can find this direction by taking the "LookAT" position minus the "position of the camera".
The green half circle is the angle "a". It is right now PI/4. But it can be anything really. But since this calculation will be different if the angle is PI/2 or bigger we will just look at smaller then PI/2 right now.
The yellow big thing in the middle is the point we want to find. The point is just as far away from the camera position as it is from one of the two corners near the far plane. This point AND the radius of the circle it creates around it's centre has to be found. Now how do you do that.
PS: Tell me if I forgot to add some info. And if you do find a solution, then please draw with letters and so on what angles and lengths you are talking about..:)
http://www.noteme.com/doomsharp/img/img048.jpg
bounding circle radius= left side *right side / 2blueline, but since leftside=right side we have
leftside^2/2blueline, where blueline/leftside=cos pi/8 i.e leftline=blueline/(cospi/8) so
bounding circle radius=blueline (cospi/8)^2/2
probably wrong, but thats what you get when yo're tired :p
I soon have a result...so then we can test against each other..:)
- ØØ -
I got:
Radius: 6.443651
now lets see what you got...
- ØØ -
Ehh..are you deviding EVERYTHING on 2 or? And the ^2 is that with the blue line or not?
- ØØ -
I'm getting 4.69454
^2 is just on the cos thing, and yeah everything is divided by two
Grrr...hmmm.....so now we don't know witch one that is right..:D
- ØØ -
no we don't, but we know at least that you are still typing which wrong ;)Quote:
Originally Posted by NoteMe
OK, lets start from the start. Can you agree to this:
One of the black lines (now called B) from the camera position is:
cos (a/2) = BlueLine / B
that becomes:
B = BlueLine / cos(a/2)
???
Quote:
Originally Posted by kedaman
Hehehe..lay off that..:D:..grrrrrrrrrrrr....:)
- ØØ -
Wait a second, mine has to be wrong because the diameter is smaller than the blue line :(
yeah thats basically what I was saying here:Quote:
Originally Posted by NoteMe
Quote:
leftline=blueline/(cospi/8) so
I get that B= 10.1627
Ok...so can you agree that if you take the NORMAL on the MIDDLE of line B down to the blue line. Then you will hit the blue line a place that is JUST as far from the camera position as the two upper corners near the far plane?
- ØØ -
???Quote:
Originally Posted by kedaman
Ehh...am I tired now..I get:
B: 11.90631
- ØØ -
I think mine is more correct..even if I think mine is short...but it HAS to be longer then the blue line, and the blue line is 11units...
- ØØ -
Its proven now, I'm more tired than you :D I get the same thing now though
OK, I really need to draw some more to be able to fix this frustum culling once and for all...:D Getting closer though.
BTW wØØsy, so you remember the other C# app that was posted in a thread on an other page. The one with the checkers board and the glass? Check out that thread now.
- ØØ -
Have you thought of putting this onto Sourceforge??
And have we got a first release yet?!?
Why would we put it on source forge...:)
And no...first release is still a tiny bit of 100miles away..:D..but the map editor is close though...at least it seems like it..:)
- ØØ -
sourceforge would give you free hosting and bug tracking services.Quote:
Originally Posted by NoteMe
Merge Sort algorithm done in haskell:
Code:mergesort :: (Ord a) => [a] -> [a]
mergesort [] = []
mergesort [x] = [x]
mergesort list = merge left right
where
left = mergesort leftList
right = mergesort rightList
leftList = take n list
rightList = drop n list
n = (length list) `div` 2
merge :: (Ord a) => [a] -> [a] -> [a]
merge [] x = x
merge x [] = x
merge (firstA:restA) (firstB:restB)
| firstA < firstB = firstA : (merge restA (firstB:restB))
| otherwise = firstB : (merge (firstA:restA) restB)
my god, it's like a storm in here...
2 new pages worth of arguing :eek:
I don't know about the speed thing.. but the texture algo not being perspective is true.
you should all keep in mind that when drawing the texture in perspective pixels to the left may need to be drawn as a 4 pixel square, middle as normal 1 pixel and far end as 0.5 (skipping every second pixel) as the size of the image is changing in different locations.
Jaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa................I have been updating D#, and made a shell so mine and wØØsys code is seperated again so it is easier to work on. And I have implemented depth sorting, and now my ladies and gentlemen, I have made a dynamic frustum culling. And it looks like it is working pretty fast and nice and all that....I am soooooooooooooo proud....I have been sitting with this code for 21 hours. I managed to finish it 7 hours before schedual...:) Wooohoooo...:)...
I still have an hour or two before the first buss goes home. So I will try to clean up this mess a bit...you have NOOOOOO idea how messy it is right now. And there is still quit a few optimization things I can do still. So I will see what I can get done. But at least things are working as they should, and in the right order they should..:)
PS: I consider from now on the following files "mine":
- Culling
- Vector
- Matrix
- GameTimer
- Sorting
- Camera
- Collision
The rest of the files I consider yours. If you are going to do any changes in my files. Then I would like to know about it.
Looking forward to see if you can improve the drawing speed. It is about 21FPS right now. And because of my frustum culling, it will more or less keep that speed no matter how big the map is. So it is up to you to improve it more. Next thing to implement (next week after sync up) is moving camera. That will be a nice joy..:)
- ØØ -
Quote:
Originally Posted by tr333
Ehhh...ok...
