U.S. Keyboard will not join ~ and a.
U.S. International will join them and print ã.
"Tilde" is to the left of Number 1 on U.S. International keyboard. Use shift to get it and then follow it with "a".
Try this in Notepad first.
Once you confirm this, try same in UniTextBox.

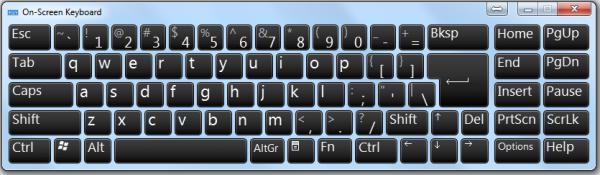

U.S. International layout (OnScreenKeyboard):
Attachment 120645
Join as we speak, but this ã is another unicode char.
Does not work by me... :(

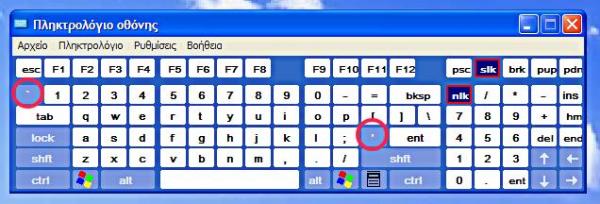

Attachment 120649
In Xp those keys are blue...(here in red circles)
Does it work in Notepad but not in UniTextBox?Quote:
Does not work by me...

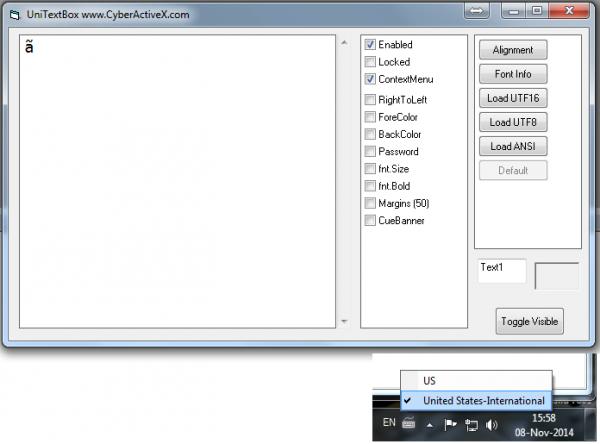

This is with U.S. International:
Attachment 120651

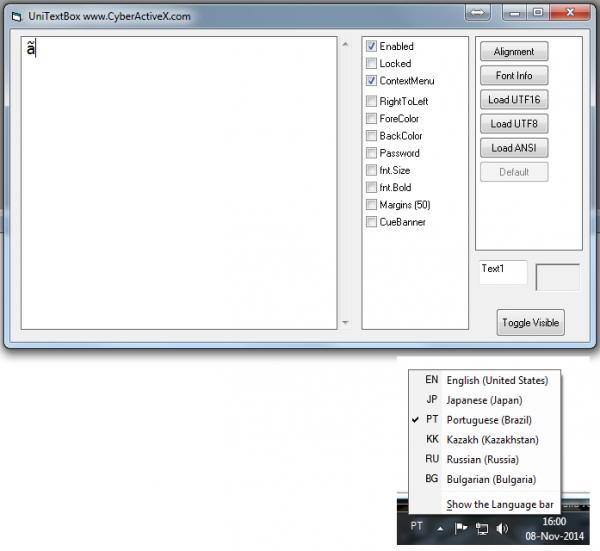

This is with ABNT2 Brazilian Portuguese:
Attachment 120653
Ok, it seems to work now. Can anyone else check it out. By replacing the code in my TextBox as following:
Code:Private TextBoxKeyCodeCache As Integer, TextBoxDeadKeyCodeCache As Integer
Code:Case WM_KEYDOWN, WM_KEYUP
Dim KeyCode As Integer
KeyCode = wParam And &HFF&
If wMsg = WM_KEYDOWN Then
RaiseEvent KeyDown(KeyCode, GetShiftState())
If IsDeadKey(KeyCode) = True And TextBoxDeadKeyCodeCache = 0 Then TextBoxDeadKeyCodeCache = KeyCode
TextBoxKeyCodeCache = KeyCode
ElseIf wMsg = WM_KEYUP Then
RaiseEvent KeyUp(KeyCode, GetShiftState())
End If
wParam = KeyCode
Case WM_CHAR
Dim KeyChar As Integer, UniChar As String
If TextBoxKeyCodeCache <> 0 Then
If TextBoxDeadKeyCodeCache <> 0 Then
KeyCodeToUniChar TextBoxDeadKeyCodeCache
TextBoxDeadKeyCodeCache = 0
End If
UniChar = KeyCodeToUniChar(TextBoxKeyCodeCache)
If Len(UniChar) > 1 Then
TextBoxKeyCodeCache = CUIntToInt(AscW(Mid$(UniChar, 2, 1)))
Else
TextBoxKeyCodeCache = 0
End If
End If
If Len(UniChar) > 0 Then
KeyChar = CUIntToInt(AscW(UniChar))
Else
KeyChar = CUIntToInt(wParam And &HFFFF&)
End If
RaiseEvent KeyPress(KeyChar)
If (wParam And &HFFFF&) <> 0 And KeyChar = 0 Then
Exit Function
Else
wParam = CIntToUInt(KeyChar)
End If
Code:Private Declare Function MapVirtualKey Lib "user32" Alias "MapVirtualKeyW" (ByVal uCode As Long, ByVal uMapType As Long) As Long
Private Declare Function GetKeyboardLayout Lib "user32" (ByVal dwThreadID As Long) As Long
Private Declare Function GetKeyboardState Lib "user32" (ByRef pbKeyState As Byte) As Long
Private Declare Function ToUnicodeEx Lib "user32" (ByVal uVirtKey As Long, ByVal uScanCode As Long, ByRef lpKeyState As Byte, ByVal lpwszBuffer As Long, ByVal cchBuffer As Long, ByVal wFlags As Long, ByVal hKL As Long) As Long
Public Function KeyCodeToUniChar(ByVal KeyCode As Integer) As String
Dim Buffer As String, BufferPtr As Long, B(0 To 255) As Byte, RetVal As Long
Buffer = String$(32, vbNullChar)
BufferPtr = StrPtr(Buffer)
GetKeyboardState B(0)
RetVal = ToUnicodeEx(KeyCode, 0, B(0), BufferPtr, Len(Buffer), 0, GetKeyboardLayout(0))
SysReAllocString VarPtr(KeyCodeToUniChar), BufferPtr
End Function
Public Function IsDeadKey(ByVal KeyCode As Integer) As Boolean
Const MAPVK_VK_TO_CHAR As Long = &H2
IsDeadKey = CBool(MapVirtualKey(KeyCode, MAPVK_VK_TO_CHAR) < 0)
End Function
With your changes I'm getting "à" instead of "ã" with U.S. International keyboard.
What is strange is that I get this Grave accent both with and without shift.
BTW - I tried my original code also in your control and it worked OK, even with "ã".
I don't know if this helps but if you hold the Shift Key, press Tilde and then "A" you get "Ã"
but if you release the shift after tilde you get "à" in lieu of "ã".
Can you please show me your source code implemented into my TextBox? (couldn't get it work by me straight from your original code)Quote:
Originally Posted by DrUnicode
I found the reason. I skipped the following from your original code:
As I thought that this is not necessary. However, it actually is..Code:If Not IsUnicode(ToCharacterEx) Then 'This may not be necessary
ToCharacterEx = ChrW$(KeyAscii)
End If
Attached is IME code in your control.
Attached Zip has only TextBoxW.ctl and Common.bas, the only 2 file that were modified.
To many lines to make it to work. With much of research I found that the use of GetLastKeyPressed is what we need to do the job right.
These works for me...and I think that can be work for you too...If a key give two or more wchars then with GetLastKeyPressed you don't need to interpret what it is interpreted for you...and in the right way...
With GetKey we can get the unicode from ascii...reading the keyboard localeid...but we miss the dead keys and double chars...Code:dim UKEY$
Private Declare Function GetLocaleInfo Lib "kernel32" Alias "GetLocaleInfoW" (ByVal Locale As Long, ByVal LCType As Long, ByVal lpLCData As Long, ByVal cchData As Long) As Long
Private Declare Function GetKeyboardLayout& Lib "user32" (ByVal dwLayout&) ' not NT?
Private Const DWL_ANYTHREAD& = 0
Const LOCALE_ILANGUAGE = 1
Const WM_KEYFIRST = &H100 ' I have no idea why keyfirst must be &h100
Const WM_KEYLAST = &H108
Private Type POINTAPI
X As Long
Y As Long
End Type
Private Type Msg
hwnd As Long
Message As Long
wParam As Long
lParam As Long
time As Long
pt As POINTAPI
End Type
Public Function GetLastKeyPressed() As Long
' no subclass
' we have one keyboard only so in the keydown...99.99% we get the keystroke
Dim Message As Msg
If PeekMessageW(Message, 0, WM_KEYFIRST, WM_KEYLAST, 0) Then
GetLastKeyPressed = Message.wParam
Else
GetLastKeyPressed = -1
End If
Exit Function
End Function
Function GetKeY(ascii As Integer) As String
Dim Buffer As String, Ret As Long. r as long
Buffer = String$(514, 0)
r = GetKeyboardLayout(DWL_ANYTHREAD) And &HFFFF
r = Val("&H" & Right(Hex(r), 4))
Ret = GetLocaleInfo(r, LOCALE_ILANGUAGE, StrPtr(Buffer), Len(Buffer))
If Ret > 0 Then
GetKeY = ChrW$(AscW(StrConv(ChrW$(ascii Mod 256), 64, CLng(Val("&h" + Left$(Buffer, Ret - 1))))))
Else
GetKeY = ChrW$(AscW(StrConv(ChrW$(ascii Mod 256), 64, 1033)))
End If
End Function
in keydown event
.........code for arrows and special keys
I = GetLastKeyPressed
If I <> -1 And I <> 94 Then UKEY$ = ChrW(I) Else UKEY$ = ""
in keypress event
..................code for other keys...
If EditFlag And KeyAscii > 32 And KeyAscii <> 127 Then
If UKEY$ <> "" Then
kk$ = UKEY$
Else
kk$ = GetKeY(KeyAscii) ' this was the old way...I didn't deleted...If UKEY$ didn't work (if GetLastKeyPresserd give always -1, we can write...)
End If
RaiseEvent RemoveOne(kk$) ' this is for undo
If SelStart = 0 Then mSelstart = 1
SelStartEventAlways = SelStart + 1
List(SELECTEDITEM - 1) = Left$(List(SELECTEDITEM - 1), SelStart - 2) + kk$ + Mid$(List(SELECTEDITEM - 1), SelStart - 1)
End If
End If
Now we have both...because we read the unicode value before. With the addition of Unicode No 94 as the dead key indicator..we are complete
In my control there is no RTB or other control..from third party. In fact there are no other control but the user control only, and three shapes for constructing the scroll bar.
I finally got it now to work, the solution was to save the keystate of the dead key.
@ DrUnicode, can you please test again on your side?
Code:Private Declare Function GetKeyboardState Lib "user32" (ByRef pbKeyState As Byte) As Long
Private TextBoxKeyCodeCache As Integer, TextBoxDeadKeyCodeCache As Integer, TextBoxDeadKeyState(0 To 255) As Byte
Code:Case WM_KEYDOWN, WM_KEYUP
Dim KeyCode As Integer
KeyCode = wParam And &HFF&
If wMsg = WM_KEYDOWN Then
RaiseEvent KeyDown(KeyCode, GetShiftState())
TextBoxKeyCodeCache = KeyCode
If IsDeadKey(KeyCode) = True And TextBoxDeadKeyCodeCache = 0 Then
TextBoxDeadKeyCodeCache = KeyCode
GetKeyboardState TextBoxDeadKeyState(0)
End If
ElseIf wMsg = WM_KEYUP Then
RaiseEvent KeyUp(KeyCode, GetShiftState())
End If
wParam = KeyCode
Case WM_CHAR
Dim KeyChar As Integer, UniChar As String
If TextBoxKeyCodeCache <> 0 Then
Dim ScanCode As Integer, B(0 To 255) As Byte
ScanCode = LoByte(HiWord(lParam))
If TextBoxDeadKeyCodeCache <> 0 Then
KeyCodeToUniChar TextBoxDeadKeyCodeCache, ScanCode, TextBoxDeadKeyState()
TextBoxDeadKeyCodeCache = 0
End If
GetKeyboardState B(0)
UniChar = KeyCodeToUniChar(TextBoxKeyCodeCache, ScanCode, B())
TextBoxKeyCodeCache = 0
End If
If Len(UniChar) > 0 Then
KeyChar = CUIntToInt(AscW(UniChar))
Else
KeyChar = CUIntToInt(wParam And &HFFFF&)
End If
RaiseEvent KeyPress(KeyChar)
If (wParam And &HFFFF&) <> 0 And KeyChar = 0 Then
Exit Function
Else
wParam = CIntToUInt(KeyChar)
End If
Code:Private Declare Function MapVirtualKey Lib "user32" Alias "MapVirtualKeyW" (ByVal uCode As Long, ByVal uMapType As Long) As Long
Private Declare Function GetKeyboardLayout Lib "user32" (ByVal dwThreadID As Long) As Long
Private Declare Function ToUnicodeEx Lib "user32" (ByVal uVirtKey As Long, ByVal uScanCode As Long, ByRef lpKeyState As Byte, ByVal lpwszBuffer As Long, ByVal cchBuffer As Long, ByVal wFlags As Long, ByVal hKL As Long) As Long
Public Function KeyCodeToUniChar(ByVal KeyCode As Integer, ByVal ScanCode As Integer, ByRef B() As Byte) As String
Dim Buffer As String, BufferPtr As Long, RetVal As Long
Buffer = String$(32, vbNullChar)
BufferPtr = StrPtr(Buffer)
RetVal = ToUnicodeEx(KeyCode, ScanCode, B(0), BufferPtr, Len(Buffer), 0, GetKeyboardLayout(0))
SysReAllocString VarPtr(KeyCodeToUniChar), BufferPtr
End Function
Public Function IsDeadKey(ByVal KeyCode As Integer) As Boolean
Const MAPVK_VK_TO_CHAR As Long = &H2
IsDeadKey = CBool(MapVirtualKey(KeyCode, MAPVK_VK_TO_CHAR) < 0)
End Function
If someone press ' twice then the second time he has to get these ' two times.
Yes. All working fine now. Tested Kazakh, U.S. Normal, U.S. International.Quote:
@ DrUnicode, can you please test again on your side?
Did you remove this piece of code?
I think you may need it for IME that generates 2 Unicode characters for single keystroke.Code:If Len(UniChar) > 1 Then
TextBoxKeyCodeCache = CUIntToInt(AscW(Mid$(UniChar, 2, 1)))
I can't remember which IME I tested this with because it was 9 years ago.
Yes I removed that. Because 2 Unicode characters by a single keystroke just happens when you press a dead key twice. (for e.g. pressing two times ^ will result in ^^ or 2x time WM_CHAR with key char ^)Quote:
Originally Posted by DrUnicode
This case is also described in the MSDN page for the ToUnicode API. ("The most common cause for this is that a dead-key character (accent or diacritic) stored in the keyboard layout could not be combined with the specified virtual key to form a single character.")
But in our case this cannot happen. (VB's main loop itself will produce the WM_CHAR).
We just need to handle the case when a WM_CHAR is coming and previous key was a dead-key, in order to combine them.
Another point: AscW returns a key char and not a key code. Thus this would also be wrong, no?
It was 9 years ago when I ran into this issue reported by a customer.Quote:
Because 2 Unicode characters by a single keystroke just happens when you press a dead key twice.
Apparently a particular IME generated a surrogate pair, 2 Unicode characters for a single keystroke.
In this case you don't get a WM_KEYDOWN for the second charcter but you do get another WM_CHAR.
We need to find out which IME does this and which keystroke to test this.
Maybe I write for nothing..but...I have solve this problem. I can't work with the library of Krool because I found difficulties to run it in Xp.
We can get the pressing keys as unicode string before the keypress event..So we have to take these keys in a string and use it in the keypress event. So we need a string as buffer, as a variable declared for module/class/form/user control...The last pressing key return -1 if we have no char...so we skip the writing to the buffer. If we have a number 94 then that is ANY dead key (in any combination, so we don't have to read Shift state), and we just SKIP the buffer writing. In Keypress event we process the buffer if the key that supposed to give is a key in the range of keys and not delete or other<32 (in my control ascii code 32 is used for two things so I have to exclude it).
So how we get two or more keystrokes that produce ONE unicode code? Easy as you see, because we read the final Unicode code (so this is done from os for us)...and not the intermediate keystrokes. If you wish to write the OS again then make your own code..but in that situation..do not use the ready made control from MS...make your own, you will be happy too. You can leave the original messages (by raising events prior the right process) to give external process for the final user...and check for changes to values and then "skip" the right process if you found any (because this process are not known to the final user).
Ok, then following way would solve it. (Though I cannot test)Quote:
Originally Posted by DrUnicode
Code:Case WM_CHAR
Static SurrogateKeyChar As Integer
Dim KeyChar As Integer, UniChar As String
If TextBoxKeyCodeCache <> 0 Then
If TextBoxDeadKeyCodeCache <> 0 Then
KeyCodeToUnicode TextBoxDeadKeyCodeCache, TextBoxDeadScanCodeCache, TextBoxDeadKeyStateCache()
TextBoxDeadKeyCodeCache = 0
End If
Dim KeyState(0 To 255) As Byte
GetKeyboardState KeyState(0)
UniChar = KeyCodeToUnicode(TextBoxKeyCodeCache, HiWord(lParam), KeyState())
TextBoxKeyCodeCache = 0
End If
If Len(UniChar) > 0 Then
KeyChar = CUIntToInt(AscW(UniChar))
If Len(UniChar) > 1 Then SurrogateKeyChar = CUIntToInt(AscW(Mid$(UniChar, 2, 1)))
Else
If SurrogateKeyChar <> 0 Then
KeyChar = SurrogateKeyChar
SurrogateKeyChar = 0
Else
KeyChar = CUIntToInt(wParam And &HFFFF&)
End If
End If
RaiseEvent KeyPress(KeyChar)
But still there is one important issue.
Open notepad and any of your Unicode TextBox. When you enter a dead key now in the notepad, for e.g. `. Then switch to the Unicode TextBox and enter the the 'a' character. Do you get 'à' or just 'a'? Same vice versa. The notepad does it correctly, seems like it somehow knows that a dead key was pressed before.
But I think in DrUnicode version this is not a problem due to the last thing "If Not IsUnicode(ToCharacterEx) Then" fixes this issue. But for me that is not a proper way. :p
Nice work making progress on this! While we're talking about dead keys, here's another language to test: Vietnamese. The Vietnamese keyboard works a little differently because regular letters can function as dead keys, but only if they are followed by certain characters.
For example: in Notepad, typing 1 gives you:
ă
Typing 1 and then 9 erases that character, and replaces it with:
ặ
Similarly, typing 1 and then 8 gives you:
ắ
So that initial ă can be merged with a number of other diacritics, or it can be used as a standalone character. This is different from other dead keys because the first character appears when pressed, and it's only treated as a dead key if a subsequent key modifies it in some way. Hopefully your existing code works with these as well!
@Krool:
ToUnicode, for better or worse, uses the global (kernel-mode) key buffer to assemble keystrokes. So a dead key typed in one window will affect the ToUnicode buffer in another window. It's part of what makes ToUnicode so difficult to use, because every time you call it, it rewrites the global key buffer, so trying to use it from a hook (for example) can prevent other windows from receiving the correct keystrokes.Quote:
"The notepad does it correctly, seems like it somehow knows that a dead key was pressed before."
Could we test this with direct entry using the Alt key? For example, Alt+173 569 should produce the surrogate pair character 𪘁.Quote:
Originally Posted by DrUnicode
I haven't tested yet, but I'm not sure whether this still causes two WM_CHAR messages to be raised. What's strange is that Notepad doesn't handle this kind of Alt+key input correctly. (It produces a ☺character.) However, WordPad correctly produces 𪘁.
I'm positive Notepad knows nothing of this and doesn't need to mess with key down/up at all. It just uses the unicode version of the standard Edit windows control *and* has a unicode message pump as the main app loop (GetMessageW/DispatchMessageW). This way on WM_CHAR it does get a unicode character in wParam in the lower 16-bits (not only the lower 8-bits as in VB6).Quote:
Originally Posted by Krool
VB6 run-time uses PeekMessageA/DispatchMessageA in the main msg pump, so even unicode hWnds (those created with CreateWindowExW or those with "unicode" wndproc set with SetWindowLongW) get a strippped down wParam on WM_CHAR -- the OS has done a Unicode to ACP (current system code page for non-unicode application) conversion on their behalf. And I doubt there is a reliable way to revert this conversion from ACP to Unicode once the damage is done.
You have to intercept WM_CHAR earlier, in case of VB6 dispatched messages in the control's wndproc it is already too late to take counter measures. I've tested CyberActiveX's Unicode rich-textbox (the free download) and it is not working with my keyboard (I'm a native Bulgarian using cyrillic alphabet with a twist -- almost like Kazakh one) -- unicode input get converted to ? both in the IDE and compiled. I can take screenshots, videos, whatever to prove it :-))
cheers,
</wqw>
In post 533 I display that:
..........
If PeekMessageW(Message, 0, WM_KEYFIRST, WM_KEYLAST, 0) Then
GetLastKeyPressed = Message.wParam
Else
GetLastKeyPressed = -1
End If
Exit Function
...........
And now in 544..we read it again...
Using English iInternational I can type "`" in Notepad and "a" in UniTextBox and I get the combined "à" in UniTextBox.
Same for keyboard ABNT2 Portuguese, type "~" in Notepad and "a" in UniTextBox and I get "â" in UniTextBox.
In both cases it works the other way around, accent in UniTextBox and "a" in Notepad gives "á" or "ã".
Tanner_H
Vietnamese:
In UniTextBox I get the correct character with 1, 1+9, 1+8
ă
ặ
ắ
In ComCtldemo I also get:
ă
ặ
ắ
There are 2 RichEdit controls that we distribute:Quote:
wqweto I've tested CyberActiveX's Unicode rich-textbox (the free download) and it is not working with my keyboard (I'm a native Bulgarian using cyrillic alphabet with a twist
One is UniRichEdit_BDC0849A.ocx, a wrapper for vbRichTextBox and we would not expect it to handle IME correctly.
The full Unicode version is UniRichEdit100_EDA1811C.ocx. This is the one that handles IME using same technique as UniTextBox.
You need to download UniSuitePlus to get this control.
UniTextBox is part of UniSuitePlus_BDC0849A.ocx which has 27 controls as a single ocx.
I think we covered this ground a bit earlier in the thread... ;)Quote:
Originally Posted by wqweto
The ToUnicode API *can* be used to reverse-engineer the missing Unicode char. It's not pretty, and you have to do some extra work to handle dead keys (because ToUnicode removes dead keys from the key buffer as it processes them). But it does work. No normal Unicode-aware program has reason to do this, because TranslateMessage (inside GetMessageW) typically does this for you. But you can access ToUnicode directly and perform your own virtual key to character translations.
DrUnicode's solution (from Michael Kaplan, who literally wrote Microsoft's keyboard layout creator) handles this by waiting for WM_CHAR, then using ToUnicode to perform the same virtual key to Unicode translation that TranslateMessage normally would, using key state data cached during WM_KEYDOWN.
I found it easier to perform the translation inside WM_KEYDOWN, then dispatch the correct WM_CHAR message(s) manually. Both of these methods produce the same Unicode output as a normal, W-aware message loop.
This said, there *are* some situations you can't solve this way. As I just learned (in reference to my question about Alt+Unicode key values, above), Alt+# keypresses don't raise normal WM_KEYDOWN messages. They raise WM_SYSKEYDOWN messages, and ToUnicode doesn't handle the WM_CHAR translation. I don't know what does.
So manual code is needed to cover this case, because WM_CHAR is indeed too late.
But for "normal" key events (including IME), these methods do work. In fact, manual ToUnicode usage is the only way to convert keypresses to Unicode characters outside a normal message loop. (For example, a windowless program.)
@DrUnicode - awesome, that's great news. I am also trying to track down an IME that produces surrogate pairs naturally (since we can't get them via Alt+numbers, as mentioned above). I'll let you know if I find one.
Thanks to georgekar, I have finally a perfect solution. :)
That 'PeekCharCode' function I do call in the WM_KEYDOWN message and cache it in a variable.Code:Private Type POINTAPI
X As Long
Y As Long
End Type
Private Type TMSG
hWnd As Long
Message As Long
wParam As Long
lParam As Long
Time As Long
PT As POINTAPI
End Type
Private Declare Function PeekMessage Lib "user32" Alias "PeekMessageW" (ByRef lpMsg As TMSG, ByVal hWnd As Long, ByVal wMsgFilterMin As Long, ByVal wMsgFilterMax As Long, ByVal wRemoveMsg As Long) As Long
Public Function PeekCharCode(ByVal hWnd As Long) As Long
Dim Msg As TMSG
Const PM_NOREMOVE As Long = &H0, WM_CHAR As Long = &H102
If PeekMessage(Msg, hWnd, WM_CHAR, WM_CHAR, PM_NOREMOVE) <> 0 Then PeekCharCode = Msg.wParam
End Function
Then in the WM_CHAR message I cast this to back to wParam, but only in case the cache variable is <> 0.
I tested and it seems to work good. Even globally with the dead chars and so on.
Only issue might be the surrogate pairs, no? (But I don't know how to test this, since I do not know a sample) But in that case (surrogate pairs) the cached key char value would be 0 (due to no KeyDown before) but than the key char in WM_CHAR would be untouched. So at this point maybe not 100% but therefore the rest. :)
EDIT: Update released
@Krool: This is seems like a solution to the problem, good you somehow deciphered georgekar thoughts :-)) The only missing part is if someone uses SendMessage to send WM_CHAR to your wndproc (on-screen keyboard, whatever) then you don't get a chance to peek it on WM_KEYDOWN, more I doubt the WM_CHAR message even gets in the message queue.Quote:
Originally Posted by Krool
Anyway, my proposal is to peek both ANSI *and* Unicode WM_CHARs (using both PeekMessageA and PeekMessageW one after another) and store these wParam's as an (ansi, unicode) pair for consecutive WM_CHAR handling. On WM_CHAR check if wParam is the ansi part of the pair and substitute with the unicode value, else leave wParam fall through.
@DrUnicode: I noticed you are including an upgraded release of a project of mine in your UniSuite -- the UniHookMenu. At least you've seen my profile picture on PSC from something like 12 years ago :-)) Btw, I like control's icon w/ the hook -- Dread Pirate Roberts, no? :-))
cheers,
</wqw>
In that case (sending WM_CHAR manually) the wParam value of the sendmessage function will be used. Because the cache variable is zero and therefore the value of wParam gets not altered. So only when doing a user input (KeyDown) the wParam value in WM_CHAR gets altered, and in addition only when there is a WM_CHAR in the pipe-line already. That way, in my opinion, makes it very fail-safe.Quote:
Originally Posted by wqweto
Third-party applications that directly post Unicode character messages are hopefully using WM_UNICHAR. This allows the target window to respond to the first probe (with wParam = UNICODE_NOCHAR, or 0xffff) with a 1, meaning it can accept WM_UNICHAR messages.Quote:
Originally Posted by wqweto
@Krool: it should be easy to add handling for WM_UNICHAR. In fact, aside from the UNICODE_NOCHAR case, you could probably just forward WM_UNICHAR messages to your existing WM_CHAR code, and have it work without trouble. (Though surrogate pairs might still require special handling...)
You mean like following?Quote:
Originally Posted by Tanner_H
Code:Private Const WM_UNICHAR As Long = &H109, UNICODE_NOCHAR As Long = &HFFFF&
Case WM_UNICHAR
If wParam = UNICODE_NOCHAR Then WindowProcControl = 1 Else SendMessage hWnd, WM_CHAR, wParam, ByVal lParam
Exit Function
That looks good to me!
BTW, thanks for all your great work, Krool. Really appreciate you sharing your controls.
hello
I slightly modified the control "Toolbar" because I thought it was not working properly.
Especially the height that I was not correct.
I was submiting your appobation but my tests are pretty conclusive.
I retouched all routines using "TB_GETSTYLE" and especially "UserControl_Resize"
What does the "TB_GETPADDING" because when I use the button size is wrong. (for me!).
I ask the question again:
Is it possible to have a control of the position "CommonDialog"?
This would be very useful to me!:wave:
kind regards
Attachment 120825
I recommend the use of the CommonDialog class instead of a control in this case.Quote:
Originally Posted by lrd_VB6
But, you can "wrap" the COmmonDialog class into a new UserControl, for you special needs. :)
For the ToolBar:
You are correct. TB_GETPADDING is wrong. ("The padding values are used to create a blank area between the edge of the button and the button's image and/or text")
And according to MSDN the divider line is always two-pixel. (CCS_NODIVIDER = "Prevents a two-pixel highlight from being drawn at the top of the control")
I will fix this soon. Thanks
It would be good to know which IME and what key exactly generates two WM_CHARs.Quote:
Originally Posted by DrUnicode
But the following would solve this case also?
And I tried some tests with PostMessage and SendMessage with manually WM_KEYDOWN and WM_CHAR and the current implementation seems to be very fail-safe. I could not detect an error with this solution. (peek charcode in WM_KEYDOWN)Code:Case WM_CHAR
Dim KeyChar As Integer
If TextBoxCharCodeCache <> 0 Then
KeyChar = CUIntToInt(TextBoxCharCodeCache And &HFFFF&)
TextBoxCharCodeCache = ComCtlsPeekCharCode(hWnd) ' Instead of 0&, look for another WM_CHAR in the pipeline.
Else
KeyChar = CUIntToInt(wParam And &HFFFF&)
End If
@Krool: Latest rich-textbox works with Bulgarian keyboard layout entering 'Shift+A' -- correctly produces ѝ (something like u with accent)
cheers,
</wqw>
Went through my old Emails but could not find the one that addresses this issue.Quote:
It would be good to know which IME and what key exactly generates two WM_CHARs.
But the following would solve this case also?
This looks like it would solve the surrogate issue.Code:
Case WM_CHAR
Dim KeyChar As Integer
If TextBoxCharCodeCache <> 0 Then
KeyChar = CUIntToInt(TextBoxCharCodeCache And &HFFFF&)
TextBoxCharCodeCache = ComCtlsPeekCharCode(hWnd) ' Instead of 0&, look for another WM_CHAR in the pipeline.
Else
KeyChar = CUIntToInt(wParam And &HFFFF&)
End If
Tested your latest build with several IME and all worked OK.
Nice work.
hello
Too bad, I'm disappointed.:cry:
You have not used the code that I had proposed in the attached zip file.
I just tested the release and it does not work as well as mine.
Roll style "Align = Top" a "Align = Left" and it becomes almost imposible to adjust the width !!
I find your version a bit complicated but I have only tested on XP, so it may be there are things I do not know!
I find the code:
easier to read than:Code:Private Function ChangeStyle(ByVal bSetMask, Mask As Long) As Boolean
Dim dwStyle As Long, NewStyle As Long
If ToolBarHandle Then
dwStyle = SendMessage(ToolBarHandle, TB_GETSTYLE, 0, ByVal 0&)
If bSetMask Then
NewStyle = dwStyle Or Mask
Else
NewStyle = dwStyle And Not Mask
End If
If dwStyle <> NewStyle Then
SendMessage ToolBarHandle, TB_SETSTYLE, 0, ByVal NewStyle
ChangeStyle = True
End If
End If
End Function
Public Property Let Divider(ByVal Value As Boolean)
PropDivider = Value
If ChangeStyle(Not PropDivider, CCS_NODIVIDER) Then
SetWindowPos ToolBarHandle, 0, 0, 0, 0, 0, SWP_NOMOVE Or SWP_NOSIZE Or SWP_NOOWNERZORDER Or SWP_NOZORDER Or SWP_FRAMECHANGED
UserControl_Resize
End If
UserControl.PropertyChanged "Divider"
End Property
Code:Public Property Let Divider(ByVal Value As Boolean)
PropDivider = Value
If ToolBarHandle <> 0 Then
Dim dwStyle As Long
dwStyle = SendMessage(ToolBarHandle, TB_GETSTYLE, 0, ByVal 0&)
If PropDivider = True Then
If (dwStyle And CCS_NODIVIDER) = CCS_NODIVIDER Then
SendMessage ToolBarHandle, TB_SETSTYLE, 0, ByVal dwStyle And Not CCS_NODIVIDER
SetWindowPos ToolBarHandle, 0, 0, 0, 0, 0, SWP_NOMOVE Or SWP_NOSIZE Or SWP_NOOWNERZORDER Or SWP_NOZORDER Or SWP_FRAMECHANGED
End If
Else
If Not (dwStyle And CCS_NODIVIDER) = CCS_NODIVIDER Then
SendMessage ToolBarHandle, TB_SETSTYLE, 0, ByVal dwStyle Or CCS_NODIVIDER
SetWindowPos ToolBarHandle, 0, 0, 0, 0, 0, SWP_NOMOVE Or SWP_NOSIZE Or SWP_NOOWNERZORDER Or SWP_NOZORDER Or SWP_FRAMECHANGED
End If
End If
Call UserControl_Resize
End If
UserControl.PropertyChanged "Divider"
End Property
Then my code version is "simpler" and does not have the default when you want to change the height or width if you change the property "Align"
But as I said, I did do the test ONLY on XP, so ....Code:Private Sub UserControl_Resize()
Static InProc As Boolean
If ToolBarHandle = 0 Then Exit Sub
Dim dwStyle As Long
Dim mWidth As Single, mHeight As Single
Dim mAlign As VBRUN.AlignConstants
If InProc Then Exit Sub
InProc = True
dwStyle = SendMessage(ToolBarHandle, TB_GETSTYLE, 0, ByVal 0&)
With UserControl
mAlign = .Extender.Align
'
'Align Change ?
'
If ChangeStyle(mAlign = vbAlignRight Or mAlign = vbAlignLeft, CCS_VERT) Then ' force resize Height or Width
Select Case mAlign
Case vbAlignTop, vbAlignBottom ', vbAlignNone
Me.Height = 10
Case vbAlignLeft, vbAlignRight
Me.Width = 10
End Select
End If
MoveWindow ToolBarHandle, 0, 0, .ScaleWidth, .ScaleHeight, 1 ' set size AND redraw for TB_AUTOSIZE calc
SendMessage ToolBarHandle, TB_AUTOSIZE, 0, ByVal 0&
GetIdealSize mWidth, mHeight
'
' In GetIdealSize() Now
' If (dwStyle And CCS_NODIVIDER) = 0 Then
' mHeight = mHeight + .ScaleY(2, vbPixels, vbContainerSize)
' End If
Select Case mAlign
Case vbAlignTop, vbAlignBottom ', vbAlignNone
mWidth = Me.Width
Case vbAlignLeft, vbAlignRight
mHeight = Me.Height
Case Else
'optional, force a minimum width or height
If Me.Height > mHeight Then mHeight = Me.Height
If Me.Width > mWidth Then mWidth = Me.Width
End Select
.Size mWidth, mHeight
MoveWindow ToolBarHandle, 0, 0, .ScaleWidth, .ScaleHeight, 1
End With
InProc = False
End Sub
Otherwise, nice work, I hope I can continue to make my contribution to the building.
kind regards
Oups
