cCropper: Simple, "Smart" RC6/Cairo Image Cropping Class

cCropper is a small and fast VB6/RC6 class designed to make image cropping easy, and to allow you to add image cropping to your VB applications (nearly) effortlessly.

In addition to being a useful stand-alone class, the code has also been thoroughly commented, making it useful as learning material for RC6/Cairo graphics features and functionality.

Features:

• UI Mode:
  Let users visually select, move, and resize crop areas with the mouse.


• Programmatic Mode:
  Define crop rectangles and process images entirely through code.


• Format Support:
  Load and save PNG, JPEG, and BMP files.


• "Smart" File Size Control:
  Automatically resize files to stay near a target maximum byte size - perfect for uploads and email attachments.


• Image Size Control
  Define the maximum pixel width/height for your cropped image - useful for generating thumbnails.

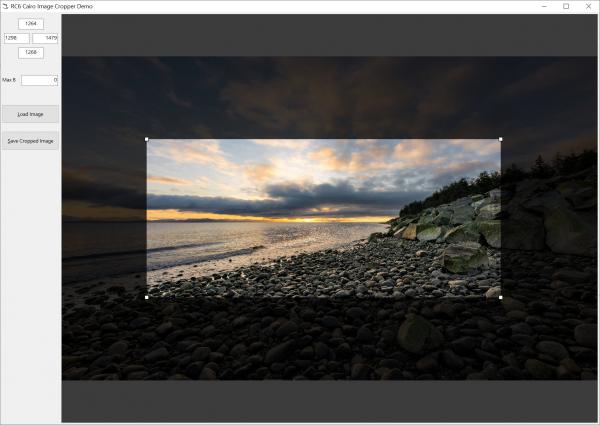

Screenshot:

Attachment 194621


Notes

Requires the RC6 library.


Source Code:

Attachment 194646

(Includes demo image which accounts for most of the file size - source code is < 50kb)


Enjoy!

Quick note about the "Smart" File Size Control feature - it's fairly experimental, so please let me know if you get any surprising results (ideally providing an image and export format for testing). Thanks :)

Added the ability to set a maximum Pixel size for the image. Useful for generating thumbnails (image will be centred horizontally and vertically if it doesn't fit the max pixel width/height squarely).

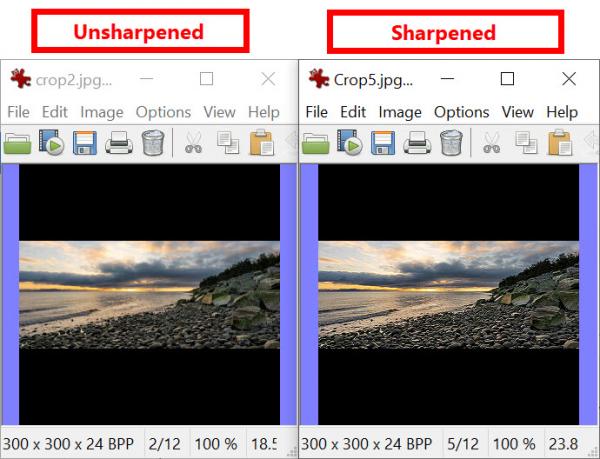

Added a "SharpenOnShrink" Boolean parameter to the SaveImage method. When shrinking images, they can look a bit blurry, and Sharpening them can produce more pleasing/pseudo-detailed results:

Attachment 194647

My approach will do a single-pass Sharpen if the scaled image size is <67% of the original image size, and double-pass Sharpen if < 33%.

Thank you, this is wonderful :). For my purposes I will likely rewrite using GDI+. Nothing against RC6 but don't want the extra dependencies because my use case is inside a custom control. And I think that Cairo uses GDI & GDI+ as backends on Windows anyway.....

Very useful tool, I'm happy with an RC6 version or plain GDI+.

> And I think that Cairo uses GDI & GDI+ as backends on Windows anyway.....

No, it does not. This would be very backwords logic and ChatGPT confirms: https://chatgpt.com/share/680f402b-9...9-2f83699721b3

cheers,
</wqw>

Quote:

---

Originally Posted by SomeYguy

Thank you, this is wonderful :). For my purposes I will likely rewrite using GDI+.

---

Glad you like it, and looking forward to your GDI+ version if you should decide to share it. Be interesting to compare LoC and # hours it takes to implement in GDI+ vs. RC6/Cairo.

No, RichClient 6 Cairo wrapper does not use GDI+.

Here’s a breakdown:

RichClient 6 (RC6) is a COM-based framework developed by Olaf Schmidt for VB6 and other COM-capable environments.

The Cairo wrapper in RC6 is a direct binding to the Cairo graphics library (a C library).

Cairo is a powerful, hardware-accelerated 2D graphics library that renders directly using backends like Win32, Direct2D, OpenGL, Skia, and others — but it does not rely on GDI+.

RC6 accesses Cairo.dll (and some helper DLLs) directly through lightweight COM classes.

In fact, Olaf deliberately avoided GDI+ because GDI+ is slower, more limited, and less accurate (especially with alpha-blending and transforms) compared to Cairo.

Straight from ChatGPT

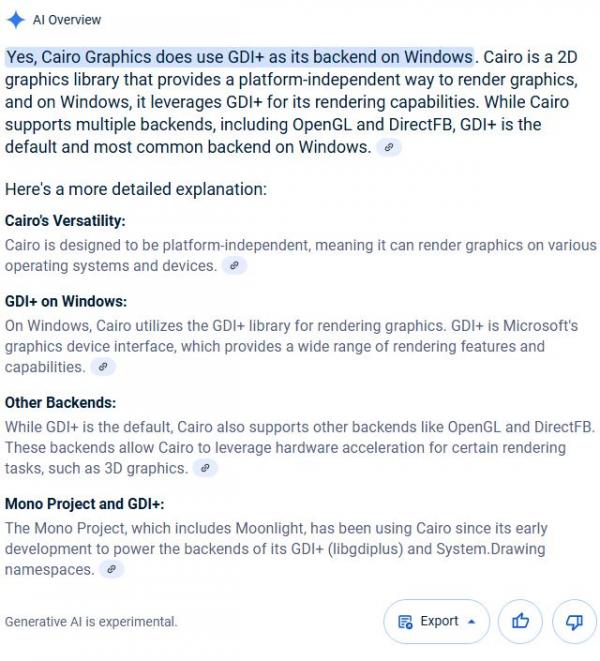

wqweto: Meant to quote your reply but forgot to reply w/quote. Anyway - Looks like the AIs don't agree with each other on this but I tend to believe ChatGPT so I'm sure you're right. I agree with you that it would be backward logic for Cairo but GDI/GDI+ are still great options in many cases and the .NET framework simply wraps GDI+ for its 2D graphics capability.

Regarding RC6, it truly is wonderful and a fantastic achievement and tool by Olaf and I do use it for some things. But for certain applications I just can't redistribute several base dlls and/or use manifests for reg-free running.

Attachment 194653

Quote:

---

Originally Posted by jpbro

Glad you like it, and looking forward to your GDI+ version if you should decide to share it. Be interesting to compare LoC and # hours it takes to implement in GDI+ vs. RC6/Cairo.

---

Most certainly I will be happy to share whenever I get it finished :).

You cannot trust AI to give you an accurate answer, it is just as likely to give you hearsay. I was recently investigating a method of reading an icon from a HIcon via a bitstream and it invented two very plausible APIs that would have done the trick perfectly, if only they had ever existed.
