Plotting Chosen Table Cells on a Chart

Consider there is a database linked to a datagridview which several numeral cells are being updated rapidly.

It is expected that WinFormApp plot only added ones to a listbox over time with simple line style on a chart control with no series at first and only if user "add" one or more members of datasource from an All_IDs_ComboBox (it only contains the primarykey of table it is dropdown) to a listbox. "Value" field/column corresponding to items of the listbox should be added as series points now. Finally there is a "Remove" button to exclude the item from the listbox and also delete its related series on chart. How can I achieve this in vb?

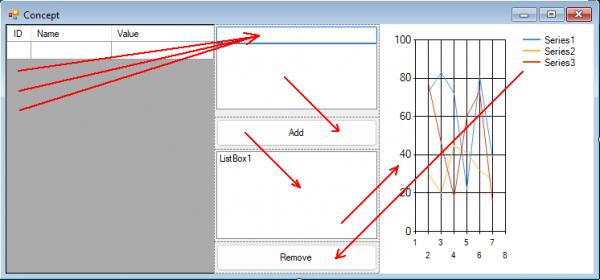

Following layout and some sequential directions was intended to getting the idea and for a better understanding:
Attachment 192318

What I've tried:
- Recording a specific cell with fixed unsorted location (also need to be fixed) as an already existed series.

Code:

---

    If Resume.Checked Then
        If Not OverTime.Checked Then
            ChartControl1.Series(0).Points.AddPoint(ChartControl1.Series(0).Points.Count + 1, CDbl(SomeValue))
        Else
            ChartControl1.Series(0).Points.AddPoint(Now, CDbl(SomeValue))
        End If
    End If

---

A) Based on an imaginary flowchart, I need to know how to add and remove items in a listbox as well as series in a chart. Then in all_table_cells_update event, in a "for" loop handling each row, FindStringExact them all individually and adding new point is required. Is it something else? Please tell me. (If I could write it down myself, you're gonna see it below this line)

B) ComboBoxes does not have the feature of binding a DataSource as its collection like ListBox does. Does it make any difference? I mean ComboBoxes seemed to be the right control to do that. Less space occupying, AutoComplete entered text and a DropDown preview is a big deal. What would be the wisest decision here?

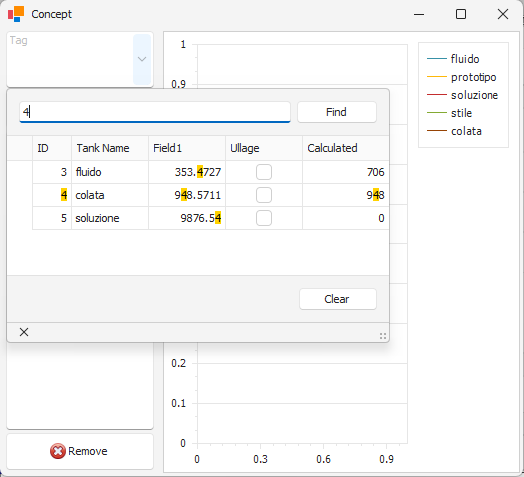

Paragraph B) solved by using a 3rd party DevExpress "SearchLookUpEdit" control. I only manually bind it to a table in another form.
Attachment 192328

Code:

---

Public Class ConceptForm
    Sub New()
        InitializeComponent()
        Me.MainTableTableAdapter.Fill(Me.Database1DataSet.MainTable)
    End Sub

    Private Sub TagList_SelectedIndexChanged(sender As Object, e As EventArgs) Handles TagList.SelectedIndexChanged
        If TagList.Items.Count <> 0 Then
            RemoveButton.Enabled = True
        End If
    End Sub

    Private Sub TagFinder_EditValueChanged(sender As Object, e As EventArgs) Handles TagFinder.EditValueChanged
        If TagFinder.Text = "" Then
            AddButton.Enabled = False
        Else
            AddButton.Enabled = True
        End If
    End Sub

    Private Sub AddButton_Click(sender As Object, e As EventArgs) Handles AddButton.Click
        If TagList.FindStringExact(TagFinder.Text) = -1 Then 'Avoid Repetetives
            TagList.Items.Add(TagFinder.Text)
            ChartControl1.Series.Add(TagFinder.Text, DevExpress.XtraCharts.ViewType.Line)
        End If
        TagFinder.Text = "" 'Renew
    End Sub

    Private Sub RemoveButton_Click(sender As Object, e As EventArgs) Handles RemoveButton.Click
        ChartControl1.Series.RemoveAt(TagList.SelectedIndex)
        TagList.Items.Remove(TagList.SelectedItem)
        If TagList.Items.Count = 0 Then
            RemoveButton.Enabled = False
        End If
    End Sub
End Class

---

A) Overall mechanism - including: finding an ID to record, visually listing it then assigning a series to it and also ability to remove it with with its series - is working properly now using code above, But it misses the getting data core which is not mandatorily binding-sensitive way to handle value change event. Whether it is a one-way direction (reading only not writing on db)

It is possible via a timer (to also achieve a variable timeframe feature) and in every ticks, it adds value point(s) (of added "Field1" or name(s) to the list) to the corresponding series of the chart. Following "For" loop should do the thing but due to error on redlined part (not a real statement), I'm not sure how to access the value of Row = Name that 'i' returns and Column = "Field1" locates. In another mean how you people access cells of a table not involving DGV? (Or with DGV, in worst scenario)

Code:

---

    Private Sub PlayPause_CheckedChanged(sender As Object, e As EventArgs) Handles PlayPause.CheckedChanged
        If PlayPause.Checked Then
            Timer1.Enabled = True
        Else
            Timer1.Enabled = False
        End If
    End Sub

Private Sub Timer1_Tick(sender As Object, e As EventArgs) Handles Timer1.Tick
    If TagList.Items.Count <> 0 Then
        For i = 0 To TagList.Items.Count - 1 'Cycle for all series
            ChartControl1.Series(i).Points.AddPoint(ChartControl1.Series(i).Points.Count, CDbl(CellValue))
        Next
    End If
End Sub

---

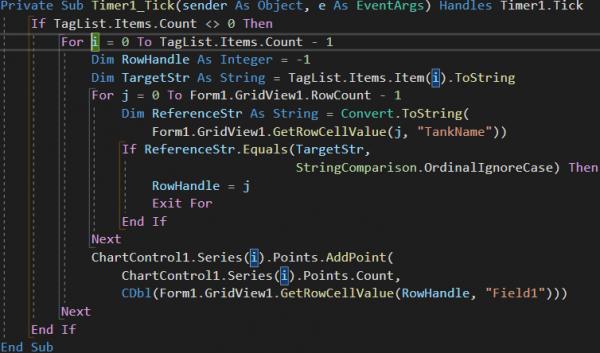

I found a way, but it is a non efficient way. All other better approaches are appreciated and welcome here. It's kind of like I'm thinking loudly here :-)

Attachment 192346
