Hardware Random Number Generator - ubld.it TrueRNG v3

Several weeks ago I purchased a Hardware Random Number Generator from ubld.it. Since then I have been working on a class that implements the device. This class should work on any serial port device that sends a steady stream of random numbers. To get the device to work I had to install this driver, http://ubld.it/wp-content/uploads/20...ws-Driver1.zip

If you don't have a device you can still use the random methods by instantiating the class with a buffer of random bytes.

Code:

---

            Private WithEvents TRNG As RandomTrueRNG

            Dim PRNG As New Random
            Dim byts((1024 * 1024 * 20) - 1) As Byte
            PRNG.NextBytes(byts)
            TRNG = New RandomTrueRNG(byts)

---

Before I had the device I used this to begin development. I modeled the Random methods on System.Random and added several of my own, like Next.Date.

Here is the class in a text file, as a link to my Google Drive. The class.

Let me know if you have a problem with it.

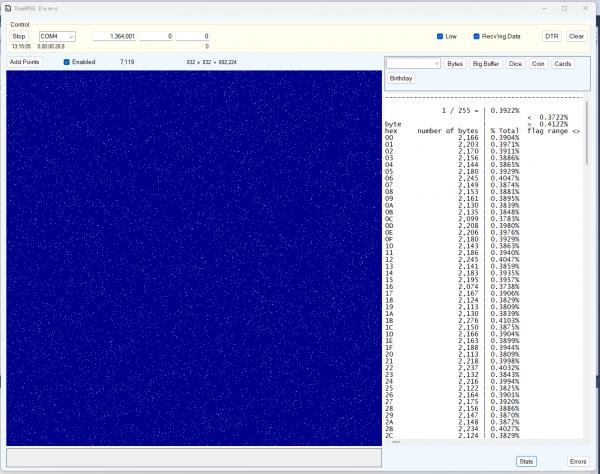

I have a demo app that I will post later. This is what it looks like.

Attachment 189709

Enjoy.

At 50KB/s input this would be dog slow for real-time operations.

The idea is that you can to use such h/w device RNG just to seed a PRF. For instance a 128-bit seed/key of SHA-3 based SHAKE or BLAKE3 or anything else can produce GBs of random data instantly.

cheers,
</wqw>

Quote:

---

Originally Posted by wqweto

At 50KB/s input this would be dog slow for real-time operations.

The idea is that you can to use such h/w device RNG just to seed a PRF. For instance a 128-bit seed/key of SHA-3 based SHAKE or BLAKE3 or anything else can produce GBs of random data instantly.

cheers,
</wqw>

---

Yes, not fast. 12K integers per second is slow compared to software.

The class could be used to do exactly what you said.

Quote:

---

Originally Posted by wqweto

At 50KB/s input this would be dog slow for real-time operations.

The idea is that you can to use such h/w device RNG just to seed a PRF. For instance a 128-bit seed/key of SHA-3 based SHAKE or BLAKE3 or anything else can produce GBs of random data instantly.

cheers,
</wqw>

---

I am thinking about including pseudo Random Number Generators(PRNG) in the class and seeding them from the TRNG to help with performance.

I have found these two but don't know if they are correct or any good. Any help is appreciated.

This is supposed to be XorPlus128...

Code:

---

    Public Class Xoroshiro128Plus
        Private _lock As New Threading.AutoResetEvent(True)
        Private State(1) As UInt64
        Const HObit As UInt64 = 1UL << 63

        Protected Friend Sub New(seed As UInt64)
            Me.DoSeed(seed)
        End Sub

        Protected Friend Sub DoSeed(seed As UInt64)
            Me._lock.WaitOne()
            State(0) = seed
            State(1) = AddTwoULongs(seed, &H9E3779B97F4A7C15UL)
            Me._lock.Set()
        End Sub

        Private Shared Function AddTwoULongs(U1 As UInt64, U2 As UInt64) As UInt64
            Dim rv As ULong = 0UL
            Try
                rv = U1 + U2
            Catch ex As OverflowException
                Dim U1L As Long = 0UL
                Dim U2L As Long = 0UL
                If (U1 And HObit) = HObit Then
                    U1L = CLng(U1 Xor HObit) And Long.MaxValue
                Else
                    U1L = CLng(U1) And Long.MaxValue
                End If
                If (U2 And HObit) = HObit Then
                    U2L = CLng(U2 Xor HObit) And Long.MaxValue
                Else
                    U2L = CLng(U2) And Long.MaxValue
                End If
                rv = CULng(U1L) + CULng(U2L)
                If (U1 And HObit) = HObit Then
                    rv = rv Or HObit
                End If
                If (U2 And HObit) = HObit Then
                    rv = rv And HObit
                End If
            End Try
            Return rv
        End Function

        Public Function NextUInt64() As ULong
            Me._lock.WaitOne()
            Dim s0 As ULong = State(0)
            Dim s1 As ULong = State(1)
            NextUInt64 = AddTwoULongs(s0, s1)
            s1 = s1 Xor s0
            State(0) = ((s0 << 24) Or (s0 >> 40))
            State(0) = State(0) Xor s1 Xor (s1 << 16)
            State(1) = ((s1 << 37) Or (s1 >> 27))
            Me._lock.Set()
        End Function

        Public Function NextInt64() As Int64
            Dim rv As Int64
            Dim U1 As UInt64 = Me.NextUInt64
            If (U1 And HObit) = HObit Then
                rv = CLng(U1 Xor HObit) And Long.MaxValue
            Else
                rv = CLng(U1) And Long.MaxValue
            End If
            Return rv
        End Function

        Public Function NextInt32() As Int32
            Dim rv As Int32
            Dim U1 As Int64 = Me.NextInt64
            rv = CInt(U1 And Int32.MaxValue)
            Return rv
        End Function

        Public Function NextInt32(minValue As Int32,
                                  maxValue As Int32) As Int32
            Dim rv As Int32 = 0
            If minValue >= maxValue Then
                Throw New ArgumentOutOfRangeException("Min >= Max")
            End If
            Dim range As Integer = (maxValue - minValue)
            Dim smpl As Double = Me.IntSample()
            Dim s1 As Double = smpl
            s1 = s1 * range
            rv = CInt(Math.Truncate(s1)) + minValue
            If rv < minValue OrElse rv >= maxValue Then
                Stop
            End If
            Return rv
        End Function

        Public Function NextDouble() As Double
            Const UINT64_TO_DOUBLE_MULTIPLIER As Double = 1.0# / ULong.MaxValue '  1.8446744073709552E+19 ' 2^64

            Return NextUInt64() * UINT64_TO_DOUBLE_MULTIPLIER
        End Function

        Private Function IntSample() As Double
            Const DIV As UInteger = CUInt(Integer.MaxValue) + 1
            Const MBIG As Double = 1.0# / DIV
            Dim rv As Double = 0.0#
            Dim I1 As Integer = Me.NextInt32
            rv = I1 * MBIG
            Return rv
        End Function

    End Class

---

This is a Mersenne Twister...maybe???

Code:

---

    ''' <summary>
    ''' from https://www.panopticoncentral.net/2006/09/22/pseudo-random-numbers-vb-and-doing-the-mersenne-twist/
    ''' </summary>
    ''' <remarks></remarks>
    Public Class MersenneTwister
        Private Const N As Integer = 624
        Private Const M As Integer = 397
        Private Const MATRIX_A As UInteger = &H9908B0DFUI
        Private Const UPPER_MASK As UInteger = &H80000000UI
        Private Const LOWER_MASK As UInteger = &H7FFFFFFFUI

        Private mt(N - 1) As UInteger
        Private mti As Integer = N + 1

        Protected Friend Sub New(seed As UInteger)
            Me.mt(0) = seed
            For Me.mti = 1 To N - 1
                Me.mt(Me.mti) = CUInt((1812433253UL * (Me.mt(Me.mti - 1) Xor (Me.mt(Me.mti - 1) >> 30)) + CUInt(Me.mti)) And &HFFFFFFFFUL)
            Next
        End Sub

        Public Function GenerateUInt32() As UInteger
            Dim y As UInteger
            Static mag01() As UInteger = {&H0UI, MATRIX_A}

            If Me.mti >= N Then
                Dim kk As Integer

                For kk = 0 To N - M - 1
                    y = (Me.mt(kk) And UPPER_MASK) Or (Me.mt(kk + 1) And LOWER_MASK)
                    Me.mt(kk) = Me.mt(kk + M) Xor (y >> 1) Xor mag01(CInt(y And &H1))
                Next

                For kk = kk To N - 2
                    y = (Me.mt(kk) And UPPER_MASK) Or (Me.mt(kk + 1) And LOWER_MASK)
                    Me.mt(kk) = Me.mt(kk + (M - N)) Xor (y >> 1) Xor mag01(CInt(y And &H1))
                Next

                y = (Me.mt(N - 1) And UPPER_MASK) Or (Me.mt(0) And LOWER_MASK)
                Me.mt(N - 1) = Me.mt(M - 1) Xor (y >> 1) Xor mag01(CInt(y And &H1))

                Me.mti = 0
            End If

            y = Me.mt(mti)
            Me.mti += 1

            ' Tempering
            y = y Xor (y >> 11)
            y = y Xor ((y << 7) And &H9D2C5680UI)
            y = y Xor ((y << 15) And &HEFC60000UI)
            y = y Xor (y >> 18)

            Return y
        End Function

        Public Function GenerateInt32() As Integer
            Return CInt(Me.GenerateUInt32() >> 1)
        End Function

        Public Function GenerateInt32(maxValue As Integer) As Integer
            Return Me.GenerateInt32(0, maxValue)
        End Function

        Public Function GenerateInt32(minValue As Integer, maxValue As Integer) As Integer
            Return CInt(Math.Floor((maxValue - minValue + 1) * Me.GenerateDouble() + minValue))
        End Function

        Public Function GenerateDouble() As Double
            Return Me.GenerateUInt32() * (1.0# / UInt32.MaxValue)
        End Function
    End Class

---

Thank you for sharing your work. It has saved me a lot of preparatory work that I can now use for the topic itself. I've been working for over a decade on random generators and more natural ways to make the distribution visible and understandable. The topic of security does not interest me in this context. It's more a general, perhaps philosophical interest in randomness and the fact that it's almost impossible to replicate "natural" randomness on computers with highly accurate clocks. I think mathematical algorithms are totally the wrong approach. The best idea in this context is natural noise and electronic solutions that mostly come from analog electronics. It's not for nothing that Random.Org earns good money with this solution. A few years ago you could generate unlimited numbers there as a private user and I wrote applications that used this.

BTW: The speed is ok and sufficient for me and my applications.

Actually, I only registered here to thank you. So thanks again.

Thanks for the kind words.

Well, that was a random post.

Quote:

---

Originally Posted by Shaggy Hiker

Well, that was a random post.

---

Yes it was. Better than if it had gone the other way.:check:
