[RESOLVED] Find proximity of controls to selected control
I've created a map where I can create/place/drag rooms around to link them up. This is the basis for an adventure story creator.

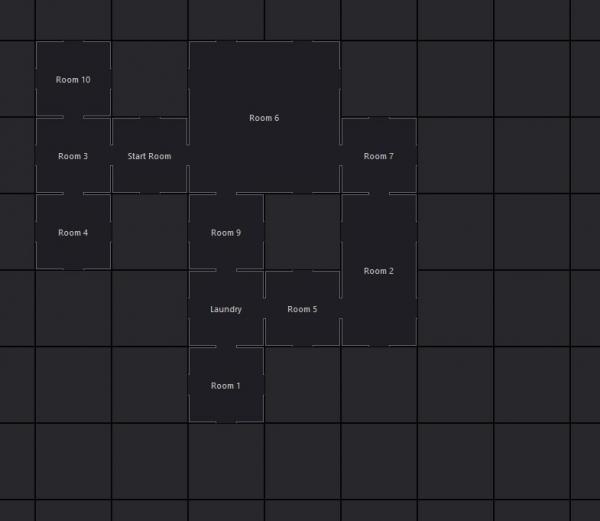

Attachment 189295
I'm trying to write the code to check and determine whether two controls (rooms) are linked (next to each other). While this is simple when all the rooms are the same size, it quickly becomes convoluted when they are different sizes/shapes.
Code:
Private Sub Room_MouseMove(ByVal sender As System.Object, ByVal e As System.EventArgs)
FormEditor.LabelPortals.Text = sender.name & " - Right click to edit. Links to"
' detect portals
For Each ctrl In Me.Controls.Cast(Of Control)().ToArray()
If ctrl.Tag = "room" And Not ctrl Is sender Then
' small rooms
' north
If ctrl.Top + GridSize = sender.top And ctrl.Left = sender.left Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
' south
If ctrl.Top = sender.top + GridSize And ctrl.Left = sender.left Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
' west
If ctrl.Left = sender.left - GridSize And ctrl.Top = sender.top Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
' east
If ctrl.Left = sender.left + GridSize And ctrl.Top = sender.top Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
' large rooms
' north
If ctrl.Width = GridSize * 2 And ctrl.Height = GridSize * 2 And _
ctrl.Top = sender.Top - GridSize * 2 And ctrl.Left = sender.left Or ctrl.Left = sender.left - GridSize Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
End If
Next
End Sub
I'm sure there is a better way to do this, but I'm not sure what it would be or what to search for. Any help is appreciated.
Re: Find proximity of controls to selected control
I would suggest you create a class to hold the information for each room. This class could be put into the .Tag property of the control, or it could contain the control as a member. If all the rooms will be square, then you could have a List(of yourClass) for North, South, East, and West. Then, figuring out what bounded what would be a matter of checking the list for any particular class.
Re: Find proximity of controls to selected control
Right now, the .Tag property holds something else as shown in the code and all the rooms are not square as shown in the pic. Some are wide, some tall, some large, some small. The small, square rooms are simple and that works fine in the code above. It's the different shaped and sized rooms that become difficult.
Re: Find proximity of controls to selected control
The only thing I've been able to think of is to move each control (room) 1 pixel in all 4 directions and check its bounds against the selected room bounds.
Code:
For Each ctrl In Me.Controls.Cast(Of Control)().ToArray()
If ctrl.Tag = "room" And Not ctrl Is sender Then
' north
ctrl.Top += 1
If ctrl.Bounds.IntersectsWith(sender.bounds) Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
ctrl.Top -= 1
' south
ctrl.Top -= 1
If ctrl.Bounds.IntersectsWith(sender.bounds) Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
ctrl.Top += 1
' west
ctrl.Left += 1
If ctrl.Bounds.IntersectsWith(sender.bounds) Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
ctrl.Left -= 1
' east
ctrl.Left -= 1
If ctrl.Bounds.IntersectsWith(sender.bounds) Then
FormEditor.LabelPortals.Text &= " - " & ctrl.Name
End If
ctrl.Left += 1
End If
Next
This gives me a readout of all rooms linked to the selected room and works, though it seems there is probably a better way to do it. Any thoughts are appreciated.
Re: Find proximity of controls to selected control
The .Tag can hold anything. You have it holding some trivial string. That string could just as easily be the class I was talking about. For the check you are showing, you'd just be checking Is YourClass rather than = SomeString.
I also didn't mean to leave square in there. It doesn't matter whether or not it's technically square, that's why I was saying that there should be a list for each side such that there can be multiple items adjacent to any side. The key point is that the room is at least a convex shape, and if that is some form of rectangle, as shown, that's even easier. Room 6 has one room to the south (room 9), one room to the east (room 7) and one room to the west (room 0). However, room 6 could have two rooms to the north, though you currently have none.
Furthermore, if you're image is anything like what you are actually doing, you could say that room 9 is in south slot 0 for room 6, while nothing is in south slot 1 for room 6. Each room would have a predictable number of slots based on it's size.
Re: Find proximity of controls to selected control
Sorry I'm not that advanced and have no formal training. I just do this for fun in my retirement. I have no idea how what you said would tell me which rooms border any selected room.
But thanks for responding.
Re: Find proximity of controls to selected control
Quote:
Originally Posted by
VisualBrian
Sorry I'm not that advanced and have no formal training. I just do this for fun in my retirement. I have no idea how what you said would tell me which rooms border any selected room.
But thanks for responding.
In Shaggy’s answer, west would be to the left of, east, to the right of, north would be above and south below
Imagine your smallest box being 30*30 pixels, the next size being 30*60 or 60*30, you can see how 1 unit could be 30*30
Re: Find proximity of controls to selected control
Quote:
Originally Posted by
.paul.
In Shaggy’s answer, west would be to the left of, east, to the right of, north would be above and south below
Imagine your smallest box being 30*30 pixels, the next size being 30*60 or 60*30, you can see how 1 unit could be 30*30
Yes, thank you. I have all that and all the info about each room is already recorded to file as it's changed, on the fly: name, tag, width, height, left, top, text, image, etc.
I'm only working on a quick way to grab the names of any rooms which borders the room I click on so those room names can be added to a list. When the map is built, the links to those rooms are automatically inserted in the story text of the room to allow the player to proceed to another available room. The code above works well, but I'll know better when there are more rooms. I'm just thinking that there is a better way to accomplish it.
Re: Find proximity of controls to selected control
I did something like this a while back, but I had both rectangular and triangular shapes. Figuring out the boundaries in an efficient manner was a challenge. It was far enough back that I don't remember it all, though, so that doesn't help much. The key to remember is that memory is cheap. Keeping lists of what bounds what, which room is accessible from the others, or any other arrangement that makes sense is fine, even if it means multiple options.
One other suggestion is that, since everything is a rectangle, you don't need to change the size of any control. Instead, every control has a bounds, which is a rectangle. Suppose you have a room that has the left,top of (120,150). To figure out what is to the east of that, you could take a point that is (left - 15, top + 15) That would be a point that is to the left of the room. The Rectangle structure has a method that returns true if a point is within it. So, you could check whether any controls contain that point, if so, then they bound the room in question on that side. For a room that was 30 wide and 60 high, the points would be (left-15,top+15) and (left-15, top+45) for rooms on the left, (left+15,top-15) for rooms above, (left+15, top+height+15) for rooms below, and (left+width+15,top+15) and (left+weidth+15,top+45) for rooms on the right. Given any room and any size, so long as all sides are multiples of 30, the points that need to be checked can be calculated pretty easily from the control in question.
Re: Find proximity of controls to selected control
Quote:
The Rectangle structure has a method that returns true if a point is within it.
@Shaggy Hiker
That sounds promising and thanks for explaining it so well. As the map becomes more populated it will be interesting to see which method is most efficient.
Re: Find proximity of controls to selected control
The rectangle methods are VERY efficient, so any time you can make use of them, do so. Anything that could move or change the size of a control could easily end up having a costly side effect simply because it will force the control to paint itself.
Re: Find proximity of controls to selected control
Quote:
Originally Posted by
Shaggy Hiker
The rectangle methods are VERY efficient, so any time you can make use of them, do so. Anything that could move or change the size of a control could easily end up having a costly side effect simply because it will force the control to paint itself.
Makes a lot of sense. Thanks.
