Re: ImageList Locking Screen
If you are recursively searching through a folder tree and then passing the entire contents to an imagelist then perhaps the system is trying to do what you want and you just have to wait?
1 Attachment(s)
Re: ImageList Locking Screen
Quote:
Originally Posted by
yereverluvinuncleber
If you are recursively searching through a folder tree and then passing the entire contents to an imagelist then perhaps the system is trying to do what you want and you just have to wait?

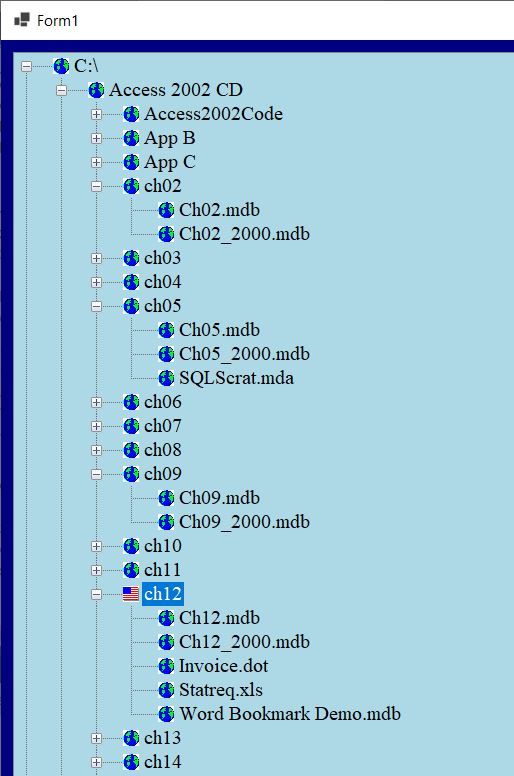

That is the first thing that I thought of, after waiting, waiting, and waiting, no results. Strangely enough, I have been clicking on the '+' Icon to Expand which doesn't work. If I dbl-click on either the Node Icon or the Underlined Node Text, all works as it should (indicated below). Very weird behavior, have you seen anything like this, namely: the "+" and "-" Expand/Collapse Icons only work when there is no associate ImageList Control?
Attachment 188509
Re: ImageList Locking Screen
Does it really lock, or somewhat lock? If ANY controls respond at all, then the screen isn't really locked. Real locking up happens for one of three reasons. The first is that you are doing something so long running that the application doesn't have time to respond to any of your actions. Waiting would solve that, but you said that you did wait, and perhaps long enough. One other reason would be a perpetual loop. That's really a subset of the first issue, because the program is too busy to respond to input, but only because it is looping forever. Waiting won't resolve that, because it will keep on looping until the heat death of the universe. The third option would be a deadlock on something.
If the screen is really locking (no controls are responding), then the first thing to do is to figure out which of those three scenarios applies. To do that, hit the break button. That will take you to some line of code. If you then press F11, either the code will step forwards or it will not. If execution does not step forwards after pressing F11, then you are deadlocked on the line where execution is currently at. That line would then be the key. If execution does step forwards, then one of the first two apply. By hitting F11 repeatedly, you will either find out that you have a perpetual loop (you will return forever to whence you came), or you will realize that something is taking FAR longer than you thought it would.
Re: ImageList Locking Screen
Quote:
Originally Posted by
Shaggy Hiker
Does it really lock, or somewhat lock? If ANY controls respond at all, then the screen isn't really locked. Real locking up happens for one of three reasons. The first is that you are doing something so long running that the application doesn't have time to respond to any of your actions. Waiting would solve that, but you said that you did wait, and perhaps long enough. One other reason would be a perpetual loop. That's really a subset of the first issue, because the program is too busy to respond to input, but only because it is looping forever. Waiting won't resolve that, because it will keep on looping until the heat death of the universe. The third option would be a deadlock on something.
If the screen is really locking (no controls are responding), then the first thing to do is to figure out which of those three scenarios applies. To do that, hit the break button. That will take you to some line of code. If you then press F11, either the code will step forwards or it will not. If execution does not step forwards after pressing F11, then you are deadlocked on the line where execution is currently at. That line would then be the key. If execution does step forwards, then one of the first two apply. By hitting F11 repeatedly, you will either find out that you have a perpetual loop (you will return forever to whence you came), or you will realize that something is taking FAR longer than you thought it would.
Quote:
Does it really lock, or somewhat lock?

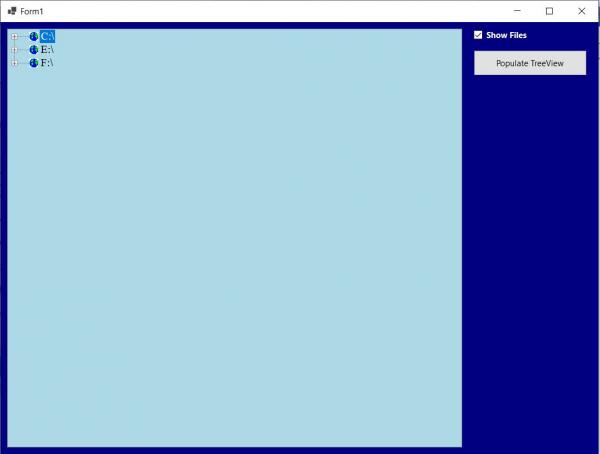

Not really sure (LOL). None of the Command Buttons on the Form will work, the Expand (+) icons will not work, but I can dbl-click individual Node Text or Node Icons to Expand/Contract the Node(s). I can also Stop the Program, going into Design Mode, by clicking the red square on the Menu Bar. I've worked with TreeViews before but never encountered this problem. For now I am simply eliminating the ImageList which really isn't critical to the operation.
Re: ImageList Locking Screen
Well, if you can stop it with the red square, then you can pause it with the break button. If so, then the stepping would still show whether you were deadlocked or not.
Re: ImageList Locking Screen
I'd like to see what FillDirectoryTree looks like ... the key may be in there, since that's where it should be when it locks up... also, I wonder if maybe virtual mode would be advisable, and only load child nodes when the parent is expanded. On the other hand, it doesn't look like you're loading much into it.... so .....
-tg
Re: ImageList Locking Screen
Quote:
Originally Posted by
techgnome
I'd like to see what FillDirectoryTree looks like ... the key may be in there, since that's where it should be when it locks up... also, I wonder if maybe virtual mode would be advisable, and only load child nodes when the parent is expanded. On the other hand, it doesn't look like you're loading much into it.... so .....
-tg
A couple of points worth mentioning/re-mentioning;
1) The Code works flawlessly as long as a Reference to an ImageList does not exist which would be referenced prior to calling FillDirectoryTree().
2) Traditional Recursion is not used, you would expect it to exist in GetSubDirectoryNodes(). Each successively deeper level of the Tree is determined prior to the Parent Node being expanded via the TreeView's BeforeExpand() Event which is depicted below. I suspect the the problem lies there but I am too inexperienced in VB.NET to make that call.
3) I have reduced the Code to it's simplest state and posted the relevant segments below. The Base Code was taken from 'Programming .NET Windows Applications' by Jesse Liberty & Dan Hurwitz.
4) Thanks again for all your help in this matter.
Code:
Private Sub FillDirectoryTree() ‘Called after initializing the TreeView
tvw.BeginUpdate() ‘Suppress Redraw until TreeView completion
tvw.Nodes.Clear() ‘Clear all Nodes
'Get the logical drives and put them into the root nodes. Fill an Array with all
‘Logical Drives on the machine
Dim strDrives() As String = Environment.GetLogicalDrives()
‘Iterate through the drives, adding them to the tree.
Dim rootDirectoryName As String
For each rootDirectoryName in strDrives
Try
Directory.GetDirectories(rootDirectoryName) ‘1st Level Directories
'Create a node for each root directory
Dim ndRoot As TreeNode = new TreeNode(rootDirectoryName)
tvw.Nodes.Add(ndRoot) ‘Add Node to Tree (C:\, D:\, E:\, F:\)
‘Add subdirectory nodes. If Show Files checkbox checked, then also get
‘the FileNames
GetSubDirectoryNodes(ndRoot, cb.Checked) ‘cb – CheckBox on Form
Catch e As System.IO.IOException ‘Drive not ready
‘Ignore
Catch e As Exception
'Catch any other errors.
MessageBox.Show(e.Message)
End Try
Next
tvw.EndUpdate()
End Sub
Code:
Private Sub GetSubDirectoryNodes(parentNode as TreeNode, getFileNames as Boolean)
'Exit this method if the node is not a directory.
Dim di As DirectoryInfo = new DirectoryInfo(parentNode.FullPath)
If (di.Attributes and FileAttributes.Directory) = 0 then
Return
End If
parentNode.Nodes.Clear()
'Get an Array of Strings containing all the subdirectories in Parent Node
Dim arSubs() As string = Directory.GetDirectories(parentNode.FullPath)
'Add a Child Node for each SubDirectory.
Dim subDir As string
For Each subDir In arSubs
Dim dirInfo As DirectoryInfo = new DirectoryInfo(subDir)
'Do not show hidden folders
If (dirInfo.Attributes and FileAttributes.Hidden) = 0 then
Dim subNode As TreeNode = new TreeNode(dirInfo.Name)
parentNode.Nodes.Add(subNode)
End If
Next
If getFileNames Then ‘Process FileNames?
Dim files() As string = Directory.GetFiles(parentNode.FullPath)
Dim str As string
For each str in files
Dim fi As FileInfo = New FileInfo(str)
Dim fileNode As TreeNode = New TreeNode(fi.Name)
parentNode.Nodes.Add(fileNode)
Next
End if
End sub
Code:
Private Sub tvw_BeforeExpand(ByVal sender as object, ByVal e as TreeViewCancelEventArgs)
tvw.BeginUpdate()
Dim tn As TreeNode
For Each tn In e.Node.Nodes
GetSubDirectoryNodes(tn, cb.Checked)
Next
tvw.EndUpdate()
End Sub
Re: ImageList Locking Screen
Try this ... build up the nodes first... then add it to the treeview...
Code:
Private Sub FillDirectoryTree() ‘Called after initializing the TreeView
tvw.BeginUpdate() ‘Suppress Redraw until TreeView completion
tvw.Nodes.Clear() ‘Clear all Nodes
'Get the logical drives and put them into the root nodes. Fill an Array with all
‘Logical Drives on the machine
Dim strDrives() As String = Environment.GetLogicalDrives()
‘Iterate through the drives, adding them to the tree.
Dim rootDirectoryName As String
For each rootDirectoryName in strDrives
Try
Directory.GetDirectories(rootDirectoryName) ‘1st Level Directories
'Create a node for each root directory
Dim ndRoot As TreeNode = new TreeNode(rootDirectoryName)
‘Add subdirectory nodes. If Show Files checkbox checked, then also get
‘the FileNames
GetSubDirectoryNodes(ndRoot, cb.Checked) ‘cb – CheckBox on Form
tvw.Nodes.Add(ndRoot) ‘Add Node to Tree (C:\, D:\, E:\, F:\) ''' <<---- move this to the end after adding hte child nodes to it...
Catch e As System.IO.IOException ‘Drive not ready
‘Ignore
Catch e As Exception
'Catch any other errors.
MessageBox.Show(e.Message)
End Try
Next
tvw.EndUpdate()
End Sub
To be honest, I'm surprised you're not getting NPEs...
Code:
Private Sub tvw_BeforeExpand(ByVal sender as object, ByVal e as TreeViewCancelEventArgs)
tvw.BeginUpdate()
Dim tn As TreeNode
For Each tn In e.Node.Nodes
GetSubDirectoryNodes(tn, cb.Checked)
Next
tvw.EndUpdate()
End Sub
What is "tn" in there? You never set it, but pass it to the GetSubDirectoryNodes method...
which then does this:
parentNode.Nodes.Clear()
but parentNode wasn't set... so it shouldn't work.
Does changing this
Dim tn As TreeNode
to this
Dim tn As TreeNode = DirectCast(tn, TreeNode) ' Might need to fully qualify TreeNode
Other than that, I don't see anything obvious. You've basically hit everything I could think of...
-tg
Re: ImageList Locking Screen
What do you get from stepping through it?
Re: ImageList Locking Screen
Quote:
What is "tn" in there?
tn represents each Node within the Nodes Collection of the Node that is about to be Expanded (e.Nodes.Node). tn, along with a Boolean Value indicating the Status of a Check Box, is passed as Arguments to the GetSubDirectoryNodes() procedure whereas tn is then replaced by the parentNode Arugment.
Re: ImageList Locking Screen
Quote:
What do you get from stepping through it?
Prior to FillDirectoryTree() being called, I programmatically set certain properties of the TreeView. The offending Line of Code that caused the problem is commented in the below segment.
Code:
With TreeView1
.Parent = me
.Anchor = AnchorStyles.Top Or AnchorStyles.Left Or AnchorStyles.Right or AnchorStyles.Bottom
.BackColor = Color.Moccasin
.ForeColor = Color.DarkRed
.BorderStyle = BorderStyle.Fixed3D
.FullRowSelect = False
.ShowLines = True
.ShowPlusMinus = True
.Scrollable = True
.HideSelection = False
.HotTracking = True
.ImageList = imgList ‘This Line causes the problem
.ImageIndex = 1 'The ImageIndex assignment persists
.SelectedImageIndex = 2 'The SelectedImageIndex assignment persists
.Indent = 35
.Font = new Font("Times New Roman", 20f)
End With
FillDirectoryTree()
NOTE: I am new to programming in VB.NET but experienced in VB/VBA. I am also relatively new to this Forum, so if my question is out of line, I do apologize. I will continue to play with this Code, but in the event that I cannot get it to work as it should, is it permissible in this Forum to ZIP the Project Files and upload them in the hope that the Experts such as you can have a look at the Code and hopefully resolve this issue?
Re: ImageList Locking Screen
That may work, but it also may not. Since it's a bunch of volunteers, and often very casual volunteers, they may not want to have a look at a whole project.
There are some things that might be worth trying, first. There's still a chance that this has to do with the size of things taking a VERY long time. You might be able to test that by making up a fake image list with nothing but VERY small images. Basically, if the imgList holds N images, create some little 16x16 image and populate the list with N copies of that tiny image. You could even go smaller, but it might be advisable not to, as icons might get wonky if too small.
