[RESOLVED] DGV formatting

1 Attachment(s)

I have a planner with a dgv listing a set of tasks. Everything is a task, but some tasks are designated as meetings based on a bit column named colMeeting. If this column is true, then the task is a meeting/appointment. The bottom 4 tasks meet that criteria and are displayed at the bottom of the list. There is also a query that would display only meeting tasks.

The DGV has general settings that set the forecolor for all of the displayed rows to Black.

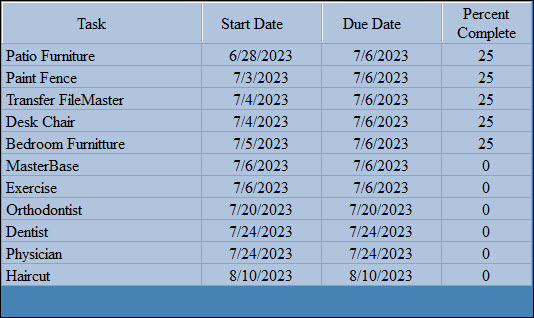

Attachment 188079

Code:

#Region "Color Settings" BackColor = Color.SteelBlue tlsList.BackColor = Color.LightSteelBlue tlsList.ForeColor = Color.Black dgvList.ColumnHeadersDefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.ColumnHeadersDefaultCellStyle.ForeColor = Color.Black dgvList.RowsDefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.BackgroundColor = Color.SteelBlue dgvList.DefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.DefaultCellStyle.ForeColor = Color.Black #End Region

What I would like to do is make the meetings/appointments display to be a different forecolor.

I have attempted a couple of ideas, and failed. I really have no idea at all how one could approach this or even if it is possible.

So my question is can one have specific rows in a DGV with different format settings than other rows in a DGV and how would one go about doing that?

Re: DGV formatting

Possibly useful links, in case you have not already seen them:

https://1bestcsharp.blogspot.com/201...row-color.html

https://www.aspsnippets.com/Articles...and-VBNet.aspx

https://www.codeproject.com/Question...usdatagridview

https://stackoverflow.com/questions/...f-a-cell-value

Re: DGV formatting

Thanks.

I am currently looking at your 3rd suggestion (the title fits). Right now my head is spinning looking at the code, but I might be able to figure it out in a day or two. I will let you know how it goes, as soon as it goes.

Re: DGV formatting

I must be missing something.... A form with a DGV and a button

Code:

Public Class Form1 Private Sub Form1_Shown(sender As Object, e As EventArgs) Handles Me.Shown DataGridView1.DataSource = GetTable() End Sub Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click DataGridView1.DataSource = GetTable() For Each rw As DataGridViewRow In DataGridView1.Rows If rw.IsNewRow Then Exit Sub If DirectCast(rw.Cells(0).Value, Integer) = 100 Then If DirectCast(rw.Cells(2).Value, String) = "11" Then rw.DefaultCellStyle.ForeColor = Color.Red rw.DefaultCellStyle.BackColor = Color.LightBlue rw.Cells(1).Style.BackColor = Color.Yellow End If End If Next End Sub Private Function GetTable() As DataTable Dim table As New DataTable table.Columns.Add("Col1", GetType(Integer)) table.Columns.Add("Col2", GetType(String)) table.Columns.Add("Col3", GetType(String)) ' Add five rows with those columns filled in the DataTable. table.Rows.Add(25, "Col1 A", "10") table.Rows.Add(50, "Col1 B", "50") table.Rows.Add(10, "Col1 C", "51") table.Rows.Add(21, "Col1 D", "52") table.Rows.Add(100, "Col1 E", "11") table.Rows.Add(100, "Col1 F", "12") table.Rows.Add(100, "Col1 G", "11") table.Rows.Add(100, "Col1 H", "12") Return table End Function End Class

Re: DGV formatting

Quote:

I must be missing someing...

I don't believe you are. I do have a button that is used to select which sort query I want to run. Additionally, one of the "DueDate" query is automatically ran when the form is opened.

I have been displaying my DGV formats as a single block of code (see below) that instead of looping, applies the formats to the entire DGV. I think that it is going to take a looping method of applying the formats row by row.

What you see below is the only way I have ever displayed a DGV and I do not believe that can be made to work with what I want to do. At any rate, I am looking at replacing what I have with a loop that will display the rows and their individual formats. That is what I am trying to figure out how to do at this moment. I think that what you are suggesting would fit a loop approach, instead of applying the formats to the entire DGV.

Am I understanding things correctly?

Code:

Private Sub SetState() #Region "Color Settings" BackColor = Color.SteelBlue tlsList.BackColor = Color.LightSteelBlue tlsList.ForeColor = Color.Black dgvList.ColumnHeadersDefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.ColumnHeadersDefaultCellStyle.ForeColor = Color.Black dgvList.RowsDefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.BackgroundColor = Color.SteelBlue dgvList.DefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.DefaultCellStyle.ForeColor = Color.Black #End Region #Region "Default settings" Text = ("Task List").ToString #End Region #Region "DGV Settings" dgvList.Enabled = True dgvList.EnableHeadersVisualStyles = False dgvList.AllowUserToAddRows = False dgvList.AllowUserToDeleteRows = False dgvList.ColumnHeadersDefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.ColumnHeadersVisible = True dgvList.RowHeadersVisible = False dgvList.Columns(0).Visible = True dgvList.Columns(0).Width = 200 dgvList.Columns(0).HeaderText = "Task" dgvList.Columns(0).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleLeft dgvList.Columns(1).Visible = False dgvList.Columns(2).Visible = True dgvList.Columns(2).Width = 120 dgvList.Columns(2).HeaderText = "Start Date" dgvList.Columns(2).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.Columns(3).Visible = True dgvList.Columns(3).Width = 120 dgvList.Columns(3).HeaderText = "Due Date" dgvList.Columns(3).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.Columns(4).Visible = False dgvList.Columns(5).Visible = True dgvList.Columns(5).Width = 90 dgvList.Columns(5).HeaderText = "Percent Complete" dgvList.Columns(5).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.Columns(6).Visible = False dgvList.Columns(7).Visible = False dgvList.CurrentCell = Nothing #End Region End Sub

Re: DGV formatting

If you try to set styles for the whole grid, the same style with be used for every cell.
You can set styles for a row, or a column, or an individual cell.
Remember to do them in that order…

The grid
A row (or column)
An individual cell

Re: DGV formatting

Quote:

If you try to set styles for the whole grid, the same style with be used for every cell.

Yep. That's why I am working on a loop version of my SetState() method. I can tell you now it ain't easy. At least for me.

So this is what I have at the moment. I have run numerous times and even though it runs through the if statement and executes it correctly (everything goes through the appropriate branch), I still get no red forecolor for those cells that met the requirements of the if statement.

I am not sure why the 4 rows that met the criteria did not display Forecolor = color.DarkRed. Still trying to figure that out.

Code:

Private Sub DisplayDGV() #Region "Color Settings" BackColor = Color.SteelBlue tlsList.BackColor = Color.LightSteelBlue tlsList.ForeColor = Color.Black dgvList.ColumnHeadersDefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.ColumnHeadersDefaultCellStyle.ForeColor = Color.Black dgvList.RowsDefaultCellStyle.BackColor = Color.LightSteelBlue dgvList.BackgroundColor = Color.SteelBlue dgvList.DefaultCellStyle.BackColor = Color.LightSteelBlue 'dgvList.DefaultCellStyle.ForeColor = Color.Black #End Region #Region "Default settings" dgvList.Enabled = True dgvList.EnableHeadersVisualStyles = False dgvList.RowHeadersVisible = False dgvList.AllowUserToAddRows = False dgvList.AllowUserToDeleteRows = False dgvList.ColumnHeadersDefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter Text = ("Task List").ToString #End Region For i = 0 To RecordCount - 1 dgvList.Columns(0).Visible = True dgvList.Columns(0).Width = 200 dgvList.Columns(0).HeaderText = "Task" dgvList.Columns(0).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleLeft If dgvList.Rows(i).Cells(7).Value = True Then dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.DarkRed Else dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.Black End If dgvList.Columns(1).Visible = False dgvList.Columns(2).Visible = True dgvList.Columns(2).Width = 120 dgvList.Columns(2).HeaderText = "Start Date" dgvList.Columns(2).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.Columns(3).Visible = True dgvList.Columns(3).Width = 120 dgvList.Columns(3).HeaderText = "Due Date" dgvList.Columns(3).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.Columns(4).Visible = False dgvList.Columns(5).Width = 90 dgvList.Columns(5).HeaderText = "Percent Complete" dgvList.Columns(5).DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter dgvList.Columns(6).Visible = False dgvList.Columns(7).Visible = False Next dgvList.CurrentCell = Nothing End Sub

Re: DGV formatting

For individual rows or cells, instead of...

Code:

dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.DarkRed

Try using...

Code:

dgvList.Rows(i).Style.ForeColor = Color.DarkRed

Re: DGV formatting

Correct... in fact, you shouldn't be setting ANY of the Default style settings ... but rather that row's Style... Including the Alignment.

-tg

Re: DGV formatting

Code:

Instead of...

I tried that and it errored. It will not accept, .Style. Is there, perhaps some tool that I need to load to make that work? I can understand that one would want to not use the defaults.

Re: DGV formatting

Here’s the MSDN documentation

https://learn.microsoft.com/en-us/do...orkdesktop-4.8

Re: DGV formatting

Quote:

Here’s the MSDN documentation

I read the document and much of it was over my head. However, what I understood lead me to what you see below. Maybe I understood it, maybe not.

Anyway, there is no response in the DGV when this code is executed.

Code:

If dgvList.Rows(i).Cells(7).Value = True Then dgvList.Rows(i).Cells(1).Style.ForeColor = Color.DarkRed Else dgvList.Rows(i).Cells(1).Style.ForeColor = Color.Black End If

I really thought I had it that time.

Re: DGV formatting

Code:

If CBool(dgvList.Rows(i).Cells(7).Value) = True Then

Re: DGV formatting

More links to check out"

https://www.vbforums.com/showthread....n-datagridview

https://social.msdn.microsoft.com/Fo...msdatacontrols

https://bytes.com/topic/visual-basic...or-single-cell

Re: DGV formatting

I followed up on the suggested reading list and there was one, from 2012 that resolved the exact same issue. Having said that, I had know idea what the code did, where it would go, or when one would call it.

The other thing I got out of it was that what I am experiencing, although not common, has been experienced by some number of others. It also appears to me that there is likely to be nothing wrong with my code, which would indicate to me that there might be something in the project, or some settings or property that could be causing this.

Assuming that my code is correct, never a good assumption since my eyes are so bad I can never be sure what I am actually reading (the eyes will soon be fixed, yea!), what other things might I look at that might cause this?

Re: DGV formatting

I have finally made this work. I changed nothing, except changed the forecolor for a row, instead of a cell, as you can see below. The REM'd lines were some of the other attempts I made that did not work.

I have no explanation as to why this is works and the others do not, but the fact is that I would rather have the whole row instead of just the cell anyway. Win/win.

Code:

If CBool(dgvList.Rows(i).Cells(7).Value) = True Then 'dgvList.Rows(i).Cells(1).Style.ForeColor = Color.DarkRed dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.DarkRed 'dgvList(1, i).Style.ForeColor = Color.DarkRed Else 'dgvList(1, i).Style.ForeColor = Color.Black dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.Black 'dgvList.Rows(i).Cells(1).Style.ForeColor = Color.Black End If

Re: [RESOLVED] DGV formatting

It's probably just the order of operations you're using there...

Code:

If CBool(dgvList.Rows(i).Cells(7).Value) = True Then 'dgvList.Rows(i).Cells(1).Style.ForeColor = Color.DarkRed dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.DarkRed 'dgvList(1, i).Style.ForeColor = Color.DarkRed Else 'dgvList(1, i).Style.ForeColor = Color.Black dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.Black 'dgvList.Rows(i).Cells(1).Style.ForeColor = Color.Black End If

Try this...

Code:

If CBool(dgvList.Rows(i).Cells(7).Value) = True Then dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.Black dgvList.Rows(i).Cells(1).Style.ForeColor = Color.DarkRed Else dgvList.Rows(i).DefaultCellStyle.ForeColor = Color.Black End If
