TableLayoutPanel and Drag and Drop

Attachment 187885

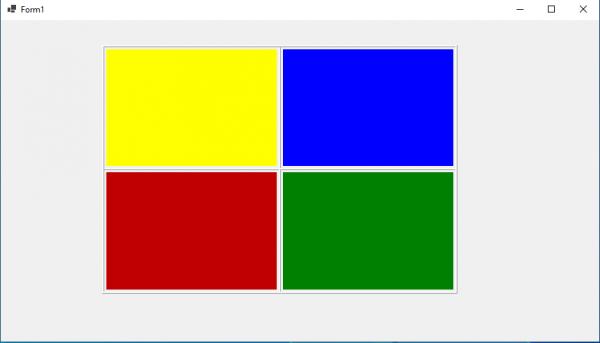

I have thi TableLayoutPanel and 4 colored picturebox. In runtime user can drag each picturebox and drop on a cell of the tablelayoutpanel, so once dropped the picturebox should be docked to the cell. Something like second picture:
Attachment 187886
I tryed this library https://www.codeproject.com/Tips/178...rms-Controls-2 to make controls draggable, but I can't really drop them with it.
Any advice?

I've only had a quick look and not done any testing but i would think that you'd want to handle the MouseUp event of the control(s) and check whether the mouse cursor position is within a cell of the TLP and, if it is, add it to that cell. It's up to you to decide what to do if the cell is already occupied. You might want to return the control to its original position or you might want to drop it in the next empty cell or something else.

Here is a quick and dirty example of dragging and dropping panels into a TableLayoutPanel:

Code:

---

Public Class Form1

    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        Dim tlpContainer = New TableLayoutPanel() With {
            .AllowDrop = True,
            .BorderStyle = BorderStyle.FixedSingle,
            .CellBorderStyle = TableLayoutPanelCellBorderStyle.Inset,
            .ColumnCount = 2,
            .Location = New Point(5, 5),
            .RowCount = 2,
            .Size = New Size(300, 300)
        }
        tlpContainer.ColumnStyles.Add(New ColumnStyle(SizeType.Percent, 50))
        tlpContainer.ColumnStyles.Add(New ColumnStyle(SizeType.Percent, 50))
        tlpContainer.RowStyles.Add(New RowStyle(SizeType.Percent, 50))
        tlpContainer.RowStyles.Add(New RowStyle(SizeType.Percent, 50))
        AddHandler tlpContainer.DragEnter, AddressOf TableLayoutPanel_DragEnter
        AddHandler tlpContainer.DragDrop, AddressOf TableLayoutPanel_DragDrop

        Controls.Add(tlpContainer)

        Dim colors = {Color.Yellow, Color.Blue, Color.Red, Color.Green}
        For index = 0 To colors.Length - 1
            Dim panel = New Panel() With {
                .BackColor = colors(index),
                .Location = New Point(tlpContainer.Right + 15, tlpContainer.Top + (index * 55)),
                .Size = New Size(50, 50)
            }
            AddHandler panel.MouseDown, AddressOf Panel_MouseDown

            Controls.Add(panel)
        Next
    End Sub

    Private Sub Panel_MouseDown(sender As Object, e As MouseEventArgs)
        If (e.Button = MouseButtons.Left) Then
            Dim panel = DirectCast(sender, Panel)
            panel.DoDragDrop(panel, DragDropEffects.Move)
        End If
    End Sub

    Private Sub TableLayoutPanel_DragEnter(sender As Object, e As DragEventArgs)
        If (e.Data.GetDataPresent(GetType(Panel))) Then
            e.Effect = DragDropEffects.Move
        Else
            e.Effect = DragDropEffects.None
        End If
    End Sub

    Private Sub TableLayoutPanel_DragDrop(sender As Object, e As DragEventArgs)
        If (e.Data.GetDataPresent(GetType(Panel))) Then
            Dim panel = DirectCast(e.Data.GetData(GetType(Panel)), Panel)
            Dim tlpContainer = DirectCast(sender, TableLayoutPanel)
            panel.Dock = DockStyle.Fill
            tlpContainer.Controls.Add(panel)
        End If
    End Sub

End Class

---

But I don't think this is exactly what you want in that it is not specifying which cell to drop the control in.
