H2: Zoom in/out of center of viewport of image control?
Hi all,
I have a form that pops up and displays pictures. I've some code that enables zooming in/out of the image. Code works fine:
Code:
Sub ImageCenter3()
img.Left = (Me.ScaleWidth - img.Width) / 2
img.Top = (Me.ScaleHeight - img.Height) / 2
End Sub
Private Sub Form_KeyUp(KeyCode As Integer, Shift As Integer)
Dim x As Double
'me.KeyPreview = True' needs to be on for this event to fire on all presses.
x = 300 'zoom increment
If KeyCode = 107 Or KeyCode = 187 Then ' 43 "+" keys -> Zoom in
img.Stretch = True
img.Width = img.Width + x
img.Height = img.Height + x
Call ImageCenter3
ElseIf KeyCode = 109 Or KeyCode = 189 Then ' 45 "-" keys -> Zoom out
img.Stretch = True
img.Width = img.Width - x
img.Height = img.Height - x
Call ImageCenter3
ElseIf KeyCode = 48 Or KeyCode = 96 Then ' "0" key -> Fit to window
Call Form_Resize
ElseIf KeyCode = 49 Or KeyCode = 97 Then ' "1" key -> set to 100%
img.Stretch = False
Call ImageCenter3
ElseIf KeyCode > 49 And KeyCode < 59 Then ' 2,3,4,5,6,7,8,9 ,factor of *100% zoom
img.Stretch = True
x = KeyCode - 48
img.Width = imgX * x
img.Height = imgY * x
Call ImageCenter3
ElseIf KeyCode > 97 And KeyCode < 106 Then ' ------- " -------
img.Stretch = True
x = KeyCode - 96
img.Width = imgX * x
img.Height = imgY * x
Call ImageCenter3
End If
End Sub
My challenge:
The code above will allways reset the position of the image and zoom in/out from the center of the image (because of the "/ 2" operation in ImageCenter3().
I also have code that enables panning the image.
Q: How can I enable zooming in/out based on the center of what is visible on the form (which might not be the center of the image, if I have panned...)?
1 Attachment(s)
Re: H2: Zoom in/out of center of viewport of image control?
Not sure, whether you already use the Cairo-VB-wrapper or not - but using it will give you:
- much better stretch-quality (compared to the VB.image-Ctl in Zoom-Mode)
- and much less "hazzle" regarding "Zoom- and Pan-math" (due to its built-in Transform-methods)
Here is a short example, which does combined Panning- and Zooming -
(the blue marked lines below are the ones, which to the "heavy lifting" regarding the math)
Code:
Option Explicit
Private CC As cCairoContext, Img As cCairoSurface
Private Zoom As Single, PanX As Single, PanY As Single
Private Sub Form_Load()
Zoom = 1 'init the Zoomfactor to 1
Set Img = Cairo.ImageList.AddIconFromResourceFile("", "shell32", 317) 'load a system-icon as the example-image
' Set Img = Cairo.ImageList.AddImage("", "c:\temp\tulips.jpg") 'or alternatively, load an img from disk
End Sub
Private Sub Form_Resize() 'ensure a Form-covering backbuffer-surface-context in CC
ScaleMode = vbPixels: Set CC = Cairo.CreateSurface(ScaleWidth, ScaleHeight).CreateContext
Redraw
End Sub
Private Sub Redraw()
CC.Paint 1, Cairo.CreateCheckerPattern 'clear the previous Background with a new Pattern
CC.Save
CC.TranslateDrawings CC.Surface.Width / 2, CC.Surface.Height / 2
CC.ScaleDrawings Zoom, Zoom
CC.TranslateDrawings PanX, PanY 'place the pan-related translation after the Scale-Transform in the line above
CC.Paint 1, Img.CreateSurfacePattern(CAIRO_FILTER_GAUSSIAN, CAIRO_EXTEND_NONE, True)
CC.Restore
Set Picture = CC.Surface.Picture 'set our back-buffer as the new Form-Picture
End Sub
Private Sub Form_MouseMove(Button As Integer, Shift As Integer, X As Single, Y As Single)
Static xPrev As Single, yPrev As Single
If Button Then PanX = PanX + (X - xPrev) / Zoom: PanY = PanY + (Y - yPrev) / Zoom: Redraw
xPrev = X: yPrev = Y
End Sub
Private Sub Form_KeyDown(KeyCode As Integer, Shift As Integer)
Select Case KeyCode
Case 49 To 57: Zoom = KeyCode - 48 'use Keys 1 to 9 to set the Zoomfactor directly
End Select
Redraw
End Sub

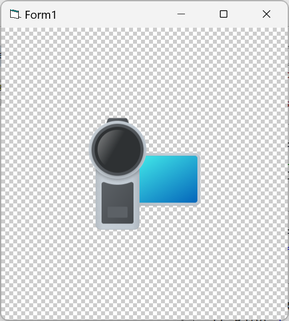

The above code will show the following (on a Win11-machine), after checking in the RC6-Project-Reference:
Attachment 187634
Olaf
Re: H2: Zoom in/out of center of viewport of image control?
Quote:
Originally Posted by
Schmidt
Not sure, whether you already use the Cairo-VB-wrapper or not...
Thanks Olaf. Now you're touching on another item I've come across many times. This also reveals how little I understand, but I'll ask anyways :- )
I found the Cairo-VB-wrapper over at "Github: VBCairo", but how do I utilize stuff I find at GitHub?
What do I download, how do I download, and so on...
Stupid questions, I know! :-)
Re: H2: Zoom in/out of center of viewport of image control?
Quote:
Originally Posted by
JohnPotier
Thanks Olaf. Now you're touching on another item I've come across many times. This also reveals how little I understand, but I'll ask anyways :- )
I found the Cairo-VB-wrapper over at "
Github: VBCairo", but how do I utilize stuff I find at GitHub?
What do I download, how do I download, and so on...
Stupid questions, I know! :-)
At a guess, these here: https://github.com/VBForumsCommunity...ree/master/bin
Re: H2: Zoom in/out of center of viewport of image control?
Quote:
Originally Posted by
JohnPotier
Thanks Olaf. Now you're touching on another item I've come across many times. This also reveals how little I understand, but I'll ask anyways :- )
I found the Cairo-VB-wrapper over at "
Github: VBCairo", but how do I utilize stuff I find at GitHub?
What do I download, how do I download, and so on...
Stupid questions, I know! :-)
That's the wrapper, based on code from "the trick" (exposing the cairo-flat-api - and unmaintained for a few years).
The bigger cairo-wrapper (based on VB-Classes) is downloadable on vbRichClient.com -
(you need to download the "RC6BaseDlls.zip", and register RC6.dll after unpacking - for my example to work)...
Olaf
