PromKappa 2.0 makes Objective Digital Stains

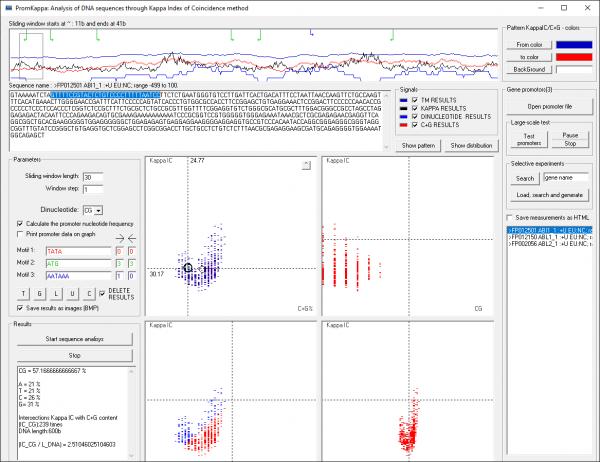

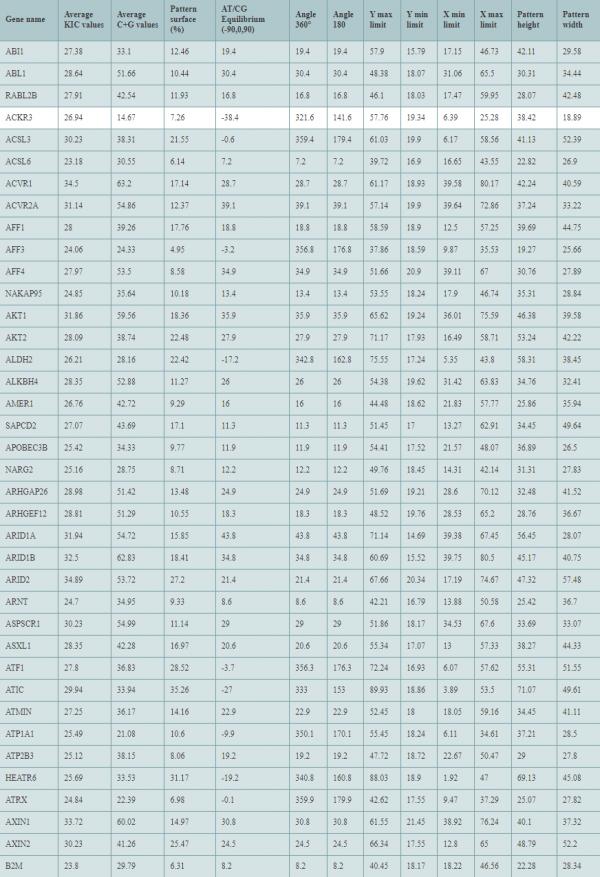

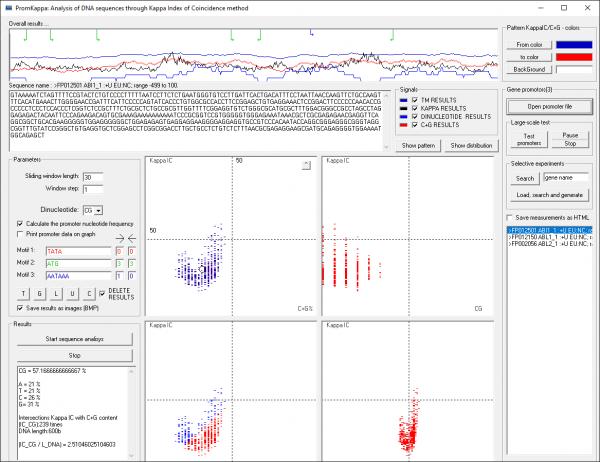

PromKappa 2.0 is a complete application made in Visual Basic 6.0 (VB6) that generates Objective Digital Stains (aka DNA patterns). The main output of the application consists of a series of images that are saved in the chart folder (or chart_comp folder), which can be later analyzed using different methods. A second output can be the results.htm file which contains a series of measurements for each ODS generated by the application. Note that if you are familiar with python, then VB6 will come natural to you. Also, note that once the application is started, the first step will be to load a FASTA file (the gene_promoters_complete.fa) using the Open promoter file button. In the PromKappa case the gene_promoters_complete.fa contains a series of gene promoters, as the analysis of gene promoters was the main aim of this application.

Download: PromKappa 2.0

Attachment 184101

Attachment 184102

Attachment 184103

Attachment 184104

The compiled version of PromKappa (PromKappa.exe) will ask for a dependency file called msvbvm60.dll and possibly other dependency files. These files are present in the bin folder. The following files are a complete set of dependencies that a regular VB6 app may require:

• msvbvm60.DLL
• VBA6.DLL
• shlwapi.dll
• MSCOMCTL.OCX
• COMDLG32.OCX

However, if you install Visual Basic 6.0 from the Visual Studio 6.0 package, then all dependency files will be present on your system by default.
