What does the With statement do internally?
Hi All,
What I know:
* Using with speeds up developement
* Using with makes code a lot easier to manage.
* Using with can make code prettier
I think "With ... End With" speeds up execution time, which is something I've seen posted before. But I've also seen in other posts that it's a pure syntactic sugar and does nothing to compiled code. I've also heard:
With speeds up execution because objects need to be "opened" before they are accessed, and "closed" afterwards to allow other processes to access them.
Looking through the COM Api's the only thing I could see which might relate to this is CoLockObjectExternal.
So my question is, for the following code:
Code:
With A.B.C
With .D
Debug.Print .E
end with
Debug.Print .F & .G
End With
What does VB6 do internally? E.G. is it like this:
Code:
set temp1 = A.B.C
set temp2 = temp1.D
Debug.Print temp2.E
Debug.print temp1.F & temp1.G
or is it more complex like:
Code:
set temp1 = A.B.C
CoLockObjectExternal temp1
set temp2 = temp1.D
CoLockObjectExternal temp2
Debug.Print temp2.E
Debug.print temp1.F & temp1.G
CoDisconnectObject temp2
CoDisconnectObject temp1
Does anyone know the answer?
Re: What does the With statement do internally?
No, CoLockObjectExternal and CoDisconnectObject are 100% not involved in With construction. Calling methods on an interface does not need wrapping the call in AddRef/Release too so nothing to skip/remove from normal code per se.
The only optimization is that With uses a hidden local variable for the expression which is used for calls inside its scope. For instance if there is a member variable m_oData in a class, using With m_oData declares and initializes a hidden local variable (on the stack) which is used instead when making calls to "instanceless" methods inside the With scope. This optimizes having to retrieve m_oData from object data (the so called Me in VB parlance) on each call.
There you have it -- a small victory. The more complex the expression is, the more CPU cycles are saved on calls inside the With scope.
cheers,
</wqw>
Re: What does the With statement do internally?
Quote:
Originally Posted by
wqweto
The only optimization is that With uses a hidden local variable for the expression which is used for calls inside its scope. For instance if there is a member variable m_oData in a class, using With m_oData declares and initializes a hidden local variable (on the stack) which is used instead when making calls to "instanceless" methods inside the With scope. This optimizes having to retrieve m_oData from object data (the so called Me in VB parlance) on each call.
Interesting so if I have you correct, if I did:
Code:
With A
.B=1
.C=2
.D=3
End With
has no performance benefits over
?
Re: What does the With statement do internally?
Quote:
Originally Posted by
sancarn
has no performance benefits over
?
If A is a member variable there *are* performance benefits. With statement is transformed to this
Code:
Dim __hidden_A As __TypeOfA
Set __hidden_A = A
__hidden_A.B = 1
__hidden_A.C = 2
__hidden_A.D = 3
Because __hidden_A is on the stack while A is actually this->A (a member variable) there are several instructions (or more) saved.
cheers,
</wqw>
Re: What does the With statement do internally?
Yeah, the big payoff is stuff like:
Code:
With DataEnvironment1.rsCommand1.Fields.Item(0)
...several statements using the item...
End With
Re: What does the With statement do internally?
Quote:
Originally Posted by
wqweto
If A is a member variable there *are* performance benefits. With statement is transformed to this
Code:
Dim __hidden_A As __TypeOfA
Set __hidden_A = A
__hidden_A.B = 1
__hidden_A.C = 2
__hidden_A.D = 3
Because __hidden_A is on the stack while A is actually this->A (a member variable) there are several instructions (or more) saved.
cheers,
</wqw>
it took me a while to understand what you meant by member lol, but i see now yes that would make a lot of sense. I more so meant in the case where A is a local variable I.E.
Code:
Sub test
Dim A as Whatever
set A = new Whatever
With A
.B = 1
.C = 2
.D=3
end with
end sub
in this instance I would expect a small performance decrease because A has to be moved from it's local variable location to the special hidden variable location. But the performance decrease will likely be negligible...
Re: What does the With statement do internally?
Quote:
Originally Posted by
sancarn
But the performance decrease will likely be negligible...
Yes and it might even be worth it if this removes visual clutter in the source code. I'm willing to use With on local UDTs as well if it reduces source code lines length and/or prevents code lines from splitting.
cheers,
</wqw>
Re: What does the With statement do internally?
I also like to use "With New" when something is just needed for a quick time and thus want to save a variable declaration. (kind of lazy style, but reduces source code length)
It's certainly also faster in theory. (IUnknown::AddRef and IUnknown::Release just called one time)
Code:
With New Whatever
[...]
End With
Re: What does the With statement do internally?
Or "With CreateObject()" for things like ADOX that I don't want to early-bind to but only need for a few operations.
Re: What does the With statement do internally?
I need to read all the responses, but I suspect the With statement does very little internally. My guess would be that it declares a temporary object variable of the Type of the With object, sets that object variable (i.e., creates a new reference), and then uses it within the "With" block. I suspect that 99% of that (if not 100%) is actually done by the compiler, and has nothing to do with anything runtime.
In fact, regarding actual code, I suspect the following two blocks of code are identical:
Code:
Dim c As Collection
Set c = New Collection
With c
.Add "asdf"
.Add "qwer"
.Add "zxcv"
End With
Code:
Dim c As Collection
Set c = New Collection
c.Add "asdf"
c.Add "qwer"
c.Add "zxcv"
In this case, the "With" block buys us very little. However, if we're digging deep into some object hierarchy (like I often am when doing Word or Excel automation), the "With" approach is quite convenient for not having to dig through that hierarchy. And, according to MS, it's faster when we've got such a hierarchy, as each piece of the hierarchy doesn't have to be resolved each time.
But, we could still accomplish the same thing by explicitly declaring an object variable that represented the end-point of our object hierarchy, and explicitly setting that reference and using it. So, in the end, the "With" block is just a nice convenience.
Best Regards,
Elroy
p.s. I look forward to anyone spotting anything wrong with what I've said.
EDIT: For grins, here's an example where it's actually useful. But again, I could have created a new object variable and set it to "doc.ActiveWindow.ActivePane.Selection" and accomplished the same thing:
Code:
Public Sub InWordTurnLineColor(doc As Object, TextColor As Long, Optional iSkipWordsAtBeg As Long)
With doc.ActiveWindow.ActivePane.Selection
.HomeKey wdLine, wdMove ' Move to beginning of line.
If iSkipWordsAtBeg Then .MoveRight wdWord, iSkipWordsAtBeg, wdMove ' Skip over notation of joint (or just tabs).
.EndKey wdLine, wdExtend ' Select text to end of line.
.Font.Color = TextColor ' Turn the selection a color.
End With
End Sub
Re: What does the With statement do internally?
Compile both ways and disassemble the binary. In some simple cases the object reference stays cached in a register. Most of the time that isn't practical though (calculations, function calls, etc.) so it doesn't happen.
Re: What does the With statement do internally?
Ahhh, I actually read all the posts, and they're interesting.
For one, I'd never considered using "With New" before. Krool, that's a neat trick, and I can see how it could come in handy on occasion.
So, just to be clear, y'all are thinking that ...
Code:
Public Sub InWordTurnLineColor(doc As Object, TextColor As Long, Optional iSkipWordsAtBeg As Long)
With doc.ActiveWindow.ActivePane.Selection
.HomeKey wdLine, wdMove ' Move to beginning of line.
If iSkipWordsAtBeg Then .MoveRight wdWord, iSkipWordsAtBeg, wdMove ' Skip over notation of joint (or just tabs).
.EndKey wdLine, wdExtend ' Select text to end of line.
.Font.Color = TextColor ' Turn the selection a color.
End With
End Sub
... is faster than ...
Code:
Public Sub InWordTurnLineColor(doc As Object, TextColor As Long, Optional iSkipWordsAtBeg As Long)
Dim DocText As Object
Set DocText = doc.ActiveWindow.ActivePane.Selection
'
DocText.HomeKey wdLine, wdMove ' Move to beginning of line.
If iSkipWordsAtBeg Then DocText.MoveRight wdWord, iSkipWordsAtBeg, wdMove ' Skip over notation of joint (or just tabs).
DocText.EndKey wdLine, wdExtend ' Select text to end of line.
DocText.Font.Color = TextColor ' Turn the selection a color.
End Sub
... ?
p.s. I know I get into some late vs early binding issues, but I suspect my example is ALL late binding, even if "With" is used.
Re: What does the With statement do internally?
I would think the late-binding costs you more than anything else.
So faster, but not by much. Even is good cases it only helps performance in code that executes a ton of times.
But it does clean up that "newb codez" look of not using it.
Re: What does the With statement do internally?
Just FYI, per MSDN
Quote:
Note: Once a With block is entered, object can't be changed. As a result, you can't use a single With statement to affect a number of different objects.
You can nest With statements by placing one With block within another. However, because members of outer With blocks are masked within the inner With blocks, you must provide a fully qualified object reference in an inner With block to any member of an object in an outer With block
In general, it's recommended that you don't jump into or out of With blocks. If statements in a With block are executed, but either the With or End With statement is not executed, a temporary variable containing a reference to the object remains in memory until you exit the procedure.
Edited. One of my biggest "abuses" of WITH is for loading properties on some controls and recordsets, especially listviews
Code:
With ListView1.ListIems.Add(, , , "Main Item Text")
.SubItems(1) = ...
.SubItems(2) = ...
... etc
End With
Re: What does the With statement do internally?
So I made a post on StackOverflow regarding what I learnt from here and ultimately got criticised from mods who, rightly, thought it was all speculation.
So I actually started to do some analysis of the P-Code generated and actual performance analysis.
Quote:
Notes
My performance tests were in VBA. VBA does have 2 compiling steps - Code to P-Code, and P-Code to Executable codes, however I'm unsure there is any optimisation step in the VBA compiler, where as the VB6 compiler might have one.
https://www.vbforums.com/images/ieimages/2020/08/1.jpg
[C]With A[/C] uses a member variable.
The real surprising thing to me here is that optimisation was only really seen with
Code:
With X.O
.A=1
.B=2
.C=3
End With
Member variables are faster to access directly, without with. Similarly local variables are faster to access directly, without with.
Set of tests used for reference:
Module1 Code:
Public A As New Class1
Sub testPerf1() 'Mac: 2.547119140625 Win: 1.7734375
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
'With A
'End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf2() 'Mac: 8.01708984375 Win: 4.48828125
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
With A
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf3() 'Mac: 16.60302734375 Win: 7.0546875
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
With A.O
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf4() 'Mac: 29.68798828125 Win: 10.61328125
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
With A.O.O
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf5() 'Mac: 21.048828125 Win: 9.21875
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
With A
.A = 1
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf6() 'Mac: 15.7978515625 Win: 6.8203125
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
A.A = 1
Next
Debug.Print Timer - t
End Sub
Sub testPerf7() 'Mac: 54.376953125 Win: 23.40625
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
With A
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf8() 'Mac: 47.9931640625 Win: 21.046875
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
A.A = 1
A.B = 2
A.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf9() 'Mac: 21.39208984375 Win: 8.8046875
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
With X
.A = 1
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf10() 'Mac: 14.951171875 Win: 6.203125
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
X.A = 1
Next
Debug.Print Timer - t
End Sub
Sub testPerf11() 'Mac: 54.1591796875 Win: 22.8828125
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
With X
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf12() 'Mac: 45.330078125 Win: 19.203125
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
X.A = 1
X.B = 2
X.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf13() 'Mac: 44.78125 Win: 19.8828125
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
With X.O
For i = 1 To 10 ^ 8
.A = 1
.B = 2
.C = 3
Next
End With
Debug.Print Timer - t
End Sub
Sub testPerf14() 'Mac: 61.703125 Win: 25.3046875
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
With X.O
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf15() 'Mac: 90.3515625 Win: 31.109375
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
X.O.A = 1
X.O.B = 2
X.O.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf16() 'Mac: 57.28125 Win: 23.05078125
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
With A
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf17() 'Mac: 49.9375 Win: 20.140625
Dim t As Long: t = Timer
For i = 1 To 10 ^ 8
A.A = 1
A.B = 2
A.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf18() 'Mac: 57.4453125 Win: 22.421875
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
With X
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf19() 'Mac: 47.28125 Win: 19.234375
Dim t As Long: t = Timer
Dim X As Class1: Set X = New Class1
For i = 1 To 10 ^ 8
X.A = 1
X.B = 2
X.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf20() 'Mac: 56.64453125 Win: 22.96875
Dim t As Long: t = Timer
Dim X As Class1: Set X = A
For i = 1 To 10 ^ 8
With X
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf21() 'Mac: 46.79296875 Win: 19.8046875
Dim t As Long: t = Timer
Dim X As Class1: Set X = A
For i = 1 To 10 ^ 8
X.A = 1
X.B = 2
X.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf22() 'Mac: 100.15625 Win: 42.296875
Dim t As Long: t = Timer
Dim X As Class1: Set X = A
For i = 1 To 10 ^ 8
With X
.A = 1
.B = 2
.C = 3
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf23() 'Mac: 90.1015625 Win: ???
Dim t As Long: t = Timer
Dim X As Class1: Set X = A
For i = 1 To 510 ^ 8
X.A = 1
X.B = 2
X.C = 3
X.A = 1
X.B = 2
X.C = 3
Next
Debug.Print Timer - t
End Sub
Sub testPerf24() 'Mac: ??? Win: ???
Dim t As Long: t = Timer
Dim X As Class1: Set X = A
For i = 1 To 10 ^ 8
With X
.A = 1
.B = 2
.C = 3
.A = 1
.B = 2
.C = 3
.A = 1
.B = 2
.C = 3
End With
Next
Debug.Print Timer - t
End Sub
Sub testPerf25() 'Mac: ??? Win: ???
Dim t As Long: t = Timer
Dim X As Class1: Set X = A
For i = 1 To 510 ^ 8
X.A = 1
X.B = 2
X.C = 3
X.A = 1
X.B = 2
X.C = 3
X.A = 1
X.B = 2
X.C = 3
Next
Debug.Print Timer - t
End Sub
Class1 Code:
Public A
Public B
Public C
Public O As Class1
Private Sub Class_Initialize()
Set O = Me
End Sub
Edit: One last thing - A really neat use of the with statement is for sentries. So if you ever have options that need to turn on and off in code this is quite useful:
Optimiser.cls Code:
Private bEnableEvents as boolean
Private bScreenUpdating as boolean
sub class_initialise()
'Apply change and save state:
bEnableEvents = Application.EnableEvents
bScreenUpdating = Application.ScreenUpdating
Application.EnableEvents = false
Application.ScreenUpdating = false
end sub
Private Sub Class_Terminate()
'Revert change
Application.EnableEvents = bEnableEvents
Application.ScreenUpdating = bScreenUpdating
Module1 Code:
With new Optimiser
'...
End With
Re: What does the With statement do internally?
Performance measurement is hard. Most of your tests have to be re-run for the VBA crowd on Windows and all of the VB6 forums members that compile to native x86 code.
Some of the conclusions will probably not hold water as a result e.g. member variables vs with.
Re: What does the With statement do internally?
Quote:
Originally Posted by
wqweto
Performance measurement is hard. Most of your tests have to be re-run for the VBA crowd on Windows and all of the VB6 forums members that compile to native x86 code.
Some of the conclusions will probably not hold water as a result e.g. member variables vs with.
Yes. All these tests have been done in the VBA environment on both Mac and Windows. If someone could run these over VB6 P-Code and VB6 compiled native code this would be really useful! I will be quite interested.
My understanding, from bontchev, is that VBA doesn't have an optimisation step. VBA appears to compile to P-Code on save, and then compile again to "Execodes" known as the "performance cache" which is system specific. All of this is stored on in the VBA Project file on windows. If this is the same process which VB6 code is compiled under I wouldn't be surprised... But the performance tests might show us otherwise...
To get an understanding of how With statements affect all platforms/compilation environments would be most interesting :).
Another thing that I hadn't tried yet is my member variable was while testing the member of a Module rather than a class. Realistically I should compare it to the performance from within a class also.
3 Attachment(s)
Re: What does the With statement do internally?
I just tested in VB6, both as p-code and compiled.
In my test, I used all early-binding. I just made five classes, all nested. I'll list them backwards:
Here's Class5.cls:
Code:
Option Explicit
Friend Function Test() As String
Test = "asdfasdf"
End Function
Class4.cls:
Code:
Option Explicit
Dim cls5 As New Class5
Friend Function Class5() As Class5
Set Class5 = cls5
End Function
Class3.cls:
Code:
Option Explicit
Dim cls4 As New Class4
Friend Function Class4() As Class4
Set Class4 = cls4
End Function
Class2.cls:
Code:
Option Explicit
Dim cls3 As New Class3
Friend Function Class3() As Class3
Set Class3 = cls3
End Function
And Class1.cls:
Code:
Option Explicit
Dim cls2 As New Class2
Friend Function Class2() As Class2
Set Class2 = cls2
End Function
And here's the test code I put together in Form1. I also included my TimerEx.cls (not listed). It's all included in the little attached project:
Code:
Option Explicit
Dim cls1 As New Class1
Private Sub Form_Load()
Me.AutoRedraw = True
Me.Font.Size = 14
Me.Font.Name = "Segoe UI"
Me.Font.Bold = True
'
' Get everything instantiated.
Call cls1.Class2.Class3.Class4.Class5.Test
Call TimerEx.Value
Me.Print "Click me"
End Sub
Private Sub Form_Click()
Me.Print "Working..."
Me.Refresh
DoTesting
End Sub
Private Sub DoTesting()
Dim dStart As Double
Dim dStop As Double
Dim i As Long
Const cnt As Long = 10000000
dStart = TimerEx.Value
For i = 1 To cnt
Call cls1.Class2.Class3.Class4.Class5.Test
Next
dStop = TimerEx.Value
Me.Print "Full reference each time: "; Format$(dStop - dStart, "#0.000000")
Me.Refresh
Dim cls5 As Class5
Set cls5 = cls1.Class2.Class3.Class4.Class5
'
dStart = TimerEx.Value
For i = 1 To cnt
Call cls5.Test
Next
dStop = TimerEx.Value
Me.Print "Using explicit shortcut reference: "; Format$(dStop - dStart, "#0.000000")
Me.Refresh
With cls1.Class2.Class3.Class4.Class5
dStart = TimerEx.Value
For i = 1 To cnt
Call .Test
Next
dStop = TimerEx.Value
End With
Me.Print "Using ""With"" reference: "; Format$(dStop - dStart, "#0.000000")
Me.Refresh
End Sub
------------------
I tested both as IDE p-code and compiled.

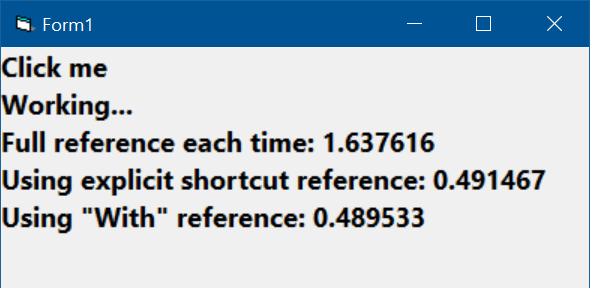

Here's the p-code test:
Attachment 178351
And here's compiled:
Attachment 178352
I ran both several times.
Clearly, creating a short-cut reference speeds things up. However, creating an "explicit" shortcut versus the "implicit" shortcut you get with the With block seems to make no difference. I ran it several times, and the differences between implicit and explicit bounced back and forth, always being almost identical.
EDIT: Crud!!! I just noticed I didn't do the With block correctly. I'll redo it.
EDIT2: Ok, I fixed the With block and still got basically the same results. It was just the one line inside the loop. I changed it to:
(I fixed it in the above too. And in the attachment.)
