All Nodes on TreeView Control Not Showing

I am currently developing a VB 6.0 Application on an old PC running Windows XP. In it's simplest terms, the Application displays a Hierarchical Family Tree structure in a TreeView Control. The application consists of seven Forms, a Standard Code Module, a TreeView Control which is the main focus of the App, Image List Controls, and some Standard Controls. The App runs perfectly fine in the XP Environment. Using the Package & Deployment Wizard, I created a basic Package to test on Windows 10 PCs. The installation process in Windows 10 is seamless and the Program is executed from within a pre-defined Program Group. The Initial Screen displays some Version Information, credits, etc. The next screen is an introduction to the App and consists of only a couple Images and informational text. The next screen is the pivotal one with a TreeView Control being dynamically populated with static data. This all works well in XP, but in this screen with the TreeView in Windows 10 no Nodes of the TreeView are displayed, no Errors, just a blank TreeView. I tried using regsvr32.exe to manually Register comctl32.ocx to see if this was the problem, but it would not Register. A lot of work went into this Application and the family is looking forward to seeing it, so I sincerely hope one of you guys can point me in the right direction. I thank anyone in advance for offering assistance.

The comctl32.ocx TreeView control works fine on Windows 10.

Without a small example you can share which reproduces the problem we may not be much help.

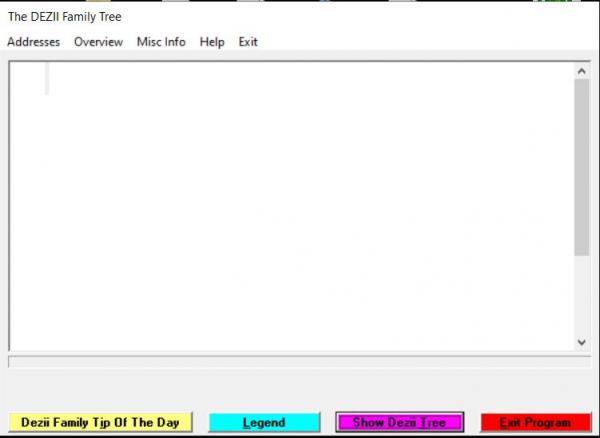

Thank you for your swift Reply. The Image below is what i am seeing, a TreeView with no Nodes being displayed. If it is no comctl32.ocx, do you have any idea as what the problem could be?
Attachment 177780

Well, appears nodes are being created based on the scrollbar.

1. Are you using On Error Resume Next in the routine that populates the nodes?
2. Are you using v5 or v6 of the controls (as shown in the toolbox)?
3. Can you post the portion of code that is populating the nodes?

Oh, where is the location of the static data, what folder? App.Path? And what medium (file, database, other)?

He said comctl32 so of course it is v. 5, but the v. 6 controls also work as well on Windows 10 as anywhere. I just tested both. Again.

For all we know there is a High DPI issue at play here.

Good catch on the scrollbar.

Quote:

---

Originally Posted by dilettante

He said comctl32 so of course it is v. 5, but the v. 6 controls also work as well on Windows 10 as anywhere. I just tested both. Again.

---

I didn't want to make that assumption. Someone can say comctl32 but using v6 instead. Or having both in the same project. Just wanted a bit of clarification.

Since we have no details I presume there is no manifest. So there is also the fickle finger of appcompat in the pie here.

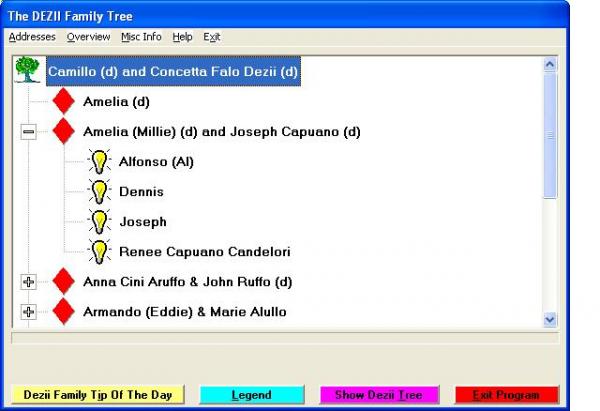

Thanks for your replies. Here is a partial segment of the Code that loads the TreeView in the Load() Event of the Form. Again, works great in XP. I also download the newer Versions of the Common Controls (2005 vs 1998) and Registered them via regsvr32, OK. The Package installs in Windows 10 and the TreeView is visible on the Form, but no Nodes are. Using VB 6.0. I have also included an Image of what a partial view of the TreeView looks like in XP.

Code:

---

Private Sub Form_Load()
On Error GoTo Err_Form1_Load
Dim nodX As Node, Msg As String

With TreeView1
  .Top = 120
  .Left = 120
  .ImageList = ImageList1    '32 X 32 Icons

    '1-Relative, tvwChild-Relationship, "g"-Key, "George"-Text
    Set nodX = .Nodes.Add(, , , "Camillo (d) and Concetta Falo Dezii (d)", 1)

    Set nodX = .Nodes.Add(1, tvwChild, "A", "Arsilio (Al) (d) & Josephine (Josie) Cocuzza (d)", 2, 2)
      Set nodX = .Nodes.Add("A", tvwChild, "VB", "Vivian Dezii Boyd", 3, 4)
        Set nodX = .Nodes.Add("VB", tvwChild, , "YaDa-YaDa", 3, 4)  'Test Grand-Grand Child

    Set nodX = .Nodes.Add(1, tvwChild, "C", "Anna Cini Aruffo & John Ruffo (d)", 2, 2)
      Set nodX = .Nodes.Add("C", tvwChild, , "Dolores Cini Lockwood (d)", 3, 4)
      Set nodX = .Nodes.Add("C", tvwChild, , "Bobby Cini", 3, 4)
      Set nodX = .Nodes.Add("C", tvwChild, , "John Aruffo", 3, 4)

    Set nodX = .Nodes.Add(1, tvwChild, "l", "Malvina (Lena) Muscella (d)", 2, 2)
      Set nodX = .Nodes.Add("l", tvwChild, , "Theresa", 3, 4)
      Set nodX = .Nodes.Add("l", tvwChild, , "Philip", 3, 4)
      Set nodX = .Nodes.Add("l", tvwChild, , "William", 3, 4)
      Set nodX = .Nodes.Add("l", tvwChild, , "Unknown Child Name", 3, 4)

    Set nodX = .Nodes.Add(1, tvwChild, "L", "Leopoldo (Paul) (d) & Anna Boccuti (d)", 2, 2)
      Set nodX = .Nodes.Add("L", tvwChild, , "Paul", 3, 4)
      Set nodX = .Nodes.Add("L", tvwChild, , "Concetta (Connie) Dezii Spinnato", 3, 4)

    Set nodX = .Nodes.Add(1, tvwChild, , "Amelia (d)", 2, 2)

    Set nodX = .Nodes.Add(1, tvwChild, "V", "Vittorio (Victor) (d) and Domenica (Minnie) (d) Falgiatore", 2, 2)
      Set nodX = .Nodes.Add("V", tvwChild, , "Dolores Dezii Kreal", 3, 4)
      Set nodX = .Nodes.Add("V", tvwChild, , "Susan Dezii Sansone", 3, 4)

    Set nodX = .Nodes.Add(1, tvwChild, "Cap", "Amelia (Millie) (d) and Joseph Capuano (d)", 2, 2)
      Set nodX = .Nodes.Add("Cap", tvwChild, , "Alfonso (Al)", 3, 4)
      Set nodX = .Nodes.Add("Cap", tvwChild, , "Joseph", 3, 4)
      Set nodX = .Nodes.Add("Cap", tvwChild, , "Dennis", 3, 4)
      Set nodX = .Nodes.Add("Cap", tvwChild, , "Renee Capuano Candelori", 3, 4)

    .Nodes(TreeView1.Nodes.Count).EnsureVisible
    .Nodes(1).Selected = True

    For Each nodX In TreeView1.Nodes
      nodX.Sorted = True
    Next
End With
Exit_Form1_Load:
  Exit Sub

Err_Form1_Load:
  Msg = "Error Number: " & Err.Number & vbCrLf
  Msg = Msg & "Error Description: " & Err.Description
    MsgBox Msg, vbCritical, "ERROR in Form1 Load Procedure"
      Resume Exit_Form1_Load
End Sub

---

Attachment 177782

Nothing jumps out at me. Do you have service pack 6 installed?

Didn't answer one of my questions. You don't have both versions of the treeview in your project do you? Just the one which states v5 vs. v6? or the other way around?

May also want to look at the properties of the app's exe, on Win10, and play with some of the compatibility options?

If you are using the v5 of the common controls, try with the v6

First and foremost, I would like to thank everyone who assisted me on this Thread, especially LaVolpe. After many hours, I finally was able to get the Code to work on Windows 10. The problem was that two Versions of the Microsoft Windows Common Controls (ie. TreeView) were checked, namely: 5.0 (SP2) and 6.0 (SP6). Although XP graciously accepted this, Windows 10 did not. I also had to Upgrade the Common Controls from the 1998 Version to 2005 and Re-register them which had it's own set of problems. In any event, all appears to be back on track and thanks again for your assistance.

Quote:

---

Didn't answer one of my questions. You don't have both versions of the treeview in your project do you? Just the one which states v5 vs. v6? or the other way around?

---

This was the clincher!:thumb:
