This is the start of a match two game. Zip attached so you can down load and run it, all code below.
I placed it in the code bank as beginners may find bit’s they can use in their own projects.

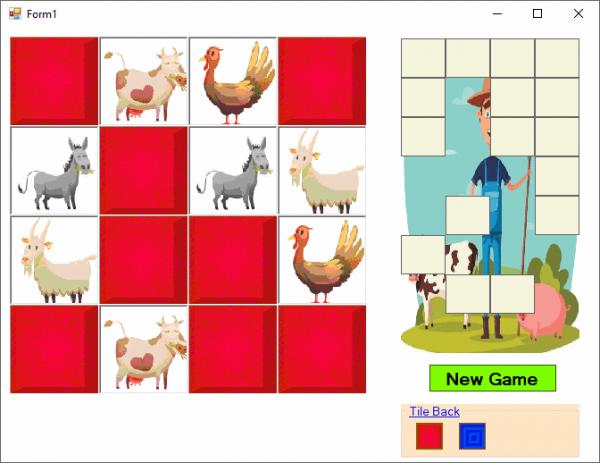

Game play click the labels and they roll up to reveal the image underneath, if they match stay open if not close.
If they do match reveal some of the main picture on the right.
Would welcome feedback, good or bad.
Future ideas,
• Add sound?
• A timer so you can see how long it took to complete?
• Top ten times?
• Smaller squares from 100 x 100 to 50 x 50 making a bigger grid?
• Different sets of images?
• Allow user to use images of their own?
And anything else anyone can think of.
Attachment 176581
Attachment 176583Code:Option Strict On
Option Explicit On
Imports System.Threading
Public Class Form1
Dim pb As PictureBox
Dim lbl, lblHide As Label
Dim j, k, vy As Integer
Private selectedDoor1 As Label = Nothing
Private selectedDoor2 As Label = Nothing
Private firstImage As String = Nothing
Private secondImage As String = Nothing
Private ReadOnly r As New Random
Private lastClickedLabel As Label
Dim numbers As List(Of Integer)
Dim savedNames(32) As String
Private Sub Timer1_Tick(sender As Object, e As EventArgs) Handles Timer1.Tick
lastClickedLabel.Height -= vy
If lastClickedLabel.Height = 0 Then
Timer1.Stop()
If selectedDoor2 IsNot Nothing Then WaitTime() 'If selectedDoor2 IsNot Nothing then two doors are open go check if they match
End If
End Sub
Private Sub Clickme(ByVal sender As Object, ByVal e As EventArgs)
If Timer1.Enabled = True Then Exit Sub 'Can not click if doors are opening
If selectedDoor2 IsNot Nothing Then Exit Sub 'Can not click while checking for a matching pair
lastClickedLabel = DirectCast(sender, Label)
If selectedDoor1 Is Nothing Then
selectedDoor1 = lastClickedLabel
'Get the name from the array and place it in variable firstImage
firstImage = savedNames(CInt(lastClickedLabel.Tag))
Else
selectedDoor2 = lastClickedLabel
secondImage = savedNames(CInt(lastClickedLabel.Tag))
End If
Timer1.Start()
End Sub
Private Sub HideMainImage()
'Cover the main picture with Labels
Dim hiddenX As Integer = PictureBox1.Location.X
Dim hiddenY As Integer = PictureBox1.Location.Y
For i = 1 To 32
lblHide = New Label With {
.Size = New Drawing.Size(50, 44),
.Location = New Point(hiddenX, hiddenY),
.BackColor = Color.Beige,
.BorderStyle = BorderStyle.FixedSingle,
.Name = "lblHidden" & i,
.Tag = i
}
hiddenX += 50
If hiddenX >= 648 Then 'If labels cover width of main picture
hiddenY += 44 ' Drop down to next row
hiddenX = PictureBox1.Location.X
End If
Me.Controls.Add(lblHide)
lblHide.BringToFront()
Next
End Sub
Private Sub Form1_Load(sender As Object, e As EventArgs) Handles Me.Load
vy = 10
j = 10
k = 10
For i As Integer = 1 To 16 'Create 16 picture boxes
pb = New PictureBox With {
.BorderStyle = BorderStyle.Fixed3D,
.Size = New Drawing.Size(100, 100),
.Location = New Point(j, k),
.Name = "pbxFrame" & i,
.Tag = i
}
lbl = New Label With {
.BorderStyle = BorderStyle.Fixed3D,
.BackgroundImage = My.Resources.RedBack,
.Size = New Drawing.Size(100, 100),
.Location = New Point(j, k),
.Name = "lblDoor" & i,
.Tag = i
}
AddHandler lbl.Click, AddressOf Clickme
Me.Controls.Add(pb) 'Add picture boxes to form
Me.Controls.Add(lbl) 'Add labels to form
j += 100
If j >= 400 Then
j = 10
k += 100
End If
lbl.BringToFront() 'Place Labels on top of Picture Boxes
Next
numbers = Enumerable.Range(1, 32).OrderBy(Function(x) r.NextDouble).ToList()
HideMainImage()
AssignImagesToSquares()
End Sub
Private Sub btnRed_Click(sender As Object, e As EventArgs) Handles btnRed.Click
For i = 1 To 16
DirectCast(Controls("lblDoor" & i), Label).Image = My.Resources.RedBack
Next
End Sub
Private Sub btnBlue_Click(sender As Object, e As EventArgs) Handles btnBlue.Click
For i = 1 To 16
DirectCast(Controls("lblDoor" & i), Label).Image = My.Resources.BlueBack
Next
End Sub
Private Sub BtnStartGame_Click(sender As Object, e As EventArgs) Handles btnStartGame.Click
Application.Restart()
End Sub
Private Sub AssignImagesToSquares()
Dim animalName As String
Dim indices() As Integer = Enumerable.Range(0, 16).OrderBy(Function(x) r.NextDouble).ToArray
Dim i As Integer = 1
For Each x As Integer In indices
Dim b As Bitmap = DirectCast(ImageList1.Images(x), Bitmap) 'Get number in Imagelist
DirectCast(Me.Controls("pbxFrame" & i), PictureBox).Image = b 'Place images in PictureBoxes
animalName = ImageList1.Images.Keys(x) 'Get image name from ImageList
savedNames(i) = animalName 'Place image names in an array
i += 1
Next
End Sub
Private Sub WaitTime()
If firstImage = secondImage Then
selectedDoor1 = Nothing
selectedDoor2 = Nothing
firstImage = Nothing
secondImage = Nothing
For i = 0 To 3
DirectCast(Me.Controls("lblHidden" & numbers(0)), Label).Visible = False
numbers.RemoveAt(0)
Next
Exit Sub 'Found a match Return
End If
Thread.Sleep(750)
selectedDoor1.Height = 100 'No match shut doors
selectedDoor2.Height = 100
selectedDoor1 = Nothing 'Reset selectedDoor1 and Two
selectedDoor2 = Nothing
firstImage = Nothing
secondImage = Nothing
End Sub
End Class
