Array of Graphical elements - how to

Hi, I wish to have a grid or visual array, representing the state of each bit for 8 data bytes.
So a grid of 64 small squares, when each data bit is True, change the colour of the respective small square.
What is the best way to represent each little square?
Lots of little text boxes and just change the background colour ?
Any better ideas. :) J.

If you want the squares to contain editable text then 64 textboxes is a possible option, but would be awkward to set up (and your form would contain lots of controls).

Another option is to use a DataGridView (with the row and column headers hidden if you want), and just handle the cell painting events to deal with the colours.

Thanks Si, that looks like a good option, I'll give it a play. :) J.

I did something like this using panels, but in my case it wasn't a regular shape. Instead, it was a series of columns with differing numbers of cells. It worked fine, though that did end up being a fair number of controls.

If you have a regular grid, then the DGV is a good option. If you don't have a regular grid, panels might work best.

You could use one richtextbox.

Code:

---

        'sample value
        Dim i As Long = Long.MaxValue - Integer.MaxValue - 15L
        RichTextBox1.Text = Convert.ToString(i, 2).PadLeft(64, "0"c)
        For x As Integer = 0 To RichTextBox1.TextLength - 1
            RichTextBox1.SelectionStart = x
            RichTextBox1.SelectionLength = 1
            If RichTextBox1.SelectedText = "1" Then
                RichTextBox1.SelectionBackColor = Color.LightGreen
            Else
                RichTextBox1.SelectionBackColor = Color.Red
            End If

---

Or you could draw the grid in a bitmap and show it in a picturebox.
This example will create the picturebox, so you can just paste the code in a new project to try it out, without adding any controls yourself. You can click on the form to change the value of the bytes.

Code:

---

Public Class Form1

  Private Grid As New PictureBox With {.Parent = Me, .Location = New Point(50, 50), .Size = New Size(81, 81), .BorderStyle = BorderStyle.None}
  Private bytes(7) As Byte
  Private gridImg As New Bitmap(81, 81)
  Private rand As New Random

  Private Sub Form1_Load(sender As System.Object, e As System.EventArgs) Handles MyBase.Load
    loadBytes()
    drawBytes()
  End Sub

  Private Sub loadBytes()
    For i As Integer = 0 To 7
      bytes(i) = CByte(rand.Next(256))
    Next
  End Sub

  Private Sub drawBytes()
    Dim Mask As Integer = 128
    Using g As Graphics = Graphics.FromImage(gridImg)
      g.FillRectangle(Brushes.White, Grid.ClientRectangle)
      For column As Integer = 0 To 7
        For row As Integer = 0 To 7
          g.DrawRectangle(Pens.Black, column * 10, row * 10, 10, 10)
          If (bytes(row) And Mask) <> 0 Then
            g.FillRectangle(Brushes.Red, column * 10 + 1, row * 10 + 1, 9, 9)
          End If
        Next
        Mask \= 2
      Next
    End Using
    Grid.Image = gridImg
  End Sub

  Private Sub Form_Click(sender As Object, e As EventArgs) Handles Me.Click
    loadBytes()
    drawBytes()
  End Sub
End Class

---

p.s. Someone asked for a picture. Any of the suggestions would work as well, and since the code was easily tested, didn't feel the need, but ok...

Thanks for ideas guys, much appreciated, ive got too many hours to kill on the flight home so i'll try a few out and see how im getting on.

Quote:

---

Originally Posted by Shaggy Hiker

I did something like this using panels, but in my case it wasn't a regular shape. Instead, it was a series of columns with differing numbers of cells. It worked fine, though that did end up being a fair number of controls.

If you have a regular grid, then the DGV is a good option. If you don't have a regular grid, panels might work best.

---

The dgv is still a viable option even with an uneven number of columns. You can 'hide' the cells you don't want to use and the dgv's gridlines, by setting them to the form backcolor. If you want borders on the 'visible' cells, you can draw overlays on the dgv in its paint event. This dgv could be completely readonly, with all of the cells unselectable, or you could allow a subset to be user editable...

Edit: I have a couple of games that use that method, which you can find at...

http://www.vbforums.com/showthread.p...ral-VB-C-games

Frankly, if I were to re-write that program, I would use a single panel or picturebox and draw the cells on it directly. For that matter, I may have, as it was many years ago. It was just a quick one-off, though, and I doubt I'll ever have another use for it....unless I move, and want to build another patio.

Tried two of the methods discussed, DGV and drawing the graphical squares into a picture box. Both worked thanks.

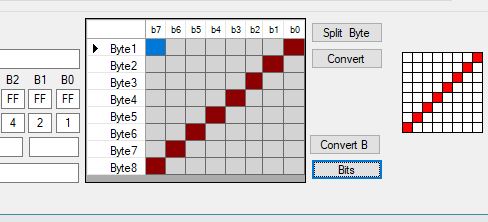

The picturebox method allows me to make it more compact, I need to do a bit more dressing-up but looks good and seems to refresh quickly. Solution works for my need and it simple enough to understand for a noob. Thanks Guys. :)Attachment 167089
