Hi!
I began learning C.
I want to combine C code with VB, but don't know if is possible to do it with...
Combine or import or link C with VB.
For example - create GUI for C code.
Or can anybody recommend me any C/C++ editor with UI support (not only GUI, also TUI) to easier coding user interface?
Thank you for all suggestions.
Miro
Hi Mirkosoft,
I find myself coding in both C and VB6. If it's a small function, it's not typically difficult to translate from C to VB6. However, for larger projects, things can be come difficult, depending on what features of C were used. Regarding combining the two, I don't believe that's going to be terribly easy. Depending on calling conventions, it's certainly possibly to call a C DLL from VB6. Also, this thread (and the link) are interesting. That Tiny C Compiler isn't very rich, but it does use the C syntax. What's somewhat sad about that Tiny C Compiler is that it doesn't support += *= etcetera operators, which is one of my favorite things about C.
Good Luck,
Elroy
Here's my reply to your exact same question about two years ago:
Quote:
Originally Posted by Victor Bravo VI
You can statically link a library written in C to VB code.
Ok, I have choice:
ThunderVB
or
Runtime Tiny C Compilier for VB6
Problem is that I'm using Visual Basic 6 Portable.
So, I think ThunderVB is not possible to use, it requires installed VB6 and needs to be installed.
So, how to use Runtime Tiny C Compilier for VB6?
How to call it and even is possible to use unchanged C source?
Please explain me both choices.
I know it looks like I know near nothing, but I need it to explain to avoid mistakes which can make me frustrated.
I have also 3rd choice - Auto C possible to use like WYSIWYG GUI development in C, but there is problem with installation Microsoft ActiveX Control Pad on Windows 10 x64.
Or can anybody help me with this installation? It is best choice 'cause it's true C.
Thank you all for your support.
Miro
VbRttc is very limited in the supported C language subset and is very unforgiving to even compile errors in the C sources (understandable for a 5-6KB compiler total) so it's *not* a proper choice for beginner/introductory level development.
Besides it's not a real compiler as it's compiling at run-time -- it's more like a JIT compiler.
cheers,
</wqw>
Ok, what can you recommend me to create UI for C/C++ easily?
C/C++ creating UI is far hard to do.
Miro
VC 2017 Community Edition is free, but I haven't tried to make GUI with it. Your apps would require Windows 7+SP1 as a minimum to run.
If you want multi-platform, Qt and GTK seems to be the main ones, but your apps would require Vista or 7 as a minimum to run as well, unless you use an older version. I am not sure why they dropped XP, perhaps it's due theme support? I don't know, so don't quote me on that. There are GUI designers for each of these two GUI kits. I haven't used them, but I plan to pick one(possibly Qt because it runs on Android/iOS, not sure about GTK) and convert a VB6 app to it. Using VC might make me stick with Microsoft, which is what I don't want.
In my app, I am using VB6 and two DLL's, one is a standard DLL written in VC6, I use Declare statement to talk to that DLL. The other DLL is a 64-Bit COM DLL written in VC2003. Now I am facing the prospect of converting the whole thing to C++. I have customers with 700+ PC's. Asking them to upgrade all so they can use my tiny utility is not appealing.
In case you really want to implement and compile *everything* in C (also GUI-wise - no VB6 anywhere),Quote:
Originally Posted by MIRKOSOFT
then this is perhaps the wrong forum to ask for advice.
FWIW - the tinyCC compiler really lives up to his name:
It is orders of magnitudes smaller than one of the big cannons like MingW or MS-VC (which have download-sizes, approaching 1GByte for the full "tool-chain").
The fully working C-compiler comes in a Zip smaller than 500KB: http://download.savannah.gnu.org/releases/tinycc/
(on the above selection-page, the most recent version-zips are the 0.9.27 ones - decide yourself, whether you want the 32Bit or the 64Bit-version).
As for GUI-development in C... there's no real RAD-support (meaning, no "visual Form-Designer").
All is done via C-SourceCode (even when you use a GUI-library to reduce the needed lines of code you have to write for GUI-implementations).
A good Editor (Notepad++ or similar tools) will give you syntax-highlighting and minor debugging-features though.
As for a nice GUI-support-lib for C - I can recommend IUP: https://sourceforge.net/projects/iup...aries/Dynamic/
IUP works nicely together with the tinyCC-compiler - and the coding-efforts are (thanks to a built-in Layouter) not that large...
Here's the C-Code one will have to write for a simple Demo:
And here's the output, the above little snippet will produce:Code:#include <windows.h>
#include <iup.h>
// define the Event-callbacks for our two Buttons upfront
int btnSave_cb( Ihandle *self ){
IupMessage("IUP-Message", "Save-Dialog-Dummy-Popup");
}
int btnClose_cb( Ihandle *self ){
return IUP_CLOSE; // close the Form
}
int APIENTRY WinMain( HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) {
IupOpen(NULL, NULL);
IupImageLibOpen();
Ihandle *label = IupLabel("\nHello world from IUP.");
Ihandle *buttonSave = IupButton("Save", NULL);
IupSetAttribute(buttonSave, "IMAGE", "IUP_FileSave");
IupSetCallback (buttonSave, "ACTION", (Icallback) btnSave_cb);
Ihandle *buttonClose = IupButton("Close", NULL);
IupSetAttribute(buttonClose, "IMAGE", "IUP_EditErase");
IupSetCallback (buttonClose, "ACTION", (Icallback) btnClose_cb);
Ihandle *vbox = IupVbox( label, buttonClose, buttonSave, NULL);
IupSetAttribute(vbox, "EXPANDCHILDREN", "YES");
IupSetAttribute(vbox, "CGAP", "5");
IupSetAttribute(vbox, "CMARGIN", "5");
Ihandle *dlg = IupDialog(vbox);
IupSetAttribute(dlg, "ICON", "APP_ICON");
IupSetAttribute(dlg, "TITLE", "Hello IUP-GUI");
IupSetAttribute(dlg, "RASTERSIZE", "320x240");
IupSetAttribute(dlg, "MINSIZE", "320x240");
IupSetAttribute(dlg, "FONT", "Arial, 10");
IupShowXY(dlg, IUP_CURRENT, IUP_CURRENT);
IupMainLoop();
IupClose();
return 0;
}
http://vbRichClient.com/Downloads/IUP_Form.png
HTH
Olaf
Hi!
Thank you for example.
But I'm not asking wrong forum - I'm programming in Visual Basic and my problem is that I have lot of C source code which I don't know to rewrite to VB and don't want to use separate GUI for executables.
I'm learning C for simple reason: To know how to convert it into VB.
I know that any WYSIWYG or Forms are not available. I need the best way to embed or combine C with VB.
No one C to VB converter works 100% bug free.
So, I asked to Auto C to better understand how to rewrite GUI - and it uses Microsoft ActiveX Control Pad - what is problem to install on Win10x64.
Miro
Well, in that case refactor your C-Code into "functionality only, without any GUI" -Quote:
Originally Posted by MIRKOSOFT
and compile it into "flat C-Dlls" (which you then use from VB via Declare Statements).
We had such a discussion here recently: http://www.vbforums.com/showthread.p...e-with-a-C-DLL
HTH
Olaf

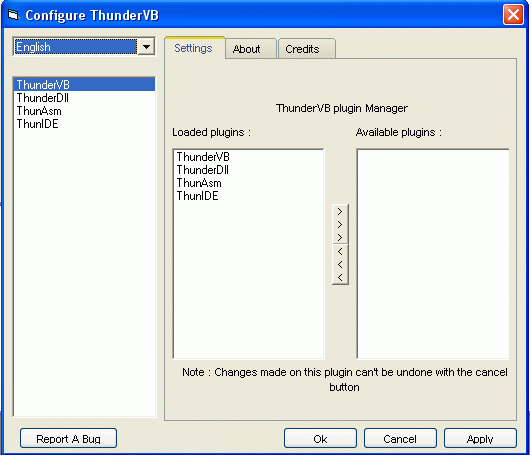

Finally, I installed ThunderVB and partially got to work also Auto C.
Thank you for your support.
Miro
