[RESOLVED] Passing multiple arguments to BackgroundWorker.ProgressChanged

I recently learned How to pass multiple parameters to a BackgroundWorker.DoWork method. I used an object created from a class I made to hold the parameters and passed it in the DoWorkEventArgs. Today I was attempting to do the same with the ProgressChanged. I've seen some examples online but it's not working for me. Is this a normal thing to do? I dont' want to jump though hoops to "make it work". If there is a normal and accepted way to do this, I'd like to know how. If MS never intended this to do more than passing text, then I'd rather keep doing it as I am.
As it is now I create a delimited string and split it using a method in a generic text class method of my design. It's just for simple things like whether the message overwrites the last line of a multi-line TextBox or not.

Update: MSDN said that it would also accept a Tuple. I had never heard of a Tuple before, very interesting, but I tried it and the VS complains that "Value of type 'Tuple(Of Integer, String, Boolean)' cannot be converted to 'ProgressChangedEventArgs'." It seems like no other object type can be passed to ProgressChanged.

Something like

Code:

---

Private Sub BackgroundWorker1_DoWork(sender As Object, e As System.ComponentModel.DoWorkEventArgs) Handles BackgroundWorker1.DoWork

        BackgroundWorker1.ReportProgress(100, New Tuple(Of Integer, String, Boolean)(100, "test", False))

    End Sub

Private Sub BackgroundWorker1_ProgressChanged(sender As Object, e As System.ComponentModel.ProgressChangedEventArgs) Handles BackgroundWorker1.ProgressChanged

        Dim x = DirectCast(e.UserState, Tuple(Of Integer, String, Boolean))

End Sub

---

should do the trick.

ProgressChangedEventArgs is class with two properties, you need to assign the value to (and read it from) the UserState property.

The data type is Object, so you can put anything you want in there, including a Tuple() or your own class.

This was what I was trying, but it doesn't work. "Value of type 'Tuple(Of Integer, String, Boolean)' cannot be converted to 'ProgressChangedEventArgs'." How can it be that it works for you but not me?

si_the_geek: I have tried my own classes and tuples. All the same. Can't convert.

I see many examples like these online. But they don't work for me. Maybe it would help if you saw what I have. I get the same problem with my own class.

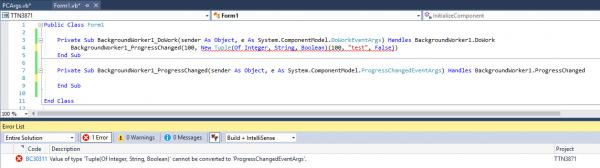

Attachment 165787

Did you use exactly what PlausiblyDamp showed?

The two signatures for ReportProgress are like this:

Code:

---

Public Sub ReportProgress (percentProgress As Integer)
Public Sub ReportProgress (percentProgress As Integer, userState As Object)

---

...so with his code, the error message would be odd.


edit: I see you've posted a screenshot, which has left me confused as to what could be happening.

The screenshot is much larger than that. Why does it look so small? Try this link instead.

To raise the progress changed event you need to call the BackgroundWorker's ReportProgress method, the example I posted above shows an example.

In future it is better to post code here rather than screenshots as the forum tends to mangle them and make things hard to read.

Ah, I've got it... you changed BackgroundWorker1.ReportProgress to BackgroundWorker1_ReportProgress

Changing it back should fix it.

I knew you might think I was a crazy newb so I had to prove it with a screenshot! :-)
Something different in 4.5.1 or VS2017 maybe?

Sorry. I meant 4.6.1. I tried turning Option Strict off but that didn't make any difference either.

Like this...

Code:

---

Public Class BGWSample

    Private WithEvents Bgw As New ComponentModel.BackgroundWorker With {.WorkerReportsProgress = True}
    Public SomeObject As Object = Nothing
    Dim SomeString As String = "It Worked"
    Public Class ProgChangedArgs
        Public _SomeObject As Object
        Public _SomeString As String
        'make as many 'args' as you want
    End Class

    Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
        Bgw.RunWorkerAsync()
    End Sub

    Private Sub Bgw_DoWork(sender As Object, e As ComponentModel.DoWorkEventArgs) Handles Bgw.DoWork
        Dim ProgChangedArgs As New BGWSample.ProgChangedArgs With {
            ._SomeObject = SomeObject,
            ._SomeString = SomeString}

        Bgw.ReportProgress(100, ProgChangedArgs)
    End Sub

    Private Sub Bgw_ProgressChanged(sender As Object, e As ComponentModel.ProgressChangedEventArgs) Handles Bgw.ProgressChanged
        Dim ProgChangedArgs As ProgChangedArgs = DirectCast(e.UserState, ProgChangedArgs)
        MsgBox(ProgChangedArgs._SomeString)
    End Sub

End Class

---

Oh my. Well spotted! I can't believe I typed that in. Ug. What was I thinking. Thank you and your keep eyes very much.

In PlausiblyDamp's wonderful example, it there a way to make the Tuples named? The best I cold come up with was to make a new Tuple object. Is there a way to name the tuples on instantiation? Does anyone know how to do that?

vb.net Code:

Dim objArgs As Tuple(Of Integer, String, Boolean) = DirectCast(e.UserState, Tuple(Of Integer, String, Boolean))
Dim objTest = (intTest:=objArgs.Item1, strTest:=objArgs.Item2, blnTest:=objArgs.Item3)
TextBox1.Text = objTest.strTest

Tuples are just simple classes, the easiest way is to make your own classes of the same sort, eg:

Code:

---

Class MyTuple
  Public intTest as Integer
  Public strTest as String
  Public blnTest as Boolean

  Public Overrides Sub New()
  End Sub

  Public Overrides Sub New(intTest as Integer, strTest as String, blnTest as Boolean)
    Me.intTest = intTest
    Me.strTest = strTest
    Me.blnTest = blnTest
  End Sub
End Class

---

(I'm tired, and think I've got syntax a little off, but it's reasonably close!)

I get your drift. Then I might as well use that my own class on the on the other side and abandon the tuples. And with a constructor, I can do it in the argument.
