Print a listview to a printer

I have a listview with about 200 lines that I am trying to print as a report to a printer. I thought this would be something I could find examples of easily, but all I can seem to find are for vb6 and earlier. I am using vb.net 2010. Either this is so easy to do that nobody has asked before or I am very bad at searching. I have to believe that printing a listview is common task. A working example would be great.

Thanks,
Jim

Quote:

---

Originally Posted by JimAvanti

Either this is so easy to do that nobody has asked before or I am very bad at searching.

---

The latter I'm afraid. Printing in Windows Forms is basically the same regardless of what you're printing: you use a PrintDocument, call its Print method and handle its PrintPage event, using GDI+ to draw whatever you want printed. There's nothing special about a ListView in this regard, other than what specific GDI+ code you write to print the data in the way you want it displayed.

I would suggest that you first visit the VB.NET CodeBank forum, sort by Thread Starter and then find the printing tutorial posted by Merrion. Once you know the generalities of printing, you can decide exactly how you want the data displayed and determine how to do that using GDI+ and add the appropriate code to the PrintPage event handler.

Practice Practice. :)

This example just loops the list and prints each item on a new line. There are many ways to do it.

To make the example just cut and paste the code into an empty form.

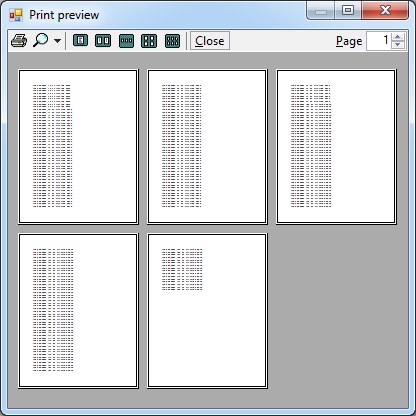

The example shows the print preview dialog with multiple pages. Click the print button on the dialog to print to the printer.

Here is another example.

Attachment 164931

Code:

---

Imports System.Drawing.Printing

Public Class PrintListView
    Private WithEvents Listbox1 As New ListBox With {.Parent = Me,
        .Location = New Point(20, 20), .Size = New Size(200, 200)}
    Private WithEvents PrintDocument1 As New PrintDocument
    Private WithEvents PrintPreviewDialog1 As New PrintPreviewDialog
    Private MasterData, PrintString As String

    Private Sub Form2_Load(sender As Object, e As EventArgs) Handles Me.Load
        Text = "Print Listview"
        For i As Integer = 1 To 200
            Listbox1.Items.Add("Item Number " & i.ToString & " of Listview Data")
        Next

        For Each i As String In Listbox1.Items
            MasterData += i & vbLf
        Next

        PrintString = MasterData
        PrintPreviewDialog1.Document = PrintDocument1
        PrintPreviewDialog1.ShowDialog()

    End Sub

    Private Sub PrintPage(sender As Object, e As System.Drawing.Printing.PrintPageEventArgs) Handles PrintDocument1.PrintPage

        Dim charactersOnPage, linesPerPage As Integer

        Using f As Font = New Font("Consolas", 12)
            ' Sets the value of charactersOnPage to the number of characters
            ' of stringToPrint that will fit within the bounds of the page.
            e.Graphics.MeasureString(PrintString, f, e.MarginBounds.Size, StringFormat.GenericTypographic, charactersOnPage, linesPerPage)

            ' Draws the string within the bounds of the page
            e.Graphics.DrawString(PrintString, f, Brushes.Black, e.MarginBounds, StringFormat.GenericTypographic)

        End Using

        ' Remove the portion of the string that has been printed.
        PrintString = PrintString.Substring(charactersOnPage)

        ' Check to see if more pages are to be printed.
        e.HasMorePages = PrintString.Length > 0

        'reload string for actual printing after preview
        If Not e.HasMorePages Then PrintString = MasterData
    End Sub
End Class

---

Tommy,

I used your example in my program and looped through my ListView to build the string and it worked (Which is great for my learning a bit about building a list to print), however what I need to do is much more. I need to print the Listview as it is on the screen (Formatted with the cells and also color highlighted background and text). I was wondering if there was code already written out there that would do this. I'll keep looking.

Thanks,

Jim

Quote:

---

Originally Posted by tommytwotrain

Practice Practice. :)

This example just loops the list and prints each item on a new line. There are many ways to do it.

To make the example just cut and paste the code into an empty form.

The example shows the print preview dialog with multiple pages. Click the print button on the dialog to print to the printer.

Here is another example.

Attachment 164931

Code:

---

Imports System.Drawing.Printing

Public Class PrintListView
    Private WithEvents Listbox1 As New ListBox With {.Parent = Me,
        .Location = New Point(20, 20), .Size = New Size(200, 200)}
    Private WithEvents PrintDocument1 As New PrintDocument
    Private WithEvents PrintPreviewDialog1 As New PrintPreviewDialog
    Private MasterData, PrintString As String

    Private Sub Form2_Load(sender As Object, e As EventArgs) Handles Me.Load
        Text = "Print Listview"
        For i As Integer = 1 To 200
            Listbox1.Items.Add("Item Number " & i.ToString & " of Listview Data")
        Next

        For Each i As String In Listbox1.Items
            MasterData += i & vbLf
        Next

        PrintString = MasterData
        PrintPreviewDialog1.Document = PrintDocument1
        PrintPreviewDialog1.ShowDialog()

    End Sub

    Private Sub PrintPage(sender As Object, e As System.Drawing.Printing.PrintPageEventArgs) Handles PrintDocument1.PrintPage

        Dim charactersOnPage, linesPerPage As Integer

        Using f As Font = New Font("Consolas", 12)
            ' Sets the value of charactersOnPage to the number of characters
            ' of stringToPrint that will fit within the bounds of the page.
            e.Graphics.MeasureString(PrintString, f, e.MarginBounds.Size, StringFormat.GenericTypographic, charactersOnPage, linesPerPage)

            ' Draws the string within the bounds of the page
            e.Graphics.DrawString(PrintString, f, Brushes.Black, e.MarginBounds, StringFormat.GenericTypographic)

        End Using

        ' Remove the portion of the string that has been printed.
        PrintString = PrintString.Substring(charactersOnPage)

        ' Check to see if more pages are to be printed.
        e.HasMorePages = PrintString.Length > 0

        'reload string for actual printing after preview
        If Not e.HasMorePages Then PrintString = MasterData
    End Sub
End Class

---

---

This might help. More functionality than a plain text list printing...

https://code.msdn.microsoft.com/List...inter-7a9be0a7

Paul,

I tried the example you sent me and I removed all reference to groups and shortened the list and columns and everything works is the downloaded project, however I am getting errors I don’t understand when I try to use it with my program. Have you used this example in any programs?

The line:
maxPagesWide = pages.Keys.Max + 1
gives the error:
'Max' is not a member of 'System.Collections.Generic.Dictionary(Of Integer, Equipment_Tracker.listViewPrinter.pageDetails).KeyCollection'.

The lines:
items = lv.Items.Cast(Of ListViewItem).ToArray

Dim r2 As New Rectangle(location, New Size(lv.Columns.Cast(Of ColumnHeader).Skip(pages(0).startCol).Take(pages(0).columns).Sum(Function(ch As ColumnHeader) ch.Width), titleHeight))

Both give the error:
'Cast' is not a member of 'System.Windows.Forms.ListView.ListViewItemCollection'.

Any ideas?

Thanks,
Jim

Quote:

---

Originally Posted by .paul.

This might help. More functionality than a plain text list printing...

https://code.msdn.microsoft.com/List...inter-7a9be0a7

---

@Jim...

Those are all linq functions that are causing errors there. Which version of the framework are you targetting? Could you post a screenshot of your Project-->Properties-->References page?

That was the problem. The downloaded project had system.linq checked and the program I was working on did not. I am not familiar with that ref. I guess I need to read up on it. Both target Framwork 4.0

I am now working on modifying the printed page to print landscape and i am noticing the maxHeight needs to reference the width of the page and the MaxWidth needs to reference the height of the page when you set the page landscape to true. I'm sure there is a lot more than that to change, but it is a start and it is working without errors now. I will post the modified ListViewprint class...

Thanks,
Jim

Quote:

---

Originally Posted by .paul.

@Jim...

Those are all linq functions that are causing errors there. Which version of the framework are you targetting? Could you post a screenshot of your Project-->Properties-->References page?

---

Paul,
You were correct on the missing ref. It is working now. This is the modified version of the PrintListView you sent me the link to: I removed the group option and started to work on printing landscape.

Code:

---

Public Class listViewPrinter

    Private lv As ListView
    Private location As Point
    Private border As Boolean
    Private title As String
    Private titleHeight As Integer
    Private hLines As Boolean
    Private vLines As Boolean

    Private WithEvents pd As New Printing.PrintDocument

    Public Sub New(ByVal lv As ListView, ByVal location As Point, ByVal border As Boolean, ByVal _hLines As Boolean, ByVal _vLines As Boolean, Optional ByVal title As String = "")
        Me.lv = lv
        Me.location = location
        Me.border = border
        Me.title = title
        Me.hLines = _hLines
        Me.vLines = _vLines
        titleHeight = If(title <> "", lv.FindForm.CreateGraphics.MeasureString(title, New Font(lv.Font.Name, 25)).ToSize.Height, 0)
    End Sub

    Public Sub print()
        'pd.Print()
        Dim ppd As New PrintPreviewDialog
        ppd.Document = pd
        ppd.WindowState = FormWindowState.Maximized
        ppd.ShowDialog()
    End Sub

    Private Structure pageDetails      ' structure to hold printed page details
        Dim columns As Integer
        Dim rows As Integer
        Dim startCol As Integer
        Dim startRow As Integer
        Dim headerIndices As List(Of Integer)
    End Structure

    Private pages As Dictionary(Of Integer, pageDetails)        ' dictionary to hold printed page details, with index key
    Dim maxPagesWide As Integer
    Dim maxPagesTall As Integer
    Dim items() As ListViewItem

    ' the majority of this Sub is calculating printed page ranges
    Private Sub pd_BeginPrint(ByVal sender As Object, ByVal e As System.Drawing.Printing.PrintEventArgs) Handles pd.BeginPrint
        pd.DefaultPageSettings.Landscape = True
        pd.OriginAtMargins = True  'this removes the printed page margins
        pd.DefaultPageSettings.Margins = New Drawing.Printing.Margins(location.X, location.X, location.Y, location.Y)
        pages = New Dictionary(Of Integer, pageDetails)
        ' Reversed MaxWidth & MaxHeight for landscape page...
        'Dim maxWidth As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Width) - (pd.DefaultPageSettings.Margins.Left + pd.DefaultPageSettings.Margins.Right + 40)
        'Dim maxHeight As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Height - (titleHeight + 12)) - (pd.DefaultPageSettings.Margins.Top + pd.DefaultPageSettings.Margins.Bottom + 40)
        Dim maxWidth As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Height) - (pd.DefaultPageSettings.Margins.Left + pd.DefaultPageSettings.Margins.Right + 0)
        Dim maxHeight As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Width - (titleHeight + 12)) - (pd.DefaultPageSettings.Margins.Top + pd.DefaultPageSettings.Margins.Bottom + 0)

        Dim pageCounter As Integer = 0
        pages.Add(pageCounter, New pageDetails With {.headerIndices = New List(Of Integer)})
        Dim columnCounter As Integer = 0
        Dim columnSum As Integer = 0

        For c As Integer = 0 To lv.Columns.Count - 1
            If columnSum + lv.Columns(c).Width < maxWidth Then
                columnSum += lv.Columns(c).Width
                columnCounter += 1
            Else
                pages(pageCounter) = New pageDetails With {.columns = columnCounter, .rows = 0, .startCol = pages(pageCounter).startCol, .headerIndices = pages(pageCounter).headerIndices}
                columnSum = lv.Columns(c).Width
                columnCounter = 1
                pageCounter += 1
                pages.Add(pageCounter, New pageDetails With {.startCol = c, .headerIndices = New List(Of Integer)})
            End If
            If c = lv.Columns.Count - 1 Then
                If pages(pageCounter).columns = 0 Then
                    pages(pageCounter) = New pageDetails With {.columns = columnCounter, .rows = 0, .startCol = pages(pageCounter).startCol, .headerIndices = pages(pageCounter).headerIndices}
                End If
            End If
        Next
        maxPagesWide = pages.Keys.Max + 1
        pageCounter = 0
        Dim rowCounter As Integer = 0
        Dim counter As Integer = 0
        Dim itemHeight As Integer = lv.GetItemRect(0).Height
        Dim rowSum As Integer = itemHeight

        For r As Integer = 0 To lv.Items.Count - 1
            counter += 1
            If rowSum + itemHeight < maxHeight Then
                rowSum += itemHeight
                rowCounter += 1
            Else
                pages(pageCounter) = New pageDetails With {.columns = pages(pageCounter).columns, .rows = rowCounter, .startCol = pages(pageCounter).startCol, .startRow = pages(pageCounter).startRow}
                For x As Integer = 1 To maxPagesWide - 1
                    pages(pageCounter + x) = New pageDetails With {.columns = pages(pageCounter + x).columns, .rows = rowCounter, .startCol = pages(pageCounter + x).startCol, .startRow = pages(pageCounter).startRow}
                Next
                pageCounter += maxPagesWide
                For x As Integer = 0 To maxPagesWide - 1
                    pages.Add(pageCounter + x, New pageDetails With {.columns = pages(x).columns, .rows = 0, .startCol = pages(x).startCol, .startRow = counter - 1})
                Next
                rowSum = itemHeight * 2
                rowCounter = 1
            End If
            If counter = lv.Items.Count Then
                For x As Integer = 0 To maxPagesWide - 1
                    If pages(pageCounter + x).rows = 0 Then
                        pages(pageCounter + x) = New pageDetails With {.columns = pages(pageCounter + x).columns, .rows = rowCounter, .startCol = pages(pageCounter + x).startCol, .startRow = pages(pageCounter + x).startRow}
                    End If
                Next
            End If
        Next
        maxPagesTall = pages.Count \ maxPagesWide
        items = lv.Items.Cast(Of ListViewItem).ToArray
    End Sub


    Private Sub pd_PrintPage(ByVal sender As Object, ByVal e As System.Drawing.Printing.PrintPageEventArgs) Handles pd.PrintPage
        Dim sf As New StringFormat
        sf.Alignment = StringAlignment.Center
        sf.LineAlignment = StringAlignment.Center

        Dim r2 As New Rectangle(location, New Size(lv.Columns.Cast(Of ColumnHeader).Skip(pages(0).startCol).Take(pages(0).columns).Sum(Function(ch As ColumnHeader) ch.Width), titleHeight))
        e.Graphics.DrawString(title, New Font(lv.Font.Name, 25), Brushes.Black, r2, sf)
        sf.Alignment = StringAlignment.Near
        Dim startX As Integer = location.X
        Dim startY As Integer = location.Y + titleHeight + 12
        Static startPage As Integer = 0
        Dim itemHeight As Integer = lv.GetItemRect(0).Height
        Dim bottomRight As Point

        For p As Integer = startPage To pages.Count - 1
            startX = location.X
            startY = location.Y + titleHeight + 12
            Dim cell As Rectangle
            For c As Integer = pages(p).startCol To pages(p).startCol + pages(p).columns - 1
                cell = New Rectangle(startX, startY, lv.Columns(c).Width, itemHeight)
                e.Graphics.FillRectangle(New SolidBrush(SystemColors.ControlLight), cell)
                e.Graphics.DrawRectangle(Pens.Black, cell)
                e.Graphics.DrawString(lv.Columns(c).Text, lv.Font, Brushes.Black, cell, sf)
                startX += lv.Columns(c).Width
            Next
            startY += itemHeight
            startX = location.X
            For r As Integer = pages(p).startRow To pages(p).startRow + pages(p).rows - 1
                startX = location.X
                For c As Integer = pages(p).startCol To pages(p).startCol + pages(p).columns - 1
                    cell = New Rectangle(startX, startY, lv.Columns(c).Width, itemHeight)
                    e.Graphics.DrawString(items(r).SubItems(c).Text, lv.Font, Brushes.Black, cell, sf)
                    If vLines Then
                        e.Graphics.DrawLine(Pens.Black, cell.Left, cell.Top, cell.Left, cell.Bottom)
                        e.Graphics.DrawLine(Pens.Black, cell.Right, cell.Top, cell.Right, cell.Bottom)
                    End If
                    If hLines Then
                        e.Graphics.DrawLine(Pens.Black, cell.Left, cell.Top, cell.Right, cell.Top)
                        e.Graphics.DrawLine(Pens.Black, cell.Left, cell.Bottom, cell.Right, cell.Bottom)
                    End If
                    startX += lv.Columns(c).Width
                Next
                startY += itemHeight
                If r = pages(p).startRow + pages(p).rows - 1 Then
                    bottomRight = New Point(startX, startY)
                    If border Then e.Graphics.DrawRectangle(Pens.Black, New Rectangle(location, New Size(bottomRight.X - location.X, bottomRight.Y - location.Y)))
                End If
            Next
            If p <> pages.Count - 1 Then
                startPage = p + 1
                e.HasMorePages = True
                Return
            Else
                startPage = 0
            End If
        Next
    End Sub

End Class

---

Quote:

---

Originally Posted by .paul.

@Jim...

Those are all linq functions that are causing errors there. Which version of the framework are you targetting? Could you post a screenshot of your Project-->Properties-->References page?

---

Paul,
You were correct on the missing ref. It is working now. This is the modified version of the PrintListView you sent me the link to: I removed the group option and started to work on printing landscape.

Code:

---

Public Class listViewPrinter

    Private lv As ListView
    Private location As Point
    Private border As Boolean
    Private title As String
    Private titleHeight As Integer
    Private hLines As Boolean
    Private vLines As Boolean

    Private WithEvents pd As New Printing.PrintDocument

    Public Sub New(ByVal lv As ListView, ByVal location As Point, ByVal border As Boolean, ByVal _hLines As Boolean, ByVal _vLines As Boolean, Optional ByVal title As String = "")
        Me.lv = lv
        Me.location = location
        Me.border = border
        Me.title = title
        Me.hLines = _hLines
        Me.vLines = _vLines
        titleHeight = If(title <> "", lv.FindForm.CreateGraphics.MeasureString(title, New Font(lv.Font.Name, 25)).ToSize.Height, 0)
    End Sub

    Public Sub print()
        'pd.Print()
        Dim ppd As New PrintPreviewDialog
        ppd.Document = pd
        ppd.WindowState = FormWindowState.Maximized
        ppd.ShowDialog()
    End Sub

    Private Structure pageDetails      ' structure to hold printed page details
        Dim columns As Integer
        Dim rows As Integer
        Dim startCol As Integer
        Dim startRow As Integer
        Dim headerIndices As List(Of Integer)
    End Structure

    Private pages As Dictionary(Of Integer, pageDetails)        ' dictionary to hold printed page details, with index key
    Dim maxPagesWide As Integer
    Dim maxPagesTall As Integer
    Dim items() As ListViewItem

    ' the majority of this Sub is calculating printed page ranges
    Private Sub pd_BeginPrint(ByVal sender As Object, ByVal e As System.Drawing.Printing.PrintEventArgs) Handles pd.BeginPrint
        pd.DefaultPageSettings.Landscape = True
        pd.OriginAtMargins = True  'this removes the printed page margins
        pd.DefaultPageSettings.Margins = New Drawing.Printing.Margins(location.X, location.X, location.Y, location.Y)
        pages = New Dictionary(Of Integer, pageDetails)
        ' Reversed MaxWidth & MaxHeight for landscape page...
        'Dim maxWidth As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Width) - (pd.DefaultPageSettings.Margins.Left + pd.DefaultPageSettings.Margins.Right + 40)
        'Dim maxHeight As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Height - (titleHeight + 12)) - (pd.DefaultPageSettings.Margins.Top + pd.DefaultPageSettings.Margins.Bottom + 40)
        Dim maxWidth As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Height) - (pd.DefaultPageSettings.Margins.Left + pd.DefaultPageSettings.Margins.Right + 0)
        Dim maxHeight As Integer = CInt(pd.DefaultPageSettings.PrintableArea.Width - (titleHeight + 12)) - (pd.DefaultPageSettings.Margins.Top + pd.DefaultPageSettings.Margins.Bottom + 0)

        Dim pageCounter As Integer = 0
        pages.Add(pageCounter, New pageDetails With {.headerIndices = New List(Of Integer)})
        Dim columnCounter As Integer = 0
        Dim columnSum As Integer = 0

        For c As Integer = 0 To lv.Columns.Count - 1
            If columnSum + lv.Columns(c).Width < maxWidth Then
                columnSum += lv.Columns(c).Width
                columnCounter += 1
            Else
                pages(pageCounter) = New pageDetails With {.columns = columnCounter, .rows = 0, .startCol = pages(pageCounter).startCol, .headerIndices = pages(pageCounter).headerIndices}
                columnSum = lv.Columns(c).Width
                columnCounter = 1
                pageCounter += 1
                pages.Add(pageCounter, New pageDetails With {.startCol = c, .headerIndices = New List(Of Integer)})
            End If
            If c = lv.Columns.Count - 1 Then
                If pages(pageCounter).columns = 0 Then
                    pages(pageCounter) = New pageDetails With {.columns = columnCounter, .rows = 0, .startCol = pages(pageCounter).startCol, .headerIndices = pages(pageCounter).headerIndices}
                End If
            End If
        Next
        maxPagesWide = pages.Keys.Max + 1
        pageCounter = 0
        Dim rowCounter As Integer = 0
        Dim counter As Integer = 0
        Dim itemHeight As Integer = lv.GetItemRect(0).Height
        Dim rowSum As Integer = itemHeight

        For r As Integer = 0 To lv.Items.Count - 1
            counter += 1
            If rowSum + itemHeight < maxHeight Then
                rowSum += itemHeight
                rowCounter += 1
            Else
                pages(pageCounter) = New pageDetails With {.columns = pages(pageCounter).columns, .rows = rowCounter, .startCol = pages(pageCounter).startCol, .startRow = pages(pageCounter).startRow}
                For x As Integer = 1 To maxPagesWide - 1
                    pages(pageCounter + x) = New pageDetails With {.columns = pages(pageCounter + x).columns, .rows = rowCounter, .startCol = pages(pageCounter + x).startCol, .startRow = pages(pageCounter).startRow}
                Next
                pageCounter += maxPagesWide
                For x As Integer = 0 To maxPagesWide - 1
                    pages.Add(pageCounter + x, New pageDetails With {.columns = pages(x).columns, .rows = 0, .startCol = pages(x).startCol, .startRow = counter - 1})
                Next
                rowSum = itemHeight * 2
                rowCounter = 1
            End If
            If counter = lv.Items.Count Then
                For x As Integer = 0 To maxPagesWide - 1
                    If pages(pageCounter + x).rows = 0 Then
                        pages(pageCounter + x) = New pageDetails With {.columns = pages(pageCounter + x).columns, .rows = rowCounter, .startCol = pages(pageCounter + x).startCol, .startRow = pages(pageCounter + x).startRow}
                    End If
                Next
            End If
        Next
        maxPagesTall = pages.Count \ maxPagesWide
        items = lv.Items.Cast(Of ListViewItem).ToArray
    End Sub


    Private Sub pd_PrintPage(ByVal sender As Object, ByVal e As System.Drawing.Printing.PrintPageEventArgs) Handles pd.PrintPage
        Dim sf As New StringFormat
        sf.Alignment = StringAlignment.Center
        sf.LineAlignment = StringAlignment.Center

        Dim r2 As New Rectangle(location, New Size(lv.Columns.Cast(Of ColumnHeader).Skip(pages(0).startCol).Take(pages(0).columns).Sum(Function(ch As ColumnHeader) ch.Width), titleHeight))
        e.Graphics.DrawString(title, New Font(lv.Font.Name, 25), Brushes.Black, r2, sf)
        sf.Alignment = StringAlignment.Near
        Dim startX As Integer = location.X
        Dim startY As Integer = location.Y + titleHeight + 12
        Static startPage As Integer = 0
        Dim itemHeight As Integer = lv.GetItemRect(0).Height
        Dim bottomRight As Point

        For p As Integer = startPage To pages.Count - 1
            startX = location.X
            startY = location.Y + titleHeight + 12
            Dim cell As Rectangle
            For c As Integer = pages(p).startCol To pages(p).startCol + pages(p).columns - 1
                cell = New Rectangle(startX, startY, lv.Columns(c).Width, itemHeight)
                e.Graphics.FillRectangle(New SolidBrush(SystemColors.ControlLight), cell)
                e.Graphics.DrawRectangle(Pens.Black, cell)
                e.Graphics.DrawString(lv.Columns(c).Text, lv.Font, Brushes.Black, cell, sf)
                startX += lv.Columns(c).Width
            Next
            startY += itemHeight
            startX = location.X
            For r As Integer = pages(p).startRow To pages(p).startRow + pages(p).rows - 1
                startX = location.X
                For c As Integer = pages(p).startCol To pages(p).startCol + pages(p).columns - 1
                    cell = New Rectangle(startX, startY, lv.Columns(c).Width, itemHeight)
                    e.Graphics.DrawString(items(r).SubItems(c).Text, lv.Font, Brushes.Black, cell, sf)
                    If vLines Then
                        e.Graphics.DrawLine(Pens.Black, cell.Left, cell.Top, cell.Left, cell.Bottom)
                        e.Graphics.DrawLine(Pens.Black, cell.Right, cell.Top, cell.Right, cell.Bottom)
                    End If
                    If hLines Then
                        e.Graphics.DrawLine(Pens.Black, cell.Left, cell.Top, cell.Right, cell.Top)
                        e.Graphics.DrawLine(Pens.Black, cell.Left, cell.Bottom, cell.Right, cell.Bottom)
                    End If
                    startX += lv.Columns(c).Width
                Next
                startY += itemHeight
                If r = pages(p).startRow + pages(p).rows - 1 Then
                    bottomRight = New Point(startX, startY)
                    If border Then e.Graphics.DrawRectangle(Pens.Black, New Rectangle(location, New Size(bottomRight.X - location.X, bottomRight.Y - location.Y)))
                End If
            Next
            If p <> pages.Count - 1 Then
                startPage = p + 1
                e.HasMorePages = True
                Return
            Else
                startPage = 0
            End If
        Next
    End Sub

End Class

---

Quote:

---

Originally Posted by .paul.

@Jim...

Those are all linq functions that are causing errors there. Which version of the framework are you targetting? Could you post a screenshot of your Project-->Properties-->References page?

---
