Print Preview using a Text Document

So I have been trying to find a method where I can do a PrintPreview on a specific Text Document before Printing using PrintPreviewControl but all the methods I found were using TableAdpters and DataGridView which I should be using but am not. If anyone knows a way that I can do this please?

On my form I have a PrintDocument and PrintPreviewControl
My code is very limited for this as I extremely confused and stuck.:sick:

Here is my code:

Code:

---


Private Sub FrmStockPrint_Load(sender As Object, e As EventArgs) Handles MyBase.Load

PrintStockDetails.DefaultPageSettings.Landscape = True
PrintPreviewControl1.Document = PrintStock()

End Sub

 Sub PrintStock()


    End Sub

---

Table adapters and grids are irrelevant to printing. They are just a way to get the data to print. Once you have the data, printing it is done the same way regardless of where it came from, i.e. you call Print oh a PrintDocument, handle it's PrintPage event and then draw whatever you want printed using GDI+. You need to do just that to print text from a text for our anything else.

Oh ok so I have to actually design the Preview? So do you know a way how I can collect the data from the text document to do this please?

It's a text file. How do you usually read data from a text file? If you don't know, look it up. That's a very common task and thus easy to find information about. In fact, there's likely information out there specifically about printing text files. Depending on the size, i.e. if it might go over multiple pages, you will likely have to do some maths to determine where to put the page breaks.

Oh ok, Thanks. Yes i've been able to find information about printing text files just not Print Previewing.

It's the same thing. The PrintDocument draws using a Graphics object in its PrintPage event handler. That Graphics object is just created in a different way for a real print and a preview.

Its your lucky day here is an example. :)

Just call the preview dialog. The printout drawing is produced on the dialog preview screen. Click ok button on dialog and the same code is used to print the drawing on the printer paper.

There are many ways to do it. This example shows basic printing in columns by using a monotype font. Also printing with word wrap. And finally printing multiple pages.

The example makes the controls just cut and paste into an empty form.

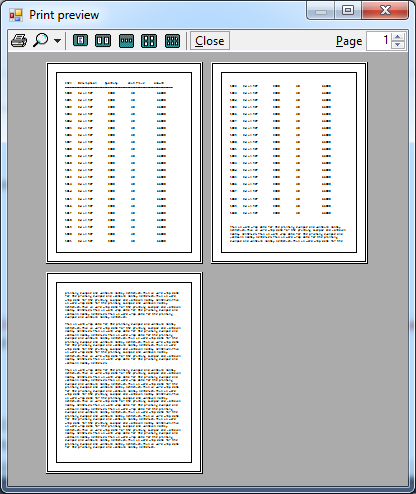

Attachment 164929

Code:

---

Imports System.Drawing.Printing

Public Class PrintTextBasicExample
    Private WithEvents Button1 As New Button With {.Parent = Me, .Text = "Print...", .Location = New Point(100, 100)}
    Private WithEvents PrintDocument1 As New PrintDocument
    Private WithEvents PrintPreviewDialog1 As New PrintPreviewDialog
    Private MasterData, PrintString As String

    Private Sub Form2_Load(sender As Object, e As EventArgs) Handles Me.Load
        Text = "Basic Text Printing"

        'make the column text data
        MasterData = "Item    Description    Quantity      Unit Price      Amount" & vbLf &
                    "_________________________________________________________________" & vbLf & vbLf

        For i As Integer = 1000 To 1040
            MasterData += i.ToString &
                    "    24 in RCP        2200          30              66000" & vbLf & vbLf
        Next


        'make the Word "Wrap text data
        MasterData += vbLf & vbLf

        For i As Integer = 1000 To 1040
            MasterData += "This is word wrap data for the printing example and contains mostly sentences."
            If i = 1010 Or i = 1020 Then MasterData += vbLf & vbLf
        Next


    End Sub

    Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
        Try
            PrintString = MasterData
            PrintPreviewDialog1.Document = PrintDocument1
            PrintPreviewDialog1.ShowDialog()

        Catch ex As Exception
            MsgBox("Printing Problem" & Chr(13) & ex.Message, MsgBoxStyle.Exclamation)
        End Try
    End Sub

    Private Sub PrintPage(sender As Object, e As System.Drawing.Printing.PrintPageEventArgs) Handles PrintDocument1.PrintPage
        'draw the margins
        Dim rect As Rectangle = e.MarginBounds
        rect.Inflate(50, 50)

        e.Graphics.DrawRectangle(Pens.Black, rect)

        Dim charactersOnPage, linesPerPage As Integer

        Using f As Font = New Font("Consolas", 12)
            ' Sets the value of charactersOnPage to the number of characters
            ' of stringToPrint that will fit within the bounds of the page.
            e.Graphics.MeasureString(PrintString, f, e.MarginBounds.Size, StringFormat.GenericTypographic, charactersOnPage, linesPerPage)

            ' Draws the string within the bounds of the page
            e.Graphics.DrawString(PrintString, f, Brushes.Black, e.MarginBounds, StringFormat.GenericTypographic)

        End Using

        ' Remove the portion of the string that has been printed.
        PrintString = PrintString.Substring(charactersOnPage)

        ' Check to see if more pages are to be printed.
        e.HasMorePages = PrintString.Length > 0

        'reload string for actual printing after preview
        If Not e.HasMorePages Then PrintString = MasterData
    End Sub
End Class

---
