[VB6] Change ListView Header Color, Back Color, and Font

Header Colors and Fonts

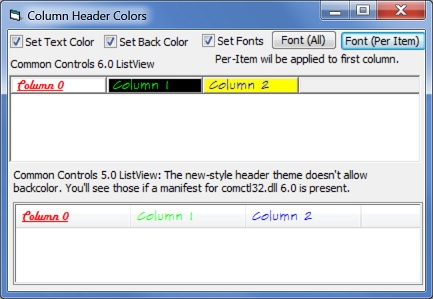

Attachment 178106

So after this thread, I looked to see if anyone had published such code before, and found several more people that asked over the years but no solution was provided. Thought I'd offer a formal Codebank example so the info is easier to find. It's pretty much identical to how you do this for regular List Items, just a few minor differences really. But it still seems that people will find it useful.

Notes
-This works on all types of ListViews, the demo shows both 6.0 and 5.0--- the 5.0 in the picture up top is running with a Common Controls 6 Manifest, if you don't have one of those in your IDE or compile it into your exe, it will look pretty much identical to 6.0. They key difference is the manifest-enabled styling overrides setting the background color, but you can still set font face, color, and effects.

-Note that while the font dialog has a Color option, it's currently ignored and hard-set in the WndProc.

-This doesn't require owner-draw, just responding to the NM_CUSTOMDRAW message:

Code:

---

                Case NM_CUSTOMDRAW
                    Dim nmcdr As NMCUSTOMDRAW
                    CopyMemory nmcdr, ByVal lParam, LenB(nmcdr)
                    Select Case nmcdr.dwDrawStage
                        Case CDDS_PREPAINT
                            LVWndProc = CDRF_NOTIFYITEMDRAW
                            Exit Function
                        Case CDDS_ITEMPREPAINT
                            If nmcdr.dwItemSpec = 0 Then
                                If gSetBk Then SetBkColor nmcdr.hDC, vbWhite
                                If gSetTxt Then SetTextColor nmcdr.hDC, vbRed
                                If gSetFont Then
                                    If hFontItem Then
                                        SelectObject nmcdr.hDC, hFontItem
                                    Else
                                        SelectObject nmcdr.hDC, hFontOrig
                                    End If
                                End If
                            ElseIf nmcdr.dwItemSpec = 1 Then
                                If gSetBk Then SetBkColor nmcdr.hDC, vbBlack
                                If gSetTxt Then SetTextColor nmcdr.hDC, vbGreen
                                If gSetFont Then
                                    'Note that if you're setting any per-item, you're really just
                                    'doing them all per item anyway, and shouldn't bother with
                                    'WM_SETFONT, as it will glitch if we don't always do this
                                    SelectObject nmcdr.hDC, hFontOrig
                                End If
                            ElseIf nmcdr.dwItemSpec = 2 Then
                                If gSetBk Then SetBkColor nmcdr.hDC, vbYellow
                                If gSetTxt Then SetTextColor nmcdr.hDC, vbBlue
                                If gSetFont Then
                                    SelectObject nmcdr.hDC, hFontOrig
                                End If
                            End If
                            LVWndProc = CDRF_NEWFONT
                            Exit Function

---

Requirements
While the general technique might work with earlier Windows versions, the demo project uses subclassing methods that limit this implementation to Windows XP and newer.
