[RESOLVED] ListView not responding to code

I have an app that loads a ListView with a list of applications currently installed on the PC, and their uninstall string commands.
However, try as I might, I cannot get the ListView to respond to any of my code commands, except for resizing when the main form is resized.

Here's the code that sets up the ListView:

Code:

---

    With Me.ListView1
        .Width = Me.Width - 500
        .Height = Me.Height - 1400
        .Top = 840
        .View = lvwReport
        .GridLines = True
        .FullRowSelect = True
        .ListItems.Clear
        .ColumnHeaders.Clear
        .ColumnHeaders.Add , , "Application Name", 5000, lvwColumnLeft
        .ColumnHeaders.Add , , "Uninstall String extracted from Registry", 70000, lvwColumnLeft
    End With

---

This is how the data is loaded:

Code:

---


            If strValue2 <> "" Then
                Set lstItem = Me.ListView1.ListItems.Add()    ' Add items and subitems to list control.
                lstItem.Text = strValue1
                lstItem.SubItems(1) = strValue2
            End If

---

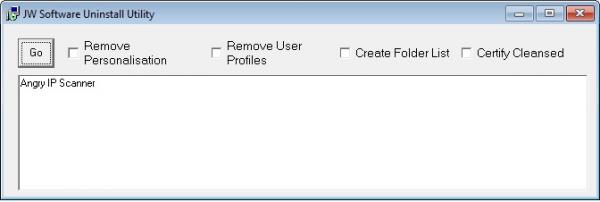

The result is just a ListView that fills the main form, with just one entry, the first item loaded.
There are no column headers, and no gridlines, either.

The resize code, which works, is this:

Code:

---

Private Sub Form_Resize()
    With Me.ListView1
        .Width = Me.Width - 500
        .Height = Me.Height - 1400
    End With
End Sub

---

I've tried regsvr32 mscomctl.ocx, but that, when run as Administrator, completes without error.

I'm running this under Windows 10, one PC is 64Bit, another is 32Bit.

Can anyone see where I'm going wrong? This is driving me nuts!

Jim

Let's see some more of the "data loading" code - like the loop construct that's driving it.

When you debug the code, does it pass through Me.ListView1.ListItems.Add() more than once?

Regards, Phill W.

Hi Phil,

Yes, typically there are about 55 iterations through the loop, depending upon what software has been installed on the PC.

This is all the relevant code:

Code:

---

    With Me.ListView1
        .Width = Me.Width - 500
        .Height = Me.Height - 1400
        .Top = 840
        .View = lvwReport
        .GridLines = True
        .FullRowSelect = True
        .ListItems.Clear
        .ColumnHeaders.Clear
        .ColumnHeaders.Add , , "Application Name", 5000, lvwColumnLeft
        .ColumnHeaders.Add , , "Uninstall String extracted from Registry", 70000, lvwColumnLeft
    End With
    Set objReg = GetObject("winmgmts:{impersonationLevel=impersonate}!\\" & strComputer & "\root\default:StdRegProv")
    strKeyPath = "SYSTEM\CurrentControlSet\Control\ComputerName\ComputerName"
    objReg.GetStringValue HKLM, strKeyPath, "ComputerName", strPCName
    handle = GetProcAddress(GetModuleHandle("kernel32"), "IsWow64Process")
    If handle > 0 Then                                  'IsWow64Process function exists
        IsWow64Process GetCurrentProcess(), is64bit    'determine if we are running under Wow64
    End If
    If is64bit Then
        strKeyPath = "SOFTWARE\Wow6432Node\Microsoft\Windows\CurrentVersion\Uninstall\"
    Else
        strKeyPath = "SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\"
    End If
    objReg.EnumKey HKLM, strKeyPath, arrSubKeys
    For Each strSubKey In arrSubKeys
        strValue1 = "": strValue2 = ""
        objReg.GetStringValue HKLM, strKeyPath & strSubKey, "DisplayName", strValue1
        If strValue1 <> "" And (InStr(1, strValue1, "Update")) = 0 And (InStr(1, strValue1, "Service Pack")) = 0 And (InStr(1, strValue1, "Hotfix")) = 0 Then
            objReg.GetStringValue HKLM, strKeyPath & strSubKey, "UninstallString", strValue2
            If strValue2 <> "" Then
                Set lstItem = Me.ListView1.ListItems.Add()    ' Add items and subitems to list control.
                lstItem.Text = strValue1
                lstItem.SubItems(1) = strValue2
            End If
        End If
    Next

---

I hope this is understandable?

What if you try adding "dummy" items into the listview at the same time?

Code:

---

If strValue2 <> "" Then
  Set lstItem = Me.ListView1.ListItems.Add()    ' Add items and subitems to list control.
  lstItem.Text = strValue1
  lstItem.SubItems(1) = strValue2
End If
Me.ListView1.ListItems.Add( "DUMMY " & Format$( Me.ListView1.ListItems.Count ) )

---

Do those appear?

What's the .View property set to? (or is that a .Net thing?)

Regards, Phill W.

Hi Phil,

No change with dummy item addition.

.View = lvwReport

Attachment 158411

Set a breakpoint at the top of the code and see if you're even hitting it... First instinct is that the code isn't even being reached.

-tg

TG,

Been there, done that.

Stepping through the code with F8, every line gets executed as expected.

I'm concerned that the "initialisation section", although executed, has no effect on the ListView at all. Indeed, even setting the relevant sections in the ListView1 properties pages has no effect.

Have I got a faulty copy of something or other?

Attachment 158413

What happens if you start a new blank project, add a ListView to the form, and paste your code below into Form_Load?

Code:

---

    With Me.ListView1
        .Width = Me.Width - 500
        .Height = Me.Height - 1400
        .Top = 840
        .View = lvwReport
        .GridLines = True
        .FullRowSelect = True
        .ListItems.Clear
        .ColumnHeaders.Clear
        .ColumnHeaders.Add , , "Application Name", 5000, lvwColumnLeft
        .ColumnHeaders.Add , , "Uninstall String extracted from Registry", 70000, lvwColumnLeft
    End With

---

Quote:

---

Originally Posted by JimOldguy

I'm concerned that the "initialisation section", although executed, has no effect on the ListView at all. Indeed, even setting the relevant sections in the ListView1 properties pages has no effect.

Have I got a faulty copy of something or other?

---

There is a property to hide column headers, correct? Ensure that isn't set to true

Is it possible that the subitem string you are adding is prefixed with a carriage return or line feed, null character or something else that would prevent it from being displayed in the subitem? Have you tried to manually supply a test subitem value? If not, try that and see if the subitem is shown.

OptionBase,
That produces just a totally blank ListView.

LaVolpe,
Yes, I've checked hide column headers, etc.
I've also tried adding a simple "Dummy Text" item, all to no avail.

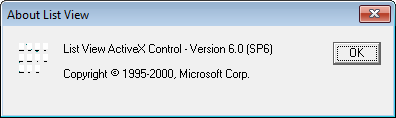

You make reference to the mscomctl.ocx, and based on your About screenshot above, you are presumably using a ListView from the Microsoft Windows Common Controls 6.0 (SP6) component.

What happens if, in your blank test project, you instead use a ListView from the Microsoft Windows Common Controls 5.0 component? This ties to the ComCtl32.ocx file instead.

OK, let's get the really daft stuff out of the way ...

• Have you got more than one ListView?
  You haven't somehow created a ListView2 (or a ListView1(1)) that sits "over the top" of ListView1?
• Have you got any "On Error" statements that you haven't shown us?

Regards, Phill W.

OB,

Yes, it works if I use the older, version 5.0 component, but that doesn't support checkboxes, which I need!

Highly frustrating!

Phil,

Only one ListView.
No "On Errors". (I did have "On Error Resume Next", but I took that out to see if any errors were flagged, but nothing.

I am now leaning towards the conclusion, somewhat inevitably, that there's something adrift in my VB6 installation.
(It's Visual Studio 6, actually, but I don't think that makes any difference here.)

I guess I'll just have to bite the bullet and do a re-install this weekend, if the kids will leave me alone long enough!

I'll report back here the outcome...

Have you tried setting up your ListView at Design-Time (and not at Runtime like in your code)?

Yes, tried both.

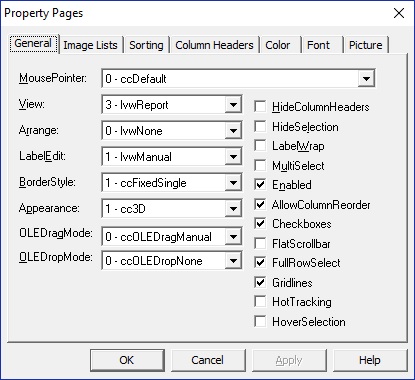

Here's how I tried setting up at design time:
Attachment 158415

Hmm, can't see anything wrong with it.

Just to check: Can you place two standard ListBoxes on your Form, and then add strValue1 to the first, and strValue2 to the second during your loop?
It's to find out, if it's your ListView or if it's your Loop/Registry-stuff.

Quote:

---

Originally Posted by JimOldguy

OB,

Yes, it works if I use the older, version 5.0 component, but that doesn't support checkboxes, which I need!

Highly frustrating!

---

The 5.0 control absolutely does support checkboxes, you just have to set them with API. Add the LVS_EX_CHECKBOXES style, then also here's some macros to get/set the state:

Code:

---

'ListView_SetExtendedListViewStyleEx LVS_EX_CHECKBOXES, LVS_EX_CHECKBOXES
Public Function ListView_SetExtendedListViewStyleEx(hwndLV As Long, dwMask As Long, dw As Long) As Long
  ListView_SetExtendedListViewStyleEx = SendMessage(hwndLV, LVM_SETEXTENDEDLISTVIEWSTYLE,
ByVal dwMask, ByVal dw)
End Function

Public Function ListView_GetCheckState(hwndLV As Long, iIndex As Long) As Long  ' updated
  Dim dwState As Long
  dwState = SendMessage(hwndLV, LVM_GETITEMSTATE, ByVal iIndex, ByVal LVIS_STATEIMAGEMASK)
  ListView_GetCheckState = (dwState \ 2 ^ 12) - 1
End Function

Public Function ListView_SetCheckState(hwndLV As Long, i As Long, fCheck As Long) As Long
ListView_SetCheckState = ListView_SetItemState(hwndLV, i, IndexToStateImageMask(IIf(fCheck, 2, 1)), LVIS_STATEIMAGEMASK)
End Function

Public Function ListView_SetItemState(hwndLV As Long, i As Long, State As LVITEM_state, Mask As LVITEM_state) As Boolean
  Dim lvi As LVITEM
  lvi.State = State
  lvi.StateMask = Mask
  ListView_SetItemState = SendMessage(hwndLV, LVM_SETITEMSTATE, ByVal i, lvi)
End Function

Public Function IndexToStateImageMask(ByVal Index As Long) As Long
IndexToStateImageMask = Index * (2 ^ 12)
End Function

---

It's like this for all features. The 5.0 control supports every single feature of the 6.0 control (and tons of features the 6.0 doesn't support), you just need a few API calls to do it.

Good morning,
(Well, it is here, in UK!)

Thank you, Fafalone, for all that info. I'll look into using that as my Plan B.

In the meantime...

I have just run the code here on my 32Bit Windows 10 PC at home.

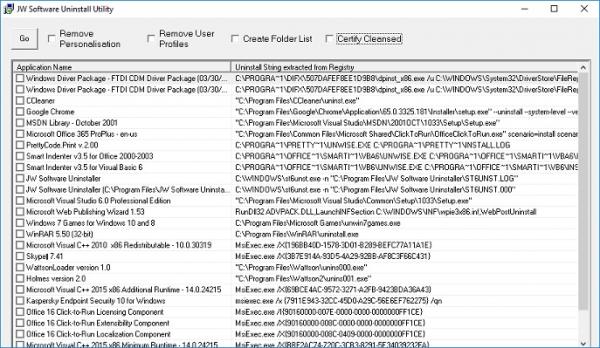

In the IDE, it runs perfectly! All ListView features are correct.
Attachment 158423

Wonderful! Or so I thought!

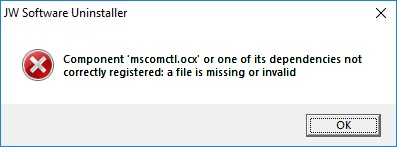

I then built a .exe file, but when I run that, this is what I see:
Attachment 158425

I've tried REGSVR32 mscomctl.ocx, in Admin mode, and that completes without error, but the .exe still won't run!:(

I've now re-installed VB6 on my 32Bit PC, but that has made no difference.

However, I have just noticed something slightly odd:

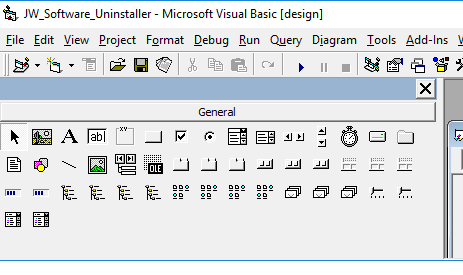

When I add MS Windows Common Controls 6.0 (SP6) to the components, I seem to get multiple instances in the toolbox.

See this:
Attachment 158427

Shouldn't there be just one of each control shown here?

Quote:

---

Originally Posted by JimOldguy

*snipp*
I've tried REGSVR32 mscomctl.ocx, in Admin mode, and that completes without error, but the .exe still won't run!:(

---

Have you run regsvr32 in both folders (System32 and SysWow64)/Is the OCX in both Folders?

Zvoni, this is a 32Bit PC, so there is only System32.

I remember an issue with ListView with some Win-Updates disabling the control/ocx in the registry.
the ocx is correctly installed and registered, but disabled in the registry.

but for the life of me i can't remember how i solved that.
it had to do something with a tool, where you can enable/disable controls in the registry.

search the forums here. If i remember correctly, there have been some threads with similiar problems with Listview

OK, guys,

Thanks for all your help and suggestions.

I've been down the hard road, and done a Windows 10 Reset!

Now, having re-installed VB6, all is well!

Must have been something corrupted, somewhere.

Fortunately, Windows 10 Reset only takes an hour or so, and you get back to a nice clean PC!

Now I just have to re-install all my apps!

Anyway, thanks again to all concerned.
