How to introduce line break each 12 words when writing a file'?

Hi! I have the following code to read a FlexGrid and save the data in a txtFile. I want to introduce a break line each 12 parameters written that are separated by " ; ".

My code:

Code:

---


Private Sub Save_Data_Click()

    Dim ret As Boolean

    ' Le envia el control MsFlexgrid, el path del archivo txt y el delimitador
    ret = Export_Data(Grid1, "C:\Documents and Settings\Administrador\Escritorio\TFG\Registros\Register_Data.txt", Chr(59))

    If ret Then
        MsgBox "Table exported! ", vbInformation
    End If
End Sub


Public Function Export_Data(MSFlexGrid As Object, Path_Txt As String, Delimitador As Variant) As Boolean

    On Error GoTo Funcion_Error
    Dim i, ja As Integer
    Dim Free_File As Integer

    ' Número de  archivo libre para crear el archivo de texto
    Free_File = FreeFile
    ' Abre y crea el  archivo
    Open Path_Txt For Output As #Free_File

    Print #Free_File, "#MAC; RbRx; RbTx; PKTs; Tact; LastAct; RSSI; SNR; CCQtx; Throughput; IP; Mod#"

    ' Recorre las filas del Flexgrid
    For i = 1 To Grid1.Rows - 1
        Grid1.Row = Fi  'Empiezo en la fila 1 no en la cero

        For j = 1 To Grid1.Cols - 1
            Grid1.Col = j


            ' Write the data
            'Print #Free_File, vbNullString & Grid1.text & vbNullString;
                        If j >= 1 Then
                            Print #Free_File, Grid1.text & Delimitador;
                        End If

        Next

        'Print #Free_File, ""

    Next
    Close
    Exportar_Datos = True

    ' Fin
    Exit Function

' error
Funcion_Error:
    Close #Free_File
    MsgBox Err.Description, vbCritical
End Function

---

What it shows in the file:

Code:

---

#MAC; RbRx; RbTx; PKTs; Tact; LastAct; RSSI; SNR; CCQtx; Throughput; IP; Mod#  (1sr line)
;B8:64:91:68:1C:50;65Mbps-20MHz/1S;65Mbps-20MHz/1S;1131,1109;26m4s;210ms;-62@1Mbps;25 (2nd line) dB;99%;60958;192.168.100.253;CCK:1-11;;B8:64:91:68:1C:50;65Mbps-20MHz/1S;65Mbps- (2nd line)
 20MHz/1S;1207,1185;27m10s;440ms;-32@6Mbps;55 dB;96%;60488;192.168.100.253;CCK:1- (2nd line) 11;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  (2nd line)

---

And I want:

Code:

---

#MAC; RbRx; RbTx; PKTs; Tact; LastAct; RSSI; SNR; CCQtx; Throughput; IP; Mod#  (1sr line)
;B8:64:91:68:1C:50;65Mbps-20MHz/1S;65Mbps-20MHz/1S;1131,1109;26m4s;210ms;-62@1Mbps;25 (2nd line) dB;99%;60958;192.168.100.253;CCK:1-11; (2nd line)
;B8:64:91:68:1C:50;65Mbps-20MHz/1S;65Mbps- (3rd line)
 20MHz/1S;1207,1185;27m10s;440ms;-32@6Mbps;55 dB;96%;60488;192.168.100.253;CCK:1- (3rd line) 11;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  (3rd line)

---

The ;;;;;;;;;;;;;;;; are blank cells. It would be a great idea delate it too....
Thank you!

Hi ams16,

I didn't study your code, but I did study the two text files you posted. Also, you didn't post a screen-shot of your FlexGrid, so I'm not totally clear as to what we're looking at.

However, on the FlexGrid, it appears that you have a single row that you wish to break up into multiple lines in your text file. That seems fairly straightforward to me. Just casually looking at it, maybe you can check for "B8" in the start of a cell's text. If found, send a vbCrLf to your text file so that a new line is started.

Alternatively, maybe you could search for the entire "B8:64:91:68:1C:50". That seems to be what you're using to define a new line. However, I've got no idea what this data relates to.

Personally, it seems like a fairly straightforward parsing issue. You just need to thoroughly understand the structure of your data and how to appropriately parse it.

Good Luck,
Elroy

ams

I think I get your drift .. here is my initial stab at it.

Code:

---

        With FG1
            .Top = 500
            .Left = 500
            .Width = 9000 - 50
            .Height = 1400
            .Visible = True
            .Cols = 12
            .Rows = 5
            .FixedCols = 0
            For ii = 0 To 11
                .ColWidth(ii) = 750
            Next ii
            ' 1a. read 1st line .. has CR .. carriage Return
            fpath = "D:\VBForums\amsf1.txt"
            Open fpath For Input As #1
            Line Input #1, xtr
            ' 1b. populate FG "headers"
            For ii = 1 To 12
                nn = InStr(xtr, ";")
                If nn > 0 Then
                    txt = Left(xtr, nn - 1)
                Else
                    txt = xtr
                End If
                .TextMatrix(0, ii - 1) = txt
                ' prep for next
                xtr = Mid(xtr, nn + 1)
            Next ii
            ' 2a. read 2nd line .. 1 very long line of text, no CR's
            Line Input #1, xtr
            Close #1
            ' 2b. split at each ";"
            rr = 1
            For rr = 1 To 3
                For cc = 1 To 12
                    nn = InStr(xtr, ";")
                    If nn > 0 Then
                        txt = Left(xtr, nn - 1)
                    Else
                        txt = xtr
                    End If
                    .TextMatrix(rr, cc - 1) = txt
                    .Col = cc - 1
                    .CellAlignment = 0
                    ' prep for next
                    xtr = Mid(xtr, nn + 1)
                    If cc = 12 Then
                        Exit For
                    End If
                Next cc
            Next rr
        End With

---

.. here is the textfile as I interpreted it

Code:

---

#MAC; RbRx; RbTx; PKTs; Tact; LastAct; RSSI; SNR; CCQtx; Throughput; IP; Mod#
;B8:64:91:68:1C:50;65Mbps-20MHz/1S;65Mbps-20MHz/1S;1131,1109;26m4s;210ms;-62@1Mbps;25  dB;99%;60958;192.168.100.253;CCK:1-11;;B8:64:91:68:1C:50;65Mbps-20MHz/1S;65Mbps- 20MHz/1S;1207,1185;27m10s;440ms;-32@6Mbps;55 dB;96%;60488;192.168.100.253;CCK:1-  11;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

---

Assumptions

1. line 1 has a Carriage Return at the end if it
2. line 2 does not .. it is one very long line of text

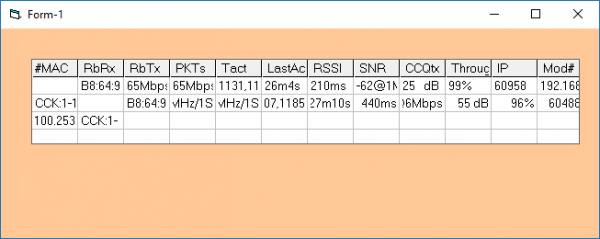

.. and here is a screenshot

Attachment 152757

Issues

1. line 1, used for col headers, seems ok
2. the other lines do not
3. I removed the (1st line), etc, text as I assumed it was for discussion purposes
4. Each new row seems to be offset by 1 col.

There seem to be some issues regarding location of your ";" separators
Perhaps you could post the actual text file

HTH

Spoo

Gotta ask a simple question. Why not just output the text file in a format easier for you to parse?

Write to file, the record using whatever delimiter you want. And at the end of the record, write a carriage return. Now you can use Line Input to retrieve an entire record vs trying to parse out run-on record data. See my comments in the code, prefixed with <<<

Code:

---

    For i = 1 To Grid1.Rows - 1
        Grid1.Row = i  'Empiezo en la fila 1 no en la cero
        For j = 1 To Grid1.Cols - 2 ' <<< note we changed this to 2
            Grid1.Col = j
            ' Write the data
            Print #Free_File, Grid1.Text & Delimitador;
        Next
        Grid1.Col = j  ' <<< write last field and a carriage return
        Print #Free_File, Grid1.Text & Delimitador ' <<< note no semicolon
    Next

---

Edited: That final "Print" statement probably shouldn't include the Delimitador value.
If using code like the above, you can use Line Input statements to re-populate your grid

Code:

---

Dim sFields() As String, sRecord As String, sHeader As String

... open the file
    Line Input #Free_File, sHeader
    Do Until EOF(Free_File)
        Line Input #Free_File, sRecord
        If sRecord = String(Len(sRecord), Delimitador) Then
            ' empty record
        ElseIf sRecord <> vbNullString Then ' ignore blank lines in text file
            ' populate your Grid
            sFields() = Split(sRecord, Delimitador)
            For j = 0 To UBound(sFields)
                .... add field data to grid
            Next
        End If
    Loop
    Close #Free_File

---

Quote:

---

Originally Posted by LaVolpe

Gotta ask a simple question. Why not just output the text file in a format easier for you to parse?

---

Indeed.

(Somewhat OT .. your boys did us in .. here's to hoping you go all the way)

Quote:

---

Originally Posted by Spooman

your boys did us in .. here's to hoping you go all the way)

---

That was a very fan-friendly game -- lots of plays to cheer & jeer for both teams' fans.
P.S. Dusty seems to be a playoff jinx. We dealt with it when he was with the Cubs

Thank you for your help.

I explain you what I want with the next picture. I want to read my FlexGrid of two columns (I read only the second colum) and a variable number of rows because I am monitoring data and each time I click a button, a new group of data is added to the table.

In the next picture I show you what I have:
Attachment 152795

And in this picture I show you what I want:

Attachment 152793


The second MAC direction could be different from the first one.

anybody knows? :)

ams

Sorry to say, but I don't understand what you mean
Plus, your images are too small to read
Did you try the code in my post #3?

Spoo

Quote:

---

'Print #Free_File, ""

---

this line commented out in your code should put a new line for each row, but no need to print anything

Code:

---

print #free_file

---

Pete

Good catch

Spoo

Thank you for your help Spoo but the solution of #3 is not what I want.

I have this grid:
Attachment 152845

As you can see, my application cathes the same data of various devices. In the next rows from "Dispositivo 2 (Device 2 in english)" there are the same data as you can se of "Dispositivo 1" but ovbiously with different values.

I want to read all the grid ( but only the second column) and save the data in rows in a txt file (1 row for each device). Example: If the app detects two devices I want this in my txt file:

#MAC; RbRx; RbTx; PKTs; Tact; LastAct; RSSI; SNR; CCQtx; Throughput; IP; Mod#
B8:64:91:68:1C:50;65Mbps-20MHz/1S;5.5Mbps;36,44;22s;150ms;-35@HT20-7;51 dB;52%;3971;192.168.100.253;CCK:1-11;
B8:64:91:68:1C:51;60Mbps-20MHz/1S;5.5Mbps;37,45;23s;460ms;-35@HT20-7;51 dB;54%;3971;192.168.100.253;CCK:1-11;

try like

Code:

---

Grid1.column = 2
 For i = 1 To Grid1.Rows - 1 step 13
    j = 1 to 12
          grid1.row = i + j
          Print #Free_File, Grid1.text & Delimitador;
    next
    print #free_file
next

---

assumes that Dispositivo 1 is the text in row 1, this is untested
