[RESOLVED] DGV Column issue

I have a DGV that displays a list of approvers using the following code:

Code:

---

            Me.TblChangeApproveTableAdapter.FillByChangeID(Me._MasterBase4_0ItemMasterDataSet.tblChangeApprove, glbintCRNum)
            dgvSignList.DataSource = Me._MasterBase4_0ItemMasterDataSet
            dgvSignList.Height = 406
            dgvSignList.Width = 779
            dgvSignList.DataMember = "TblChangeApprove"
            dgvSignList.Columns(0).Visible = False
            dgvSignList.Columns(1).Visible = False
            dgvSignList.Columns(2).HeaderText = "Name"
            dgvSignList.Columns(2).Width = 275
            dgvSignList.Columns(3).HeaderText = "Job Title"
            dgvSignList.Columns(3).Width = 275
            dgvSignList.Columns(4).HeaderText = "Department"
            dgvSignList.Columns(4).Width = 225
            dgvSignList.Columns(5).Visible = False
            dgvSignList.Columns(6).Visible = False
            dgvSignList.Columns(7).Visible = False
            dgvSignList.Columns(8).Visible = False
            dgvSignList.Columns(9).Visible = False

---

No problem, the DGV lists exactly what I want from this table.

So what I do is use a DGV double_Click() event to select one of the persons displayed on the list:

Code:

---

            glbstrName = CStr(Me.dgvSignList.Rows(e.RowIndex).Cells(5).Value.ToString)
            RemoveApprover()

---

You will note that in the first code block above most of the columns have had .Visible = False.

So my problem is that the data I am interested in is in a column that .Visible = False and ONLY the fields with .Visible = True will provide a value for the variable in the second set of code. So how do I squeeze a value from a column that .Visible = False?

It shouldn't matter. The DGV is bound to a datatable, which has rows. You know the selected row in the DGV, which is the row of interest in the underlying datatable, so you can get the data from there based off the RowIndex.

At first, I was surprised to hear that you couldn't get the data from a hidden field in the DGV. I guess I'm still surprised at that, but I realized I don't think I have ever tried, because I always go to the datasource for information.

I do not believe that I have experienced this problem when I use the Properties window to set datasource and datamember for the DGV. However, this particular DGV, depending on where it is called from, might use different tables so that is why I set the datasource and datamember in the code. Anyway, I have ran the second block set using different column numbers and it only provides a value when the .Visible = True in the first code block.
It would appear that there must be another setting for that column that is required if .Visible = False.

CStr and then .Value.ToString, no need!!
I would use just CStr, .ToString provides you with a exception if the value is dbnull.

Code:

---

glbstrName = CStr(Me.dgvSignList.Rows(e.RowIndex).Cells(5).Value)

---

I have been doing some more experimenting and it turns out that I am wrong about .Visible = False being the issue. I guess there has to be a first for everything.

So here is what I am after. I want to obtain the value of the primary key assign that value to a variable

Code:

---

glbintIDNum = CInt(Me.dgvSignList.Rows(e.RowIndex).Cells(0).Value.ToString)

---

However, the variable instead is assigned -1.

Can you post the rest of the code you use to remove the aprovern including the event and the methode?

Code:

---

    Private Sub dgvSignList_CellDoubleClick(sender As Object, e As DataGridViewCellEventArgs) Handles dgvSignList.CellDoubleClick
        If glbintCount = 1 Then
            glbintIDNum = CInt(Me.dgvSignList.Rows(e.RowIndex).Cells(0).Value)
            RemoveApprover()
        ElseIf glbintCount = 2 Then
            RemoveTrainee()
        Else
            MsgBox("Case Failure")
        End If
    End Sub

---

Code:

---

    Private Sub RemoveApprover()
        Try
            Me.TblChangeApproveTableAdapter.FillByApproveID(Me._MasterBase4_0ItemMasterDataSet.tblChangeApprove, glbintIDNum)
            Me._MasterBase4_0ItemMasterDataSet.tblChangeApprove(0).blnRemoved = False
            Me._MasterBase4_0ItemMasterDataSet.tblChangeApprove(0).strSignature = "Removed by Admin, " + glbstrName + CStr(DateAndTime.Now)
            Me.Validate()
            Me.tblChangeApproveBindingSource.EndEdit()
            Me.TblChangeApproveTableAdapter.Update(Me._MasterBase4_0ItemMasterDataSet)
            Me.TblChangeApproveTableAdapter.FillByActive(Me._MasterBase4_0ItemMasterDataSet.tblChangeApprove, glbintCRNum)
            With dgvSignList
                .Enabled = False
            End With
        Catch ex As Exception
            'Message for user removal failure
            Dim strMessage As String = Nothing
            'glbstrMessage = CType(HelpMessage.NoRemoveMessage(strMessage), String) + "from Approval table"
            'MsgBox(glbstrMessage)
        End Try
    End Sub

---

Forgot this part

First you wanna make sure you clicking a valid row and not the column headers:

Code:

---


 Private Sub dgvSignList_CellDoubleClick(sender As Object, e As DataGridViewCellEventArgs) Handles dgvSignList.CellDoubleClick

'I added this
if e.RowIndex > -1 Then

        If glbintCount = 1 Then
            glbintIDNum = CInt(Me.dgvSignList.Rows(e.RowIndex).Cells(0).Value)
            RemoveApprover()
        ElseIf glbintCount = 2 Then
            RemoveTrainee()
        Else
            MsgBox("Case Failure")
        End If

End IF
    End Sub

---

What does happen, does it gives you a exception?

It does when I take it out of the Try/Catch that I have. I have not run it that far because I can see that I am getting no value assigned to variable when I take that value from the column containing the primary key.

Replace column index by column name

Code:

---

glbintIDNum = CInt(Me.dgvSignList.Rows(e.RowIndex).Cells("ColumnName here").Value)

---

also you should check if the value is not dbnull

Inside of the try catch or out of it should trow you the exception anyway

Mike,

I did use the code that you suggested. However, I still get -1 for the value of the variable after that line is executed.

Explain:
Is the exception trown under the doubleclick event or under RemoveApprover?

The exception occurs during the Update(). It was that error that lead me back to what I am looking at currently. So here is what I am trying to do.

I am wanting to delete a person from the displayed DGV list with a double click. I have been using a methodology to accomplish that but I never really liked it because of the way it works.

The old method would distribute the values from a record into a set of variables. The row would then be removed, a new row created and then populated from the variables. It worked, but I have always hated it.

What I am wanting to do now is take the row selected from the double click and just go ahead and replace the values in two of the columns with different values.

I m not understanding, and i dont have VS here now, can you post the exception message?

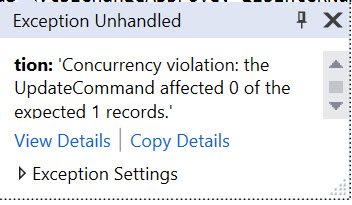

Here you go:

Attachment 152621

I dont understand why you in you first post you fill TblChangeApproveTableAdapter, i guess that code will be under some other event like form load, and then you fill TblChangeApproveTableAdapter again under RemoveApprover

Here is what it is that I think I should know and what I am seeing as a problem.

When I execute this code here is what occurs:

Quote:

---

glbintIDNum = CInt(Me.dgvSignList.Rows(e.RowIndex).Cells("intChangeID").Value)

---

The value for glbintIDNum = 10000. This is the value that is in intChangeID.

If I run execute this code instead

Quote:

---

glbintIDNum = CInt(Me.dgvSignList.Rows(e.RowIndex).Cells("intApproveID").Value)

---

The value for glbintIDNum = -1. This is the value that is in intApproveID = 6

intApproveID is a primary key field in this table and is an autoincrement integer field. inChangeID is just an integer field and is not a primary key. That is the only difference I can define between the two.

If the -1 value is the return of the Indexkey/Primary Key then you hgetting the index of a new row that has not been yet saved.
Means your table has no rows, either couse you not filling it, or the value of the Where "clousele" does not exists on that table.

Actually, I get -1 if I selected the first record in the DGV, -2 the second, -3 ...... I guess that is the explanation for the index. OK, I don't understand why, but I see that is apparently what it is doing. So my question is why is it not instead outputting the actual value contained in that field? It does output the actual value for any other field named.

I have no ideia about that one, but if you add a databound datagridview to a form and leave the autoincrement primary key visible, while you dont save the data you will see that the auto increment will be -1, -2, -3 and so on...
You need to check you code and see whats happening.

Interesting. I am not sure even where I would look in the code to find what is occurring. One thing that is clear is that there are only four of the 10 columns/fields, will output a value to the variable when the line of code above is run. So what kind of code should I be looking at that would limit which columns can be read and the value extracted?

I have no idea what may be actualy cousing that, first i would do would be set visible all datagridview columns and see its values.

OK, I did that. I did see where the primary key field does show an index instead of the actual field value. However, it is still only the 4 fields that actually output a value to a variable. I don't know what that means, but it is clear that somewhere (upstream in the code) those four columns are declared or defined and the others are not.

I dont understand very well what 4 fields do you refear to?

I found it. It was not in the code, it was in my query. The only columns SELECT in the query used were those 4 fields. I normally just put all of the fields into the SELECT command line but apparently did not do this for this query. Damn, that was hard to find.

I was thinking there where a a problem with the fill.

Yeah, that was always at the back of my mind too. Anyway, thanks and I like that I actually figured one out myself.

Lol...
