ListBox - finding specific data and index

Hello everyone, what i'm doing now, it's read info from CANBUS and put it in the listbox in vb6. It looks like

Code:

---

tmp = idtag.Text & vbTab & dlc.Text & vbTab & RxData.Text

---

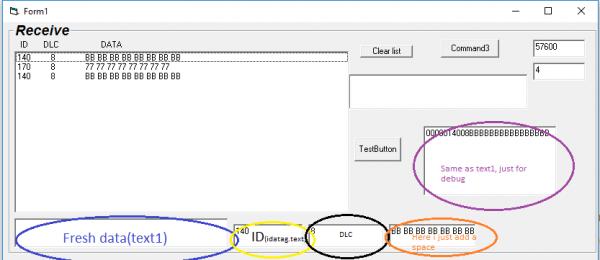

SO what i have in listbox after a get it its Attachment 150717
so as you can see i have two id 140, so it means listbox just add new line every time. What i want it's make it read ID then if its equal to id that we receive from CANBUS, we put data exactly to that ID. Like "if ID from CANBUS = ID in LISTBOX then update data from CANBUS in that ID, if received id doesnt excist in listbox, then add new item". As you can see from a picture i recevie data from canbus in one like, ID+DLC+DATA like this "0000014008BBBBBBBBBBBBBBBB" then i extract right values from with MID() then add to listbox. My code is:

Code:

---

Select Case MSComm1.CommEvent
    Case comEvReceive
    Buffer = MSComm1.Input
    Text1.Text = Text1.Text & Buffer
    If Len(Text1.Text) = 26 Then
    Text4 = Text1
        idtag.Text = Mid(Text1.Text, 6, 3)
        dlc.Text = Mid(Text1.Text, 10, 1)
        RxData.Text = Mid(Text1.Text, 11, 16)
        'Call Command1_Click
        RxData.Text = Right(Text1.Text, Val(dlc.Text * 2))
        RxData = SpaceIt(RxData)
        tmp = idtag.Text & vbTab & dlc.Text & vbTab & RxData.Text
        If List1.ListCount > 14 Then List1.RemoveItem (a)
        List1.AddItem tmp, a
        Text1.Text = ""
        a = a + 1
        If a > 14 Then
            'List1.Clear
            a = 0
        End If
    End If
End Select
End Sub

---

Any ideas? aprecciate any input. Thanks

Jeezy

I've reposted your code with slightly different indents to I can follow it better

Code:

---

    Select Case MSComm1.CommEvent
        Case comEvReceive
            Buffer = MSComm1.Input
            Text1.Text = Text1.Text & Buffer
            If Len(Text1.Text) = 26 Then
                Text4 = Text1
                idtag.Text = Mid(Text1.Text, 6, 3)
                dlc.Text = Mid(Text1.Text, 10, 1)
                RxData.Text = Mid(Text1.Text, 11, 16)
                'Call Command1_Click
                RxData.Text = Right(Text1.Text, Val(dlc.Text * 2))
                RxData = SpaceIt(RxData)
                tmp = idtag.Text & vbTab & dlc.Text & vbTab & RxData.Text
                If List1.ListCount > 14 Then
                    List1.RemoveItem (a)
                End If
                List1.AddItem tmp, a
                Text1.Text = ""
                a = a + 1
                If a > 14 Then
                    'List1.Clear
                    a = 0
                End If
            End If
    End Select
End Sub

---

Some initial questions:

1. You've got alot of controls shown, so just to be sure, is List1 the small control, second from the right, at the bottom, containing the entry 140?
2. If so, how can you see 14 entries?
3. If not, then which control is List1?

Spoo

As i told before, i got a data from canbus MCU as ID(4bytes)+DLC(1Byte)+DATA(8Bytes)in HEX, so actually i get this as fresh data in mscomm32 "0000014008BBBBBBBBBBBBBBBB" after that i just exctract values on idtag, dlc and data Textboxes with Mid() cmd then add it with

Quote:

---

tmp = idtag.Text & vbTab & dlc.Text & vbTab & RxData.Text

---

to listbox

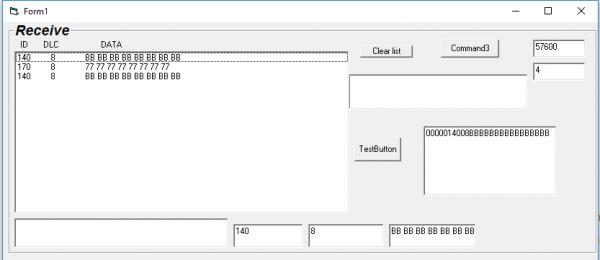

Attachment 150719.
i didnt understood second and third questions.

Code:

---

If List1.ListCount > 14 Then

---

this is was for a limit listbox to 14 indexes only. If its still hard to understand i can upload a youtube video of working principe, if it helps

Jeezy

I think now that I was wrong in my prior assumption.
List1 is the "big" control at the upper left, under the captions "ID .. DLC .. DATA", correct?

Spoo

Yes you are right , its list1(listbox), its where ID DLC DATA labels located above it. All others are textboxes.

Quote:

---

Originally Posted by Spooman

Jeezy

I think now that I was wrong in my prior assumption.
List1 is the "big" control at the upper left, under the captions "ID .. DLC .. DATA", correct?

Spoo

---

Actually what i was thinking its extract data from listbox1 with listboxindex.value, after it filled first time to textbox from RX. Then check it with "idtag textbox" if its equal we put updated data from "data textbox" something like this:

Code:

---

Private Sub Command3_Click()
Dim tmp As String
Dim Item() As String
Dim x As Integer
Dim IndexCheck As String
For x = 0 To List1.ListCount - 1

IndexCheck = x
    Text5.Text = Text5.Text + IndexCheck + Mid(List1.List(x), 1, 3) + vbCrLf

Next

End Sub

Private Sub Command4_Click()
Dim tmp As String
a = Mid(Text5.Text, 1, 1)
  If idtag.Text = Mid(Text5.Text, 2, 3) Then
  List1.RemoveItem (a)
    tmp = idtag.Text & vbTab & dlc.Text & vbTab & RxData.Text
    List1.AddItem tmp, Mid(Text5.Text, 1, 1)
    End If
    Text5.Text = ""
End Sub

---

But again, i dont know how to make it not on the buttons but on the mscomm after data is filled first time, and also make it check every line.... so code seems wrong, just my thoughts....

Jeezy

OK, that's a start ;)

However, I'm still confused about what you are trying to accomplish.
Could you given a couple of example situations?

EDIT-1:

You snuck posts #6 in while I was composing, so thanks for the info.
I'll think on that for a bit, after I get some sleep

Spoo

Thanks for your attention to the problem.
Want to start with some words about canbus, canbus has a periodic data send, it can send same idtag with data none-stop, until power off. So to make soft easier to debug this data i want to listbox hold value in the same id. Sample: "We got 14 frames from CANBUS add them into listbox, then canbus continue sending the frames to us, so what will listbox do? it will just add new lines with same id and data - its wrong. so what i want to make vb6 code check the id and if id exists in listbox and its equal to canbus data, we just updata a value(or remove a line and add new with same id to that place). To better understand see this: https://www.youtube.com/watch?v=jUuncLav0v8
as you can see in the video, listbox doesnt add new lines it just updating the data

Thanks, have a good dreams :)

a simulation with a timer

Code:

---

Private Sub Form_Load()
    Timer1.Interval = 200
End Sub
Private Sub Timer1_Timer()
    Dim AddItem As Boolean
    Dim TheItem As String
    TheItem = Format(Int(Rnd * 14), "00") & "--" & Now
    AddItem = True
    For i = 0 To List1.ListCount
        If Left(List1.List(i), 2) = Left(TheItem, 2) Then
          AddItem = False
          Exit For
        End If
    Next
    If AddItem Then
      List1.AddItem TheItem
    Else
        List1.List(i) = TheItem
    End If
End Sub

---

I think if it were me I would make use of the item data portion of the list box and place my id there.
Would be quicker and easier to loop through the list and check the item data value rather than parsing the string for the ID
This would give you the index of the item if it exists and allow you to update the text of the item in the list as needed.

Quote:

---

Originally Posted by DataMiser

I think if it were me I would make use of the item data portion of the list box and place my id there.
Would be quicker and easier to loop through the list and check the item data value rather than parsing the string for the ID
This would give you the index of the item if it exists and allow you to update the text of the item in the list as needed.

---

True, (provided that 'idtag.Text = Mid(Text1.Text, 6, 3)' can always be converted to an integer)

Quote:

---

Originally Posted by DataMiser

I think if it were me I would make use of the item data portion of the list box and place my id there.
Would be quicker and easier to loop through the list and check the item data value rather than parsing the string for the ID
This would give you the index of the item if it exists and allow you to update the text of the item in the list as needed.

---

Thanks for your attention, btw can you provide simple exmaple for better understanding?

Quote:

---

Originally Posted by IkkeEnGij

a simulation with a timer

Code:

---

Private Sub Form_Load()
    Timer1.Interval = 200
End Sub
Private Sub Timer1_Timer()
    Dim AddItem As Boolean
    Dim TheItem As String
    TheItem = Format(Int(Rnd * 14), "00") & "--" & Now
    AddItem = True
    For i = 0 To List1.ListCount
        If Left(List1.List(i), 2) = Left(TheItem, 2) Then
          AddItem = False
          Exit For
        End If
    Next
    If AddItem Then
      List1.AddItem TheItem
    Else
        List1.List(i) = TheItem
    End If
End Sub

---

---

Thanks Ikke. I adopted your timer code to mine.

Code:

---

Private Sub Timer1_Timer()
Dim i As Integer
    Dim AddItem As Boolean
    Dim TheItem As String
    TheItem = idtag.Text & vbTab & dlc.Text & vbTab & RxData.Text
    AddItem = True
    For i = 0 To List1.ListCount
        If Left(List1.List(i), 3) = Left(TheItem, 3) Then
          AddItem = False
          Exit For
        End If
    Next
    If AddItem Then
      List1.AddItem TheItem
    Else
        List1.List(i) = TheItem
    End If
End Sub

---

But here is 2 problems.
1) Listbox is blinking a lot. It's Bad.
2) It's skipping index 0 in lisbox . And starting to add items from index 1.
By the way, mine timer interval is:

Code:

---

Timer1.Interval = 10

---

Because i need it to check for updates every 10ms

using itemdata

Code:

---

Private Sub Timer1_Timer()
    Dim AddItem As Boolean
    Dim TheItem As String
    Dim TheItemData As Long
    TheItem = Format(Int(Rnd * 14), "00") & "--" & Now
    TheItemData = CLng(Left(TheItem, 2))
    AddItem = True
    For i = 0 To List1.ListCount - 1
        If List1.ItemData(i) = TheItemData Then
          AddItem = False
          Exit For
        End If
    Next
    If AddItem Then
      List1.AddItem TheItem
      List1.ItemData(List1.NewIndex) = TheItemData
    Else
        List1.List(i) = TheItem
    End If
End Sub

---
