Hi dears :wave:
I have a project contain many video players, how can I broadcast only one video (one stream)? I want ability to change (send for output) videos only on my PC at runtime, without appearing controls on Projector (DataShow).
Something like tv studio control room.

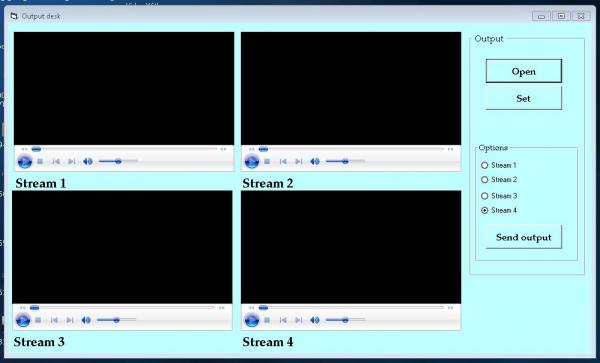

Attachment 146281
Sincerely
Mahmood Kh Pirani
Not certain what you are desiring, here. BUT, if it is simply showing one of your video streams onto a connected projector, create a separate form and put that video control on it as well. Then, when you want to present it on the projector, use the projector as a second monitor. (Extend your computer display, leaving your main form on your computer screen, and placing the second form on the second screen (which is your monitor)). You can then see it in both places. I don't do video streams, but I use an 'audience form' all the time. There is simple code to place in a button/menu to move that second form to the second screen and even maximize it.
Is that what you are looking for?
Sam
I know but I want to make changes during presenting, and round between videos when I want, and I don't want anyone to see when I work on my form controls.
Well since a projector does not broadcast anything other than light I really have no clue what the question really is here.
Then, like I said, put a form on your second screen (your projector), only what you want your audience to see. Leave everything else on your computer monitor. You can set it up to show one, or multiple forms on a second screen---easy to do. Just on that form (those forms) show only the video you want them to see.
Do you understand how to set up a projector as a second screen?
when I connect my PC to a projector, everyone can see what do I do on PC, I want a form to work on and second form for presenting, that is when I am working (changing stream 2,3, or 4), at that time others are looking stream 1 on second form. ( Separating working form with presenting form). I hope to you understand me. sorry for my bad english language! :blush:Quote:
Originally Posted by DataMiser
Do you mean extending projector? If you mean (Extend) everyone can see what I am doing on my PC. ( I mean separating forms, working and changing stream ,2,3,and 4, while others only looking (only stream 1 is presenting) stream 1. working form hidden for others.Quote:
Originally Posted by SamOscarBrown
I'm totally lost.
why? make working form hidden from bystander (viewers), and making a second form visible for bystanders.Quote:
Originally Posted by Ordinary Guy
working on first form while views looking second form!
Is it clear now?
Well like Sam said extend your display to the projector as the second display.
Your main form would be on the main display which would be your PC monitor or laptop
The second display would be the projector, you drag your second form over to that display so the projector shows that form and your monitor shows the main form.
Assuming of course your video card supports dual displays
To prevent you from having to drag the form to the second screen (your projector) when you have Extended your screen, put this code in a module first:
Then, in a menu option, or a CMD button click event, do this:Code:Option Explicit
'
Dim glSpecifiedMonitor As Long
Dim glWindowToCheckOnMonitor As Long
Dim glMonitorWidth As Long
Dim glMonitorHeight As Long
Dim gbMonitorIsPrimary As Boolean
Dim gbWindowIsOnMonitor As Boolean
Dim glSecondaryMonitorNumber As Long
'
Private Type RECT
Left As Long
Top As Long
Right As Long ' This is +1 (right - left = width)
Bottom As Long ' This is +1 (bottom - top = height)
End Type
Public Type MONITORINFO
cbSize As Long
rcMonitor As RECT
rcWork As RECT
dwFlags As Long
End Type
Private Const MONITORINFOF_PRIMARY = &H1
Private Const MONITOR_DEFAULTTONEAREST = &H2
Private Const MONITOR_DEFAULTTONULL = &H0
Private Const MONITOR_DEFAULTTOPRIMARY = &H1
'
Private Declare Function MonitorFromWindow Lib "user32.dll" (ByVal hWnd As Long, ByVal dwFlags As Long) As Long
Private Declare Function GetMonitorInfo Lib "user32.dll" Alias "GetMonitorInfoA" (ByVal hMonitor As Long, ByRef lpmi As MONITORINFO) As Long
Private Declare Function EnumDisplayMonitors Lib "user32" (ByVal hdc As Long, lprcClip As Any, ByVal lpfnEnum As Long, dwData As Long) As Long
Private Declare Function GetSystemMetrics Lib "user32" (ByVal nIndex As Long) As Long
Private Declare Function GetDC Lib "user32" (ByVal hWnd As Long) As Long
Private Declare Function ReleaseDC Lib "user32" (ByVal hWnd As Long, ByVal hdc As Long) As Long
Private Declare Function GetDeviceCaps Lib "gdi32" (ByVal hdc As Long, ByVal nIndex As Long) As Long
'
Public Sub CenterFormOnMonitorTwo(frm As Form) ' This is actually just the non-primary monitor.
' This assumes that the second monitor is to the right of the first.
' Other work will be needed if this isn't the case.
Dim MonitorTwoHeight As Long
Dim MonitorTwoWidth As Long
Dim iSecondaryMonitorNumber As Long
'
If MonitorCount = 1 Then Exit Sub
iSecondaryMonitorNumber = SecondaryMonitorNumber
'
MonitorTwoWidth = MonitorPixelWidth(iSecondaryMonitorNumber) * Screen.TwipsPerPixelX
MonitorTwoHeight = MonitorPixelHeight(iSecondaryMonitorNumber) * Screen.TwipsPerPixelY
''
If frm.WindowState <> vbMaximized Then
frm.Left = ((MonitorTwoWidth - frm.Width) \ 2) + Screen.Width
frm.Top = (MonitorTwoHeight - frm.Height) \ 3
If Not WindowIsOnMonitor(iSecondaryMonitorNumber, frm.hWnd) Then
' Primary must be on right if not visible.
frm.Left = ((MonitorTwoWidth - frm.Width) \ 2) - Screen.Width
frm.Top = (MonitorTwoHeight - frm.Height) \ 3
End If
If Not WindowIsOnMonitor(iSecondaryMonitorNumber, frm.hWnd) Then
' Couldn't do it for some reason, so forget it.
' Maybe monitors are on top of one another.
frm.Left = (ScreenWidth - frm.Width) \ 2
frm.Top = (ScreenHeight - frm.Height) \ 3
End If
End If
End Sub
Public Function SecondaryMonitorNumber() As Long
Dim iCount As Long
'
glSecondaryMonitorNumber = 0
glSpecifiedMonitor = -1 ' Don't specify one to just execute.
EnumDisplayMonitors 0, ByVal 0&, AddressOf MonitorEnumProc, iCount
SecondaryMonitorNumber = glSecondaryMonitorNumber
End Function
Public Function WindowIsOnMonitor(iMonitor As Long, hWnd As Long) As Boolean
Dim iCount As Long
'
gbWindowIsOnMonitor = False
glSpecifiedMonitor = iMonitor
glWindowToCheckOnMonitor = hWnd
EnumDisplayMonitors 0, ByVal 0&, AddressOf MonitorEnumProc, iCount
WindowIsOnMonitor = gbWindowIsOnMonitor
End Function
Public Function MonitorCount() As Long
Dim iCount As Long
'
glSpecifiedMonitor = -1 ' Don't specify one to just count.
EnumDisplayMonitors 0, ByVal 0&, AddressOf MonitorEnumProc, iCount
MonitorCount = iCount
End Function
Private Function MonitorEnumProc(ByVal hMonitor As Long, ByVal hDCMonitor As Long, uRect As RECT, dwData As Long) As Long
Dim MI As MONITORINFO
' This is just used for the above functions.
dwData = dwData + 1 ' Increase monitor count.
If glSpecifiedMonitor = dwData Then SetMonitorGlobals hMonitor, uRect
' We must still set the glSecondaryMonitorNumber.
MI.cbSize = Len(MI)
GetMonitorInfo hMonitor, MI
If Not CBool(MI.dwFlags = MONITORINFOF_PRIMARY) Then ' This is the "primary monitor test".
glSecondaryMonitorNumber = dwData
End If
'
MonitorEnumProc = 1
End Function
Public Function MonitorPixelWidth(iMonitor As Long) As Long
' Returns the width of the specified monitor.
' Handles systems with multiple monitors.
Dim iCount As Long
'
glSpecifiedMonitor = iMonitor
EnumDisplayMonitors 0, ByVal 0&, AddressOf MonitorEnumProc, iCount
MonitorPixelWidth = glMonitorWidth
End Function
Public Function MonitorPixelHeight(iMonitor As Long) As Long
' Returns the height of the specified monitor.
' Handles systems with multiple monitors.
Dim iCount As Long
'
glSpecifiedMonitor = iMonitor
EnumDisplayMonitors 0, ByVal 0&, AddressOf MonitorEnumProc, iCount
MonitorPixelHeight = glMonitorHeight
End Function
Public Function ScreenWidth()
' This works even on Tablet PC. The problem is: when the tablet screen is rotated, the "Screen" object of VB doesn't pick it up.
Dim Pixels As Long
Const SM_CXSCREEN = 0
'
Pixels = GetSystemMetrics(SM_CXSCREEN)
ScreenWidth = Pixels * TwipsPerPixelX
End Function
Public Function ScreenHeight(Optional bSubtractTaskbar As Boolean = False)
' This works even on Tablet PC. The problem is: when the tablet screen is rotated, the "Screen" object of VB doesn't pick it up.
Dim Pixels As Long
Const SM_CYSCREEN = 1
'
Pixels = GetSystemMetrics(SM_CYSCREEN)
If bSubtractTaskbar Then
' The taskbar is typically 30 pixels or 450 twips, or, at least, this is the assumption made here.
' It can actually be multiples of this, or possibly moved to the side or top.
' This procedure does not account for these possibilities.
ScreenHeight = (Pixels - 30) * TwipsPerPixelY
Else
ScreenHeight = Pixels * TwipsPerPixelY
End If
End Function
Private Sub SetMonitorGlobals(hMonitor As Long, uRect As RECT)
Dim MI As MONITORINFO
'
glMonitorWidth = uRect.Right - uRect.Left
glMonitorHeight = uRect.Bottom - uRect.Top
MI.cbSize = Len(MI)
GetMonitorInfo hMonitor, MI
gbMonitorIsPrimary = CBool(MI.dwFlags = MONITORINFOF_PRIMARY)
gbWindowIsOnMonitor = (MonitorFromWindow(glWindowToCheckOnMonitor, MONITOR_DEFAULTTONEAREST) = hMonitor)
End Sub
Public Function TwipsPerPixelX() As Single
' This works even on Tablet PC. The problem is: when the tablet screen is rotated, the "Screen" object of VB doesn't pick it up.
Dim hdc As Long
Dim lPixelsPerInch As Long
Const LOGPIXELSX = 88 ' Logical pixels/inch in X
Const POINTS_PER_INCH As Long = 72 ' A point is defined as 1/72 inches.
Const TWIPS_PER_POINT As Long = 20 ' Also, by definition.
'
hdc = GetDC(0)
lPixelsPerInch = GetDeviceCaps(hdc, LOGPIXELSX)
ReleaseDC 0, hdc
TwipsPerPixelX = TWIPS_PER_POINT * (POINTS_PER_INCH / lPixelsPerInch) ' Cancel units to see it.
End Function
Public Function TwipsPerPixelY() As Single
' This works even on Tablet PC. The problem is: when the tablet screen is rotated, the "Screen" object of VB doesn't pick it up.
Dim hdc As Long
Dim lPixelsPerInch As Long
Const LOGPIXELSY = 90 ' Logical pixels/inch in Y
Const POINTS_PER_INCH As Long = 72 ' A point is defined as 1/72 inches.
Const TWIPS_PER_POINT As Long = 20 ' Also, by definition.
'
hdc = GetDC(0)
lPixelsPerInch = GetDeviceCaps(hdc, LOGPIXELSY)
ReleaseDC 0, hdc
TwipsPerPixelY = TWIPS_PER_POINT * (POINTS_PER_INCH / lPixelsPerInch) ' Cancel units to see it.
End Function
The last line is for maximizing that 2nd form on that projector (This is not necessary if you don't want it maximized).Code:theNameOfYourSecondFormYouWantTheAudienceToSee.Show
CenterFormOnMonitorTwo theNameOfYourSecondFormYouWantTheAudienceToSee
theNameOfYourSecondFormYouWantTheAudienceToSee.WindowState = vbMaximized
Sam
Here is a simple example...just make sure your Screen is set to EXTEND to Second Monitor.
First, click one of the buttons to display one of the images you see on your screen onto the 2nd screen. Then while you are changing the image in the top left, the audience doesn't see you do this. Then, click that first car button again to now show the NEW car on the audience screen.
Here is a simple example...just make sure your Screen is set to EXTEND to Second Monitor.
First, click one of the buttons to display one of the images you see on your screen onto the 2nd screen. Then while you are changing the image in the top left, the audience doesn't see you do this. Then, click that first car button again to now show the NEW car on the audience screen.
Many Thanks to you all friends!
Many thanks dear #SamOscarBrownQuote:
Originally Posted by SamOscarBrown
