[VB6] ListView / TreeView Extended and Custom Checkboxes

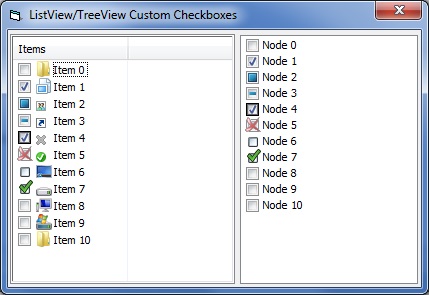

Attachment 184336

So I've mentioned this and posted snippets in a few threads, but thought it would be good to do a formal sample project on this, especially since I've never seen one done before.

By default, the ListView and TreeView controls, whether it's from the OCX or manually created, only has the basic checked or unchecked state. But what if you want to add the Partial check state? Or even more? Or customize the regular checked and unchecked look? Most of the time people jump to owner draw, but there's a much simpler way: checkboxes are simply an imagelist, so all you have to do is create your own and assign it just like you do for the regular icons, no owner drawing required. The ListView/TreeView even manages the number of checkboxes for you; no special code is required to cycle through all the checkboxes then loop back to the beginning. There's 8 different checkboxes in the sample project, I'm not sure what the limit is but you almost certainly won't hit it.

The only thing that makes this even a little complex is that you have to drop down to the API level to set the imagelist, and subclass it just to prevent VB from accidentally removing the imagelist. The good news though is that it's entirely possible to do it with the regular Common Controls 5.0 ListView/TreeView control, which is what the sample project uses.

The new checkboxes are stored in a resource file and accessed from there, but I've also included the .ico's as normal files in the zip.

How it works

First we create a new API ImageList with our new checkboxes:

Code:

---

Dim hIco As Long

himlCheck = ImageList_Create(32, 32, ILC_COLOR32 Or ILC_ORIGINALSIZE, 1, 1)
ImageList_SetIconSize himlCheck, 16, 16
hIco = ResIconTohIcon("CHK_STD_UNCHKD", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
'rinse and repeat for all other checkboxes. Note that if you're doing this with a TreeView,
'you need a blank icon (not unchecked, entirely blank) as the first image, but with the ListView
'you just start with the first box in the series- usually unchecked.

---

The checkbox imagelist is the State ImageList, so when setting up the ListView, it's assigned as such:
ListView_SetImageList hLVS, himlCheck, LVSIL_STATE

That's all you have to do to get started- all items will default to the first checkbox in the list, then cycle through in order with each click, then after the last one returns to the beginning.

If you want to set the check state through code, you need to use API since True/False isn't good enough,

Code:

---

Dim li As ListItem
Dim lvi As LVITEM

    lvi.iItem = li.Index - 1 'get your li from ListView.Items.Add() and similar
    lvi.Mask = LVIF_STATE
    lvi.StateMask = LVIS_STATEIMAGEMASK
    lvi.State = IndexToStateImageMask(k) 'where k is the 1-based index of the checkbox you want
    ListView_SetItem ListView1.hWnd, lvi

---

True/False also doesn't work for retrieving the check state either, so you just have to reverse how it was done when added,
CheckIndex = StateImageMaskToIndex(ListView_GetItemState(hLVS, iItem, LVIS_STATEIMAGEMASK)) 'where iItem is zero-based

The procedure for the TreeView is virtually identical, with the important step of adding the blank image mentioned earlier, and needing to get the hItem since the APIs don't use the index (TVITEM.hItem = pvGetHItem(Comctllib.Node))

That covers the basic concept, all the other code is just standard setup.

Requirements
-Windows Vista or higher (although everything is listed as available in comctl32 6.0, it seems XP isn't going to work :( )
-Common Controls 6.0 Manifest - The sample project has the cc6.0 manifest embedded in its resource file so it will work when compiled, but to work in the IDE your VB6.exe must also be set up to use the 6.0 controls. See LaVolpe's excellent manifest creator project to generate the manifest and startup code for your own projects.

NOTE: Apparently, the Common Controls 6.0 OCX TreeView will work with this method, and the manifest isn't needed with that since it can't use it (change Comctllib.Node to MsComctllib.Node). The ListView doesn't so I had assumed the TreeView wouldn't either, but it does.

Also, I don't know how the project compiled back when I uploaded this, but the modules have a number of #If (WIN32_IE >= &H600) Then statements that need to be removed/commented out to compile now; I don't have time to update the attachment right now though. Comment out/remove them all, even the &H300 or other numbers.

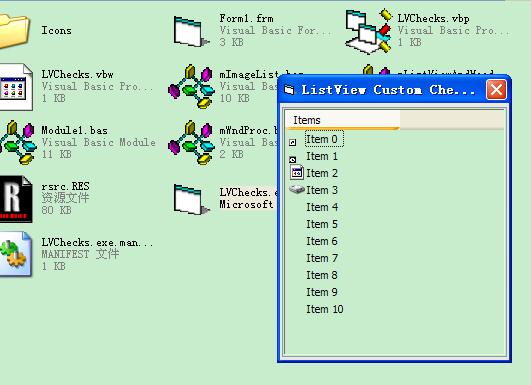

thanks. why if i used in xp3

maybe
Attachment 143657

Hm I'm not sure... the checkbox style, imagelist constant, item states... they're all listed as supported as of the 6.0 common controls, which are what XP has. For some reason though it looks like none of it is actually supported in the XP comctl 6.0 tho unfortunately :mad:

how to loadpicture by gdiplus ,windows api,without imagelist?
i don't want use imagelist

Code:

---

Set iMG1 = GDIplusToStdPictureARGB(F2, 64, 64)
Set iMG2 = GDIplusToStdPictureARGB(F3, 64, 64)
ImageList1.ListImages.Add , "Closed", iMG1
ImageList1.ListImages.Add , "Open", iMG2

---

use like:

Code:

---

himlCheck = ImageList_Create(32, 32, ILC_COLOR32 Or ILC_ORIGINALSIZE, 1, 1)

ListView_SetExtendedStyle hLVS, LVS_EX_CHECKBOXES
ListView_SetImageList hLVS, hSysIL16, LVSIL_SMALL
ListView_SetImageList hLVS, hSysIL32, LVSIL_NORMAL
ListView_SetImageList hLVS, himlCheck, LVSIL_STATE

---

Load transparent PNG as the node graph of Treeview
The picture loaded with the imagelist control is set as the node graph of the Treeview. If it is made transparent, there will be black edges and jagged.
Maybe you can only use pure API to load images, such as loading png as ico as the node image of Treeview

c++ - How can I add a transparent PNG as a toolbar icon? - Stack Overflow
https://stackoverflow.com/questions/...a-toolbar-icon

use ID_IMG_SPAWN?

Code:

---

himlCheck = ImageList_Create(32, 32, ILC_COLOR32 Or ILC_ORIGINALSIZE, 1, 1)
ImageList_SetIconSize himlCheck, 16, 16
hIco = ResIconTohIcon("CHK_STD_UNCHKD", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_STD_CHKD", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_EXT_PAR", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_EXT_EXP", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_EXT_DEF", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_EXT_X", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_CST_UNCHKD", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)
hIco = ResIconTohIcon("CHK_CST_CHKD", 16, 16)
Call ImageList_AddIcon(himlCheck, hIco)
Call DestroyIcon(hIco)

---

How to use 32 bit icons in CTreeCtrl - CodeProject
https://www.codeproject.com/articles...s-in-ctreectrl

Code:

---

// Create a 32bits ImageList
m_imageList.Create (16, 16, ILC_COLOR32 , 1,1);

//Add the bitmap to the ImageList
m_bitmap.LoadBitmap(IDB_BITMAP_HIGHCOLOR);
m_imageList.Add(&m_bitmap, RGB(255,0,255));

//Manage your tree items......
m_tree.SetImageList (&m_imageList, TVSIL_NORMAL);
m_tree.InsertItem("RootItem",0,0,TVI_ROOT);

---

I've got a Treeview and imagelist using pure api calls and I'm trying to
load and display a 32bit icon from shell32.dll on winxp in the treeview.

32 bit icons in API created treeview
https://microsoft.public.vb.general....eated-treeview

There's no way to avoid using an API imagelist to assign either custon checkbox (state) or regular icons. You can add an HBITMAP or HICON from any source to the imagelist, but you have to use the imagelist.

Windows XP cannot display custom checkboxes (the imagelist assigned to LVSIL_STATE in the example).

Quote:

---

Originally Posted by fafalone

There's no way to avoid using an API imagelist to assign either custon checkbox (state) or regular icons. You can add an HBITMAP or HICON from any source to the imagelist, but you have to use the imagelist.

Windows XP cannot display custom checkboxes (the imagelist assigned to LVSIL_STATE in the example).

---

The main thing is that I want the picture in the image list box to be transparent.But I looked at hundreds of pages looking for a solution.It seems difficult to do so.The ImageList control will always give you a background color. Or use a specific color to cut out the image, so there will definitely be jagged, can not be smooth.
I added a background image to the toolbar control. Then you want every button on it to be transparent.I can't handle him.If the screen coordinates of a button can be obtained, it is estimated that a screenshot will be used to calculate the button picture and the background picture and synthesize a new picture. Use this method to simulate the effect of transparency.

Like the transparent button control I made, it actually intercepts the screen image behind the control.If the toolbar has eight buttons, it can be understood that there are eight button controls below.

You're using an API ImageList right? The VB one doesn't natively support transparency. Some members have projects that force it but I really doubt you'd be able to assign it to a ListView.

You just specify 0 as the backcolor when adding an HBITMAP with transparency, in an ImageList created with 32bit color.
