help Printing in a label printer

Good day to all, i come here with a question that possibly is very easy to answer but i am new on this and do not find it anywhere on the net.

i want to print using code in visual basic 2010, but i'm having a hard time because the printing is not being made into a conventional A4 paper sheet but instead in a label with size length = 28mm x height = 88mm.

i know from what i've read that i need to use the e.graphics.drawimage() or e.graphics.drawstring() to achieve this, this is what i have done.

this is the desired result.
Attachment 142027

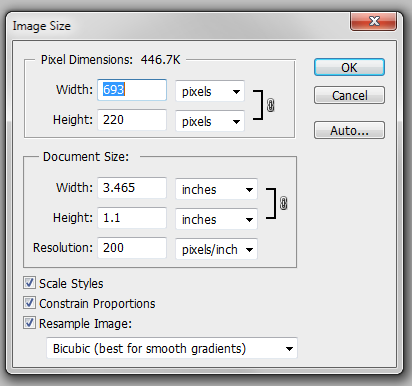

i did this label on photoshop with a DPI of 200, giving me an image size of what the picture shows
Attachment 142025

now this is my code, i just have the code so that it prinst me out the bluestreak logo

' i need to configure the page so it prints in landscape so i can print on the long side of the label
Dim PageSetup As New PageSettings
With PageSetup
.Landscape = True

End With
PrintDocu.DefaultPageSettings = PageSetup
PrintDocu.Print()

'Now i print out an image on the left half of the label
Private Sub PrintDocu_PrintPage(ByVal sender As System.Object, ByVal e As System.Drawing.Printing.PrintPageEventArgs) Handles PrintDocu.PrintPage

Dim image1 As Image = Image.FromFile("C:\ABS_Reader\Resources\335x122.png")
e.Graphics.DrawImage(image1, 7, 49, 335, 122)

with the above code when i print the picture comes out cropped as shown in the picture below.
Attachment 142029

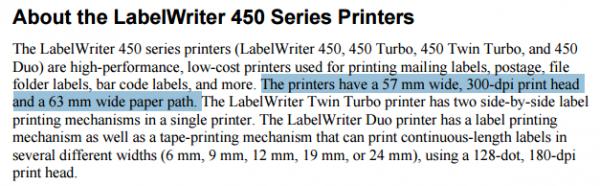

also reading around the internet found out that possibly my problem is that VB is printing out the default DPI = 96DPI, i really don't know.... but if this really the case, is there a way to adjust the printout to adjust to my 200DPI?, my label printer supports up to 300DPI on the print head...
Attachment 142031

hope you can guide me to the correct path.

Best regards and thanks for advanced.

Sometimes when I get into a situation when things are not what I would expect I'll make a change that should have predictable result. Something simple like changing the image size arguments to the drawImage method for example. If the image is printing about twice as wide and twice as big, then maybe printing it half the size will help. Then take that result and compare it to other things. 96 dpi is about half of 200 dpi so maybe that is the key... I wish I knew enough about printing to give you a definitive answer, but that's all I got.

Quote:

---

Originally Posted by omegads

Good day to all, i come here with a question that possibly is very easy to answer but i am new on this and do not find it anywhere on the net.

i want to print using code in visual basic 2010, but i'm having a hard time because the printing is not being made into a conventional A4 paper sheet but instead in a label with size length = 28mm x height = 88mm.

i know from what i've read that i need to use the e.graphics.drawimage() or e.graphics.drawstring() to achieve this, this is what i have done.

---

That's certainly NOT the way I would do it. I would be using the printer's command language to print the label. I have never seen a label printer (ie, Intermec, Sato, Zebra) that came without one. Typically there are commands to download the format and/or graphics and a command to populate that format with data. Sometimes they are the same. So you should find the programming manual for your printer model.

For example, this is what I send to a Zebra to print some barcodes and text (the words encased in $ are my own placeholders that my code replaces with the actual data):

Quote:

---

CT~~CD,~CC^~CT~
^XA~TA100~JSO^LT0^MNN^MTT^PON^PMN^LH0,0^JMA^PR2,2~SD30^JUS^LRN^CI0^XZ
^XA
^MMT
^PW1200
^LL1200
^LS0
^FT1125,800^A0I,83,81^FH\^FD$DESC1$^FS
^FT1125,750^A0I,42,43^FH\^FD$DESC2$^FS
^FT1125,660^A0I,42,43^FH\^FDMO: $PO$^FS
^FT1125,605^A0I,42,43^FH\^FD$CUST$^FS
^FT1125,550^A0I,42,43^FH\^FD$LOTNUM$^FS
^FT1125,495^A0I,42,43^FH\^FDMFG DATE: $MFGDATE$^FS
^FT1125,375^A0I,120,120^FH\^FD$PLU$^FS
^FT445,400^BXI,10,200,0,0,1,_,1
^FH\^FD$MATRIX$^FS
^FT890,60^A0I,47,45^FH\^FD(91)$GTIN$^FS
^BY6,3,160^FT1125,120^BCI,,N,N,N,D
^FD(91)$GTIN$^FS
^PQ1,0,1,Y^XZ

---

Here is one for a Sato (without any graphics to keep it short):

Quote:

---

A*ZACC2*F,008YS,008/Y,COLabel8 FDA FR%3H0161V0503P05RDB00,038,085,LBS%3H0164V0029P05RDB00,026,081,NET WT.%3H0288V0035P05RDB00,021,047,KEEP
REFRIGERATED OR FROZEN%3H1105V0032P05RDA00,033,034,LOT%3H1065V0032P05$A,030,034,0$=USE OR FREEZE BY:%3H1164V0738P05$A,024,030,0$=SOME CITY, CO
12345%3H1172V0032P05$A,079,055,8$=COMPANYNAME%0H0450V0027FW09V0948%3H0287V0740P05RDB00 ,021,025,8/N,06,27%3H0856V0640P05$A,024,030,0$=empty/N
,02,27%3H1016V0032P05$A,069,059,0$=empty/N,05,27%3H0858V0024P05$A,024,030,0$=empty/N,04,27%3H0899V0032P05$A,059,034,0$=empty/N
,03,27%3H0959V0032P05$A,069,059,0$=empty/N,18,46%3H0327V0033P05RDB00,033,034,empty/N,15,08%3H0230V0624L0101P05Sempty/N
,09,05%3H0243V0195P05$A,108,163,0$=empty/N,10,06%3H1105V0132P05RDA00,033,034,empty/N,01,05%3H0289V0760P05$A,128,214,0$=empty/N
,21,05%3H1126V0410P05$A,167,112,0$=empty/N,10,06%3H0199V0629L0101P05Sempty/N,08,04%3H0289V0632P05RDB00,019,029,empty/N
,36,57%3H0489V0022L0101P05XSempty/N,35,57%3H0526V0022L0101P05XSempty/N,34,57%3H0563V0022L0101P05XSempty/N,33,57%3H0599V0022L0101P05XSempty/N
,32,57%3H0636V0022L0101P05XSempty/N,31,57%3H0672V0022L0101P05XSempty/N,30,57%3H0709V0022L0101P05XSempty/N,29,57%3H0746V0022L0101P05XSempty/N
,28,57%3H0782V0022L0101P05XSempty/N,27,57%3H0819V0022L0101P05XSempty/N,25,05%3H0140V0663L0101P05XSempty/N,23,08%3H0261V0614L0101P05Sempty/N
,14,07%3H0169V0628L0101P05Sempty/N,11,03%3H0112V0635L0101P05Sempty/N,17,52%3H0446V0033BG03113/N,40,01%3H0424V1005P02$A,079,059,0$=emptyZ

---

See if this link helps any...
