VS 2010 Parse arduino Serial data

1 Attachment(s)

Parse arduino Serial data

Dear all.

I am working with arduino Uno, I have tracker application running on arduino Uno board. I am sending data in comma seprated value. Now i want to view data into Visual basic. I have code as below. The below code is working with fake values but as soon it live stream data split functions gives out error.

outout data serial look like this.

Quote:

Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:1,Local Date:0/0/0,Local Time:5:30:2,tracker_des_angle:0.00,tracker_actual_pos:57.22,Wind Speed :0.00,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:1,Local Date:0/0/0,Local Time:5:30:4,tracker_des_angle:43.00,tracker_actual_pos:69.20,Wind Speed :0.95,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:6,tracker_des_angle:43.00,tracker_actual_pos:16.34,Wind Speed :1.85,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:8,tracker_des_angle:43.00,tracker_actual_pos:11.89,Wind Speed :2.77,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:10,tracker_des_angle:43.00,tracker_actual_pos:14.11,Wind Speed :3.77,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:12,tracker_des_angle:43.00,tracker_actual_pos:13.77,Wind Speed :4.75,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:14,tracker_des_angle:43.00,tracker_actual_pos:13.77,Wind Speed :5.67,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:16,tracker_des_angle:43.00,tracker_actual_pos:9.67,Wind Speed :6.57,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:18,tracker_des_angle:43.00,tracker_actual_pos:9.67,Wind Speed :7.58,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:20,tracker_des_angle:43.00,tracker_actual_pos:13.43,Wind Speed :8.59,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:22,tracker_des_angle:43.00,tracker_actual_pos:15.82,Wind Speed :9.57,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:24,tracker_des_angle:43.00,tracker_actual_pos:12.23,Wind Speed :9.57,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:26,tracker_des_angle:43.00,tracker_actual_pos:12.40,Wind Speed :9.68,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:28,tracker_des_angle:43.00,tracker_actual_pos:13.26,Wind Speed :9.74,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:30,tracker_des_angle:43.00,tracker_actual_pos:16.34,Wind Speed :9.70,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:32,tracker_des_angle:43.00,tracker_actual_pos:12.06,Wind Speed :9.72,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:34,tracker_des_angle:43.00,tracker_actual_pos:12.23,Wind Speed :9.76,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:36,tracker_des_angle:43.00,tracker_actual_pos:15.14,Wind Speed :9.75,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:38,tracker_des_angle:43.00,tracker_actual_pos:15.99,Wind Speed :9.77,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:40,tracker_des_angle:43.00,tracker_actual_pos:12.40,Wind Speed :9.69,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:42,tracker_des_angle:43.00,tracker_actual_pos:9.49,Wind Speed :9.63,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:44,tracker_des_angle:43.00,tracker_actual_pos:11.55,Wind Speed :9.58,END
Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:46,tracker_des_angle:43.00,tracker_actual_pos:9.32,Wind Speed :9.52,END

visual basic code:

Code:

Option Explicit On Imports System Imports System.IO.Ports Imports System.Text Public Class Solar_Track Dim comPORT As String Dim receivedData As String = "" Dim strArray() As String Dim Data As String Dim latitude() As String Dim longitude() As String Dim Local_date() As String Dim Local_Time() As String Dim Mode_oper() As String Dim Dir_motor() As String Dim Act_pos() As String Dim Dis_pos() As String Dim wind_pos() As String Sub Parse_receivedata(ByVal msg As String) Data = msg strArray = Split(Data, ",") '' latitude = Split(strArray(1), ":") strArray = Split(Data, ",") latitude = Split(strArray(1), ":") Text_Latitude.Text = latitude(1) longitude = Split(strArray(2), ":") Text_Longitude.Text = longitude(1) Mode_oper = Split(strArray(3), ":") Text_Mode.Text = Mode_oper(1) Dir_motor = Split(strArray(4), ":") Text_MotorDir.Text = Dir_motor(1) Local_date = Split(strArray(5), ":") Text_LocalDate.Text = Local_date(1) Local_Time = Split(strArray(6), ":") Label_hour.Text = Local_Time(1) Label_min.Text = Local_Time(2) Label_Sec.Text = Local_Time(3) Dis_pos = Split(strArray(7), ":") Text_TrackerDesire.Text = Dis_pos(1) Act_pos = Split(strArray(8), ":") Text_TrackerActual.Text = Act_pos(1) wind_pos = Split(strArray(9), ":") Text_Windspeed.Text = wind_pos(1) End Sub Sub data_parse() Data = "Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:1,Local Date:0/0/0,Local Time:5:30:2,tracker_des_angle:0.00,tracker_actual_pos:54.48,Wind Speed :0.00,END" strArray = Split(Data, ",") latitude = Split(strArray(1), ":") Text_Latitude.Text = latitude(1) longitude = Split(strArray(2), ":") Text_Longitude.Text = longitude(1) Mode_oper = Split(strArray(3), ":") Text_Mode.Text = Mode_oper(1) Dir_motor = Split(strArray(4), ":") Text_MotorDir.Text = Dir_motor(1) Local_date = Split(strArray(5), ":") Text_LocalDate.Text = Local_date(1) Local_Time = Split(strArray(6), ":") Label_hour.Text = Local_Time(1) Label_min.Text = Local_Time(2) Label_Sec.Text = Local_Time(3) Dis_pos = Split(strArray(7), ":") Text_TrackerDesire.Text = Dis_pos(1) Act_pos = Split(strArray(8), ":") Text_TrackerActual.Text = Act_pos(1) wind_pos = Split(strArray(9), ":") Text_Windspeed.Text = wind_pos(1) End Sub Private Sub Solar_Track_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load Timer1.Enabled = False comPORT = "" For Each sp As String In My.Computer.Ports.SerialPortNames comPort_ComboBox.Items.Add(sp) Next End Sub Private Sub ComboBox1_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles comPort_ComboBox.SelectedIndexChanged If (comPort_ComboBox.SelectedItem <> "") Then comPORT = comPort_ComboBox.SelectedItem End If End Sub Private Sub BtConnect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles connect_BTN.Click If (connect_BTN.Text = "Connect") Then If (comPORT <> "") Then SerialPort1.Close() SerialPort1.PortName = comPORT SerialPort1.BaudRate = 9600 SerialPort1.DataBits = 8 SerialPort1.Parity = Parity.None SerialPort1.StopBits = StopBits.One SerialPort1.Handshake = Handshake.None SerialPort1.Encoding = System.Text.Encoding.Default SerialPort1.ReadTimeout = 10000 SerialPort1.Open() connect_BTN.Text = "Dis-connect" Timer1.Enabled = True Timer_LBL.Text = "Timer: ON" Else MsgBox("Select a COM port first") End If Else SerialPort1.Close() connect_BTN.Text = "Connect" Timer1.Enabled = False Timer_LBL.Text = "Timer: OFF" End If End Sub Private Sub Timer1_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Timer1.Tick receivedData = ReceiveSerialData() RichTextBox1.Text &= receivedData Parse_receivedata(receivedData) '' data_parse() End Sub Function ReceiveSerialData() As String Dim Incoming As String Try Incoming = SerialPort1.ReadExisting() If Incoming Is Nothing Then Return "nothing" & vbCrLf Else Return Incoming End If Catch ex As TimeoutException Return "Error: Serial Port read timed out." End Try End Function Private Sub BtClear_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BtClear.Click RichTextBox1.Text = "" End Sub End Class

Fake value function which is working fine.

Code:

Sub data_parse() Data = "Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:1,Local Date:0/0/0,Local Time:5:30:2,tracker_des_angle:0.00,tracker_actual_pos:54.48,Wind Speed :0.00,END" strArray = Split(Data, ",") latitude = Split(strArray(1), ":") Text_Latitude.Text = latitude(1) longitude = Split(strArray(2), ":") Text_Longitude.Text = longitude(1) Mode_oper = Split(strArray(3), ":") Text_Mode.Text = Mode_oper(1) Dir_motor = Split(strArray(4), ":") Text_MotorDir.Text = Dir_motor(1) Local_date = Split(strArray(5), ":") Text_LocalDate.Text = Local_date(1) Local_Time = Split(strArray(6), ":") Label_hour.Text = Local_Time(1) Label_min.Text = Local_Time(2) Label_Sec.Text = Local_Time(3) Dis_pos = Split(strArray(7), ":") Text_TrackerDesire.Text = Dis_pos(1) Act_pos = Split(strArray(8), ":") Text_TrackerActual.Text = Act_pos(1) wind_pos = Split(strArray(9), ":") Text_Windspeed.Text = wind_pos(1) End Sub

The function which is not working with live data

Code:

Sub Parse_receivedata(ByVal msg As String) Data = msg strArray = Split(Data, ",") '' latitude = Split(strArray(1), ":") strArray = Split(Data, ",") latitude = Split(strArray(1), ":") Text_Latitude.Text = latitude(1) longitude = Split(strArray(2), ":") Text_Longitude.Text = longitude(1) Mode_oper = Split(strArray(3), ":") Text_Mode.Text = Mode_oper(1) Dir_motor = Split(strArray(4), ":") Text_MotorDir.Text = Dir_motor(1) Local_date = Split(strArray(5), ":") Text_LocalDate.Text = Local_date(1) Local_Time = Split(strArray(6), ":") Label_hour.Text = Local_Time(1) Label_min.Text = Local_Time(2) Label_Sec.Text = Local_Time(3) Dis_pos = Split(strArray(7), ":") Text_TrackerDesire.Text = Dis_pos(1) Act_pos = Split(strArray(8), ":") Text_TrackerActual.Text = Act_pos(1) wind_pos = Split(strArray(9), ":") Text_Windspeed.Text = wind_pos(1) End Sub

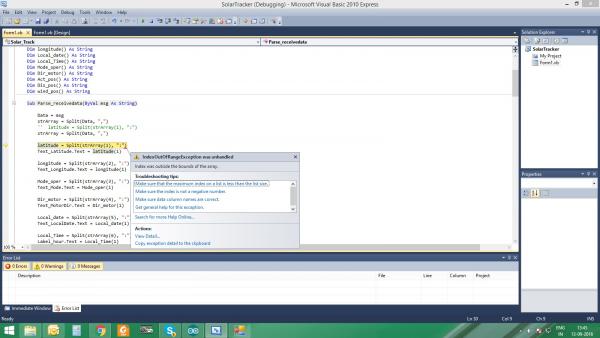

error message

Attachment 141059

Re: Parse arduino Serial data

Too small to read on my screen but looks like index out of bounds. So what is the value of data? I suspect you are not sending the full line when you switched to using a COM port event to supply the Parse_receivedata routine. Make sure you have a full line (and probably drop any CR/LF characters) before trying to parse.

Re: Parse arduino Serial data

Ok... this is a common, common problem for first-time SerialPort users to run into.

The problem is you're reading the Serial Port using a timer. How on earth is it supposed to knows when there's data in the serial buffer? How on earth is it supposed to know there's one COMPLETE row of data being read off the buffer? For all you know, it could be grabbing this:

Code:

"me:5:30:2,tracker_des_angle:0.00,tracker_actual_pos:57.22,Wind Speed :0.00,END Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:1,Loc"

...and sending it to your routine.

You need an IRONCLAD way to read streaming, non-stop serial data from something like a weigh scale (where I learned this), GPS, Weather station (which looks like your problem) or other streaming device.

The trick is, all these devices usually send data in "frames". One "frame" of your data would be:

Code:

Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:20,tracker_des_angle:43.00,tracker_actual_pos:13.43,Wind Speed :8.59,END

Now, normally, "frames" are the same length in terms of number of bytes always, but yours are a little different because you'll notice it's not putting leading zeros on some of those values.

So, you need something on the serial port that can figure out where each frame starts and ends and computes this for each frame of data.

Here's a serial handler object that I use for my work. I tweaked it for your particular problem, so in theory it should work, but since the computer I'm on has neither a serial port, nor the thing your arduino is hooked to, I can't test it.

If you have any questions, give a shout!

Code:

Imports System.Text Public Class clsSerialPort Implements IDisposable 'Lots of global variables. Why? Speed. It takes time allocating and deallocating variables. It's not efficient use of your processing. These routines 'need to run FAST, in the low millisecond ranges as data is streaming in as fast as the serial port will allow. Private WithEvents myPort As New System.IO.Ports.SerialPort Private t As Threading.Thread 'A secondary thread which will periodically check to see if we're still receiving data. Private rcvQLock As New Object 'An object to serve as a thread-safe lock Private rcvQ As New StringBuilder 'My raw receiving queue. May contain multiple frames of data, not necessarilly starting at the top of a frame Private booDetected As Boolean = False 'Checks if the computer detects something transmitting on the serial port Private booShutDown As Boolean = False 'Set if I'm shutting down the system, alerts everything to close and cleanup Private strData As String = String.Empty 'Final result, a string with 1 line of data Private bytesToRead As Integer 'How many bytes of data to read off the serial port Private booLockedFrame As Boolean 'Tells me if I know my receiving queue is sitting at the top of a data frame Private i As Integer 'Just a counter Private intRoughFrameLength = 160 'Roughly how big my data frame is, error on the side of larger than smaller. Private eolChar As Byte = 13 'End of Line character in ASCII Public Property ComPort As String 'Set my serial port name (COM1 for example) Public ReadOnly Property PortOpen() As Boolean 'True or false if the serial port is open Get Return myPort.IsOpen End Get End Property 'Initialization routine. Call this to start the port reading. Public Sub Initialize_SerialPort() Open_SerialPort() t = New Threading.Thread(AddressOf CheckDevice) 'Start the monitor thread. 'It makes sure what's attached to the serial port is active, still connected and still reading data t.Name = "Check Disconnected Device" t.IsBackground = True t.Start() End Sub 'Shutdown routine. Call this to stop everything and close out the port. Public Sub Shutdown_SerialPort() booShutDown = True 'Flag that the port is shutting down t.Join(250) 'Wait for the monitor thread to stop, should stop in 100ms, but use 250ms just in case. After 250, it'll kill it forcefully. Close_SerialPort() End Sub Private Function Open_SerialPort() As Boolean Try booShutDown = False With myPort 'Example port settings .BaudRate = 9600 .PortName = ComPort .DataBits = 8 .Parity = IO.Ports.Parity.None .StopBits = IO.Ports.StopBits.One .Handshake = IO.Ports.Handshake.None .Encoding = Encoding.Default .ReadTimeout = 500 .WriteTimeout = 500 .DiscardNull = False .ReadBufferSize = 16384 End With If Not myPort.IsOpen Then myPort.Open() End If Return True Catch ex As Exception 'Do something Return False End Try End Function Private Sub Close_SerialPort() Try If myPort.IsOpen Then myPort.Close() 'Close the port End If Catch ex As Exception 'Do sonething End Try End Sub Private Sub CheckDevice() 'The monitor thread runs this loop which cycles every 5 seconds checking to see if the port is still streaming in data. Dim i As Integer = 0 While Not booShutDown For i = 0 To 50 'Pause every 5 seconds... but check every 100 ms if we're shutting down. Threading.Thread.Sleep(100) If booShutDown Then Exit While 'If we're shutting down, ditch out of this loop and end this thread. Next 'So... 5 seconds have passed... Try If Not booDetected Then 'If the device is reading data, then this will get set to "true" every couple milliseconds. '-=-=-=-=-== 'Do something, like raise an event that screams HEY! I'm NO LONGER detecting the device! '-=-=-=-=-== End If Catch ex As Exception 'Do something End Try booDetected = False 'I'm going to set this to false here. If 5 more seconds pass, and this is STILL false, then the port isn't receiving any data and it'll get triggered as such on the next pass. End While End Sub Private Sub myPort_DataReceived(ByVal sender As System.Object, ByVal e As System.IO.Ports.SerialDataReceivedEventArgs) Handles myPort.DataReceived 'The "DataReceived" event. This happens every time the port receives a new chunk of data. It may happen sporadically. Lots of checks need to be in place. Try Dim c As Char = Convert.ToChar(eolChar) 'This is the character that my string ENDS with... in this case, carriage return If myPort.BytesToRead = 0 Then Exit Sub 'Nothing to read... exit now, why was it triggered? Gremlins. They happen. bytesToRead = myPort.BytesToRead Dim buf(bytesToRead - 1) As Byte bytesToRead = myPort.Read(buf, 0, bytesToRead) 'Read in the buffer Threading.Monitor.Enter(rcvQLock) 'This is to prevent this from triggering again before the first one is done. Important! Try rcvQ.Append(Encoding.ASCII.GetString(buf)) 'Append what I've received onto my string builder. Finally Threading.Monitor.Exit(rcvQLock) 'Release the lock End Try If rcvQ.Length > (intRoughFrameLength * 2) Then booDetected = True 'This is just a signal that my device is still connected and activly streaming data in! If Not booLockedFrame Then 'Starting out, I don't know where the beginning of a line is. 'This is roughly one frame of data: 'Start,Latitude:13.00,longitude:60.00,MODE:1,DIR:0,Local Date:0/0/0,Local Time:5:30:26,tracker_des_angle:43.00,tracker_actual_pos:12.40,Wind Speed :9.68,END 'About 160 characters, since this isn't being kind about leading zeros 'so I've set intRoughFrameLength = 160. I need to wait until there's enough data for at least 2 frames before I can start safely processing it. i = 0 Threading.Monitor.Enter(rcvQLock) 'Locking the queue again from other processes... Try Do Until rcvQ.ToString.StartsWith(c) rcvQ.Remove(0, 1) 'I'm removing all leading characters one at a time until I get to the END of a line Loop booLockedFrame = True 'I'm sitting on the end of a line now. I know what comes after is a frame of data. Finally Threading.Monitor.Exit(rcvQLock) 'Release the lock End Try End If 'Ok, so I'm sitting on the top of a frame of data... Threading.Monitor.Enter(rcvQLock) 'Locking the queue again from other processes... Try i = 1 'start my count on the second character Do Until rcvQ.Chars(i) = c i += 1 'I'm counting how many characters before I reach the end of the frame Loop rcvQ.Remove(0, 1) 'Remove the End of Line character at the start of the buffer. I'm at the beginning of the line Dim charArray(i - 1) As Char 'Prepare where I'm copying it to, I want 1 less because I don't want the new End of Line character. rcvQ.CopyTo(0, charArray, 0, i - 1) 'Copy my frame off. rcvQ.Remove(0, i - 1) 'Remove the frame's data from my queue, but leave the End of Line character. This way, the NEXT time it runs, it 'll grab the next frame of data. strData = New String(charArray) 'This is ONE LINE OF TEXT, FINALLY! Catch ex As Exception 'If something is messed up, maybe we really don't know if we're at the top of the frame booLockedFrame = False Finally Threading.Monitor.Exit(rcvQLock) 'Release the lock End Try '-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=- 'Do something with that text here... like send it to my parse function: 'Parse_receiveddata(strData) '-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=- End If 'If for some reason processing falls WAY behind... just blow away the queue and start over. If rcvQ.Length > (10 * intRoughFrameLength) AndAlso rcvQ.Length > 500 Then Threading.Monitor.Enter(rcvQLock) 'Always lock the receive queue when working with it. You never know when this is getting called again on another thread. Try rcvQ = New StringBuilder booLockedFrame = False Finally Threading.Monitor.Exit(rcvQLock) End Try End If Catch ex As Exception 'Do something - something really messed up End Try End Sub #Region "IDisposable Support" Private disposedValue As Boolean ' To detect redundant calls ' IDisposable Protected Overridable Sub Dispose(disposing As Boolean) If Not disposedValue Then If disposing Then Shutdown_SerialPort() myPort.Dispose() End If End If disposedValue = True End Sub Public Sub Dispose() Implements IDisposable.Dispose ' Do not change this code. Put cleanup code in Dispose(disposing As Boolean) above. Dispose(True) End Sub #End Region End Class
