VB6 DeviceIoControl – IOCTL_STORAGE_QUERY

5 Attachment(s)

VB6 DeviceIoControl – IOCTL_STORAGE_QUERY_PROPERTY– testing

Name of Application:

TestSPID
Description of what the Application does:

Test Storage Property ID functions
Minimum Requirements to test the Application:

VB6, Any NT based OS including Win10
Your Expectations from the testing:

Identify unusual Hardware and OS properties

The Storage Property ID is a collection of storage information available for each physical device. For example the data includes settings such as Trim Property and Seek Penalty property which can be useful in detecting SSD drives.

The attached program displays the contents returned from the collection of storage information using the DeviceIoControl IOCTL_STORAGE_QUERY_PROPERTY. But it is incomplete because of anomalies with the returned data, and requires testing on a wider range of hardware and OS variants to flush out all the anomalies.

There are 23 different properties although not every device has every property, and some properties are OS dependent, and many properties are for the drivers, and some are reserved for future use. Furthermore, some of the properties are variable length, and others are fixed length.

The Windows DeviceIoControl I/O API is used to access the Storage Properties, using a STORAGE PROPERTY QUERY structure passing the Storage Property ID of the request required.

In scanning this collection, the first step is to determine if the property exists for the specific device & OS combination, then the next step is to determine the length of the property, and finally request the data.

This should be easy, because it is possible to query whether a property exists, and as every property has a common header containing the size of the property, it is also possible to read the header to discover the size.

Unexpected Results
But, from testing, not all properties respond to a query exists, and not all properties respond to a query for the common header, and adding to this, some properties provide wrong size information.

I would like to build a robust Storage Property ID query which discovers the correct data taking into account all these quirks. But because the response varies with each storage device and storage adapter, and varies with each OS, I can only test the few scenarios I have available to me, and would welcome results from different hardware and different OS.

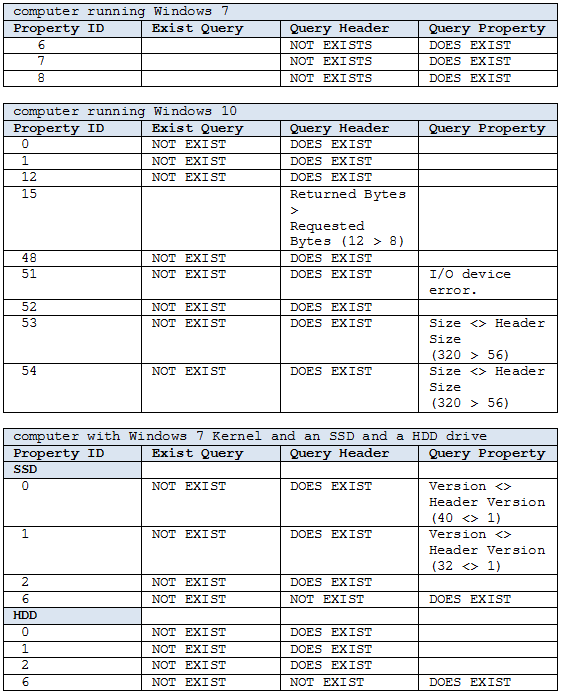

For example I have detected the following errors on 3 computers:

Attachment 140875

Information on the Storage Property

A brief summary of the ID’s Functions and Structures and the problems already identified, including:

Storage Property ID for the Storage Properties
PropertyExistsQuery to report of the Storage Property exists for the target Hardware/OS combination
Storage Descriptor Header which is common for all Storage Properties

Storage Property ID
The list of Storage Property ID's are described on the MSDN documentation:
STORAGE_PROPERTY_ID enumeration

PropertyExistsQuery
From the MSDN documention:
STORAGE_PROPERTY_QUERY structure

The query consists of two parameters

The Storage Property ID
QueryType - Contains flags indicating the type of query to be performed, with two values

Attachment 140877

Sending the PropertyExistsQuery should report whether the descriptor is supported, but the results from the Windows 10 computer show a number of Property ID's report incorrectly report they don’t exist whereas they do.

Storage Descriptor Header
In the MSDN documentation for the first Storage Property ID, the STORAGE_DEVICE_DESCRIPTOR structure

It includes in the remarks:
An application can determine the required buffer size by issuing a IOCTL_STORAGE_QUERY_PROPERTY control code passing a STORAGE_DESCRIPTOR_HEADER structure for the output buffer, and then using the returned Size member of the STORAGE_DESCRIPTOR_HEADER structure to allocate a buffer of the proper size.

and the MSDN documentation for the STORAGE_DESCRIPTOR_HEADER structure
Describes the contents of the STORAGE DESCRIPTOR HEADER content as

Attachment 140879

And also from the MSDN documentation
IOCTL_STORAGE_QUERY_PROPERTY control code

Under Output Parameters,

The driver returns query data to the buffer at Irp->AssociatedIrp.SystemBuffer. Varying amounts of bus-specific data can be appended to the structure. Cast the structure returned to a STORAGE_DESCRIPTOR_HEADER and check its Size member to determine the number of bytes the structure actually requires.

From these three references one would expect the Query of the STORAGE_DESCRIPTOR_HEADER to provide the correct Size, but as I have found, this cannot be relied upon. Firstly, with some Storage Property ID's, the header is not returned, and in other cases, the size returned does not contain the correct number of bytes actually required.

I have adapted the application to detect these anomalies, but this is only based on the results from a few computers. There are some properties which are not available on any of the computers I have tested, so I cannot confirm the structure returned. For the moment these return an error message “Under Construction”

Testing Request

I created the attached program to explore the responses to the Storage Property ID queries, and would like feedback on the results for many different devices and OS.

The main component is the module mSTORAGE_PROPERTY.bas which has the function to retrieve data using the DeviceIoControl, and display the results for each of the property structures.

The attached program also includes modules to facilitate the testing and in particular to create an error log file which can be emailed.

Run the attached VB6 program, enter the drive letter, and then select the test button. As well as displaying the results from each property it also displays any errors. The error results can then be emailed so I can collate them and report on the findings and update this application. Not all the properties has been tested and the returned information may include the following notifications:

Reserved – MSDN lists this property as reserved so nothing to return
Driver – MSDN lists this property for drive usage only nothing to return
Under Construction – meaning I have not been able to test this module as none of the computers I have used returns any data for the specific property

Module:

mSTORAGE_PROPERTY.bas
Function:

GetStorageDescriptor

This is a summary, and incomplete code, of key components to retrieve the Storage Property. For the full code, see the attached files.

The guts of the program makes 3 or 4 queries on each of the Storage Property ID’s

Query Exists
Tests if the specific Storage Property ID exists for the drive selected
Query Header
Requests the STORAGE_DESCRIPTOR_HEADER which should be common to all properties
Query Structure Header
Requests the Property structure which is specific to each of the Storage Property ID’s
Query additional data
Requests any additional data

These queries return the Storage Descriptor Header and a byte array of all the returned data

Code – Declarations

Code:

Private Declare Function DeviceIoControl Lib "kernel32" _ (ByVal hDevice As Long, _ ByVal dwIoControlCode As Long, _ ByRef lpInBuffer As Any, _ ByVal nInBufferSize As Long, _ ByRef lpOutBuffer As Any, _ ByVal nOutBufferSize As Long, _ ByRef lpBytesReturned As Long, _ ByRef lpOverlapped As Any) As Long Private Enum STORAGE_QUERY_TYPE PropertyStandardQuery = 0 'Instructs the driver to return an appropriate descriptor PropertyExistsQuery = 1 'Instructs the driver to report whether the descriptor is supported PropertyMaskQuery = 2 'Not currently supported. Do not use PropertyQueryMaxDefined = 3 'Specifies the upper limit of the list of query types End Enum Private Type STORAGE_DESCRIPTOR_HEADER Version As Long 'Indicates the size of the STORAGE_DEVICE_DESCRIPTOR structure. Size As Long 'Specifies the total size of the descriptor in bytes, 'including ID strings which are appended to the structure. End Type Private Type STORAGE_PROPERTY_QUERY PropertyId As Long QueryType As Long AdditionalParameters(0 To 1 - 1) As Byte End Type Dim SPQ As STORAGE_PROPERTY_QUERY Dim SDH As STORAGE_DESCRIPTOR_HEADER

Code – Function GetStorageDescriptor
Parameters: (StoragePropertyID as long, SDRawBA as STORAGE_DESCRIPTOR_RAW, sDrive As String, _
Optional Size as Long)
Where StoragePropertyID is the ID of the Storage property requested
SDRawBA is a structure containing BA() as a byte array of the data returned
sDrive is the target drive
the Optional Size is the expected size of the Storage property if it is a fixed size

The function first opens the drive and then makes the DirectIOControl queries to request the data.
This is an extract of the DirectIOControl calls for the 4 Queries

1. Code – Query Exists

Code:

'--------------------------------------- 'Populate STORAGE_PROPERTY_QUERY request '--------------------------------------- SPQ.PropertyId = StoragePropertyID SPQ.AdditionalParameters(0) = 0 '-------------------------------------------------- 'Check if StoragePropertyID is supported '-------------------------------------------------- SPQ.QueryType = PropertyExistsQuery ' = 1 RetSPQ = DeviceIoControl( _ hDrive, IOCTL_STORAGE_QUERY_PROPERTY, _ SPQ, LenB(SPQ), _ ByVal 0&, ByVal 0&, _ RetSize, ByVal 0&) OK = (RetSPQ <> 0)

2 Code – Query Header

Code:

'----------------------------------------- 'Request SDH - STORAGE DESCRIPTOR HEADER '----------------------------------------- If OK Or (Not OK) Then ' as ExistsQuery is not reliable SPQ.QueryType = PropertyStandardQuery ' = 0 RetSPQ = DeviceIoControl( _ hDrive, IOCTL_STORAGE_QUERY_PROPERTY, _ SPQ, LenB(SPQ), _ SDH, LenB(SDH), _ RetSize, ByVal 0&) OK = Not (RetSPQ = False) '------------------------------------- 'Build SDH - STORAGE DESCRIPTOR HEADER '(if DeviceIoControl QueryHeader fails) '------------------------------------- If (Not OK) And (Size > 0) Then OK = (Size > 0) SDH.Size = Size ' used for size of byte array SDH.Version = Size End If End If

3. Code – Query Structure

Code:

' ------------------------------------------- ' Header SDH.Size has size of data to be read ' ------------------------------------------- If (SDH.Size > LenB(SDH)) Then ReDim SDRawBA.ba(0 To SDH.Size - 1) CopyMemory SDRawBA.ba(0), SDH, LenB(SDH) SPQ.QueryType = PropertyStandardQuery SPQ.PropertyId = StoragePropertyID SPQ.AdditionalParameters(0) = 0 RetSPQ = DeviceIoControl( _ hDrive, IOCTL_STORAGE_QUERY_PROPERTY, _ SPQ, LenB(SPQ), _ SDRawBA.ba(0), SDH.Size, _ RetSize, ByVal 0&) OK = Not (RetSPQ = False) End If

4. Code – Query additional Data

Code:

' ------------------------------------------- ' Header SDH.Size has size of data to be read ' but there may be more data ' ------------------------------------------- If OK Then ' check RetSize >= SDH.Size CopyMemory SDH, SDRawBA.ba(0), LenB(SDH) If SDH.Size > RetSize Then ReDim SDRawBA.ba(0 To SDH.Size - 1) CopyMemory SDRawBA.ba(0), SDH, LenB(SDH) SPQ.QueryType = PropertyStandardQuery ' = 0 RetSPQ = DeviceIoControl( _ hDrive, IOCTL_STORAGE_QUERY_PROPERTY, _ SPQ, LenB(SPQ), _ SDRawBA.ba(0), SDH.Size, _ RetSize3, ByVal 0&) OK = Not (RetSPQ = False) End If End If

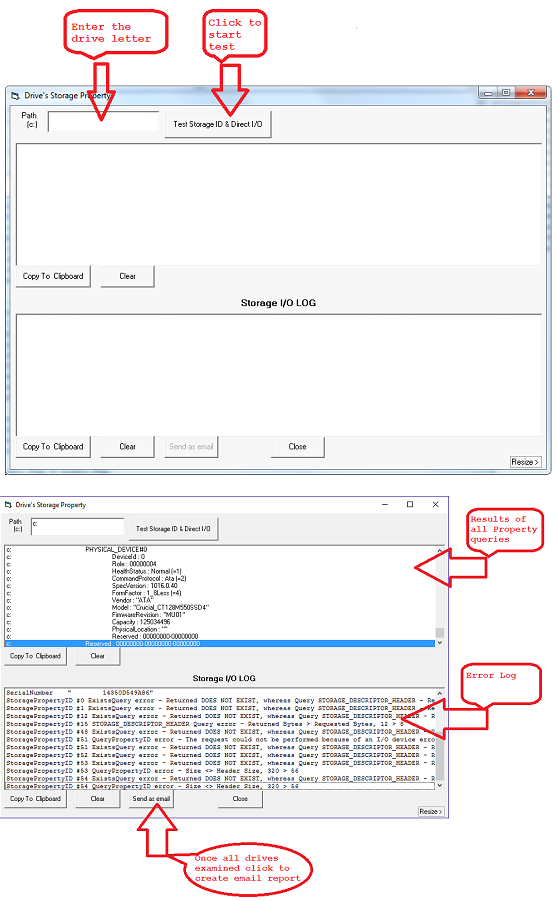

Instructions

Either compile the code to an exe file, or run from the VB6 IDE. It is best to run the application in administrator mode as some MSDN documentation for earlier Windows OS versions made this a requirement, particular if Access Denied errors are reported.

Run the program and enter each drive letter with a different hardware, and select the Test Button.
When all the drives has been tested select the EMAIL button to prepare an email of the results, as follows:

Attachment 140885

The results of a drive test will populate the list boxes

Run the test for all the drives, the press the email button to create an email report.

Thanks

Re: VB6 DeviceIoControl – IOCTL_STORAGE_QUERY_PROPERTY– testing

Quote:

Originally Posted by powys6

Name of Application:

TestSPID
Description of what the Application does:

Test Storage Property ID functions
Minimum Requirements to test the Application:

VB6, Any NT based OS including Win10
Your Expectations from the testing:

Identify unusual Hardware and OS properties

The results of a drive test will populate the list boxes

Run the test for all the drives, the press the email button to create an email report.

Thanks

HOW TO GET ALL disk sn,not by driver(c:,d:)

Re: VB6 DeviceIoControl – IOCTL_STORAGE_QUERY_PROPERTY– testing

xiaoyao - re HOW TO GET ALL disk sn

Try using the SWbemObjectSet and extract each SWbemObject.SerialNumber.
The format of the serial number can vary, I have used the following code to explore these:
Function Convert(vSerialNumber As Variant) As String

Code:

Dim MayBeHex As Boolean Dim i As Long Dim InHex As String Dim lHex As Long Dim lAsc1 As Long Dim lAsc2 As Long Dim SerialNumber As String On Error GoTo EH If VarType(vSerialNumber) <> vbString Then Convert = vbNullString Else SerialNumber = vSerialNumber InHex = vbNullString MayBeHex = (Len(SerialNumber) > 0) For i = 1 To Len(SerialNumber) - 1 Step 2 lAsc1 = AscW(Mid$(SerialNumber, i, 1)) Select Case lAsc1 Case AscW("0") To AscW("9") lHex = (lAsc1 - AscW("0")) * 16 Case AscW("A") To AscW("F") lHex = ((lAsc1 - AscW("A")) + 10) * 16 Case AscW("a") To AscW("f") lHex = ((lAsc1 - AscW("a")) + 10) * 16 Case Else MayBeHex = False End Select lAsc2 = AscW(Mid$(SerialNumber, i + 1, 1)) Select Case lAsc2 Case AscW("0") To AscW("9") lHex = (lAsc2 - AscW("0")) + lHex Case AscW("A") To AscW("F") lHex = ((lAsc2 - AscW("A")) + 10) + lHex Case AscW("a") To AscW("f") lHex = ((lAsc2 - AscW("a")) + 10) + lHex Case Else MayBeHex = False End Select Select Case lHex Case 0 To 31 InHex = InHex + Chr$(lHex) Case 32 To 127 InHex = InHex + Chr$(lHex) Case Else MayBeHex = False End Select Next i If Not MayBeHex Then Convert = SerialNumber Else InHex = Trim(InHex) For i = 1 To Len(InHex) - 1 Step 2 lAsc1 = AscW(Mid$(InHex, i, 1)) lAsc2 = AscW(Mid$(InHex, i + 1, 1)) Mid$(InHex, i, 1) = Chr$(lAsc2) Mid$(InHex, i + 1, 1) = Chr$(lAsc1) Next i For i = 1 To Len(InHex) If Mid$(InHex, i, 1) = vbNullChar Then Mid$(InHex, i, 1) = " " End If Next i 'final check for printable characters For i = 1 To Len(InHex) Select Case AscW(Mid$(InHex, i, 1)) Case 0: Mid$(InHex, i, 1) = " " Case 1 To 31: Mid$(InHex, i, 1) = "." Case Else End Select Next i InHex = Trim(InHex) Convert = InHex End If End If Exit Function EH: Resume Next End Function

This converted a serial number into ID: 3353325a424e4b31324136393332204c20202020 into SerialNumber -> S3Z2NB1KA29623L
I have then simplified and cleaned it up.
