Getting data from client and put into text box

Dear all.

I am using Visual basic 2010. I have client device with IP 192.168.1.3 and port = 8899http://www.usriot.com/p/rs485-to-wifi-converters/

I am sending data serially with above device.

Data send in this format:

SMCB3,3,0,0,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,Temp_read:348,HV_Read:647,SPD:0,DIS:0
Once Ip address and port has being define. I need to keep connected to wifi device.I have written python code where i could able to receive data . Now i am planning to impliment same thing using visual basic.

I have created Text box. I need help in Put csv separated value into particular text box and If value read as Zero display particular button to RED , if text box value read , then display the button as green indicating string is active.

My python code. Where data1 contains

data1=SMCB3,3,0,0,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,Temp_read:348,HV_Read:647,SPD:0,DIS:0

Code:

---

import socket

TCP_IP = '192.168.1.3'
#TCTCP_IP1='192.168.1.2'
TCP_PORT = 8899
BUFFER_SIZE = 100
BUFFER_SIZE1=100
MESSAGE = "Hello, World!"

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
#s1 = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((TCP_IP, TCP_PORT))
#s1.connect((TCTCP_IP1, TCP_PORT))

s.send(MESSAGE)
#s1.send(MESSAGE)
data = s.recv(500)
#data1= s1.recv(BUFFER_SIZE)

mod_hex=data.encode('hex').upper()
print 'Hexa decimal value Modified:',repr(mod_hex)


s.close()
#s1.close()
print "received data:", data
#print "received data:", data1

---

Here is Vb code. I need help to get started to connect IP address with particular port

Code:

---

Public Class Form1

    Dim selectedItem1 As String

    Private Sub SMCB1_clientIP_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SMCB1_clientIP.TextChanged

    End Sub


    Private Sub SMCB1_Connect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SMCB1_Connect.Click

        Dispay_Show.Text = SMCB1_clientIP.Text
        Dispay_Show.Text = SMCB1_clientIP.Text & vbNewLine
        Dispay_Show.AppendText(SMCB1_Port.Text)

    End Sub


    Private Sub SMCB1_Disconnect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SMCB1_Disconnect.Click

    End Sub
End Class

---

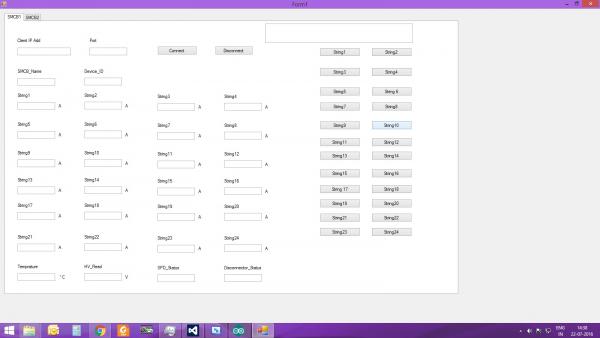

Attachment 139583

I have modify the code bit . it look like this..

Code:

---


Option Explicit On

Public Class Form1

    Dim selectedItem1 As String
    Dim Data As String
    Dim WrdArray() As String
    Dim line As String

    Private Sub SMCB1_clientIP_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SMCB1_clientIP.TextChanged

    End Sub


    Private Sub SMCB1_Connect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SMCB1_Connect.Click

        ' Dispay_Show.Text = SMCB1_clientIP.Text
        'Dispay_Show.Text = SMCB1_clientIP.Text & vbNewLine & SMCB1_Port.Text & vbNewLine
        Data = "SMCB3,3,0,0,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,Temp_read:348,HV_Read:647,SPD:0,DIS:0"
        '  Dispay_Show.Text = SMCB1_clientIP.Text & vbNewLine & SMCB1_Port.Text & vbNewLine & Data
        Dispay_Show.Text = Data

        Dim strArray() As String
        Dim intCount As Integer
        Dim Tempr_read As String
        Dim voltage As String
        Dim SPD As String
        Dim Dis_value As String

        Data = "SMCB3,3,0,0,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,Temp_read:348,HV_Read:647,SPD:0,DIS:0"
        strArray = Split(Data, ",")
        SMCB1_Name.Text = strArray(0)
        SMCB1_DeviceId.Text = strArray(1)
        SMCB1_String1.Text = strArray(2)
        SMCB1_String2.Text = strArray(3)
        SMCB1_String3.Text = strArray(4)
        SMCB1_String4.Text = strArray(5)
        SMCB1_String5.Text = strArray(6)
        SMCB1_String6.Text = strArray(7)
        SMCB1_String7.Text = strArray(8)
        SMCB1_String8.Text = strArray(9)
        SMCB1_String9.Text = strArray(10)

        SMCB1_String10.Text = strArray(11)
        SMCB1_String11.Text = strArray(12)
        SMCB1_String12.Text = strArray(13)
        SMCB1_String13.Text = strArray(14)
        SMCB1_String14.Text = strArray(15)
        SMCB1_String15.Text = strArray(16)
        SMCB1_String16.Text = strArray(17)
        SMCB1_String17.Text = strArray(18)
        SMCB1_String18.Text = strArray(19)
        SMCB1_String19.Text = strArray(20)

        SMCB1_String20.Text = strArray(21)
        SMCB1_String21.Text = strArray(22)
        SMCB1_String22.Text = strArray(23)
        SMCB1_String23.Text = strArray(24)
        SMCB1_String24.Text = strArray(25)

        ' Tempr_read = Split(Data(strArray(26),":")


        SMCB1_Temp.Text = strArray(26)
        SMCB1_Hvread.Text = strArray(27)
        SMCB1_SPD.Text = strArray(28)
        SMCB1_DIS.Text = strArray(29)


        For intCount = LBound(strArray) To UBound(strArray)
            Debug.Print(Trim(strArray(intCount)))
        Next
    End Sub



    Private Sub SMCB1_Disconnect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SMCB1_Disconnect.Click

    End Sub




End Class

---
