[VB6] - Inline assembler Add-in.

1 Attachment(s)

Hello everyone!
There are cases where you need to use the assembly code in your VB6 projects. Usually this is done using a previously-compiled code that is placed into the the memory. Then this code is run using one of millions method. Unfortunately this method has the disadvantages. For instance, you will have to change the procedures of the placement code in the memory If you change the asm-code. In addition it is quite slow process. I've written the Add-in that does these process automatically, also after compilation any processes of the placement of the code in the memory are not performed. Asm-code links to EXE. This add-in supports the asm-code either IDE or the compiled form (native only!).

How to use?
First you have to install the Add-in (installer available at the end of article). After installing you should run the Add-in from VB6 IDE (Add-Ins -> Add-in Manager -> Inline assembler). It adds the new item to Add-Ins menu. If current project does not use the add-In features yet it will add the new module to project. You should add the prototypes of the functions in this module in order to call them from VB6 code. You can rename this module, place the prototypes of the functions, but you can't place the code to this module. After creating of the module you can run the ASM-editor. There is the combobox with the the functions which you defined in the module. For each function you can override the code using the NASM syntax. However if you don't override code (just leaving it empty) a function won't be overridden (this function is left a typical vb6 function). Each project (if you use this Add-in) is associated the additional file with *.ia extension in the project folder. This file contains the asm-codes for each function that is overridden by user. This add-in works "transparently", i.e. if you disable add-in project will work and compile, only "stub-functions" will work without overrides. *.ia file isn't "vitally essential" for working of the project, i.e. this project will work anyway.
Let's consider working of Add-in with the simple example. For instance, we need to mix the two integers-arrays without overflowing, i.e. if the result of the addition is greater than 32767 it should be left to 32767. Opposite, if the result of the addition is smaller than -32768 it should be left to -32768. For this very well suit MMX-extension. It has the instructions for working with the vector data with the saturation. Ok, let's go! Create new project, open Add-in. It adds the new module, rename this module to modInlineAsm. Now define the prototype of the function:

Code:

Public Function MMXAdd( _ ByRef dest As Integer, _ ByRef src As Integer, _ ByVal count As Long) As Long End Function

At the first parameter we pass the first element of the array, also this array is result; at the second parameter we pass the first element of the second array; finally, at the third parameter we pass the number of the elements. Note that the size should be a multiple of 8 bytes, because we will use the vector instructions, which work with 8 bytes simultaneously. Now define the procedure that will call this function:

Code:

Private Sub Form_Load() Dim src() As Integer Dim dst() As Integer Dim size As Long Dim index As Long size = 1024 ReDim src(size - 1) ReDim dst(size - 1) For index = 0 To size - 1 ' // Fill arrays with sine src(index) = Sin(index / 40) * 20000 dst(index) = Sin(index / 23) * 20000 Next ' // Add with saturation MMXAdd dst(0), src(0), size '// Draw result AutoRedraw = True Scale (0, 32767)-(index, -32768) For index = 0 To size - 1 If index Then Me.Line -(index, dst(index)) Else Me.PSet (index, dst(index)) End If Next End Sub

As you can see here both arrays are filled with sines which have the different period. Further we mix these arrays using MMXAdd function. Eventually the result array is being shown to the screen. Now we should override the MMXAdd function. For this activate the Add-in. The editor window will be opened, and there we select the MMXAdd function and add the following code:

Code:

BITS 32 ; Addition of two arrays using saturation ; Size of arrays should be a multiple of 8 push EBP mov EBP, ESP push EBX push ESI push EDI mov ESI,DWORD [EBP+0x8] mov EDI,DWORD [EBP+0x0C] mov ECX,DWORD [EBP+0x10] shr ECX,2 test ECX,ECX je EXIT_PROC emms ; Initialize MMX CYCLE: movq MM0,QWORD [EDI] movq MM1,QWORD [ESI] paddsw MM1,MM0 movq QWORD [ESI],MM1 add ESI,0x8 add EDI,0x8 loop CYCLE emms EXIT_PROC: pop EDI pop ESI pop EBX mov esp, ebp pop ebp ret 0x0c

It's very simple if you know the instruction set. The main instruction is paddsw that adds two four-dimensional 16 bits integer vectors with sign by single operation. Now save project and run it:
Attachment 134117

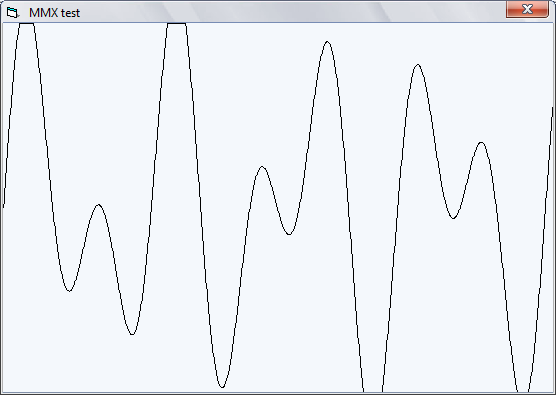

Nice! As you can see at the screenshot, the two sines are added with the saturation. You can notice the saturation by the peaks.
Okay, now let's try to compile the EXE file and check what is called and what is compiled:
http://thetrick.esy.es/Images/Disasm_Listing.PNG
As you can see, the code is already inside EXE, without memory allocation and unnecessary stuff.

How does it work?
Actually everything is very simple. When Add-in is connected the handlers of key events are set: the compilation start event, running code event, close/save project event etc. When you run code in IDE the all asm-codes are being compiled, also the addresses of the overrides function are calculated. Further the code of the original stub-functions is replaced to asm-code. When you call the stub-function it calls the asm-code. When you stop the execution the Add-in restores the original code. When you compile to the native code (or rather before linking) it finds the OBJ-file of the overridable module and replaces the code of the stub functions to asm-code and resaves file. For this functionality i write the COFF parser. Generally it can provides the lot of different features.
This project is very poorly tested, because i don't have enough time, therefore i think it'll contain very many bugs. Considering that the half of the project uses the undocumented features and trick, which perhaps don't work as i know. In this project even isn't syntax highlighting, because i don't have the possibility to finish the my highlighter textbox yet. Still i'm using the simple textbox. If someone have found the bugs write here.
Thanks for attention!

https://yadi.sk/d/_yMsCu7o3So5GY

Re: [VB6] - Inline assembler Add-in.

This VST-plugin is written on VB6 using the features of this Add-in:
https://www.youtube.com/watch?v=AKDSd5J7pgY

Re: [VB6] - Inline assembler Add-in.

you should make another codebank post on how to make a VST Plugin. :)

Re: [VB6] - Inline assembler Add-in.

DEXWERX, of course, but bit later...

Re: [VB6] - Inline assembler Add-in.

Where is the code??
Trick can you use a github for the addin?

Re: [VB6] - Inline assembler Add-in.

georgekar, hi. While i don't publish the source code of addin, because it doesn't support the integration of the NASM code to VB project, ie. you can't use the project variables in NASM code, only the parameters of the function. The rules of this forum forbid to publish the installer without source code. If you need to get the add-in, write me PM, i send you the installer.

Re: [VB6] - Inline assembler Add-in.

very interesting
I suppose the use of the assmbler code is due to its speed performance.

I have often noticed that VB6 is very slow. Especially when working on Image processing or Vector operations.
I would like to be able to implement some functions in assembler.
However, I would like to be sure that the assembler implementation is much faster and worth using.

Please can you make an example of simple operations between 2D or 3D vectors (using Floating point (singles / double))?
Or at least add other examples?

I had assembly bases, I studied it many years ago, and, having no longer used it, I forgot a lot.
So at least you could suggest some links where I can study Assembler instructions, registers ... and NASM ?
(For NASM I found This)

1 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

Quote:

Please can you make an example of simple operations between 2D or 3D vectors (using Floating point (singles / double))?
Or at least add other examples?

I've created the example of using generation of the random 4D vectors and calculation the sum of them using SSE:

Code:

' // ' // Fast 4D-vectors operations example using inline assembler (SSE) ' // by The trick ' // Option Explicit Private Const FADF_AUTO As Long = 1 Private Type SAFEARRAYBOUND cElements As Long lLBound As Long End Type Private Type SAFEARRAY cDims As Integer fFeatures As Integer cbElements As Long cLocks As Long pvData As Long Bounds As SAFEARRAYBOUND End Type Public Type tVector4D fX As Single fY As Single fZ As Single fW As Single End Type Private Declare Sub SafeArrayAllocDescriptor Lib "oleaut32" ( _ ByVal cDims As Long, _ ByRef ppsaOut As Long) Private Declare Sub MoveArray Lib "msvbvm60" _ Alias "__vbaAryMove" ( _ ByRef Destination() As Any, _ ByRef Source As Any) Private Declare Sub MoveArray2 Lib "msvbvm60" _ Alias "__vbaAryMove" ( _ ByRef Destination As Any, _ ByRef Source() As Any) Private Declare Function QueryPerformanceCounter Lib "kernel32" ( _ ByRef lpPerformanceCount As Currency) As Long Private Declare Function QueryPerformanceFrequency Lib "kernel32" ( _ ByRef lpFrequency As Currency) As Long Private Declare Function RtlCompareMemory Lib "ntdll" ( _ ByRef ptrSource1 As Any, _ ByRef ptrSource2 As Any, _ ByVal Length As Long) As Long Private msLog As String ' // Events log Sub Main() Dim tVB() As tVector4D Dim tAsm() As tVector4D ' // Run tests TestVB tVB TestAsm tAsm ' // Compare results If RtlCompareMemory(tVB(0), tAsm(0), Len(tAsm(0)) * UBound(tAsm)) = Len(tAsm(0)) * UBound(tAsm) Then msLog = msLog & "Match" Else msLog = msLog & "Doesn't match" End If ' // Display MsgBox msLog End Sub ' // Run inline asm test Private Sub TestAsm( _ ByRef tRes() As tVector4D) Dim tVec1() As tVector4D Dim tVec2() As tVector4D Dim cAlloc1 As CAllocator Dim cAlloc2 As CAllocator Dim lRndSeed As Long LogEvent "ASM test is running...", True Set cAlloc1 = New CAllocator Set cAlloc2 = New CAllocator tVec1 = CreateVectorArr4D(10000000, cAlloc1) tVec2 = CreateVectorArr4D(10000000, cAlloc2) lRndSeed = 327680 LogEvent "Allocation" FillRandomAsm tVec1, lRndSeed FillRandomAsm tVec2, lRndSeed LogEvent "Fill random" VectorsAdditionAsm tVec1, tVec2 LogEvent "Vectors Addition" tRes = tVec1 End Sub ' // Run pure-VB test Private Sub TestVB( _ ByRef tRes() As tVector4D) Dim tVec1() As tVector4D Dim tVec2() As tVector4D Dim cAlloc1 As CAllocator Dim cAlloc2 As CAllocator LogEvent "VB6 test is running...", True Set cAlloc1 = New CAllocator Set cAlloc2 = New CAllocator tVec1 = CreateVectorArr4D(10000000, cAlloc1) tVec2 = CreateVectorArr4D(10000000, cAlloc2) LogEvent "Allocation" FillRandomVB tVec1 FillRandomVB tVec2 LogEvent "Fill random" VectorsAdditionVB tVec1, tVec2 LogEvent "Vectors Addition" tRes = tVec1 End Sub ' // Log Public Sub LogEvent( _ Optional ByRef sText As String, _ Optional ByVal bNoTime As Boolean) Static cFreq As Currency, _ cOldVal As Currency Dim cNewVal As Currency If cFreq = 0@ Then QueryPerformanceFrequency cFreq QueryPerformanceCounter cNewVal cOldVal = cNewVal Else QueryPerformanceCounter cNewVal End If If Not bNoTime Then msLog = msLog & Format$((cNewVal - cOldVal) / cFreq, "0.00000") & "ms. " End If msLog = msLog & sText & vbNewLine cOldVal = cNewVal End Sub ' // ' // Alloc at 16 bytes boundary ' // Public Function CreateVectorArr4D( _ ByVal lCount As Long, _ ByVal cAlloc As CAllocator) As tVector4D() Dim pDesc As Long Dim tDesc As SAFEARRAY Dim tVec As tVector4D SafeArrayAllocDescriptor 1, pDesc MoveMemory tDesc, ByVal pDesc, Len(tDesc) tDesc.pvData = cAlloc.Alloc(lCount * Len(tVec)) tDesc.cbElements = Len(tVec) tDesc.fFeatures = FADF_AUTO tDesc.Bounds.cElements = lCount MoveMemory ByVal pDesc, tDesc, Len(tDesc) MoveArray CreateVectorArr4D, pDesc End Function

Code:

Option Explicit ' // ' // Fill with random values ' // Public Sub FillRandomVB( _ ByRef tVec() As tVector4D) Dim lIndex As Long For lIndex = 0 To UBound(tVec) tVec(lIndex).fX = Rnd tVec(lIndex).fY = Rnd tVec(lIndex).fZ = Rnd tVec(lIndex).fW = Rnd Next End Sub ' // ' // Vectors addition ' // tVecDst(0..n) = tVecDst(0..n) + tVecSrc(0..n) ' // Public Sub VectorsAdditionVB( _ ByRef tVecDst() As tVector4D, _ ByRef tVecSrc() As tVector4D) Dim lIndex As Long Dim lCount As Long If UBound(tVecDst) > UBound(tVecSrc) Then lCount = UBound(tVecSrc) + 1 Else lCount = UBound(tVecDst) + 1 End If For lIndex = 0 To lCount - 1 tVecDst(lIndex).fX = tVecDst(lIndex).fX + tVecSrc(lIndex).fX tVecDst(lIndex).fY = tVecDst(lIndex).fY + tVecSrc(lIndex).fY tVecDst(lIndex).fZ = tVecDst(lIndex).fZ + tVecSrc(lIndex).fZ tVecDst(lIndex).fW = tVecDst(lIndex).fW + tVecSrc(lIndex).fW Next End Sub

Code:

Option Explicit Public Sub FillRandomAsm( _ ByRef tVec() As tVector4D, _ ByRef lRndSeed As Long) End Sub Public Sub VectorsAdditionAsm( _ ByRef tVecDst() As tVector4D, _ ByRef tVecSrc() As tVector4D) End Sub

The CAllocator class:

Code:

' // ' // 16-byte alignment allocator ' // Option Explicit Private mpMem As Long Public Property Get Ptr() As Long Ptr = (mpMem + 15) And &HFFFFFFF0 End Property Public Function Alloc( _ ByVal lSize As Long) As Long If mpMem Then Err.Raise 5 mpMem = CoTaskMemAlloc(lSize + 16) Alloc = (mpMem + 15) And &HFFFFFFF0 End Function Public Sub Free() If mpMem Then CoTaskMemFree mpMem End If mpMem = 0 End Sub Private Sub Class_Terminate() Free End Sub

Code:

FillRandomAsm: BITS 32 ; Validate SafeArray mov eax, dword [esp + 4] test eax, eax jz EXIT mov eax, dword [eax] test eax, eax jz EXIT mov cx, word [eax] dec cx jnz EXIT push edi mov ecx, dword [eax + 0x10] ; SA.Bounds.cElements mov edi, dword [eax + 0x0c] ; SA.pvData mov eax, __float32__(16777216.0) movd xmm1, eax mov eax, dword [esp + 0x0c] ; *Seed mov eax, dword [eax] ; Seed ; Multiply by 4 shl ecx, 2 CYCLE: test ecx, ecx jz END_CYCLE ; VB6 Rnd algo: NewVal = (0xFFC39EC3 - (OldVal * 0x2BC03)) And &HFFFFFF imul eax, eax, 0x2BC03 sub eax, 0xFFC39EC3 neg eax and eax, 0xFFFFFF cvtsi2ss xmm0, eax divss xmm0, xmm1 ; Store movd [edi], xmm0 add edi, 4 dec ecx jmp CYCLE END_CYCLE: mov edi, dword [esp + 0x0c] mov dword [edi], eax pop edi EXIT: ret 8 VectorsAdditionAsm: BITS 32 push ebx mov eax, dword [esp + 8] test eax, eax jz EXIT mov ebx, dword [esp + 0xc] test ebx, ebx jz EXIT mov eax, dword [eax] test eax, eax jz EXIT mov ebx, dword [ebx] test ebx, ebx jz EXIT mov cx, word [eax] cmp cx, word [ebx] jne EXIT dec cx jne EXIT mov edx, dword [eax + 0x10] cmp edx, dword [ebx + 0x10] jbe START_CYCLE mov edx, dword [ebx + 0x10] START_CYCLE: test edx, edx jz EXIT xor ecx, ecx shl edx, 4 mov eax, dword [eax + 0xc] mov ebx, dword [ebx + 0xc] CYCLE: movaps xmm0, [eax + ecx] addps xmm0, [ebx + ecx] movaps [eax + ecx], xmm0 add ecx, 0x10 cmp ecx, edx jb CYCLE EXIT: pop ebx ret 8

It uses the allocator because some SSE instructions require the 16-bytes alignment for the performance reasons. The allocator just reserve the enough memory for an array and hold the original memory pointer to free it when the allocator has been released. The example has no error checking and uses default Rnd seed (327680).
The asm code works quite fast both in the IDE and in the exe:
https://i.ibb.co/v400jXp/test-asm.png
VB6 compiles pretty good :cool:
The main advantages is it doesn't use the dynamic code and you have the all in the exe:
https://i.ibb.co/QMRscmB/inline-asm.png

Re: [VB6] - Inline assembler Add-in.

Thank you, The trick. I tested it, and the test project shows "Out of memory", I don't know if the version of olelib.tlb on my computer is incorrect.

Code:

Private Sub TestAsm( _ ByRef tRes() As tVector4D) Dim tVec1() As tVector4D Dim tVec2() As tVector4D Dim cAlloc1 As CAllocator Dim cAlloc2 As CAllocator Dim lRndSeed As Long LogEvent "ASM test is running...", True Set cAlloc1 = New CAllocator Set cAlloc2 = New CAllocator tVec1 = CreateVectorArr4D(10000000, cAlloc1) tVec2 = CreateVectorArr4D(10000000, cAlloc2) lRndSeed = 327680 LogEvent "Allocation" FillRandomAsm tVec1, lRndSeed FillRandomAsm tVec2, lRndSeed LogEvent "Fill random" VectorsAdditionAsm tVec1, tVec2 LogEvent "Vectors Addition" tRes = tVec1 '--- Out of memory --- End Sub

Re: [VB6] - Inline assembler Add-in.

dreammanor, thank for debugging. Seems you have no enough memory to hold all the arrays. Just either try to reduce the arrays or try to compile.

Re: [VB6] - Inline assembler Add-in.

You can also insert the files into an exe files using that macro:

Code:

BITS 32 %assign TEMP_COUNTER 0 %macro insert_file 1 cmp eax, TEMP_COUNTER jnz %%label3 call %%label2 %%label1: incbin %1 %%label2: pop eax mov edx, %%label2 - %%label1 ret 4 %%label3: %assign TEMP_COUNTER TEMP_COUNTER +1 %endmacro xor edx, edx mov eax, dword [esp+4] ; // Add the files insert_file "wf_01.bin" insert_file "wf_02.bin" insert_file "wf_03.bin" insert_file "wf_04.bin" insert_file "wf_05.bin" insert_file "wf_06.bin" insert_file "firmware_sw.bin" insert_file "firmware_sw_inv.bin" insert_file "firmware_hw.bin" insert_file "firmware_hw_inv.bin"

You can get the data using such prototype:

Code:

Public Type tResource pData As Long lSize As Long End Type Public Function GetResource( _ ByVal lIndex As Long) As tResource End Function

I used that approach in TrickComposer to store all the resources into the compound file inside EXE.

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by The trick

dreammanor, thank for debugging. Seems you have no enough memory to hold all the arrays. Just either try to reduce the arrays or try to compile.

Yes, I didn't notice that the number of Vectors is so huge (20 million). After I reduced the number of Vectors, the program works fine. Thank you very much, The trick.

Some time ago, I tested the performance of my Spread control. My Spread takes 57 seconds to load 6 million cells (300,000 rows, 20 cols), while Farpoint Spread takes only 22 seconds. I don't know if your code can be used to improve the performance of my Spread control. If it can, that would be great.

2 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

Attachment 164143 Attachment 164145

Very interesting but also very difficult to understand.
I realize I really understand very little ... I still do not know exactly what a SafeArray is ....
Apart from this I do not know how many people can understand the example. (also the Asm)
In my opinion, much simpler examples of small functions would be needed.

When working with vectors, eg for graphics, you always have to deal with the "Normalize" function. That must execute 1 / Sqr (magnitude) and here the "famous" Fast Inverse square root takes over.
https://en.wikipedia.org/wiki/Fast_inverse_square_root
http://www.vbforums.com/showthread.p...t-Inverse-Sqrt

I was thinking to use Asm for this, and, if it's worth it, also for other Vectorial operations.

Re: [VB6] - Inline assembler Add-in.

I though fast inverse hack is not relevant anymore as FPUs are faster doing it precisely and in floating-point (the hack is approximation).

What is more relevant nowadays is vectorization of the processing approach, using SSE/AVX instruction that deal with batches of 4-8-16 operands in parallel.

cheers,
</wqw>

1 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

I've made such tests:

Code:

' // ' // Vectors normalization test using different approaches ' // by The trick ' // Option Explicit Private Const ERR_TOLERANCE As Single = 0.01 ' // Error checking tolerance Public Type tVector4D fX As Single fY As Single fZ As Single fW As Single End Type Private Declare Function QueryPerformanceCounter Lib "kernel32" ( _ ByRef lpPerformanceCount As Currency) As Long Private Declare Function QueryPerformanceFrequency Lib "kernel32" ( _ ByRef lpFrequency As Currency) As Long Private msLog As String ' // Events log Sub Main() Dim tVec() As tVector4D Dim tVecTemp() As tVector4D Dim tDirect() As tVector4D ReDim tVec(10000000) ' // Fill the vectors with different random values with range 0...10000 FillRandom tVec tVecTemp = tVec LogEvent "NormalizeVectorsDirectVB", True ' // Default VB-implementation using direct sqr calculation NormalizeVectorsDirectVB tVecTemp LogEvent "" tDirect = tVecTemp tVecTemp = tVec LogEvent "NormalizeVectorsFastVB", True ' // Using VB fast inverse square root NormalizeVectorsFastVB tVecTemp LogEvent "" CheckError tDirect, tVecTemp tVecTemp = tVec LogEvent "NormalizeVectorsFastAsmFPU", True ' // Using ASM (FPU) fast inverse square root NormalizeVectorsFastAsmFPU tVecTemp LogEvent "" CheckError tDirect, tVecTemp tVecTemp = tVec LogEvent "NormalizeVectorsFastAsmSSE", True ' // Using ASM (SSE3) fast inverse square root NormalizeVectorsFastAsmSSE tVecTemp LogEvent "" CheckError tDirect, tVecTemp MsgBox msLog End Sub ' // ' // Check error ' // Private Sub CheckError( _ ByRef tDirect() As tVector4D, _ ByRef tVectors() As tVector4D) Dim lIndex As Long For lIndex = 0 To UBound(tDirect) ' // 0.01 - tolerance If Abs(tDirect(lIndex).fX - tVectors(lIndex).fX) > ERR_TOLERANCE Or _ Abs(tDirect(lIndex).fY - tVectors(lIndex).fY) > ERR_TOLERANCE Or _ Abs(tDirect(lIndex).fZ - tVectors(lIndex).fZ) > ERR_TOLERANCE Or _ Abs(tDirect(lIndex).fW - tVectors(lIndex).fW) > ERR_TOLERANCE Then Stop End If Next End Sub ' // ' // Normalize array of vectors using direct calculatuion ' // Private Sub NormalizeVectorsDirectVB( _ ByRef tVectors() As tVector4D) Dim lIndex As Long Dim fLen As Single For lIndex = 0 To UBound(tVectors) fLen = Sqr(tVectors(lIndex).fX * tVectors(lIndex).fX + _ tVectors(lIndex).fY * tVectors(lIndex).fY + _ tVectors(lIndex).fZ * tVectors(lIndex).fZ + _ tVectors(lIndex).fW * tVectors(lIndex).fW) tVectors(lIndex).fX = tVectors(lIndex).fX / fLen tVectors(lIndex).fY = tVectors(lIndex).fY / fLen tVectors(lIndex).fZ = tVectors(lIndex).fZ / fLen tVectors(lIndex).fW = tVectors(lIndex).fW / fLen Next End Sub ' // ' // Normalize array of vectors using fast inverse square ' // Private Sub NormalizeVectorsFastVB( _ ByRef tVectors() As tVector4D) Dim lIndex As Long Dim fLen As Single Dim fHalf As Single Dim lInt As Long For lIndex = 0 To UBound(tVectors) fLen = tVectors(lIndex).fX * tVectors(lIndex).fX + _ tVectors(lIndex).fY * tVectors(lIndex).fY + _ tVectors(lIndex).fZ * tVectors(lIndex).fZ + _ tVectors(lIndex).fW * tVectors(lIndex).fW fHalf = fLen * 0.5! GetMem4 fLen, lInt lInt = &H5F3759DF - (lInt \ 2) GetMem4 lInt, fLen fLen = fLen * (1.5! - (fHalf * fLen * fLen)) tVectors(lIndex).fX = tVectors(lIndex).fX * fLen tVectors(lIndex).fY = tVectors(lIndex).fY * fLen tVectors(lIndex).fZ = tVectors(lIndex).fZ * fLen tVectors(lIndex).fW = tVectors(lIndex).fW * fLen Next End Sub ' // Log Public Sub LogEvent( _ Optional ByRef sText As String, _ Optional ByVal bNoTime As Boolean) Static cFreq As Currency, _ cOldVal As Currency Dim cNewVal As Currency If cFreq = 0@ Then QueryPerformanceFrequency cFreq QueryPerformanceCounter cNewVal cOldVal = cNewVal Else QueryPerformanceCounter cNewVal End If If Not bNoTime Then msLog = msLog & Format$((cNewVal - cOldVal) / cFreq, "0.00000") & "ms. " End If msLog = msLog & sText & vbNewLine cOldVal = cNewVal End Sub Option Explicit ' // ' // Normalize array of vectors using fast inverse square using FPU ' // Public Sub NormalizeVectorsFastAsmFPU( _ ByRef tVectors() As tVector4D) End Sub ' // ' // Normalize array of vectors using fast inverse square using SSE3 ' // Public Sub NormalizeVectorsFastAsmSSE( _ ByRef tVectors() As tVector4D) End Sub ' // ' // Fill with random numbers ' // Public Sub FillRandom( _ ByRef tVectors() As tVector4D) End Sub

With the following asm code:

Code:

NormalizeVectorsFastAsmFPU: BITS 32 sub esp, 8 mov eax, dword [esp + 0x0c] test eax, eax jz EXIT mov eax, dword [eax] test eax, eax jz EXIT cmp word [eax], 1 jne EXIT mov ecx, dword [eax + 0x10] test ecx, ecx jz EXIT mov eax, dword [eax + 0x0c] ; // 0.5 mov dword [esp], __float32__(1.5) fld dword [esp] ; // 1.5 mov dword [esp + 4], __float32__(0.5) fld dword [esp + 4] CYCLE: ; // Calculate x*x + y*y + z*z + w*w fld dword [eax] fmul ST0, ST0 fld dword [eax + 4] fmul ST0, ST0 fld dword [eax + 8] fmul ST0, ST0 fld dword [eax + 0x0c] fmul ST0, ST0 faddp ST1, ST0 faddp ST1, ST0 faddp ST1, ST0 fld ST0 ; // Calculate half fmul ST0, ST2 fxch ST0, ST1 fstp dword [esp] shr dword [esp], 1 sub dword [esp], 0x5f3759df neg dword [esp] fld dword [esp] fmulp ST1 fmul dword [esp] fsubr ST0, ST2 fmul dword [esp] fld ST0 fmul dword [eax] fstp dword [eax] fld ST0 fmul dword [eax + 4] fstp dword [eax + 4] fld ST0 fmul dword [eax + 8] fstp dword [eax + 8] fmul dword [eax + 0x0c] fstp dword [eax + 0x0c] add eax, 0x10 loop CYCLE fstp ST0 fstp ST0 EXIT: add esp, 8 ret 4 NormalizeVectorsFastAsmSSE: BITS 32 mov eax, dword [esp + 4] test eax, eax jz EXIT mov eax, dword [eax] test eax, eax jz EXIT mov cx, word [eax] cmp cx, 1 jne EXIT mov ecx, dword [eax + 0x10] test ecx, ecx jz EXIT mov eax, dword [eax + 0x0c] push eax mov eax, __float32__(0.5) movd xmm0, eax mov eax, __float32__(1.5) movd xmm1, eax mov eax, 0x5F3759DF movd xmm2, eax pop eax CYCLE: movups xmm3, [eax] movaps xmm6, xmm3 mulps xmm3, xmm3 haddps xmm3, xmm3 haddps xmm3, xmm3 movss xmm5, xmm3 mulss xmm5, xmm0 psrad xmm3, 1 movss xmm4, xmm2 psubd xmm4, xmm3 mulss xmm5, xmm4 mulss xmm5, xmm4 movss xmm3, xmm1 subss xmm3, xmm5 mulss xmm3, xmm4 shufps xmm3, xmm3, 0 mulps xmm3, xmm6 movups [eax], xmm3 add eax, 0x10 loop CYCLE EXIT: ret 4

SSE3 implementation is more faster on my PC even regardless i didn't do the optimization with alignment (used movups).
https://i.ibb.co/Z1VtsR4/norm-test.png

2 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

@TheTrick
Congratulations on your knowledge of Asm - FPU/SSE !
Fast Inverse Sqr seems to have no more usefullness. (NormalizeVectorsFastVB).
Since it is the division "/" that consumes time. (in addition to Sqr)
This change brings to have 1 division instead of 4.

Code:

' // ' // Normalize array of vectors using direct calculatuion ' // Private Sub NormalizeVectorsDirectVB( _ ByRef tVectors() As tVector4D) Dim lIndex As Long Dim fLen As Single For lIndex = 0 To UBound(tVectors) fLen = 1 / Sqr(tVectors(lIndex).fX * tVectors(lIndex).fX + _ tVectors(lIndex).fY * tVectors(lIndex).fY + _ tVectors(lIndex).fZ * tVectors(lIndex).fZ + _ tVectors(lIndex).fW * tVectors(lIndex).fW) tVectors(lIndex).fX = tVectors(lIndex).fX * fLen tVectors(lIndex).fY = tVectors(lIndex).fY * fLen tVectors(lIndex).fZ = tVectors(lIndex).fZ * fLen tVectors(lIndex).fW = tVectors(lIndex).fW * fLen Next End Sub

And I have this result (WITH Above change):
Attachment 164207

WITHOUT Above change:
Attachment 164209

PS:
Sorry to bother you. When have time, could you make the SSE one just for 1 input 3D vector ?

Code:

Public Sub NormalizeVectorFastAsmSSE( ByRef tVectors As tVector3D)

Re: [VB6] - Inline assembler Add-in.

Could be interesting to write a routine that convert procedures/function VB code to ASM, of course, small procedures that are called quite a lot into projects, in order to make them faster.
Like such code :

Code:

Public Function NormalizeAmount(sAmount As String, Optional nDecimals As Long = 3) As Double ' #VBIDEUtils#*********************************************************** ' * Date : 12/01/2003 ' * Time : 21:46 ' * Module Name : Lib_Module ' * Module Filename : Lib.bas ' * Procedure Name : NormalizeAmount ' * Purpose : ' * Parameters : ' * sAmount As String ' * Optional nDecimals As Long = 3 ' * Purpose : ' ********************************************************************** ' * Comments : ' * ' * ' * Example : ' * ' * See Also : ' * ' * History : ' * ' * ' ********************************************************************** 1 On Error Resume Next 2 sAmount = Trim$(sAmount) 3 If LenB(sAmount) Then 4 If gsConfig_Decimal = "," Then 5 If InStrB(sAmount, ".") Then sAmount = Replace(sAmount, ".", vbNullString) 6 ElseIf gsConfig_Decimal = "." Then 7 If InStrB(sAmount, ",") Then sAmount = Replace(sAmount, ",", vbNullString) 8 End If 9 If InStrB(sAmount, gsConfig_Devise) Then sAmount = Replace(sAmount, gsConfig_Devise, vbNullString) 10 If Left$(sAmount, 1) = "-" Then 11 NormalizeAmount = -Format(Replace(0 & Replace(sAmount, "-", vbNullString), ".", gsConfig_Decimal), "0." & String$(nDecimals, "0")) 12 Else 13 NormalizeAmount = Format(Replace(0 & sAmount, ".", gsConfig_Decimal), "0." & String$(nDecimals, "0")) 14 End If 15 Else 16 NormalizeAmount = 0 17 End If End Function

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by Thierry69

Could be interesting to write a routine that convert procedures/function VB code to ASM, ...
Like such code...

I've just tested your NormalizeAmount - function with the following global settings (here on my german locale):

Code:

Public Const gsConfig_Decimal = "," Public Const gsConfig_Devise = "€"

And then the following loop-code in a Form_Click:

Code:

Private Sub Form_Click() Dim i As Long, Result As Double, T! T = Timer For i = 1 To 10 ^ 6 Result = NormalizeAmount("€1.002,234501", 3) Next Caption = Timer - T End Sub

The above (using your function) needs about 5 seconds to finish the 1Mio evaluations to a Double-Value...

Tough - for an easy factor 10 speed-up, I've just had to change "NormalizeAmount" with "VBA.Round"... ;)

I guess this example shows, that "ASM-tuning" of "inefficient routines" would bring not much -
usually it is algorithm- or library-changes, which can ensure a decent speed-up much more effortlessly...

Besides ... ASM-stuff is not really needed these days anymore, since most decent C/C++/Fortran-compilers
can optimize exceptionally well, giving even an experienced ASM-guy quite a hard time, to come up with something better.

Olaf

Re: [VB6] - Inline assembler Add-in.

Thanks Olaf.
I think I used Round in the past, but for some reasons it was not working in all cases.
I'll investigate

I just tested with a routine that intesivielly use this function, here is the result :

With my function
87,23828125

With round (in the function, so just modified the core of the function)
87,08984375

So no gain

Than, I did a global replace in the project for my function to Round, and I had quite a lot of errors.
My function manage empty strings and also "%" in order to manage all numerics.

After some "quickly and dirty" modifications to manage the errors, I had the result :
77,17578125

But the final result of the calculations was not the same (probably some dirty code not well managed during my test)

But only a gain of 10 seconds wich is not so significant.

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by Thierry69

I just tested with a routine that intesivielly use this function, here is the result :

With my function
87,23828125
...
After some "quickly and dirty" modifications to manage the errors, I had the result :
77,17578125
...
But only a gain of 10 seconds wich is not so significant.

There has to be "something more to it" (the scenario, in which you apply that function) -
because the performance-increase using Round is definitely > factor 10 (when comparing the two routines isolated).

I'd be happy to take a look at a demo-scenario of yours though (ideally uploaded in a little Demo-Zip),
where you make use of that function... (just open up another thread for it, to not derail this one here).

Olaf

Re: [VB6] - Inline assembler Add-in.

It is not used in a loop like your sample, but intensively in the business application, at several thousands of place.
So, not only this function is used.
Th eproject is something like 1 millions of lines and I try always to optimise a bit the speed when I can

Re: [VB6] - Inline assembler Add-in.

is there any tools to do vb6 asm mix coding?

Re: [VB6] - Inline assembler Add-in.

Quote:

is there any tools to do vb6 asm mix coding?

What do you mean? This tool allows to make a function/subroutine written in ASM. Alternatively you could link an OBJ file written in an external ASM to a VB6 executable.

Re: [VB6] - Inline assembler Add-in.

I mean this:

Code:

Function MyFunc() Dim h As Long '_asmstart '_asm eax, [ebp+8] '_asm mov eax, [eax] '_asm mov eax, [eax+4] '_asm mov [ebp-4], eax '_asmend If h = 0 Then h = CallOtherFunction(params) If h then '_asmstart '_asm push edx '_asm mov eax, [ebp+8] '_asm mov eax, [eax] '_asm mov edx, [ebp-4] '_asm mov [eax+4], edx '_asm pop edx '_asmend End if End if End Function

Re: [VB6] - Inline assembler Add-in.

loquat,
what does this code do? You can't use an arbitrary asm in a VB-code because you don't know registers and stack usage. I mean are you sure the code uses the ebp-based access to local variable? Are you sure eax isn't used within the code you changed it?
I'm working on version 2 which should allow to access to VB-entities (functions/global/local variables) but it isolates the procedures as well.

Re: [VB6] - Inline assembler Add-in.

the code is not written by me, it has a function to read the first member of the base class and then write it
what i mean on previous post is, can we write some asm code in the vb6 code?

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by loquat

the code is not written by me, it has a function to read the first member of the base class and then write it
what i mean on previous post is, can we write some asm code in the vb6 code?

This Add-in doesn't allow use such mixing. It allows to write a function only in ASM and it supports debugging in IDE.
Regarding your code you can write such code without asm.

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by The trick

This Add-in doesn't allow use such mixing. It allows to write a function only in ASM and it supports debugging in IDE.

i have not found such addins either, why is this type of mix coding that difficult...

Quote:

Originally Posted by The trick

Regarding your code you can write such code without asm.

yes, we can use a property in base class to make that

Re: [VB6] - Inline assembler Add-in.

Quote:

i have not found such addins either, why is this type of mix coding that difficult...

Why do you need that? I don't see real benefits over existing solutions.

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by loquat

i have not found such addins either, why is this type of mix coding that difficult...

I think that you are looking for ThunderVB addin:

https://sourceforge.net/projects/thundervb/

It can mix assembler and C with VB6.

Re: [VB6] - Inline assembler Add-in.

LeoCV, does this allow to mix the asm with VB6 code in a single function like loquat wrote? Does it allow to debug in IDE?

Re: [VB6] - Inline assembler Add-in.

The screenshots in the project's page shows that you can edit asm code mixed with the VB6 code (even with asm intellisense!). I also suppose that it will not allow to debug in IDE: to make it work you need an asm compiler (masm, nasm, or fasm), but there is no mention to an asm debugger.

I don't know if the function can mix asm with VB6 code, because I've never have the need to use it, but you can study the source code (be advised: it's a nightmare, with a lot of VB6 projects that depends on each other, even with "circular references"...)

1 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

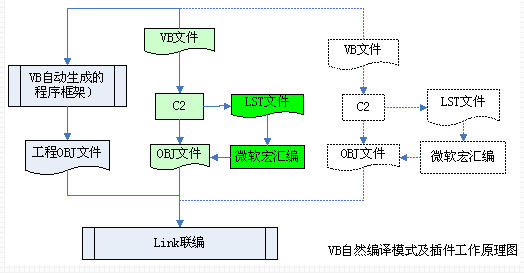

i also have one addin that can add c and asm code for vb6, but it can not write code as what i indicate below
it is the old asminvb addin, sure it support asm code debug, but i do not know how to use it
1.it can Comment block like this
Rem{
this is all comments
Rem}
2.can write c code
3.can write asm code
4.has user define highlight and user defined intelisense feasures
the captured image do not show this.
5.has a code number at left
and many other functions, but it is not a open source addin, and it released only in vbgood forum

by the way, this captured image only show the function, i have test not mix asm with c code
but have tested that asm code can not mix with vb6 code in one subroutine

Re: [VB6] - Inline assembler Add-in.

Hi The Trick,

Would it be possible to add C support in a future version? Perhaps pass the C source through MingW or cl (MSVC) then link the resulting object files in a similar way as how you insert the ASM machine code? I use C a lot for my other work but I guess I am not really sure how much harder this would be than what you have done with ASM.

In "theory" an ASM stub pasted in the way you do now to call the C function, with the C obj files linked to the final EXE might do the trick?

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by loquat

i also have one addin that can add c and asm code for vb6, but it can not write code as what i indicate below
it is the old asminvb addin, sure it support asm code debug, but i do not know how to use it
1.it can Comment block like this
Rem{
this is all comments
Rem}
2.can write c code
3.can write asm code
4.has user define highlight and user defined intelisense feasures
the captured image do not show this.
5.has a code number at left
and many other functions, but it is not a open source addin, and it released only in vbgood forum

by the way, this captured image only show the function, i have test not mix asm with c code
but have tested that asm code can not mix with vb6 code in one subroutine

VBOOD IS CLOSED ,DO YOU HAVE THIS CODE FOR download?

1 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

Attached is the rare asminvb program, I tested the example given in the chm file, it works perfectly but for optimum use, there is a Development Kit that I did not find which includes the files for the 3 folders Lib, Inc, Dlls, this Kit allows you to optimize the assembled code (shorter and faster).

Attachment 189149

Re: [VB6] - Inline assembler Add-in.

Ehh call me crazy but I'm hesitant to check out source-free random Chinese .exe, .dll, .bat, and .chm files.

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by fafalone

Ehh call me crazy but I'm hesitant to check out source-free random Chinese .exe, .dll, .bat, and .chm files.

No exe (ML.exe is MASM.exe), I tested everything, no virus, it's asminvb.dll which is important

the 2 .bats are for registering/unregistering the dll (I registered directly in syswow64)

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by camomille

Attached is the rare asminvb program, I tested the example given in the chm file, it works perfectly but for optimum use, there is a Development Kit that I did not find which includes the files for the 3 folders Lib, Inc, Dlls, this Kit allows you to optimize the assembled code (shorter and faster).

Attachment 189149

I get this error when compiling: Could not execute 'C:\Program Files (x86)\Microsoft Visual Studio\VB98\LINK.EXE'

2 Attachment(s)

Re: [VB6] - Inline assembler Add-in.

Quote:

Originally Posted by Dry Bone

I get this error when compiling: Could not execute 'C:\Program Files (x86)\Microsoft Visual Studio\VB98\LINK.EXE'

Here's how I tested it:
1) copy and register asminvb.dll in SysWow64
2) In Vb6, click on the icon, close the window that opens.
Attachment 189150
3)unregister asminvb.dll
4) test the program:

'_asm
Option Explicit

Private Sub Command1_Click()
MsgBox "The 4th position of 8 is" & GetBit(8, 3)
End Sub

#If IS_RELEASE Then
Private Function GetBit(ByVal Value As Long, ByVal Bit As Byte) As Boolean
'_asm{overall}
'_asm movzx ecx,byte PTR[esp+12]
'_asm xor eax,eax
'_asm bt dword PTR[esp+8],ecx
'_asm .if CARRY?
'_asm dec eax
'_asm .endif
'_asm mov edx,dword PTR[esp+16]
'_asm mov [edx],eax
'_asm xor eax,eax
'_asm ret 4 * 4
End Function
#Else
Private Function GetBit(ByVal Value As Long, ByVal Bit As Byte) As Boolean
Value = Value \ (2 ^ Bit)
If Value Mod 2 Then
GetBit = True
Else
GetBit = False
End If
End Function
#End If

Result disassembler :

'00403142 83EC 08 sub esp,8
'00403145 8B4424 14 mov eax,dword ptr ss:[esp+14]
'00403149 25 FF000000 and eax,0FF
'0040314E 894424 14 mov dword ptr ss:[esp+14],eax
'00403152 DB4424 14 fild dword ptr ss:[esp+14]
'00403156 DD1C24 fstp qword ptr ss:[esp]
'00403159 8B4C24 04 mov ecx,dword ptr ss:[esp+4]
'0040315D 8B1424 mov edx,dword ptr ss:[esp]
'00403160 51 push ecx
'00403161 52 push edx
'00403162 68 00000040 push 40000000
'00403167 6A 00 push 0
'00403169 FF15 68104000 call dword ptr ds:[<&MSVBVM60.__vbaPowerR8>]
'0040316F FF15 74104000 call dword ptr ds:[<&MSVBVM60.__vbaFpI4>]
'00403175 8BC8 mov ecx,eax
'00403177 8B4424 10 mov eax,dword ptr ss:[esp+10]
'0040317B 99 cdq
'0040317C F7F9 idiv ecx
'0040317E 25 01000080 and eax,80000001
'00403183 79 05 jns short 工程1.0040318A
'00403185 48 dec eax
'00403186 83C8 FE or eax,FFFFFFFE
'00403189 40 inc eax
'0040318A 8B5424 18 mov edx,dword ptr ss:[esp+18]
'0040318E F7D8 neg eax
'00403190 1BC0 sbb eax,eax
'00403192 66:8902 mov word ptr ds:[edx],ax
'00403195 33C0 xor eax,eax
'00403197 83C4 08 add esp,8
'0040319A C2 1000 retn 10

With Kit Development :

'00403142 0FB64C24 0C movzx ecx,byte ptr ss:[esp+C]
'00403147 33C0 xor eax,eax
'00403149 0FA34C24 08 bt dword ptr ss:[esp+8],ecx
'0040314E 73 01 jnb short 工程1.00403151
'00403150 48 dec eax
'00403151 8B5424 10 mov edx,dword ptr ss:[esp+10]
'00403155 8902 mov dword ptr ds:[edx],eax
'00403157 33C0 xor eax,eax
'00403159 C2 1000 retn 10

Even without understanding Chinese, we understand the technique used :

Attachment 189151

The plug-in intercepts the natural compilation process of VB, lets C2 output the Lst file, and then processes the assembly code that VB regards as comment lines. Then compile it into a new OBJ file through Microsoft's macro assembly tool, and replace the OBJ file generated by VB. Finally, it is compiled into an executable file by VB.

Therefore, assembly code can only be ultimately embodied in a naturally compiled program. VB is interpreted and run in development mode and no executable file is generated. Therefore, all assembly code is just comment information for VB. The solution to this inconvenient problem is to provide direct DLL calls in IDE development mode. Then use conditional compilation to handle this problem perfectly. Most of the development packages provided by the author provide these, as well as sample code. Developers can gain a deep understanding of this process.
