[VB6] - Store data to EXE.

http://www.youtube.com/watch?v=W3J_VCorIoY

Hello everyone!
There are times when you want to save the data after completion of the program, but did not want to have external dependencies, registry entries, etc. However you can store the data in your EXE. Unfortunately, Windows doesn't allow to write into the running EXE (i don't consider NTFS streams), and any attempt of the writing will be rejected with the ERROR_ACCESS_DENIED error. Although if the process is complete it can be performed by another process. Here is the way I decided to choose.
Firstly, you'd run cmd.exe with the suspended state. Further you'd create code that will be injected to it and will change the resources of our EXE. Then you'd run this code. This code waits for termination of our process and then rewrites the needed data (you've passed them to there). Eventually it is terminated.
In order to simplify the code (it only needs single form) i decide to make it in assembler. It is simpler and requires less code (source is included). Because the code is published especially for the review and test, it doesn't perform any synchronizations.

Code:

---

' Store data to EXE
' © Krivous Anatolii Anatolevich (The trick), 2014
' Writing is performed only after process termination

Option Explicit

Private Type STARTUPINFO
    cb              As Long
    lpReserved      As Long
    lpDesktop      As Long
    lpTitle        As Long
    dwX            As Long
    dwY            As Long
    dwXSize        As Long
    dwYSize        As Long
    dwXCountChars  As Long
    dwYCountChars  As Long
    dwFillAttribute As Long
    dwFlags        As Long
    wShowWindow    As Integer
    cbReserved2    As Integer
    lpReserved2    As Long
    hStdInput      As Long
    hStdOutput      As Long
    hStdError      As Long
End Type

Private Type PROCESS_INFORMATION
    hProcess        As Long
    hThread        As Long
    dwProcessId    As Long
    dwThreadId      As Long
End Type

Private Type ThreadData
    hParent        As Long
    lpFileName      As Long
    lpRsrcName      As Long
    lpData          As Long
    dwDataCount    As Long
    lpWFSO          As Long
    lpCH            As Long
    lpBUR          As Long
    lpUR            As Long
    lpEUR          As Long
    lpEP            As Long
End Type

Private Declare Function CloseHandle Lib "kernel32" ( _
                        ByVal hObject As Long) As Long
Private Declare Function CreateProcess Lib "kernel32" _
                        Alias "CreateProcessW" ( _
                        ByVal lpApplicationName As Long, _
                        ByVal lpCommandLine As Long, _
                        lpProcessAttributes As Any, _
                        lpThreadAttributes As Any, _
                        ByVal bInheritHandles As Long, _
                        ByVal dwCreationFlags As Long, _
                        lpEnvironment As Any, _
                        ByVal lpCurrentDirectory As Long, _
                        lpStartupInfo As STARTUPINFO, _
                        lpProcessInformation As PROCESS_INFORMATION) As Long
Private Declare Function GetModuleHandle Lib "kernel32" _
                        Alias "GetModuleHandleA" ( _
                        ByVal lpModuleName As String) As Long
Private Declare Function GetProcAddress Lib "kernel32" ( _
                        ByVal hModule As Long, _
                        ByVal lpProcName As String) As Long
Private Declare Function DuplicateHandle Lib "kernel32" ( _
                        ByVal hSourceProcessHandle As Long, _
                        ByVal hSourceHandle As Long, _
                        ByVal hTargetProcessHandle As Long, _
                        lpTargetHandle As Long, _
                        ByVal dwDesiredAccess As Long, _
                        ByVal bInheritHandle As Long, _
                        ByVal dwOptions As Long) As Long
Private Declare Function GetCurrentProcess Lib "kernel32" () As Long
Private Declare Function VirtualAllocEx Lib "kernel32.dll" ( _
                        ByVal hProcess As Long, _
                        lpAddress As Any, _
                        ByVal dwSize As Long, _
                        ByVal flAllocationType As Long, _
                        ByVal flProtect As Long) As Long
Private Declare Function WriteProcessMemory Lib "kernel32" ( _
                        ByVal hProcess As Long, _
                        ByVal lpBaseAddress As Long, _
                        lpBuffer As Any, _
                        ByVal nSize As Long, _
                        lpNumberOfBytesWritten As Long) As Long
Private Declare Function GetMem4 Lib "msvbvm60" ( _
                        src As Any, _
                        dst As Any) As Long
Private Declare Function VirtualFreeEx Lib "kernel32.dll" ( _
                        ByVal hProcess As Long, _
                        lpAddress As Any, _
                        ByVal dwSize As Long, _
                        ByVal dwFreeType As Long) As Long
Private Declare Function CreateRemoteThread Lib "kernel32" ( _
                        ByVal hProcess As Long, _
                        lpThreadAttributes As Any, _
                        ByVal dwStackSize As Long, _
                        ByVal lpStartAddress As Long, _
                        lpParameter As Any, _
                        ByVal dwCreationFlags As Long, _
                        lpThreadId As Long) As Long
Private Declare Function FindResource Lib "kernel32" _
                        Alias "FindResourceW" ( _
                        ByVal hInstance As Long, _
                        ByVal lpName As Long, _
                        ByVal lpType As Long) As Long
Private Declare Function LoadResource Lib "kernel32" ( _
                        ByVal hInstance As Long, _
                        ByVal hResInfo As Long) As Long
Private Declare Function LockResource Lib "kernel32" ( _
                        ByVal hResData As Long) As Long
Private Declare Function SizeofResource Lib "kernel32" ( _
                        ByVal hInstance As Long, _
                        ByVal hResInfo As Long) As Long
Private Declare Sub CopyMemory Lib "kernel32" _
                        Alias "RtlMoveMemory" ( _
                        Destination As Any, _
                        Source As Any, _
                        ByVal Length As Long)

Private Const STARTF_USESHOWWINDOW      As Long = &H1
Private Const SW_HIDE                  As Long = 0
Private Const MEM_COMMIT                As Long = &H1000&
Private Const MEM_RESERVE              As Long = &H2000&
Private Const MEM_RELEASE              As Long = &H8000&
Private Const PAGE_EXECUTE_READWRITE    As Long = &H40&
Private Const INFINITE                  As Long = -1&
Private Const MAX_PATH                  As Long = 260
Private Const RT_RCDATA                As Long = 10&
Private Const CREATE_SUSPENDED          As Long = &H4
Private Const DUPLICATE_SAME_ACCESS    As Long = &H2
Private Const ResName                  As String = "TRICKRESOURCE" & vbNullChar    ' Only capital letters

' // Procedure load data from EXE
Private Sub LoadFromEXE()
    Dim hRes As Long, hMem As Long, ptr As Long, l As Long, Msg As String

    hRes = FindResource(0, StrPtr(ResName), RT_RCDATA)

    If hRes Then
        hMem = LoadResource(0, hRes)
        If hMem Then
            l = SizeofResource(0, hRes)
            If l Then
                ptr = LockResource(hMem)
                GetMem4 ByVal ptr, l
                Msg = Space(l \ 2)
                CopyMemory ByVal StrPtr(Msg), ByVal ptr + 4, l
                txtData.Text = Msg
            End If
        End If
    End If

End Sub

' // Procedure store data to EXE
Private Sub StoreToExe()
    Dim hLib As Long
    Dim td As ThreadData, ts As Long, path As String, pi As PROCESS_INFORMATION, si As STARTUPINFO, hProc As Long, lpDat As Long, pt As Long
    Dim Code() As Byte, Data() As Byte, ret As Long, thr As Long, otd As Long

    ' // Get the Kernel32 handle
    hLib = GetModuleHandle("kernel32")
    If hLib = 0 Then MsgBox "Error": Exit Sub

    ' // Get the functions addresses
    td.lpWFSO = GetProcAddress(hLib, "WaitForSingleObject")
    td.lpCH = GetProcAddress(hLib, "CloseHandle")
    td.lpBUR = GetProcAddress(hLib, "BeginUpdateResourceW")
    td.lpUR = GetProcAddress(hLib, "UpdateResourceW")
    td.lpEUR = GetProcAddress(hLib, "EndUpdateResourceW")
    td.lpEP = GetProcAddress(hLib, "ExitProcess")

    path = App.path & "\" & App.EXEName & ".exe" & vbNullChar

    ' // Create the machine code
    CreateCode Code

    ' // Calculate size of the needed memory
    ts = LenB(path) + LenB(ResName) + (UBound(Code) + 1) + LenB(txtData.Text) + Len(td) + 4

    si.cb = Len(si)
    si.dwFlags = STARTF_USESHOWWINDOW
    si.wShowWindow = SW_HIDE

    ' // Launch "victim" (CMD.EXE)
    If CreateProcess(StrPtr(Environ("ComSpec")), 0, ByVal 0&, ByVal 0&, False, CREATE_SUSPENDED, ByVal 0, 0, si, pi) = 0 Then
        MsgBox "error": Exit Sub
    End If

    ' // Get handle of the our process for CMD process
    hProc = GetCurrentProcess()
    DuplicateHandle hProc, hProc, pi.hProcess, td.hParent, 0, False, DUPLICATE_SAME_ACCESS

    td.dwDataCount = LenB(txtData.Text) + 4        ' Размер данных

    ' // Allocate memory in the CMD
    lpDat = VirtualAllocEx(pi.hProcess, ByVal 0, ts, MEM_COMMIT Or MEM_RESERVE, PAGE_EXECUTE_READWRITE)

    If lpDat = 0 Then
        MsgBox "Error": CloseHandle pi.hThread: CloseHandle pi.hProcess
        VirtualFreeEx pi.hProcess, ByVal lpDat, 0, MEM_RELEASE
        Exit Sub
    End If

    ' // Ok, all is ready for the writing to cmd
    ' // Create buffer with data
    ReDim Data(ts - 1)

    ' // Copy the file name of our process
    CopyMemory Data(pt), ByVal StrPtr(path), LenB(path)
    td.lpFileName = lpDat + pt: pt = pt + LenB(path)
    ' // Copy the name of the resource
    CopyMemory Data(pt), ByVal StrPtr(ResName), LenB(ResName)
    td.lpRsrcName = lpDat + pt: pt = pt + LenB(ResName)
    ' // Copy the data of the resource
    GetMem4 LenB(txtData.Text), Data(pt)          ' Размер
    CopyMemory Data(pt + 4), ByVal StrPtr(txtData.Text), LenB(txtData.Text)
    td.lpData = lpDat + pt: pt = pt + LenB(txtData.Text) + 4
    ' // Copy the structure to buffer
    CopyMemory Data(pt), td, Len(td): otd = pt: pt = pt + Len(td)
    ' // Copy the code
    CopyMemory Data(pt), Code(0), UBound(Code) + 1

    ' // Buffer is ready, inject it to cmd
    If WriteProcessMemory(pi.hProcess, lpDat, Data(0), ts, ret) Then
        If ret <> ts Then
            MsgBox "Error": CloseHandle pi.hThread: CloseHandle pi.hProcess
            VirtualFreeEx pi.hProcess, ByVal lpDat, 0, MEM_RELEASE
            Exit Sub
        End If
        ' // Launch the injected code
        thr = CreateRemoteThread(pi.hProcess, ByVal 0, 0, lpDat + pt, ByVal lpDat + otd, 0, 0)
        If thr = 0 Then
            MsgBox "Error": CloseHandle pi.hThread: CloseHandle pi.hProcess
            VirtualFreeEx pi.hProcess, ByVal lpDat, 0, MEM_RELEASE
            Exit Sub
        End If
    End If

    ' // Close handles
    CloseHandle thr
    CloseHandle pi.hThread
    CloseHandle pi.hProcess

End Sub

Private Sub CreateCode(Code() As Byte)
    ReDim Code(63)
    Code(0) = &H8B: Code(1) = &H74: Code(2) = &H24: Code(3) = &H4: Code(4) = &H31: Code(5) = &HDB: Code(6) = &H53: Code(7) = &H6A
    Code(8) = &HFF: Code(9) = &HFF: Code(10) = &H36: Code(11) = &HFF: Code(12) = &H56: Code(13) = &H14: Code(14) = &HFF: Code(15) = &H36
    Code(16) = &HFF: Code(17) = &H56: Code(18) = &H18: Code(19) = &H53: Code(20) = &HFF: Code(21) = &H76: Code(22) = &H4: Code(23) = &HFF
    Code(24) = &H56: Code(25) = &H1C: Code(26) = &H89: Code(27) = &H4: Code(28) = &H24: Code(29) = &H85: Code(30) = &HC0: Code(31) = &H74
    Code(32) = &H1B: Code(33) = &HFF: Code(34) = &H76: Code(35) = &H10: Code(36) = &HFF: Code(37) = &H76: Code(38) = &HC: Code(39) = &H53
    Code(40) = &HFF: Code(41) = &H76: Code(42) = &H8: Code(43) = &H6A: Code(44) = &HA: Code(45) = &HFF: Code(46) = &H74: Code(47) = &H24
    Code(48) = &H14: Code(49) = &HFF: Code(50) = &H56: Code(51) = &H20: Code(52) = &H53: Code(53) = &HFF: Code(54) = &H74: Code(55) = &H24
    Code(56) = &H4: Code(57) = &HFF: Code(58) = &H56: Code(59) = &H24: Code(60) = &H53: Code(61) = &HFF: Code(62) = &H56: Code(63) = &H28
End Sub

Private Sub Form_Load()
    LoadFromEXE
End Sub

Private Sub Form_Unload(Cancel As Integer)
    StoreToExe
End Sub

'\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\ This procedure is running in other process \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

' Similar code in VB6

'Private Sub ThreadProc(dat As ThreadData)
'    Dim hRes As Long
'    ' Wait for the termination of the main process
'    WaitForSingleObject dat.hParent, INFINITE
'    ' Process has ended, close handle
'    CloseHandle dat.hParent
'    ' Get handle of the editing of the resource
'    hRes = BeginUpdateResource(dat.lpFileName, False)
'    If hRes Then
'      ' Wirte the needed data to EXE
'      UpdateResource hRes, RT_RCDATA, dat.lpRsrcName, 0, ByVal dat.lpData, dat.dwDataCount
'      ' Ending of the updating
'      EndUpdateResource hRes, False
'    End if
'      ' Done !!!
'    ExitProcess 0
'End Sub

' Assembly code (NASM)

'[BITS 32]
'; ThreadProc
'mov esi,dword [esp+0x04]; ESI = &dat
'xor ebx,ebx            ; Const 0&
'push ebx                ; Dim hRes As Long
'push 0xFFFFFFFF        ; INFINITE
'push dword [esi+0x00]  ; dat.hParent
'call [esi+0x14]        ; WaitForSingleObject dat.hParent, INFINITE
'push dword [esi+0x00]  ; dat.hParent
'call [esi+0x18]        ; CloseHandle dat.hParent
'push ebx                ; False
'push dword [esi+0x04]  ; dat.lpFileName
'call [esi+0x1c]        ; BeginUpdateResource(dat.lpFileName, False)
'mov [esp],eax          ; hRes = eax
'test eax,eax            ; IF hRes=0
'je ExtProc              ; GoTo ExtProc
'push dword [esi+0x10]  ; dat.dwDataCount
'push dword [esi+0x0c]  ; dat.lpData
'push ebx                ; 0
'push dword [esi+0x08]  ; dat.lpRsrcName
'push 0x0000000a        ; RT_RCDATA
'push dword [esp+0x14]  ; hRes
'call [esi+0x20]        ; UpdateResource hRes, RT_RCDATA, dat.lpRsrcName, 0, ByVal dat.lpData, dat.dwDataCount
'push ebx                ; False
'push dword [esp+0x04]  ; hRes
'call [esi+0x24]        ; EndUpdateResource hRes, False
'ExtProc:
'push ebx                ; 0
'call [esi+0x28]        ; ExitProcess 0

---

GOOD ider.thanks .may be you have many good Projects

I don't know how to read the *.res file or edit by vb code or vb6 addin, Can you help me?

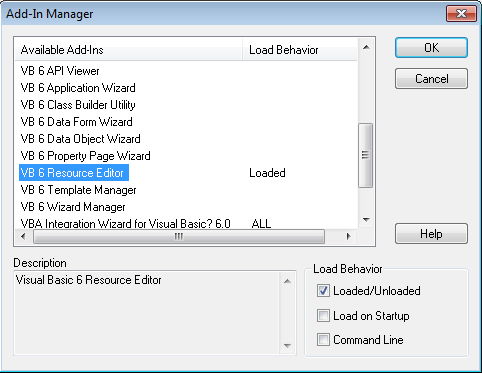

xiaoyao, you can use VB 6 Resource Editor standard Add-in.
Attachment 174053

Quote:

---

Originally Posted by The trick

xiaoyao, you can use VB 6 Resource Editor standard Add-in.
Attachment 174053

---

where is the code sources about resource edit tool?

is this tested on all windows like as xp 32bit or win 7 64 bit or win 10?
i want use this code but how can protect that resource created itself or hide it inside exe,can i do that?or maybe another way to can save my data and edit data inside exe without need resource?

Hi The Trck
Very interesting.
A module or a class would be welcome

Quote:

---

Originally Posted by Black_Storm

is this tested on all windows like as xp 32bit or win 7 64 bit or win 10?
i want use this code but how can protect that resource created itself or hide it inside exe,can i do that?or maybe another way to can save my data and edit data inside exe without need resource?

---

The protection isn't related to storing here. You can encrypt your data and store it to resource in the simpliest case.

Quote:

---

Hi The Trck
Very interesting.
A module or a class would be welcome

---

What do you mean?]

BTW this is other way to store the data to EXE tail. https://github.com/thetrik/CEmbeddedFiles

my means of protect is how protect this resource added in exe "RCDATA" part,i dont want somebody can see it in resource editors i want protect that "RCDATA" part or hide that "RCDATA" tab
.
https://www.vbforums.com/images/ieimages/2022/02/7.png
image link : https://postimg.cc/3WrYxDdg

because everybody easy can find it or replace it with another resource in res editors.
any way to can hide it ?

and i cant use any packer or etc to protect this exe file because after protect by other softwares it cant work for save data intself.
any way to can fix this problem?



i see that github too but i have 2 questsion about it
1- can i add or modify string data too because maybe i dont need add files jst i want add or edit string data?
for example i want jst save a counter data to can make my exe limited for 5 times jst with saved that counter variable itself.

2- how size support , can i add a 100 mb file inside it or more than 10 files with each 100 mb or longer? and how can play theme for example i want add 4 mp4 videos but i want play theme inside exe too.

Anyone can replace the data anywhere. Just encrypt it and make checking by a checksum. There is no difference if you place the data in resources or inside an executable.

Quote:

---

1- can i add or modify string data too because maybe i dont need add files jst i want add or edit string data?
for example i want jst save a counter data to can make my exe limited for 5 times jst with saved that counter variable itself.

---

There is no difference a file or a string.

Quote:

---

how size support , can i add a 100 mb file inside it or more than 10 files with each 100 mb or longer? and how can play theme for example i want add 4 mp4 videos but i want play theme inside exe too.

---

The size doesn't matter. If you plan to store big files inside an EXE it's better to use the second approach (append to tail) because no VM is used for this when the executable is loaded.

so its not safe for protect that rcdata and the only way for protect is checksum?!!! if yes which check sum vb project is better and worked on win xp till win 10?can send a best source code for check sum to can run in xp till win 10?

if i dont want use like as this thread and using resource but if i want save inside exe so CEmbeddedFiles class is better?!! i seen before but CEmbeddedFiles saved files in .text section? because i did not find resource part in final exe when i use CEmbeddedFiles project.

my english is weak but ur means of append to tail is same append to the file or appened to resource?
can i use jst CEmbeddedFiles for what i want is that support (append to tail)?
i ask this question in my other thread too how can save string and edit or delete it inside exe when i want use CEmbeddedFiles without need add files on disk

I think you can't use resources and EOF in the same exe. If you need to change some data in exe (like a counter or a small string) you just need to update it directly in the file (using a shellcode or an external executable). I think you can't write a shellcode so you can create a small executable which patches the main exe. Put it to main exe resources/section. Before finish your application extract this small executable to a file and run it with specified command line. This executable waits for the main executable has ended and patches the data.

Quote:

---

Originally Posted by The trick

I think you can't use resources and EOF in the same exe. If you need to change some data in exe (like a counter or a small string) you just need to update it directly in the file (using a shellcode or an external executable). I think you can't write a shellcode so you can create a small executable which patches the main exe. Put it to main exe resources/section. Before finish your application extract this small executable to a file and run it with specified command line. This executable waits for the main executable has ended and patches the data.

---

i said this too here in linked thread so am i on correct way ?

Quote:

---

maybe need another modifer exe but created with vb and can access to resources in opened exe and edited and saved with replace to opened exe?
if yes any sample code to can modify another exe vb and access to resource part and edit it?!!

---

thread link : Re: any simple code for create ,add or edit or delete from resouce in runtime?

my new thread about all we talked till now :
add/delete/edit strings or files at runtime inside exe without res/section and show ?

Your program EOFData.exe It's buggy. Does not want to add a large CAB file of 100 MB.
