[VB6] DirectSound.

https://www.youtube.com/watch?v=S8dk0pq9iB8
With Direct3D9 I did the type library and module support functions for DirectSound. The archive contains a type library dsvb.tlb and module DS_Functions.bas. In the future, I add a class module to support asynchronous notification until you can use clsTrickWait.cls. The module DS_Functions contains the following functions:

• DSCreateSoundBufferFromFile - creates an object with interface IDirectSoundBuffer8 from a file. Supported only WAVE and MP3 files is. MP3 files can contain only the ID3v1 and ID3v2 tags, any other may not be recognized/will not work. Too long (by time) files are not supported. For streaming you need to write streaming decoding based on the function code DSCreateSoundBufferFromMemory;
• DSCreateSoundBufferFromMemory - the same, but instead of the file is passed a pointer to the data file in memory and size.

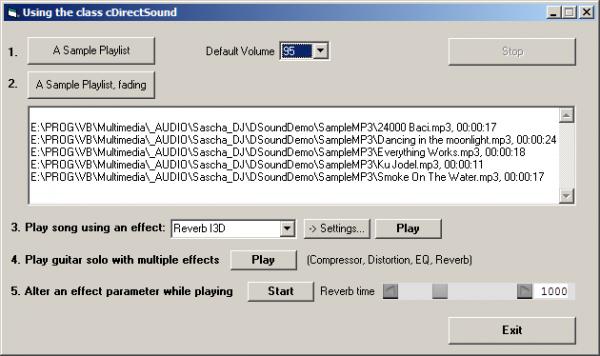

Also in the archive contains an example of a player that implements some methods IDirectSoundBuffer8 interface (volume, pan, frequency, effects). TLB especially did not well tested, so something may not work. If something is not working please write here.

Download latest version.

Hello The Trick.
I want to report that I tested it and I get error 7 "Out of memory" at the line:

Code:

---

ReDim Preserve buffer(outSize - 1)

---

of the function DSCreateSoundBufferFromMemory.

(I needed to remove some error handling to get to the error line)

I tested it with a Mp3 file that its size is 36 MB and has 26 minutes of audio.
It is trying to redim the byte array buffer to 250435583.

I have only 1 GB of physical RAM (on XP SP3) but that was never a problem to reproduce audio.

PS: sometimes I'm glad that I'm working in a such old machine, I'm permanently testing all for the worst case!

Eduardo- , a DirectSound buffer is intended to hold quite short sound. If you want to play big file you should do it using circular buffer.

Ok, The trick.

Quote:

---

Originally Posted by Eduardo-

Hello The Trick.
I want to report that I tested it and I get error 7 "Out of memory" at the line:

Code:

---

ReDim Preserve buffer(outSize - 1)

---

of the function DSCreateSoundBufferFromMemory.

(I needed to remove some error handling to get to the error line)

I tested it with a Mp3 file that its size is 36 MB and has 26 minutes of audio.
It is trying to redim the byte array buffer to 250435583.

I have only 1 GB of physical RAM (on XP SP3) but that was never a problem to reproduce audio.

PS: sometimes I'm glad that I'm working in a such old machine, I'm permanently testing all for the worst case!

---

Hi Eduardo-, I met the same problem as you. Have you solved your problem using circular buffer?

Quote:

---

Originally Posted by dreammanor

Hi Eduardo-, I met the same problem as you. Have you solved your problem using circular buffer?

---

No, I did what I needed to do at that time in another way (opening the mp3 file in Windows Media Player).

Im testing this code, and it works well, except for this mp3.
its a small mp3, 390 bytes, the mp3 works in media player / directshow, but not with this code.
it gives me error when I try to load it (automation)
all other mp3 I have works well.
anyone have a clue why?

baka, that's because you use effects. Just remove the DSBCAPS_CTRLFX flag from the DSBUFFERDESC structure. If you want to use effects you should make the sound bigger (just test the outSize variable and make it little big bigger).

that worked well.
so I just change to:
desc.dwFlags = DSBCAPS_CTRLVOLUME
since I will only use the volume nothing else.

thanks The trick!

I have now changed directshow to directsound in my game.
now I can make 1 big file containing all the small sounds! :D

edit:
Just looking through the code:
IsBadReadPtr: https://docs.microsoft.com/en-us/win...e-isbadreadptr
it says its obsolete.

Quote:

---

Just looking through the code:
IsBadReadPtr: https://docs.microsoft.com/en-us/win...e-isbadreadptr
it says its obsolete.

---

That isn't applicable to this code because it doesn't use threading so we don't have such situation when a thread can change the memory when we read it. Thus, we can safely use this function.

so, I have done a lot of changes, this to load from an Offset and also to create multiple sounds from 1 source.

I create 3 functions instead of 1, the first one:

Code:

---

Private Sub DSCreateOpen(ByRef strFileName$)
    Dim hFile      As Long
    Dim hMap        As Long

    hFile = CreateFile(StrPtr(strFileName), GENERIC_READ, FILE_SHARE_READ, ByVal 0&, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0)
    bufSize = GetFileSize(hFile, ByVal 0)
    hMap = CreateFileMapping(hFile, ByVal 0&, PAGE_READONLY, 0, 0, 0): CloseHandle hFile
    buflpData = MapViewOfFile(hMap, FILE_MAP_READ, 0, 0, 0):          CloseHandle hMap
End Sub

---

the next function is used to create IDirectSoundBuffer , and can be called multiple times if needed:
Public variables: buflpData, bufSize, buffer(), lpData and bufDesc

Code:

---

Private Function DSCreateSoundBufferFromMemory(Optional ByVal Offset&, Optional ByVal szData&) As IDirectSoundBuffer
lpData = buflpData + Offset
If szData = 0 Then szData = bufSize

---

(just the important part, the rest is like the original)

and the last function is to remove the Public buffer and to Unmap

Code:

---

Private Sub DSCreateClose()
    Erase buffer
    UnmapViewOfFile lpData
End Sub

---

This is how I use it (to load 1 mp3)

Code:

---

DSCreateOpen strFileName
Set Media.sb = DSCreateSoundBufferFromMemory
Media.sb.setVolume Volume
Media.Loaded = True
DSCreateClose

---

This to load multiple mp3 inside 1 file:

Code:

---

DSCreateOpen Root & "\ui\ui_sound.dat"
For forI = 0 To SoundMax
    Set Sounds(forI).sb = DSCreateSoundBufferFromMemory(Offset, BS.SoundLen(forI))
    Sounds(forI).sb.setVolume sVolume
    Sounds(forI).Loaded = True
    Offset = Offset + BS.SoundLen(forI)
Next forI
DSCreateClose

---

and this to create multiple "sb" from 1 sound:

Code:

---

DSCreateOpen Root & "ui\ui_sound.dat"
Set Hits(Id).channel(0).sb = DSCreateSoundBufferFromMemory(BS.Sfx(forJ).Pos, BS.Sfx(forJ).Size)
For forI = 1 To 4
  ds.CreateSoundBuffer bufDesc, Hits(Id).channel(forI).sb, ByVal 0&
  Hits(Id).channel(forI).sb.Lock 0, 0, ptr, bufDesc.dwBufferBytes, 0, 0, DSBLOCK_ENTIREBUFFER
  memcpy ByVal ptr, buffer(0), bufDesc.dwBufferBytes
  Hits(Id).channel(forI).sb.Unlock ptr, bufDesc.dwBufferBytes, 0, 0
Next forI
DSCreateClose

---

everything works, but Im not sure its the best way,
- first the "offset", right now I read the entire file, the Offset will jump ahead to a position in the memory address.
what I want is to read "only" the part of the file that are used, but I dont know how, everything I tried resulted in crash or not working!

- second is the "multiple" creating, is there any other way? or is that the right way to add the same sounds multiple times from 1 source?
(I create 5 hit-sounds so when I hit many monsters theres multiple hit-sounds not just one)

Quote:

---

everything works, but Im not sure its the best way,
- first the "offset", right now I read the entire file, the Offset will jump ahead to a position in the memory address.
what I want is to read "only" the part of the file that are used, but I dont know how, everything I tried resulted in crash or not working!

---

You can map the only the needed part of the file (see dwFileOffsetLow in MapViewOfFile function). Note it should be multiple to memory allocation granularity. The better way is to encapsulate the logic to a class. You could also use no file mapping at all just read the content thru ReadFile. (FileMapping was added in order to make the same logic of opening a file either from a physical file or memory.

Quote:

---

second is the "multiple" creating, is there any other way? or is that the right way to add the same sounds multiple times from 1 source?
(I create 5 hit-sounds so when I hit many monsters theres multiple hit-sounds not just one)

---

IDirectSound8::DuplicateSoundBuffer creates the buffer which uses the data from the passed parameter (no data duplication occurs).

ah thanks a lot! I now use _lopen and _llseek and it works well! :D

here's the code if anyone else want to use it: (its a class, and u need to call Init first)

Code:

---

Dim ds                  As DirectSound8
Dim format              As MPEGLAYER3WAVEFORMAT
Dim dstFormat          As WAVEFORMATEX
Dim acmHdr              As ACMSTREAMHEADER
Dim bufDesc            As DSBUFFERDESC

Sub init(ByVal hWnd&)
    Dim b As curBuffer

    Set ds = New DirectSound8
    ds.Initialize ByVal 0
    ds.SetCooperativeLevel hWnd, DSSCL_NORMAL
    b.b(0) = 450377142658.6656@:    b.b(1) = 900743977448.248@:    b.b(2) = 1351114248211.6672@
    b.b(3) = 1801487954948.9248@:  b.b(4) = 2702228496423.3344@:  b.b(5) = 3602975909897.8496@
    b.b(6) = 4503737067267.712@:    b.b(7) = 18941235272.0895@:    b.b(8) = 4735201446.045@
    b.b(9) = 10307921515.2@:        b.b(10) = 13743895348.4@:      b.b(11) = 3435973838.4@
    memcpy Constants.bitrate(0, 1), b.b(0), 96
    With format
        .wFormatTag = WAVE_FORMAT_MPEGLAYER3
        .cbSize = MPEGLAYER3_WFX_EXTRA_BYTES
        .wBitsPerSample = 0
        .nBlockAlign = 1
        .nFramesPerBlock = 1
        .nCodecDelay = 0
        .fdwFlags = MPEGLAYER3_FLAG_PADDING_OFF
        .wID = MPEGLAYER3_ID_MPEG
    End With
    With dstFormat
        .cbSize = Len(dstFormat)
        .wBitsPerSample = 16
        .wFormatTag = WAVE_FORMAT_PCM
    End With
    acmHdr.cbStruct = Len(acmHdr)
    bufDesc.dwFlags = DSBCAPS_CTRLVOLUME
    bufDesc.dwSize = Len(bufDesc)
    bufDesc.lpwfxFormat = VarPtr(dstFormat)
End Sub

Private Sub Class_Terminate()
    Set ds = Nothing
End Sub

Function DSReadFile(ByRef FileName$, Optional ByVal Offset&, Optional ByVal FileSize&) As IDirectSoundBuffer
    Dim hFile      As Long
    Dim b()        As Byte
    Dim buffer()    As Byte
    Dim L          As Long
    Dim D          As Long
    Dim ptr        As Long
    Dim hStream    As Long
    Dim index      As Long
    Dim AcmSize    As Long
    Dim AcmTotal    As Long

    hFile = lOpen(FileName, 0)
    If FileSize = 0 Then FileSize = GetFileSize(hFile, ByVal 0)
    If Offset > 0 Then llseek hFile, Offset, FILE_BEGIN
    ReDim b(FileSize - 1)
    lread hFile, b(0), FileSize
    lclose hFile

    D = FileSize - 128
    If b(D) = &H54 And b(D + 1) = &H41 And b(D + 2) = &H47 Then FileSize = FileSize - 128
    If b(0) = &H49 And b(1) = &H44 And b(2) = &H33 Then
        If b(5) And &H10 Then FileSize = FileSize - 10
        hFile = b(6) * &H200000
        hFile = hFile Or (b(7) * &H4000&)
        hFile = hFile Or (b(8) * &H80&)
        hFile = hFile Or b(9)
        hFile = hFile + 10
        L = L + hFile
        FileSize = FileSize - hFile
    Else
        D = FileSize - 10
        If b(D) = &H33 And b(D + 1) = &H44 And b(D + 2) = &H49 Then
            hFile = b(D + 6) * &H200000
            hFile = hFile Or (b(D + 7) * &H4000&)
            hFile = hFile Or (b(D + 8) * &H80&)
            hFile = hFile Or b(D + 9)
            FileSize = FileSize - hFile - 20
        End If
    End If

    Do
        If b(L) = &HFF And (b(L + 1) And &HE0) = &HE0 Then
            D = (b(L + 1) And &H18) \ 8
            With format
                If D = 3 Then
                    .nAvgBytesPerSec = Constants.bitrate(0, (b(L + 2) And &HF0) \ &H10)
                    .nSamplesPerSec = Constants.smprate(0, (b(L + 2) And &HC) \ &H4)
                Else
                    .nAvgBytesPerSec = Constants.bitrate(1, (b(L + 2) And &HF0) \ &H10)
                    If D = 2 Then .nSamplesPerSec = Constants.smprate(1, (b(L + 2) And &HC) \ &H4) Else .nSamplesPerSec = Constants.smprate(2, (b(L + 2) And &HC) \ &H4)
                End If
                If D = 3 Then
                    .nBlockSize = Int(144000 * .nAvgBytesPerSec / .nSamplesPerSec) + CInt((b(L + 2) And &H2) \ 2)
                Else
                    .nBlockSize = Int(72000 * .nAvgBytesPerSec / .nSamplesPerSec) + CInt((b(L + 2) And &H2) \ 2)
                End If
                .nChannels = -(((b(L + 3) And &HC0) \ 64) <> 3) + 1
                .nAvgBytesPerSec = .nAvgBytesPerSec * 128
            End With
            Exit Do
        End If
        L = L + 1
        FileSize = FileSize - 1
    Loop
    With dstFormat
        .nChannels = format.nChannels
        .nSamplesPerSec = format.nSamplesPerSec
        .nBlockAlign = (.wBitsPerSample \ 8) * .nChannels
        .nAvgBytesPerSec = .nBlockAlign * .nSamplesPerSec
    End With

    acmStreamOpen hStream, 0, format, dstFormat, ByVal 0&, ByVal 0&, ByVal 0&, 0
    Do While FileSize > 0
        acmStreamSize hStream, FileSize, AcmSize, ACM_STREAMSIZEF_SOURCE
        AcmTotal = AcmTotal + AcmSize
        ReDim Preserve buffer(AcmTotal - 1)
        With acmHdr
            .lppbDst = VarPtr(buffer(index))
            .lppbSrc = VarPtr(b(L))
            .cbDstLength = AcmSize
            .cbSrcLength = FileSize
        End With
        acmStreamPrepareHeader hStream, acmHdr, 0
        acmStreamConvert hStream, acmHdr, ACM_STREAMCONVERTF_BLOCKALIGN
        acmStreamUnprepareHeader hStream, acmHdr, 0
        FileSize = FileSize - acmHdr.cbSrcLengthUsed
        L = L + acmHdr.cbSrcLengthUsed
        index = index + acmHdr.cbDstLengthUsed
    Loop
    acmStreamClose hStream, 0
    bufDesc.dwBufferBytes = index
    ds.CreateSoundBuffer bufDesc, DSReadFile, ByVal 0&
    DSReadFile.Lock 0, 0, ptr, index, 0, 0, DSBLOCK_ENTIREBUFFER
    memcpy ByVal ptr, buffer(0), index
    DSReadFile.Unlock ptr, index, 0, 0
End Function

---

ok, another problem, that I can not recreate (since its working for me), but theres one user that can not use it.
the reason is: acmStreamSize
that is not returning the right size, so its impossible to continue.
it could be a "codec" problem, that is missing on the system.

I read in the internet that if that person doesn't have the right codec in the "list" it will not work,
so I wonder, how to check if the person have WAVE_FORMAT_PCM and/or WAVE_FORMAT_MPEGLAYER3

ok, I found this: http://www.vbforums.com/showthread.p...Codec-question

and running that project, I get:

Code:

---

Microsoft IMA ADPCM CODEC
Microsoft CCITT G.711 A-Law and u-Law CODEC
Microsoft GSM 6.10 Audio CODEC
Microsoft ADPCM CODEC
Fraunhofer IIS MPEG Layer-3 Codec (decode only)
Microsoft PCM Converter

---

so, Microsoft PCM Converter should work with WAVE_FORMAT_PCM
and Fraunhofer IIS MPEG Layer-3 Codec should work with WAVE_FORMAT_MPEGLAYER3

but how do I know that?

Im asking that person to check what codecs he has in his computer.
edit;
that user tried that program and the result is:

Code:

---

Microsoft IMA ADPCM CODEC
Microsoft CCITT G.711 A-Law and u-Law CODEC
Microsoft GSM 6.10 Audio CODEC
Microsoft ADPCM CODEC
Microsoft PCM Converter

---

that means Fraunhofer IIS MPEG Layer-3 Codec is missing.

what can be done?
instruction to install the codec?
include the codec with the program?
some other solution?

a solution would be to encode the mp3 to pcm and save them in a file.
this is possible with small mp3, sound-effects.
I have around 50 sound-effects, 161kb in size total, in pcm format I get 2.3MB total, its acceptable size.
but background music would increase size too much, since most of the time mp3>pcm would increase around 15x.

using ADPCM CODEC could also be another way, convert .mp3 to .wav, would increase size 2.5x, still too much.

I tried using ADPCM wav directly into the directsound8, it start playing but not the right speed, I can't change much in dstFormat,
no changes helps, and most of the time it crashes on me. so I suppose only PCM works.

Quote:

---

what can be done?
instruction to install the codec?
include the codec with the program?
some other solution?

---

Yes you could install a mp3 decoder like lame or ACM decoder but most of the systems have that code preinstalled.

I have a question.

I have a error handler that will prevent a crash if I have the sound device disabled.
but I got report from people using "DSP program" that it will crash the program when starting.
I have:
On Error GoTo noSoundDevice
in the initialization function, this so if something happens it will disable it.
but that doesn't seem to help, it will pass the initialization.

is there anything we can do to prevent a crash for people using DSP?
or somehow a way to detect if a DSP is intalled/active?

Hi Anatoly,

Seems the method odl for IDirectSoundBuffer8:GetObjectInPath() is incorrect.
I need it to set the parameters for the effects.
The VB compiler tells me that userdefined types cannot be set ByVal This is due to the two CLSID parameters for this method.
Your ODL:

Code:

---

    HRESULT _stdcall GetObjectInPath(
                    [in] DXGUID rguidObject,
                    [in] long dwIndex,
                    [in] DXGUID rguidInterface,
                    [out, retval] IUnknown** ppObject);

---

I guess it should be:

Code:

---

    HRESULT _stdcall GetObjectInPath(
                    [in] DXGUID * rguidObject,
                    [in] long dwIndex,
                    [in] DXGUID * rguidInterface,
                    [out, retval] IUnknown** ppObject);

---

By the way: If you eventually have some time left it would be great if you'd add the several effect structures (DSFXParamEq, DSFXWavesReverb, ...) to dsvb.tlb. :)

Quote:

---

Originally Posted by SaschaT

Hi Anatoly,

Seems the method odl for IDirectSoundBuffer8:GetObjectInPath() is incorrect.
I need it to set the parameters for the effects.
The VB compiler tells me that userdefined types cannot be set ByVal This is due to the two CLSID parameters for this method.
Your ODL:

Code:

---

    HRESULT _stdcall GetObjectInPath(
                    [in] DXGUID rguidObject,
                    [in] long dwIndex,
                    [in] DXGUID rguidInterface,
                    [out, retval] IUnknown** ppObject);

---

I guess it should be:

Code:

---

    HRESULT _stdcall GetObjectInPath(
                    [in] DXGUID * rguidObject,
                    [in] long dwIndex,
                    [in] DXGUID * rguidInterface,
                    [out, retval] IUnknown** ppObject);

---

By the way: If you eventually have some time left it would be great if you'd add the several effect structures (DSFXParamEq, DSFXWavesReverb, ...) to dsvb.tlb. :)

---

Thank you. I'll update soon.

Thank you. I'll update soon.

Hope you did not already begin that. I rewrote the odl myself.
I attach the tlb and the odl which I derived from yours but altered several things beneath adding the structures and interfaces for the effects. (E.g. removed any helpstrings).

I tested it and all effects work. At the moment having no time to upload a demo cause I am on vacation for the next three weeks.
So I'll do that later. (I have encapsulated your DS module and some code of the form into just one class. Two buffers can then be played and handled independantly using effects. In addition the two mp3s can be merged, faded together. Let's see...)

Cheers!

Just a short code snippet showing the principle before I leave here ´....

Code:

---

Sub SetEQ(DSBuf As DSVBLib.IDirectSoundBuffer8)
    Dim effdesc As DSVBLib.DSEFFECTDESC
    Dim uidEff As DSVBLib.DXGUID
    Dim uidAllEff As DSVBLib.DXGUID
    Dim IUnkEffEQ As DSVBLib.IDirectSoundFXParamEq
    Dim TEffEQ As DSVBLib.DSFXParamEq
    Dim ret As Long

    effdesc.dwSize = Len(effdesc)
    effdesc.dwFlags = DSVBLib.DSFX_LOCSOFTWARE

    DSBuf.Stop  'pause the buffer

    IIDFromString StrPtr(DSVBLib.IID_All_Objects), uidAllEff
    IIDFromString StrPtr(DSVBLib.CLSID_DSFX_STANDARD_PARAMEQ), effdesc.guidDSFXClass
    IIDFromString StrPtr(DSVBLib.IID_IDirectSoundFXParamEq), uidEff

    'Set effect on buffer:
    DSBuf.SetFX 1, effdesc, ret
    'Note: more effects could be set at once!
    'effdesc then had to be an array of type DSEFFECTDESC

    'Get the interface of the DMO effect object:
    '(This is a search in the underlying filter graph)
    Set IUnkEffEQ = DSBuf.GetObjectInPath(uidAllEff, 0&, uidEff)
    'Note: Throws an automation error if something's wrong!
    '(Look for the Err.Number in enum DSVBLib.DS_ERR)

    If Not IUnkEffEQ Is Nothing Then
        'Get the default parameters of the effect:
        IUnkEffEQ.GetAllParameters TEffEQ
        With TEffEQ
            Debug.Print "EQ Params:", .fBandwidth, .fCenter, .fGain
            'Change default params to kinda bass woofer
            .fCenter = 150  'Hz
            .fBandwidth = 8 'semitones
            .fGain = 15 'full bandpass amplification; (range -15...15)
        End With
        'Set the altered params to the effect:
        IUnkEffEQ.SetAllParameters TEffEQ
    End If

    'Play the paused buffer:
    'effect change now takes place immediately resuming at last play position
    DSBuf.Play 0, 0, 0

    Set IUnkEffEQ = Nothing

End Sub

---

Bye!

Hi,

as annonced I attach my DirectSound demo here including the type library I created extending TheTricks one.
I had to split it in two files due to the upload limitations. So please first extract DSoundDemo.zip and then the contents of FurtherMP3s.zip into the subfolder \SampleMP3\ of the demo.
The project uses a single class cDirectSound derived from Anatolys class that doesn't need any other components except the type library. The main intent was to control the effect parameters and to play files in parallel.
Just start the project (ActiveX.exe) in the IDE. Looks like this:
Attachment 188221
1. is to play all the MP3 files in the sample folder
2. does the same but crossfades the songs
3. You can select an effect to apply to the song and set the available parameters. There is a control form for this to set the values. Here with the I3D-Reverb selected:
Attachment 188222
(The controls in this form are loaded at runtime according to the file effects.txt which alternatively could also be included in a resource file.)
4. A complete stack of effects can be applied to a playing file. Demo starts without effects and after 6 seconds they come in.
5. Effect parameters can be controlled at runtime. Use the slider to adjust the reverb time while playing the song in loop.
You can click Stop at every time.

mdlTestDS contains some routines that also demonstrate the usage of the class.

Another extention to the class is the implementation of IDirectSoundNotify. Just a demonstration on how to implement and use it. I didn't find many cases where it would be needed as it does not raise real events. Simple timer loops my be sufficient. (Maybe MsgWaitForMultipleObjectsEx should be used instead of WaitForMultipleObjects to generate events?)
I have not tested the whole thing extensively. The usercontrol for the sliders may have some bugs and the sequence of played files in the demo can interfere and end in a mess if you click the play buttons before every song ended. (Two DSound buffers are used in parallel!)

As for me I am using the class now in a DJing application.

Thanks, Anatoly , for your work!

how play avi,mp4,from memory address,or MapViewOfFile(hMap,?

Quote:

---

Originally Posted by xiaoyao

how play avi,mp4,from memory address,or MapViewOfFile(hMap,?

---

See DSCreateSoundBufferFromMemory in the demo class regarding the part commented with '// Expecting MP3
As you can see you will have to write your own code for other formats.
But it will be rather difficult to achieve that when you want to load video formats. Better consider using DirectShow interfaces for such tasks (included in the newer oleexp.tlb)
[FilterGraph -> FileSource + DirectSoundRenderer filters; connect them using the appropriate pins]

Thank you for creating the DirectSound type library dsvb.tlb

I have an application that requires specifying an output device.
Is there a way to specify the output device in ds.initial like following?

Code:

---

    Dim ds As DirectSound8
    Set ds = New DirectSound8
    ds.Initialize ByVal GetDevice(Idx)

---

Quote:

---

Originally Posted by Cm.Wang

Thank you for creating the DirectSound type library dsvb.tlb

I have an application that requires specifying an output device.
Is there a way to specify the output device in ds.initial like following?

Code:

---

    Dim ds As DirectSound8
    Set ds = New DirectSound8
    ds.Initialize ByVal GetDevice(Idx)

---

---

DirectSoundEnumerate

Trick thanks.

I create a new project and put code to the Form.

Code:

---

Option Explicit

Private Sub Form_Load()
    Dim result As Long
    result = DirectSoundEnumerate(AddressOf EnumCallback, 0)
    If result <> DS_OK Then
        MsgBox "Failed to enumerate DirectSound devices", vbCritical
    End If
End Sub

---

Add module and put code.

Code:

---

Option Explicit
Public Const DS_OK As Long = 0

Public Type GUID
    Data1 As Long
    Data2 As Integer
    Data3 As Integer
    Data4(7) As Byte
End Type

Public Declare Function DirectSoundEnumerate Lib "dsound.dll" Alias "DirectSoundEnumerateA" (ByVal lpDSEnumCallback As Long, ByVal lpContext As Long) As Long

Public Declare Function lstrcpy Lib "kernel32" Alias "lstrcpyA" (ByVal lpString1 As String, ByVal lpString2 As Long) As Long

Public Function EnumCallback(ByRef lpGuid As GUID, ByVal lpszDesc As Long, ByVal lpszDrvName As Long, ByVal lpContext As Long) As Long
    Dim desc As String
    Dim drvName As String

    desc = Space$(255)
    drvName = Space$(255)

    ' copy memory to get strings from pointers
    Call lstrcpy(desc, lpszDesc)
    Call lstrcpy(drvName, lpszDrvName)

    ' trim the strings to get rid of the trailing null characters
    desc = TrimNull(desc)
    drvName = TrimNull(drvName)

    ' output to debug
    Debug.Print "Device Description: " & desc
    Debug.Print "Driver Name: " & drvName

    ' return 1 to coutinue enum...
    EnumCallback = 1
End Function

Public Function TrimNull(item As String) As String
    Dim pos As Integer
    pos = InStr(item, Chr$(0))
    If pos > 0 Then
        TrimNull = Left$(item, pos - 1)
    Else
        TrimNull = item
    End If
End Function

---

Run and i can get the result:

Quote:

---

Device Description: Primary Sound Driver
Driver Name:
Device Description: Speakers (USB PnP Sound Device)
Driver Name: {0.0.0.00000000}.{2b47a2c3-928e-4079-ab06-666e2a17fe47}
Device Description: Speakers (Realtek High Definition Audio)
Driver Name: {0.0.0.00000000}.{8b4f8dd4-ea66-4b44-854c-5ffb56ce8bba}
Device Description: Realtek Digital Output (Realtek High Definition Audio)
Driver Name: {0.0.0.00000000}.{f7bdb9c2-9430-4fc6-b8af-59abf3c6cd92}

---

I will try more later.

Thank you, Trick
In the end, I achieved what I needed.

Attachment 192125

Attachment 192124
