[VB6] - Modify the standard ListBox.

http://s7.hostingkartinok.com/upload...0da6b5129b.png

Make a class with which you can modify the drawing standard list. He has event Draw, which is caused when the need render the next element of the list. To work, you need to install in the list of style Checked (flags), and assign this property ListBox clsTrickListBox.ListBox. You can also change the height of the elements and to cancel drawing.

Code:

---

Option Explicit

' Класс clsTrickListBox.cls - для ручной отрисовки стандартного ListBox'а
' © Кривоус Анатолий Анатольевич (The trick), 2014

Public Enum StateEnum
    ES_NORMAL
    ES_FOCUSED
    ES_SELECTED
End Enum

Private Type PROCESS_HEAP_ENTRY
    lpData                  As Long
    cbData                  As Long
    cbOverhead              As Byte
    iRegionIndex            As Byte
    wFlags                  As Integer
    dwCommittedSize        As Long
    dwUnCommittedSize      As Long
    lpFirstBlock            As Long
    lpLastBlock            As Long
End Type
Private Type RECT
    Left                    As Long
    Top                    As Long
    Right                  As Long
    Bottom                  As Long
End Type
Private Type DRAWITEMSTRUCT
    CtlType                As Long
    ctlId                  As Long
    itemID                  As Long
    itemAction              As Long
    itemState              As Long
    hwndItem                As Long
    hdc                    As Long
    rcItem                  As RECT
    itemData                As Long
End Type

Private Declare Function DrawFocusRect Lib "user32" (ByVal hdc As Long, lpRect As RECT) As Long
Private Declare Function DeleteObject Lib "gdi32" (ByVal hObject As Long) As Long
Private Declare Function DeleteDC Lib "gdi32" (ByVal hdc As Long) As Long
Private Declare Function GetClientRect Lib "user32" (ByVal hwnd As Long, lpRect As RECT) As Long
Private Declare Function CallWindowProc Lib "user32" Alias "CallWindowProcA" (ByVal lpPrevWndFunc As Long, ByVal hwnd As Long, ByVal Msg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
Private Declare Function GetModuleHandle Lib "kernel32" Alias "GetModuleHandleA" (ByVal lpModuleName As String) As Long
Private Declare Function GetProcAddress Lib "kernel32" (ByVal hModule As Long, ByVal lpProcName As String) As Long
Private Declare Function HeapCreate Lib "kernel32" (ByVal flOptions As Long, ByVal dwInitialSize As Long, ByVal dwMaximumSize As Long) As Long
Private Declare Function HeapDestroy Lib "kernel32" (ByVal hHeap As Long) As Long
Private Declare Function HeapAlloc Lib "kernel32" (ByVal hHeap As Long, ByVal dwFlags As Long, ByVal dwBytes As Long) As Long
Private Declare Function HeapFree Lib "kernel32" (ByVal hHeap As Long, ByVal dwFlags As Long, lpMem As Any) As Long
Private Declare Function HeapWalk Lib "kernel32" (ByVal hHeap As Long, ByRef lpEntry As PROCESS_HEAP_ENTRY) As Long
Private Declare Function HeapLock Lib "kernel32" (ByVal hHeap As Long) As Long
Private Declare Function HeapUnlock Lib "kernel32" (ByVal hHeap As Long) As Long
Private Declare Function SetEnvironmentVariable Lib "kernel32" Alias "SetEnvironmentVariableW" (ByVal lpName As Long, ByVal lpValue As Long) As Long
Private Declare Function GetEnvironmentVariable Lib "kernel32" Alias "GetEnvironmentVariableW" (ByVal lpName As Long, ByVal lpBuffer As Long, ByVal nSize As Long) As Long
Private Declare Function GetMem4 Lib "msvbvm60" (pSrc As Any, pDst As Any) As Long
Private Declare Function GetWindowLong Lib "user32" Alias "GetWindowLongA" (ByVal hwnd As Long, ByVal nIndex As Long) As Long
Private Declare Function SetWindowLong Lib "user32" Alias "SetWindowLongA" (ByVal hwnd As Long, ByVal nIndex As Long, ByVal dwNewLong As Long) As Long
Private Declare Function SendMessage Lib "user32" Alias "SendMessageA" (ByVal hwnd As Long, ByVal wMsg As Long, ByVal wParam As Long, lParam As Any) As Long
Private Declare Function DrawText Lib "user32" Alias "DrawTextW" (ByVal hdc As Long, ByVal lpStr As Long, ByVal nCount As Long, lpRect As RECT, ByVal wFormat As Long) As Long
Private Declare Function SetRect Lib "user32" (lpRect As RECT, ByVal X1 As Long, ByVal Y1 As Long, ByVal X2 As Long, ByVal Y2 As Long) As Long
Private Declare Function SelectObject Lib "gdi32" (ByVal hdc As Long, ByVal hObject As Long) As Long
Private Declare Function BitBlt Lib "gdi32" (ByVal hDestDC As Long, ByVal x As Long, ByVal y As Long, ByVal nWidth As Long, ByVal nHeight As Long, ByVal hSrcDC As Long, ByVal xSrc As Long, ByVal ySrc As Long, ByVal dwRop As Long) As Long
Private Declare Function SetBkMode Lib "gdi32" (ByVal hdc As Long, ByVal nBkMode As Long) As Long
Private Declare Function SetBkColor Lib "gdi32" (ByVal hdc As Long, ByVal crColor As Long) As Long
Private Declare Function GetDlgCtrlID Lib "user32" (ByVal hwnd As Long) As Long
Private Declare Function SetDCBrushColor Lib "gdi32" (ByVal hdc As Long, ByVal colorref As Long) As Long
Private Declare Function SetDCPenColor Lib "gdi32" (ByVal hdc As Long, ByVal colorref As Long) As Long
Private Declare Function GetStockObject Lib "gdi32" (ByVal nIndex As Long) As Long
Private Declare Function PatBlt Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long, ByVal nWidth As Long, ByVal nHeight As Long, ByVal dwRop As Long) As Long
Private Declare Function GetFocus Lib "user32" () As Long
Private Declare Function MoveToEx Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long, lpPoint As Any) As Long
Private Declare Function LineTo Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long) As Long
Private Declare Function SetTextColor Lib "gdi32" (ByVal hdc As Long, ByVal crColor As Long) As Long
Private Declare Function GetSysColor Lib "user32" (ByVal nIndex As Long) As Long
Private Declare Sub CopyMemory Lib "kernel32" Alias "RtlMoveMemory" (Destination As Any, Source As Any, ByVal Length As Long)

Private Const WM_GETFONT                    As Long = &H31
Private Const WM_DRAWITEM                  As Long = &H2B
Private Const LB_GETITEMHEIGHT              As Long = &H1A1
Private Const LB_SETITEMHEIGHT              As Long = &H1A0
Private Const LB_GETCARETINDEX              As Long = &H19F
Private Const TRANSPARENT                  As Long = 1
Private Const ODS_SELECTED                  As Long = &H1
Private Const ODS_FOCUS                    As Long = &H10
Private Const ODA_DRAWENTIRE                As Long = &H1
Private Const ODA_FOCUS                    As Long = &H4
Private Const ODA_SELECT                    As Long = &H2
Private Const HEAP_CREATE_ENABLE_EXECUTE    As Long = &H40000
Private Const HEAP_NO_SERIALIZE            As Long = &H1
Private Const HEAP_ZERO_MEMORY              As Long = &H8
Private Const PROCESS_HEAP_ENTRY_BUSY      As Long = &H4
Private Const GWL_WNDPROC                  As Long = &HFFFFFFFC
Private Const DC_BRUSH                      As Long = 18
Private Const WNDPROCINDEX                  As Long = 6

Private mControl    As ListBox
Private mDefDraw    As Boolean

Dim hHeap      As Long
Dim lpAsm      As Long
Dim lpPrev      As Long
Dim pHwnd      As Long
Dim mHwnd      As Long
Dim ctlId      As Long

Public Event Draw(ByVal hdc As Long, ByVal x As Long, ByVal y As Long, ByVal width As Long, ByVal height As Long, _
                  ByVal index As Long, ByVal State As StateEnum)

' Задает список, который нужно отрисовывать
Public Property Get ListBox() As ListBox
    Set ListBox = mControl
End Property
Public Property Set ListBox(Value As ListBox)
    If Not mControl Is Nothing Then Err.Raise 5: Exit Property
    Set mControl = Value
    If CreateAsm() = 0 Then
        Set mControl = Nothing
    Else
        pHwnd = mControl.Container.hwnd
        mHwnd = mControl.hwnd
        ctlId = GetDlgCtrlID(mHwnd)
        Subclass
    End If
End Property
' Использовать отрисовку по умолчанию
Public Property Get DefaultDraw() As Boolean
    DefaultDraw = mDefDraw
End Property
Public Property Let DefaultDraw(ByVal Value As Boolean)
    mDefDraw = Value
    If Not mControl Is Nothing Then mControl.Refresh
End Property
' Задает высоту элемента списка
Public Property Get ItemHeight() As Byte
    If mControl Is Nothing Then Err.Raise 5: Exit Property
    ItemHeight = SendMessage(mHwnd, LB_GETITEMHEIGHT, 0, ByVal 0&)
End Property
Public Property Let ItemHeight(ByVal Value As Byte)
    If mControl Is Nothing Then Err.Raise 5: Exit Property
    SendMessage mHwnd, LB_SETITEMHEIGHT, 0, ByVal CLng(Value)
End Property
' Оконная процедура
Private Function WndProc(ByVal hwnd As Long, ByVal Msg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
    Select Case Msg
    Case WM_DRAWITEM
        WndProc = OnDrawItem(wParam, lParam)
    Case Else
        WndProc = DefCall(Msg, wParam, lParam)
    End Select
End Function
' Вызов процедур по умолчанию
Private Function DefCall(ByVal Msg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
    DefCall = CallWindowProc(lpPrev, pHwnd, Msg, wParam, lParam)
End Function
' Процедура отрисовки
Private Function OnDrawItem(ByVal wParam As Long, ByVal lParam As Long) As Long
    Dim ds      As DRAWITEMSTRUCT
    Dim oft    As Long

    If wParam <> ctlId Then
        OnDrawItem = DefCall(WM_DRAWITEM, wParam, lParam)
        Exit Function
    End If

    CopyMemory ds, ByVal lParam, Len(ds)
    oft = SelectObject(ds.hdc, SendMessage(mHwnd, WM_GETFONT, 0, ByVal 0&))

    SetBkMode ds.hdc, TRANSPARENT
    SetTextColor ds.hdc, ToRGB(mControl.ForeColor)

    Select Case ds.itemAction
    Case ODA_SELECT
    Case Else
        If ds.itemState And ODS_FOCUS Then
            If mDefDraw Then
                DrawSelected ds
                DrawFocusRect ds.hdc, ds.rcItem
            Else
                RaiseEvent Draw(ds.hdc, ds.rcItem.Left, ds.rcItem.Top, ds.rcItem.Right - ds.rcItem.Left, _
                                ds.rcItem.Bottom - ds.rcItem.Top, ds.itemID, ES_FOCUSED)
            End If
        ElseIf mHwnd = GetFocus Then
            If mDefDraw Then
                DrawEntire ds
            Else
                RaiseEvent Draw(ds.hdc, ds.rcItem.Left, ds.rcItem.Top, ds.rcItem.Right - ds.rcItem.Left, _
                                ds.rcItem.Bottom - ds.rcItem.Top, ds.itemID, ES_NORMAL)
            End If
        Else
            If ds.itemID = SendMessage(mHwnd, LB_GETCARETINDEX, 0, ByVal 0&) Then
                SetTextColor ds.hdc, ToRGB(vbHighlightText)
                If mDefDraw Then
                    DrawSelected ds
                Else
                    RaiseEvent Draw(ds.hdc, ds.rcItem.Left, ds.rcItem.Top, ds.rcItem.Right - ds.rcItem.Left, _
                                    ds.rcItem.Bottom - ds.rcItem.Top, ds.itemID, ES_SELECTED)
                End If
            Else
                If mDefDraw Then
                    DrawEntire ds
                Else
                    RaiseEvent Draw(ds.hdc, ds.rcItem.Left, ds.rcItem.Top, ds.rcItem.Right - ds.rcItem.Left, _
                                    ds.rcItem.Bottom - ds.rcItem.Top, ds.itemID, ES_NORMAL)
                End If
            End If
        End If
    End Select

    SelectObject ds.hdc, oft
    OnDrawItem = 1
End Function
' Получить цвет RGB из OLE_COLOR
Private Function ToRGB(ByVal Color As OLE_COLOR) As Long
    If Color < 0 Then
        ToRGB = GetSysColor(Color And &HFFFFFF)
    Else: ToRGB = Color
    End If
End Function
' Отрисовка выделенного пункта
Private Sub DrawSelected(ds As DRAWITEMSTRUCT)
    Dim txt As String, oBr As Long
    oBr = SelectObject(ds.hdc, GetStockObject(DC_BRUSH))
    SetDCBrushColor ds.hdc, ToRGB(vbHighlight)
    SetTextColor ds.hdc, ToRGB(vbHighlightText)
    SetBkColor ds.hdc, ToRGB(vbHighlight)
    PatBlt ds.hdc, ds.rcItem.Left, ds.rcItem.Top, ds.rcItem.Right - ds.rcItem.Left, ds.rcItem.Bottom - ds.rcItem.Top, vbPatCopy
    If ds.itemID >= 0 Then
        txt = mControl.List(ds.itemID)
        DrawText ds.hdc, StrPtr(txt), Len(txt), ds.rcItem, 0
    End If
    SelectObject ds.hdc, oBr
End Sub
' Отрисовка невыделенного пункта
Private Sub DrawEntire(ds As DRAWITEMSTRUCT)
    Dim txt As String, oBr As Long
    oBr = SelectObject(ds.hdc, GetStockObject(DC_BRUSH))
    SetDCBrushColor ds.hdc, ToRGB(mControl.BackColor)
    SetTextColor ds.hdc, ToRGB(mControl.ForeColor)
    PatBlt ds.hdc, ds.rcItem.Left, ds.rcItem.Top, ds.rcItem.Right - ds.rcItem.Left, ds.rcItem.Bottom - ds.rcItem.Top, vbPatCopy
    If ds.itemID >= 0 Then
        txt = mControl.List(ds.itemID)
        DrawText ds.hdc, StrPtr(txt), Len(txt), ds.rcItem, 0
    End If
    SelectObject ds.hdc, oBr
End Sub
' Сабклассинг
Private Function Subclass() As Boolean
    Subclass = SetWindowLong(pHwnd, GWL_WNDPROC, lpAsm)
End Function
' Снять сабклассинг
Private Function Unsubclass() As Boolean
    Unsubclass = SetWindowLong(pHwnd, GWL_WNDPROC, lpPrev)
End Function
' Конструктор класса
Private Sub Class_Initialize()
    mDefDraw = True
End Sub
' Деструктор класса
Private Sub Class_Terminate()
    If hHeap = 0 Then Exit Sub
    Unsubclass
    If CountTrickList() = 1 Then
        HeapDestroy hHeap
        hHeap = 0
        SaveCurHeap
    Else
        HeapFree hHeap, HEAP_NO_SERIALIZE, ByVal lpAsm
    End If
End Sub

---

Continued code...

Code:

---

';)
Private Function CreateAsm() As Long
    Dim inIDE      As Boolean
    Dim AsmSize    As Long
    Dim ptr        As Long
    Dim isFirst    As Boolean
    If mControl Is Nothing Then Exit Function
    lpPrev = GetWindowLong(mControl.hwnd, GWL_WNDPROC)
    Debug.Assert MakeTrue(inIDE)
    If inIDE Then AsmSize = &H3E Else AsmSize = &H1D
    hHeap = GetPrevHeap()
    If hHeap Then
        If inIDE Then
            Dim flag        As Long
            ptr = GetFlagPointer()
            GetMem4 ByVal ptr, flag
            If flag Then
                FreeHeap
                isFirst = True
                AsmSize = AsmSize + &H4
            End If
        End If
    Else
        hHeap = HeapCreate(HEAP_CREATE_ENABLE_EXECUTE Or HEAP_NO_SERIALIZE, 0, 0)
        If hHeap = 0 Then Err.Raise 7: Exit Function
        If Not SaveCurHeap() Then HeapDestroy hHeap: hHeap = 0: Err.Raise 7: Exit Function
        isFirst = True
        If inIDE Then AsmSize = AsmSize + &H4
    End If
    lpAsm = HeapAlloc(hHeap, HEAP_NO_SERIALIZE Or HEAP_ZERO_MEMORY, AsmSize)
    If lpAsm = 0 Then
        If isFirst Then HeapDestroy hHeap
        hHeap = 0
        Err.Raise 7
        Exit Function
    End If
    Dim prv        As Long
    Dim i          As Long
    If inIDE Then
        If isFirst Then
            GetMem4 0&, ByVal lpAsm
            lpAsm = lpAsm + 4
        End If
    End If
    ptr = lpAsm
    If inIDE Then CreateIDEStub (ptr):    ptr = ptr + &H21
    CreateStackConv ptr
    CreateAsm = True
End Function
Private Function GetFlagPointer() As Long
    Dim he      As PROCESS_HEAP_ENTRY
    HeapLock hHeap
    Do While HeapWalk(hHeap, he)
        If he.wFlags And PROCESS_HEAP_ENTRY_BUSY Then GetFlagPointer = he.lpData: Exit Function
    Loop
    HeapUnlock hHeap
End Function
Private Function CountTrickList() As Long
    Dim he      As PROCESS_HEAP_ENTRY
    HeapLock hHeap
    Do While HeapWalk(hHeap, he)
        If he.wFlags And PROCESS_HEAP_ENTRY_BUSY Then CountTrickList = CountTrickList + 1
    Loop
    HeapUnlock hHeap
End Function
Private Sub FreeHeap()
    Dim he      As PROCESS_HEAP_ENTRY
    HeapLock hHeap
    Do While HeapWalk(hHeap, he)
        If he.wFlags And PROCESS_HEAP_ENTRY_BUSY Then
            HeapFree hHeap, HEAP_NO_SERIALIZE, ByVal he.lpData
        End If
    Loop
    HeapUnlock hHeap
End Sub
Private Function SaveCurHeap() As Boolean
    Dim i          As Long
    Dim out        As String
    out = Hex(hHeap)
    For i = Len(out) + 1 To 8: out = "0" & out: Next
    SaveCurHeap = SetEnvironmentVariable(StrPtr("TrickListBox"), StrPtr(out))
End Function
Private Function GetPrevHeap() As Long
    Dim out        As String
    out = Space(&H8)
    If GetEnvironmentVariable(StrPtr("TrickListBox"), StrPtr(out), LenB(out)) Then GetPrevHeap = Val("&H" & out)
End Function
Private Function CreateStackConv(ByVal ptr As Long) As Boolean
    Dim lpMeth      As Long
    Dim vTable      As Long

    GetMem4 ByVal ObjPtr(Me), vTable
    GetMem4 ByVal vTable + WNDPROCINDEX * 4 + &H1C, lpMeth

    GetMem4 &H5450C031, ByVal ptr + &H0:    GetMem4 &H488DE409, ByVal ptr + &H4:    GetMem4 &H2474FF04, ByVal ptr + &H8
    GetMem4 &H68FAE018, ByVal ptr + &HC:    GetMem4 &H0, ByVal ptr + &H10:          GetMem4 &HE8, ByVal ptr + &H14
    GetMem4 &H10C25800, ByVal ptr + &H18:  GetMem4 &H9000, ByVal ptr + &H1C

    GetMem4 ObjPtr(Me), ByVal ptr + &H10                    ' Push Me
    GetMem4 lpMeth - (ptr + &H14) - 5, ByVal ptr + &H14 + 1 ' Call WndProc

End Function

Private Function CreateIDEStub(ByVal ptr As Long) As Boolean
    Dim hInstVB6    As Long
    Dim lpEbMode    As Long
    Dim hInstUser32 As Long
    Dim lpCallProc  As Long

    hInstVB6 = GetModuleHandle("vba6")
    If hInstVB6 = 0 Then Exit Function
    hInstUser32 = GetModuleHandle("user32")
    If hInstUser32 = 0 Then Exit Function

    lpEbMode = GetProcAddress(hInstVB6, "EbMode")
    If lpEbMode = 0 Then Exit Function
    lpCallProc = GetProcAddress(hInstUser32, "CallWindowProcA")
    If lpCallProc = 0 Then Exit Function

    GetMem4 &HE8, ByVal ptr + &H0:          GetMem4 &H74C08400, ByVal ptr + &H4:    GetMem4 &H74013C10, ByVal ptr + &H8
    GetMem4 &H685814, ByVal ptr + &HC:      GetMem4 &H50000000, ByVal ptr + &H10:  GetMem4 &HE9, ByVal ptr + &H14
    GetMem4 &HDFF00, ByVal ptr + &H18:      GetMem4 &HEB000000, ByVal ptr + &H1C:  GetMem4 &HEC, ByVal ptr + &H20

    GetMem4 lpEbMode - ptr - 5, ByVal ptr + 1 + 0              ' Call EbMode
    GetMem4 lpPrev, ByVal ptr + &HF                            ' Push PrevProc
    GetMem4 lpCallProc - (ptr + &H14) - 5, ByVal ptr + 1 + &H14 ' Jmp CallWindowProcA
    GetMem4 ptr - 4, ByVal ptr + &H1B                          ' dec dword ptr [Flag]

    CreateIDEStub = True
End Function

Private Function MakeTrue(Value As Boolean) As Boolean: Value = True: MakeTrue = True: End Function

---

Good luck!
Attachment 123639

Hi, I can´t dowload the zip attached.
Regards

Eduardo

You're right! I Just get a black screen.

I don't know reason. I've attached again.

hi,i added a button name like Refresh button (code in refresh button is clear list box and then add again 300 item to list box)
1-i added more than 300 items to list box and then clicked on refresh (this time list box fill slow more than previeus time)
and then clicks on refresh again and then slow more than 1.
and after click on refresh button after 5 times or more,program will be crashed.
how can fix this problem?

i want clear list box and then fill without crash problem.
any body here can fix tricklistbox?

Black_Storm, hi. Please attach the project that causes the error.

hi i attached here.
see lreloadnews_Click() and initdata() subrutin

initdata will be clear listbox tricked (list name is lstTest(0)) and then fill again
at first run,programm will be load json data and xml from urls and then fill lists and temp lists for search and then fill lstTest(0)
initdata() used for form load and then for refresh news.
click on refresh button and there is no problem for 1 time or less than 5 or 6 times but after it process will be slow ...
another problem is about when time i click on items in lstTest(0) and then click on lreloadnews.(slow process and then slower for click again and again)

i am looking for list view support right to left and like telegram list box ( my thread : http://www.vbforums.com/showthread.p...75#post5266475).

Black_Storm, you don't release resources (you can just scroll list and see task manager GDI objects):
https://s8.hostingkartinok.com/uploa...628cb54e3b.png

Code:

---

DeleteObject SelectObject(hdc, CreateMyFont("Tahoma", 8, 0, False))

---

You shouldn't make similar calls. You can create the fixed set of fonts in Form_Load:

Code:

---

hFont(0) = CreateMyFont("tahoma", 9, 0, False)
hFont(1) = CreateMyFont("tahoma", 8, 0, False)
hFont(2) = CreateMyFont("tahoma", 7, 0, False)

---

Next you can use that fonts:

Code:

---

...
oFnt = SelectObject(hdc, hFont(1)) ' save dc font
...
SelectObject hdc, hFont(0)
...
SelectObject hdc, hFont(2)
...
SelectObject hdc, oFnt ' To restore dc font
...

---

And you should delete the set of fonts at end:
https://s8.hostingkartinok.com/uploa...aa6d8356c2.png

can u fix problems and send to me again? ( without refresh problem after more than 10 times click?)

Quote:

---

Originally Posted by Black_Storm

can u fix problems and send to me again? ( without refresh problem after more than 10 times click?)

---

I've attached the example (note i didn't change all your code logic, only errors with listbox).

thanks for your help

-how can change scrollbar theme and define hover effect? ( my means of hover effect is solid color or gradiant color or png image for hover?)
-how can set background image?

Black_Storm, you need to implement custom scrollbar. Current list uses system scrollbar.

i am not pro for work with graphics but can u send a simple using this tricklistbox and with :

-changed scrollbar theme
-background image of list box changed
-hover item color changed(solid color or gradiant color or png background hover)
-alternative color for items
or how can show image(not icon) like as png for each item?(i used icon 150x35 pixel) but in draw event always show square size.

Quote:

---

i am not pro for work with graphics but can u send a simple using this tricklistbox and with

---

I don't have such example.
I think for all your requirements (#15 post) it's simple to create your own custom usercontrol.

Quote:

---

changed scrollbar theme

---

You need to implement custom scrollbar.
https://s8.hostingkartinok.com/uploa...798665177d.png

Quote:

---

background image of list box changed

---

You should process WM_CTLCOLORLISTBOX. An example in Russian:
https://s8.hostingkartinok.com/uploa...8688845190.png

Code:

---

hover item color changed(solid color or gradiant color or png background hover)

---

Use TrackMouseEvent you can register hovering and when you get WM_MOUSEHOVER you can process it. Solid color - FillRect, gradient - GradientFill, picture - BitBlt/AlphaBlend/GDI+.

Code:

---

alternative color for items

---

SetTextColor.

Quote:

---

or how can show image(not icon) like as png for each item?(i used icon 150x35 pixel) but in draw event always show square size.

---

Use GDI/GDI+ function to draw an image.

i know about gdi and .... but i want work with this trick list box.i writed code for example boolean variable and then a=not a and then check a if setcolortexet and ... but in rendering was been not good,can u send a sample to used this trick list box and then custom scroll bar theme or alternative color or image for back ground list box or hover effect?
i need just sample fot this list box

Quote:

---

Originally Posted by The trick

I don't have such example.
I think for all your requirements (#15 post) it's simple to create your own custom usercontrol.


You need to implement custom scrollbar.
http://www.vbforums.com/images/ieimages/2018/03/1.png


You should process WM_CTLCOLORLISTBOX. An example in Russian:
http://www.vbforums.com/images/ieimages/2018/03/1.png

Code:

---

hover item color changed(solid color or gradiant color or png background hover)

---

Use TrackMouseEvent you can register hovering and when you get WM_MOUSEHOVER you can process it. Solid color - FillRect, gradient - GradientFill, picture - BitBlt/AlphaBlend/GDI+.

Code:

---

alternative color for items

---

SetTextColor.


Use GDI/GDI+ function to draw an image.

---

can u send both examples( scorllbar and russian sample ) like as attachment? my language is not english or russian and please send both example ( scroll bar sample shown in picture source code and russian sample)

?!!!

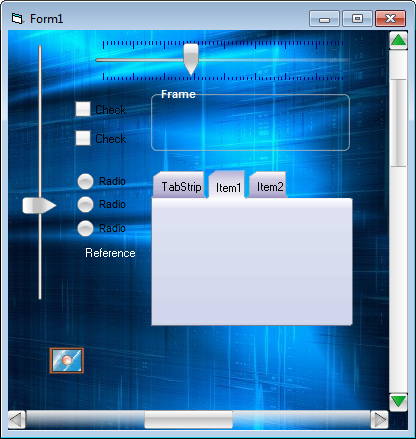

can u send source code of this :
Attachment 157015

Black_Storm, it's the very old project which i didn't finish (when i wrote it i didn't know enough about WinApi and it contains a lot of bad-codes. I don't want publish the bad codes). All of updated controls i'll publish in that thread.

hi,no problem with bad codes i need just see codes and test,if u can send #20 source code.

Stop begging for source code...

Quote:

---

Originally Posted by Black_Storm

hi,no problem with bad codes i need just see codes and test,if u can send #20 source code.

---

?!!!

I'd say that this is something you will need to work out on your own. The Trick is under no obligation to write the code for you. If they don't want to release some source code for whatever reason, then that is their right. You can start a thread with the questions you want answered (though not here in the CodeBank), but otherwise, you'll have to consider this has reached an end.
