[VB6] Win7 Taskbar Features with ITaskbarList3 (overlay, progress in taskbar, etc)

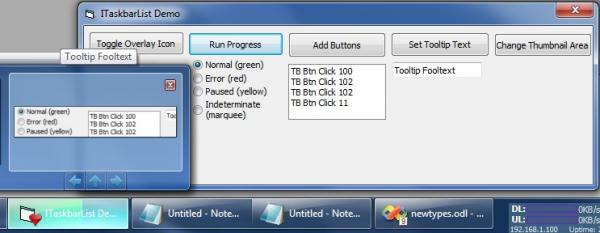

ITaskbarList Demo
Attachment 195757

Windows 7 introduced the ITaskbarList3 and ITaskbarList4 interfaces that added a number of new features to the taskbar for your program. The most commonly seen is the ability to turn the taskbar into a progress bar, and there's also the ability to add an overlay icon, add buttons below the thumbnail, and change the area the thumbnail covers among others. Like many other shell interfaces, it's available to VB either through type libraries or by directly calling the vtable. I prefer the former approach since many times internal structures and interfaces have far wider uses, so they can be put in the TLB and be accessible everywhere, not just within a class.

Project Update
Updated the TLB reference to point to oleexp.tlb v4.0 or higher.

Project Update
Project updated to fix minor bug where tooltips for custom buttons did not display.

Requirements
-Only works on Windows 7 and above.
-This project uses oleexp.tlb, my Modern Shell Interfaces expansion of Edanmo's olelib.tlb. Always use the latest version from that thread, it's no longer included in the ZIP of my projects so that 6 different versions aren't around all at once. Once you've extracted everything, in the sample project, go to References and update the path. If you already work with olelib, oleexp replaces it. There's a few minor changes, but nothing major- just a few things moved to oleexp and 3 interfaces had some of their subs turned into functions. See the oleexp thread in the link above for complete details. *This project now references oleexp.tlb v4.0 or higher*


Using ITaskbarList

Usage is fairly simple; you generally want to use it as a module level variable in your main form;

Code:

---

Private iTBL As TaskbarList

'...then in form_load:

Set iTBL = New TaskbarList

---

From there you can begin calling its functions, most of which are very straightforward:

Code:

---

    iTBL.SetOverlayIcon Me.hWnd, hIcoOvr, "Overlay icon active."
    iTBL.SetProgressState Me.hWnd, TBPF_INDETERMINATE 'marquee
    iTBL.SetThumbnailTooltip Me.hWnd, Text1.Text
    iTBL.SetThumbnailClip Me.hWnd, [rect]

---

The only thing a little complicated is the buttons.

Code:

---

Dim pButtons() As THUMBBUTTON
ReDim pButtons(2) 'basic 3-button setup

arIcon(0) = ResIconToHICON("ICO_LEFT", 32, 32)
arIcon(1) = ResIconToHICON("ICO_UP", 32, 32)
arIcon(2) = ResIconToHICON("ICO_RIGHT", 32, 32)

Call SubClass(Me.hWnd, AddressOf F1WndProc)

With pButtons(0)
    .dwMask = THB_FLAGS Or THB_TOOLTIP Or THB_ICON
    .iid = 100
    .dwFlags = THBF_ENABLED
    Call Str2Inta("Stop", pInt)
    For i = 0 To 259
        .szTip(i) = pInt(i)
    Next i
    .hIcon = arIcon(0)
End With

[fill in the other buttons]

iTBL.ThumbBarAddButtons Me.hWnd, 3, VarPtr(pButtons(0))

---

Icons
The TaskbarList interface deals with hIcons; in the sample project, they're stored in a resource file and loaded from there, but you could load them from anywhere with any method that will give you a valid hIcon.

Subclassing
The only thing that requires subclassing is receiving notification when a user clicks on a button below the thumbnail. If you're not going to be using that feature, then you won't need to subclass. The sample project does include a very simple subclassing module that receives the WM_COMMAND message that's sent when a button is clicked, and passes the ID of the button (the LoWord of the wParam) back to the main form.


twinBASIC 64bit compatible version at https://github.com/fafalone/MiscDemos

Quote:

---

Originally Posted by fafalone

The sample project does include a very simple subclassing module ...

---

There is a newer, much simpler and safer way of subclassing using ComCtl32.dll version 6. ;)

I'm a little tired so maybe I'm misreading, but if the subclassed object has the implement the IHookXP interface doesn't that limit it to forms/modules/classes?

If I were to use SetWindowSubclass directly.. maybe it's because I'm unfamiliar with it, but it sure doesn't look simpler when it goes past writing the initial code to set the subclass.. what with the whole ID thing and all.

Quote:

---

Originally Posted by fafalone

... but if the subclassed object has the implement the IHookXP interface doesn't that limit it to forms/modules/classes?

---

I don't see why that would be a problem. Advanced VB coders have always wanted to integrate subclassing code in the Object module being subclassed (Form/MDIForm/UserControl/PropertyPage/UserDocument) so that their code is as self-contained as possible. The idea behind the IHookXP interface was to make a generic subclasser module using the new subclassing APIs. That interface isn't necessary, though, if you'll just be subclassing 1 window. For simple cases like that, the technique shown in my 2nd link above should prove sufficient.

Quote:

---

Originally Posted by fafalone

If I were to use SetWindowSubclass directly.. maybe it's because I'm unfamiliar with it, but it sure doesn't look simpler when it goes past writing the initial code to set the subclass.. what with the whole ID thing and all.

---

The uIdSubclass parameter helps in identifying multiple subclassing code targeting the same hWnd. Any 32-bit value can be specified, although, many take this opportunity to pass a pointer to the Object module being subclassed. Depending on the parameter declaration, that pointer may be automatically cast to the desired Object inside the subclass procedure.

To prove that using the newer subclassing APIs generally produces simpler and less lines of code, here is the rewritten modWndProc.bas:

Code:

---

Option Explicit

Private Declare Function DefSubclassProc Lib "comctl32.dll" Alias "#413" (ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
Private Declare Function SetWindowSubclass Lib "comctl32.dll" Alias "#410" (ByVal hWnd As Long, ByVal pfnSubclass As Long, ByVal uIdSubclass As Long, Optional ByVal dwRefData As Long) As Long
Private Declare Function RemoveWindowSubclass Lib "comctl32.dll" Alias "#412" (ByVal hWnd As Long, ByVal pfnSubclass As Long, ByVal uIdSubclass As Long) As Long

Public Function Subclass(ByRef Form As VB.Form) As Boolean
    Subclass = SetWindowSubclass(Form.hWnd, AddressOf SubclassProc, ObjPtr(Form)):      Debug.Assert Subclass
End Function

Public Function UnSubclass(ByRef Form As VB.Form) As Boolean
    UnSubclass = RemoveWindowSubclass(Form.hWnd, AddressOf SubclassProc, ObjPtr(Form)): Debug.Assert UnSubclass
End Function

Private Function SubclassProc(ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long, ByVal uIdSubclass As Form1, ByVal dwRefData As Long) As Long
    Const WM_COMMAND = &H111&, WM_DESTROY = &H2&

    Select Case uMsg
        Case WM_COMMAND
            dwRefData = LoWord(wParam)  'Avoid declaring additional variables inside window procedures!
            Select Case dwRefData      'They'll still be allocated even for messages not handled here!
                Case 100, 101, 102
                    uIdSubclass.GotButtonClick CInt(dwRefData)
                    Exit Function
            End Select

        Case WM_DESTROY
            UnSubclass uIdSubclass
    End Select

    SubclassProc = DefSubclassProc(hWnd, uMsg, wParam, lParam)
End Function

Private Function LoWord(ByVal dwValue As Long) As Integer
    If dwValue And &H8000& Then
        LoWord = dwValue Or &HFFFF0000
    Else
        LoWord = dwValue And &HFFFF&
    End If
End Function

---

The line:

Code:

---

Call SubClass(Me.hWnd, AddressOf F1WndProc)

---

in Form1.frm will have to be shortened to just:

Code:

---

Subclass Me

---

in order to make that code work.

Looks good... but having every subclass go to the same wndproc gets to be unmanageable pretty quick, so I'd wind up basically having the same call to point to different wndprocs, but I definitely like the idea of being able to pass an object to a wndproc, which I've really only done with callbacks.


Edit: I tried using it for general subclassing, and I get an error highlighting the first line (Public Function F1WndProc...). But the way VB crashes I can't get it to show the messagebo saying what error it is. I traced the problem to calling unsubclass; it seems I can't use the AddressOf function there for some reason... can you not call from inside the proc or something?

Code:

---

Public Function Subclass(hWnd As Long, lpfn As Long, Optional uID As Long = 0&, Optional dwRefData As Long = 0&) As Boolean
If uID = 0 Then uID = hWnd
    Subclass = SetWindowSubclass(hWnd, lpfn, uID, dwRefData):      Debug.Assert Subclass
End Function
Public Function UnSubclass(hWnd As Long, ByVal lpfn As Long, pID As Long) As Boolean
    UnSubclass = RemoveWindowSubclass(hWnd, lpfn, pID)
End Function

Public Function F1WndProc(ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long, ByVal uIdSubclass As Long, ByVal dwRefData As Long) As Long

  Select Case uMsg

    Case WM_COMMAND
        Dim lw As Integer
        lw = LoWord_B(wParam)
        Form1.GotButtonClick lw
    Case WM_DESTROY
      Call UnSubclass(hWnd, AddressOf F1WndProc, uIdSubclass)

      Exit Function

  End Select

  F1WndProc = DefSubclassProc(hWnd, uMsg, wParam, lParam)

End Function

---

Edit2: I guess you can't use AddressOf within the procedure you want the address for after all, because a loop around worked.

Code:

---

      Call UnSubclass(hWnd, PtrF1WndProc, uIdSubclass)

Private Function PtrF1WndProc() As Long
PtrF1WndProc = FARPROC(AddressOf F1WndProc)
End Function
Private Function FARPROC(ByVal lpfn As Long) As Long
FARPROC = lpfn
End Function

---

Before I head into it, are there any issues with subclassing multiple hwnds to the same wndproc? Would I supply a different ID?

Quote:

---

Originally Posted by fafalone

... but I definitely like the idea of being able to pass an object to a wndproc, which I've really only done with callbacks.

---

Subclass, window and hook procedures are all considered callback procedures as well. ;) Whenever a callback has provision for a pointer-size parameter, you can pass an object pointer to it and have VB automatically cast the pointer to the object itself.

Quote:

---

Originally Posted by fafalone

... it seems I can't use the AddressOf function there for some reason... can you not call from inside the proc or something?

Edit2: I guess you can't use AddressOf within the procedure you want the address for after all, because a loop around worked.

---

Yep, that's a known bug. The suggested workaround in the KB article PRB: Recursive Use of AddressOf Operator Fails is qualifying the procedure's name with the module's name. It'll work even if the procedure is Private and thus not shown in the IntelliSense list.

Quote:

---

Originally Posted by fafalone

Before I head into it, are there any issues with subclassing multiple hwnds to the same wndproc? Would I supply a different ID?

---

There shouldn't be any problem having multiple windows go through the same subclass procedure (well, as long as there are no Static variables being used there) because VB's internal message loop will only process 1 message at a time. It's fine for different hWnds to specify the same IDs.

Quote:

---

Originally Posted by fafalone

... but having every subclass go to the same wndproc gets to be unmanageable pretty quick, so I'd wind up basically having the same call to point to different wndprocs, ...

---

The common subclass procedure is actually the approach recommended by MS in their KB article HOWTO: Subclass a UserControl.



Here's some test code that might help you master the new subclassing APIs:

Code:

---

Option Explicit 'In a Form

Private Const HALF As Single = 0.5!

Private Declare Function DefSubclassProc Lib "comctl32.dll" Alias "#413" (ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
Private Declare Function SetWindowSubclass Lib "comctl32.dll" Alias "#410" (ByVal hWnd As Long, ByVal pfnSubclass As Long, ByVal uIdSubclass As Long, Optional ByVal dwRefData As Long) As Long
Private Declare Function RemoveWindowSubclass Lib "comctl32.dll" Alias "#412" (ByVal hWnd As Long, ByVal pfnSubclass As Long, ByVal uIdSubclass As Long) As Long

Private Sub Form_Load()
    Controls.Add("VB.PictureBox", "PicBox1").Visible = True
    Controls.Add("VB.PictureBox", "PicBox2").Visible = True

    If DoEvents Then    'See whether the 1st Form is already visible
        Show
        Move Screen.Width * HALF, (Screen.Height - Height) * HALF
    Else
        Show
        Move Screen.Width * HALF - Width, (Screen.Height - Height) * HALF
        Forms.Add(Name).Caption = "Form2"
    End If

  'Subclass both PictureBoxes. Different hWnds, same WndProc, same IDs.
    SetWindowSubclass Me!PicBox1.hWnd, AddressOf StaticSubclassProc, 1&, ObjPtr(Me)
    SetWindowSubclass Me!PicBox2.hWnd, AddressOf StaticSubclassProc, 1&, ObjPtr(Me)

  'Subclass this window twice. Same hWnd, same WndProc, different IDs.
    SetWindowSubclass hWnd, AddressOf StaticSubclassProc, 20&, ObjPtr(Me)
    SetWindowSubclass hWnd, AddressOf StaticSubclassProc, 300&, ObjPtr(Me)

  '2 instances of this Form will be subclassed twice.
  'Different hWnds, same WndProc, same set of different IDs.
End Sub

Private Sub Form_Resize()
    Const GAP = 75!, GAP2 = GAP + GAP
    Dim HalfHeight As Single

    On Error Resume Next
    HalfHeight = (ScaleHeight - (GAP + GAP2)) * HALF
    Me!PicBox1.Move ScaleLeft + GAP, ScaleTop + GAP, ScaleWidth - GAP2, HalfHeight
    Me!PicBox2.Move ScaleLeft + GAP, HalfHeight + GAP2, ScaleWidth - GAP2, HalfHeight
End Sub

Private Sub Form_Unload(Cancel As Integer)
    RemoveWindowSubclass Me!PicBox1.hWnd, AddressOf StaticSubclassProc, 1&
    RemoveWindowSubclass Me!PicBox2.hWnd, AddressOf StaticSubclassProc, 1&

  'The subclasses can be removed in any order, not just reverse
    RemoveWindowSubclass hWnd, AddressOf StaticSubclassProc, 20&
    RemoveWindowSubclass hWnd, AddressOf StaticSubclassProc, 300&
End Sub

Friend Function SubclassProc(ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long, ByVal uIdSubclass As Long) As Long
    Const WM_LBUTTONDOWN = &H201&, WM_NCLBUTTONDOWN = &HA1&

    Select Case uMsg
        Case WM_LBUTTONDOWN, WM_NCLBUTTONDOWN  'Left-click to print uIdSubclass in Immediate Window
            Select Case hWnd
                Case Me.hWnd:        Debug.Print Caption, uIdSubclass
                Case Me!PicBox1.hWnd: Debug.Print Caption; "."; Me!PicBox1.Name, uIdSubclass
                Case Me!PicBox2.hWnd: Debug.Print Caption; "."; Me!PicBox2.Name, uIdSubclass
            End Select
    End Select

    SubclassProc = DefSubclassProc(hWnd, uMsg, wParam, lParam)
End Function

---

Code:

---

Option Explicit 'In a standard module

Public Function StaticSubclassProc(ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long, ByVal uIdSubclass As Long, ByVal dwRefData As Form1) As Long
    StaticSubclassProc = dwRefData.SubclassProc(hWnd, uMsg, wParam, lParam, uIdSubclass)
End Function          ' A total of 8 subclass procedures pass through here

---

Thanks, I'll be using this method in the future. The only reason i was hesitant was because it seemed better for object modules, and i don't like having multiple subclassing methods since i do far more subclasses for controls than for forms. New method is working fine for controls too now.

Good old off-by-one errors...

The Str2IntA function that this project has for the tooltips on the taskbar thumbnail buttons was:

Code:

---

Private Function Str2Inta(sz As String, iOut() As Integer) As Integer
Dim i As Long
ReDim iOut(259)
For i = 1 To Len(sz)
    iOut(i) = AscW(Mid(sz, i, 1))
Next i
End Function

---

But since strings are 1-based, this function would mean iOut(0)=0, and ITaskbarList considers the first zero as terminating. Changing it to iOut(i-1) will result in working tooltips.

Code:

---

Private Function Str2Inta(sz As String, iOut() As Integer) As Integer
Dim i As Long
ReDim iOut(259)
For i = 1 To Len(sz)
    iOut(i - 1) = AscW(Mid(sz, i, 1))
Next i

End Function

---

Quote:

---

Originally Posted by fafalone

The Str2IntA function ...

---

Why is it a function? It doesn't seem to be returning anything...

I eliminated the parts of an original function that returned a positive value with the length or a negative value (input too long or zero) since it wasn't needed for this project, but neglected to change it to a sub. Apologies, I'll fix it.

How to capture the three add button click event?

Through the WM_COMMAND messages; the demo shows fhe specifics.

The command to add the buttons includes an hWnd, you subclass that hWnd (almost always the form that shows in the taskbar), and the WM_COMMAND messages are sent to the WndProc; the LoWord of the wParam is the ID of the button that was clicked, with that ID being set when you add the button.

Code:

---

Public Function F1WndProc(ByVal hWnd As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long, ByVal uIdSubclass As Long, ByVal dwRefData As Long) As Long
On Error GoTo e0
  Select Case uMsg

    Case WM_COMMAND
        Dim lw As Integer
        lw = LoWord_B(wParam)
        Form1.GotButtonClick lw
    Case WM_DESTROY
      Call UnSubclass(hWnd, PtrF1WndProc, uIdSubclass)

  End Select

  F1WndProc = DefSubclassProc(hWnd, uMsg, wParam, lParam)
Exit Function
e0:
Debug.Print "F1WndProc.Error->" & Err.Description
End Function
Public Function LoWord_B(ByVal LongVal As Long) As Integer
    LoWord_B = LongVal And &HFFFF&
End Function


Private Sub Command3_Click()
'Add buttons
'There's 2 ways to do the images; either specify an hIcon in each THUMBBUTTON
'or assign an imagelist and an index
Dim i As Long
Dim pInt() As Integer
Dim pButtons() As THUMBBUTTON
ReDim pButtons(2) 'basic 3-button setup

arIcon(0) = ResIconToHICON("ICO_LEFT", 32, 32)
arIcon(1) = ResIconToHICON("ICO_UP", 32, 32)
arIcon(2) = ResIconToHICON("ICO_RIGHT", 32, 32)

Call Subclass(Me.hWnd, AddressOf F1WndProc)
'Call SubclassForm(Me)
With pButtons(0)
    .dwMask = THB_FLAGS Or THB_TOOLTIP Or THB_ICON
    .iid = 100
    .dwFlags = THBF_ENABLED
    Call Str2Inta("Stop", pInt)
    For i = 0 To UBound(pInt)
        If pInt(i) <> 0 Then Debug.Print "szTip(" & i & ")=" & pInt(i)
        .szTip(i) = pInt(i) 'this doesn't seem to be working... will address in a future release
    Next i
    .hIcon = arIcon(0)
End With
With pButtons(1)
    .dwMask = THB_FLAGS Or THB_TOOLTIP Or THB_ICON
    .iid = 101
    .dwFlags = THBF_ENABLED
    Call Str2Inta("Play", pInt)
    For i = 0 To 259
        .szTip(i) = pInt(i)
    Next i
    .hIcon = arIcon(1)
End With
With pButtons(2)
    .dwMask = THB_FLAGS Or THB_TOOLTIP Or THB_ICON
    .iid = 102
    .dwFlags = THBF_ENABLED
    Call Str2Inta("Eject", pInt)
    For i = 0 To 259
        .szTip(i) = pInt(i)
    Next i
    .hIcon = arIcon(2)
End With

iTBL.ThumbBarAddButtons Me.hWnd, 3, VarPtr(pButtons(0))


End Sub

---

---

Also, project attachment updated to change the reference to oleexp3.tlb. Previously it referenced the ancient setup of oleexp.tlb+olelib.tlb, from before I combined those both into oleexp3. The reference switch is the only change so a re-dl isn't really needed.

Thank you, but the code does not respond to any information, I use the system is windows 10

Are you running the sample directly or using it on your own form? Do the buttons appear at all?

There's nothing in there that's incompatible with Win10.

Has found the reason: you need to compile, can not be in the IDE state.

The problem is solved: as long as the compiler can, in the IDE state is no effect.

Advanced VBA programming has always wanted subclassing code integrated in the module object.

I'm not following; are you saying this won't work in VBA because the subclassing code is in a module instead of the class/form?

I wonder if he has his IDE manifested.

Dear Fafalone,

Sorry to bother you but I have a few questions if you don't mind. I would very much like to call SetTabOrder from ITaskBarList3. I understand you have implemented the above by way of referencing to your oleexp.tlb extension. Unfortunately I don't think I am unable to implement or distribute this on my employers system, which is heavily locked down. I can put code in the VBA editor in word/excel, sign it, and run it that way, make use of whatever references are already available, but that's it.

I wonder if it is reasonable to attempt to access ITLB3's in this way. I am able to access ITaskBarList using Philipp Stiefel's code from http://codekabinett.com/rdumps.php?L...w-itaskbarlist which uses only Private Declare PtrSafe Function in a class module and some kind of offset system he has worked out. Although I can follow his explanation well enough and sometimes work out how to implement a dll call from Microsoft's mainly C based explanations I have no experience of referencing extension(s) to methods and VBA doesn't seem to offer much in the way of error handling or debugging this kind of thing (other than last dll error).

Do you think it would be possible to extend Mr Stiefel's code, or code a similar method to access SetTabOrder or am I barking up the wrong tree? Could you give any thoughts of point me in the right direction? Thanks for your time.

Also on the off chance anyone knows a better way to achieve what attempting I'm open to ideas! Basically I want to force one particular excel workbook to appear first in the tab order within excel, and although I open it first in the first place it has some macros which wait for other programs to respond, which cause it to display 'not responding' for a few seconds, and after which excel moves it to the last tab position. As I understand it it is a similar process in windows as recovering from a crash, and explorer just put's the tabs back in 'z-order'. Further info or insights appreciated!

Thanks Robin

aatz, the TLB is a requirement for the IDE only. Once your program is compiled, it no longer needs the TLB. You can put the exe on computers without it and it will run, because everything that's used is compiled directly into the exe.

The TLB can be used in VBA but it would have to be present, as there's no way to compile VBA code into an executable.

If neither of those options are possible, yes you can use code like you linked to, only creating 3/4 instead of the base. Or there's calling the vtable directly: I'm not aware of a VB/VBA example for ITaskbarList, but you can learn the general technique from LaVolpe's IFileDialog project (good for comparison too as I have a TLB version of using it).

ps - No need to apologize, I'm always happy to help anyone with my projects. Ask all the questions you need to :thumb:

Quote:

---

Originally Posted by fafalone

... I'm not aware of a VB/VBA example for ITaskbarList, ...

---

Olaf posted a VB6 example for ITaskbarList3 a few years back.

Hi fafalone,

Does this work only with non-owned windows ?

I have applied the ITaskBarList3 functionality to a vba userform (vba userforms are owned to the host excel application main window)

Result:
It doesn't actually display a sperate taskbar button for the userform ... It only shows a preview popup of the form's window when mouse-hovering the Excel button in the taskbar ..I am Using Windows 10

Regards.

LATE EDIT:
Just realised the groupig of taskbar buttons is a taskbar setting which can be enabled\disabled via the local group policy editor (gpedit.msc). See here : https://www.tenforums.com/tutorials/...s-windows.html

Now, the question becomes :
Does the ITaskbarList3 interface offer a method for overrinding this setting so that owned windows can have their own seperate taskbar buttons regardless of the user's default taskbar configuration?

Ok- I have done some research (Found very little info for VB6\VBA) but I have found: https://docs.microsoft.com/en-us/win...storeforwindow

The SHGetPropertyStoreForWindow API accepts the window hwnd and can give you a pointer to the IPropertyStore interface so you can then call the SetValue Method in order to control the application's taskbar grouping.

I have somehow managed to add a sperate taskbar button for the userform (Using the above mentioned SHGetPropertyStoreForWindow API and the ITaskbarList3 Interface) but i am not sure I fully understand the PROPVARIANT structure and how to use it correctly... If someone who knows can explain this to me, I would much appreciate it.

Also, I have found that the PROPERTYKEY ID value that works for ungrouping taskbar buttons happens to be 5 ... Is there some documentation on these Key IDs ?

Regards.

Look through the sample projects on the oleexp page, there's tons of examples of using PROPVARIANTs with IPropertyStore values.

Basically, for a simple number, you can use an unmodified Variant type. .SetValue(5), or if it's in say a Long, .SetValue(CVar(lngVar))

Quote:

---

Originally Posted by fafalone

Look through the sample projects on the oleexp page, there's tons of examples of using PROPVARIANTs with IPropertyStore values.

Basically, for a simple number, you can use an unmodified Variant type. .SetValue(5), or if it's in say a Long, .SetValue(CVar(lngVar))

---

Thanks, I'll take a look.

The overlay icon not shown in Windows 10.

Can you provide more details about your Windows 10 version, and whether you're using the demo or your own code with a different icon? It works on Win10 for me:

https://www.vbforums.com/images/ieimages/2023/02/5.jpg

I found the problem. I use small icons in taskbar (there is an option, the caption for that is in my language Greek, but the meaning is that, use of small icons was On). So change that to normal I see the heart..
Windows 10 Pro
21H2

I'm not seeing the overlay when using small icons in Windows 7 either; were you seeing different or just Win10 was in small icons but 7 wasn't for you?

Currently I have Windows 10 Pro and the code I run was the example you provide. That's all. So if the user (like me which I had the icons small to let them have more space) do the same then the "overlay" has "gone", and have no gain for the user. When I change the icon size on my taskbar I found a +99 on windows Mail app (which I have on taskbar like other applications, in specific position). So that moment I feel bad because I miss information, so I change to normal size. But I think that the size of icons can be evaluated from registry, and if it is small then the info has to go somewhere else (change the icon maybe and place data on a tooltip).

Hi fafalone,
Like georgekar i use small icons in Win7 taskbar.
The overlay icon appear only with normal icons.
Regards

Ok so it seems you would just have to change the icon itself to a custom one. You could, in principle, dynamically create it, if you didn't want to e.g. make 99 separate ones.

In any case, to change the main icon during runtime you'd send WM_SETICON to your main form's hwnd.
