New Project: Ardunio Bar / Drink Maker

While perusing the interwebz today I came across a video of an Arduino controlled drink maker called The Inebriator.

I thought this idea was pretty cool and wanted to try something similar to this but I didn't want mine to move because it doesn't seem interesting to me and wastes precious drinking time. I want to make something that looks awesome, is fun and easy to use, pours delicious drinks, and is expandable.

Then I found the Barduino project. I like the large display, SQL backend, web access, and the kiosk like stand. However I want my alcohol to be displayed front and center, preferably above the display platform. I also like the way the upside down bottles look on display. If this were at a party, you could easily see where the bar/alcohol is at.

I have a small Dell Venue 8 Pro tablet that is not being used for anything. It would be the perfect interface for this automated bar.

I am creating this post mostly as a "blog" type format to document the progress of the project and to serve as a reference for other people who are interested in this type of project. I will continue to post as I figure out what I am doing.

Links:

• The Inebriator
• The Drinkmotizer - a Raspberry Pi Drink Mixing Robot
• Barduino
• Robotic Drink Maker

Preliminary diagram of my project. I think I am going to put up a blog on my site to track this project.

http://blog.dylansweaza.com/wp-conte...0577919562.jpg

For what its worth. I started a blog about it. Yeah I'm bored: Dylan's Projects

Preliminary Design


Attachment 122425
Dylan's Projects

Update: Prototype/Testing Structure

I ended up scrapping that original design because I discovered that a pressurized system is ideal but not practical unless I am using all the same type of containers. And I want to use the original bottles and have them be on display.

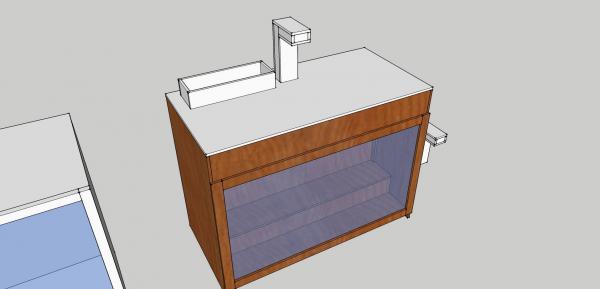

Here is an updated design that I am still working on. Disregard the colors.

Attachment 129207

Designed and Ordered my first PCB. Shout out to Wossname for the assistance!



http://blog.dylansweaza.com/wp-conte...72fe501672.png

Quote:

---

Originally Posted by dclamp

Designed and Ordered my first PCB. Shout out to Wossname for the assistance!



http://www.vbforums.com/

---

You're welcome.

That picture link is a 404 by the way.

Yeah, the picture link is also a 404 or your shout out thread too.

Yeah my server was compromised over the weekend so My links are dead now :(

Alright got them back.

What's a PCB

Printed Circuit Board. Often incorrectly known as a "motherboard".

Ahh ok

I soldered harnesses onto my LED modules. +5v, GND, Din, Dout.

http://blog.dylansweaza.com/wp-conte...1747425344.jpg

http://blog.dylansweaza.com/wp-conte...IMG_5078-1.jpg

http://blog.dylansweaza.com/wp-conte...IMG_5080-1.jpg

That is the cleanest bench I've ever seen.

I am OCD. I have to keep it clean. Plus the rest of the garage is a mess...

http://blog.dylansweaza.com/wp-conte...t-21.58.36.jpg

You need to change your ram sticker to a jeep one.

Good point. Luckily that is a magnet. I will rip that off, step on it, and then throw it in the Home Depot bucket trash can.

What I found interesting is that the comment about the clean bench came over a month after the post about the work done,
but you had a picture of the full bench and a portion of the garage "waiting" from before the work was done (you can see the stack of LED modules on the bench).

Yeah I took that photo just before I started. I am not sure why... But it came in handy. Also my PCBs came in today!

http://blog.dylansweaza.com/wp-conte..._resized_1.jpg

Update of my bench since I have been furiously trying to get the board to work:

http://s4.postimg.org/n38fhfw4d/bench.jpg

well dang... I'm disappointed... I was hoping for an update... I see it's been over a year since the last one... man, the service in this bar sucks!

-tg

Yeah I ran into some... engineering problems.
s
I got all the software and firmware working well. It just didnt quite work the way I wanted with the fluid dispensing. I couldn't find a suitable plug for the bottles that provided a good seal and allowed for tubing to be ran into it. Also tried 3d printing some prototypes but my 3d modeling isn't so good.

I was going to alter my design and go with a pump system vs my original plan of a pressure system. I bought the peristaltic pumps but never got any farther than that. I have some 3d renderings of my proposed design. I will have to find those and post them.
