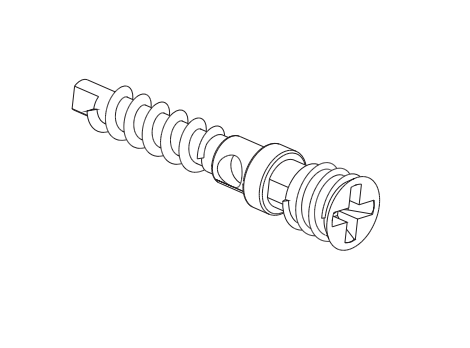

I'm trying to replace two screws for a piece of furniture. All I have is this diagram of them from the instruction manual, but not the name or description. They are about 2-3 inches long. The manufacturer has a minimum replacement part order cost so it would cost me about $20 to replace them through the manufacturer, so I'm trying to find it elsewhere, but as you may guess, searching for "wood screws" yields a lot of results. Can anyone help me identify these?
Attachment 119367
My grandfather owned a custom furniture shop and in the years I spent there the only thing I saw that even comes close to that was a carburetor idle screw from an old Briggs & Stratton lawn mower engine. What "piece of furniture" is this from?
If you really need it and can't improvise then you're probably better off forking out the $20.
I guess I can add this to the list of reasons I buy most of my furniture from the Amish...
I've seen this meme before. Has a question about wood screws... asks it on a programming forum. ;)
I guess I don't frequent many forums :)Quote:
Originally Posted by jmcilhinney
@homer13j The screws connect the bed to the headboard.
I just Googled bed building forum and this was the first result:Quote:
Originally Posted by baja_yu
http://www.woodworkforums.com/forum.php
They might not have an answer but they're far more likely to than we are.
Yep looks like a Custom Screw, you are probably better off just paying the $20
n.b - This is what you return to Chit Chat for Baja ? well i guess it is random enough :)
It is a custom screw. It looks similar to a locking cam bolt where the head protrudes and inserts into a locking cam nut. Very popular these days with furniture kits.
http://www.thewoodworks.com.au/shop/...crews?vmcchk=1
-tg
I've come across them several times. They're commonly used in self-assembled furniture and I'm willing to bet you could pick one up at a major hardware store.
in Serbia ?Quote:
I've come across them several times. They're commonly used in self-assembled furniture and I'm willing to bet you could pick one up at a major hardware store.
do you have B&Q in Serbia Baja ? :)
Baja's Serbian? Well I never knew that.
I have absolutely no idea what the state of hardware stores of self assembly furniture is in Serbia but I think I'd still head to whatever hardware store there is and check out the fixings aisle.
I agree with TG: It looks like one of those locking cam bolts.
I thought this was a thread about promiscuous hussies.
The thread part was right.
Hey now! Even today, a fair percentage of my furniture would disolve in a heavy rainstorm.
Yeah it looks like something I would find in an IKEA furniture set.
Carpenter here :pQuote:
Originally Posted by jmcilhinney
It's not a wood screw really. Google "Furniture fixings", "Flat pack fixings" or "cam lock dowel"
I have never come across such a fixing in 14 years and we deal with flat pack kitchens often. I guess it's custom to the USA since you said $20. I have printed it off and will take it to howdens tomorrow and see if i can get a name.
Why must this fixing be so special? Maybe if you explain whats it's purpose i can help. We do make furniture.
No B&Qs in Serbia. But I moved to SF a year ago, so there might be some around here. As for the screw, here's the exact detail:
http://img1.wfrcdn.com/docresources/244/10/109209.pdf
It's item #410 on page 4 of the instruction manual for the head board. The middle section doesn't seem to be "used". The bottom part and top part have threads of different width and they match the pre-drilled holes I guess.
