[RESOLVED] Expand a form to show all of picture

Private Sub Command1_Click()
picShowPic(2).AutoSize = True
Me.Height = picShowPic(2).Top + picShowPic(2).Height + 50 'size the form
Me.Top = Screen.Height / 2 - Me.Height / 2
End Sub
I cannot get the form to grow taller to display all the picturebox contents
what is wrong?
using vb6

See if something like this works

Code:

---

Private Sub Command1_Click()
    With Picture1
        .AutoSize = True
        .Picture = LoadPicture("c:\summit.jpg")
        .Move 0
        Me.Width = .Width + (Me.Width - Me.ScaleWidth)
        Me.Height = .Top + .Height + (Me.Height - Me.ScaleHeight)
    End With

    Me.Move (Screen.Width - Me.Width) / 2, (Screen.Height - Me.Height) / 2
End Sub

---

thanks MarkT
But that does not work. The bottom of the pic is cut off.
The width is fine only need to adjust form height so all of pic shows

Tweek it

There are tons of things to deal with here.

The user may have multiple monitors. The Screen object only returns metrics for the primary monitor and these do not take Toolbars (such as the Taskbar) into account.

The user might change things during program execution such as the height of caption bars and thickness of borders. He might even drag the window from the first monitor it was open on to another monitor or change the resolution of the current monitor.


Unless you want to address all of these issues you are far better off letting the user resize your Forms and then adjust your controls to fit within the available client area.

Thanks
I think I will give a option to This Program best viewed in 1280x 800 and let the user resize the forms, but i want the whole pic to be visible in 1280x800

Might be tough. Most users do not auto-hide the Taskbar plus you have a caption bar and Form borders.

Yes I have code to find and allow for the taskbar it could be anywhere

If the image is too big you'll probably want to provide scrollbars too.

Quote:

---

Originally Posted by isnoend07

thanks MarkT
But that does not work. The bottom of the pic is cut off.
The width is fine only need to adjust form height so all of pic shows

---

How big is your picture? Keep in mind there are limits to form sizes. Can you attach a stripped down version of your app that shows your problem? The code I posted works fine on my machine.

i have a stripped down version, but i cannot seem to see how to attach it
only buttons i see are Quote,video, image,link,smiley and text formating

If you go to advanced then if you scroll down you will see a Manage Attachment button. If you click that you can upload your project zipped.

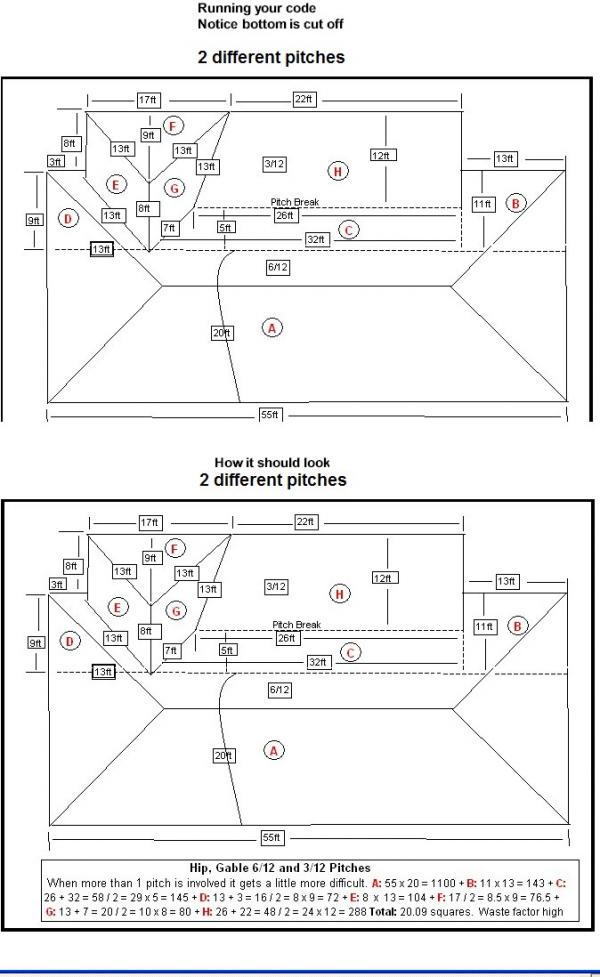

Thanks See attached click the button that says "click me" to show image

Update the CenterPic sub and you should be fine.

Code:

---

Sub CenterPic(Index As Integer)
        picShowPic(Index).Top = picContainer.Top + picContainer.Height + lblShowPic.Height + 200
        picShowPic(Index).Left = Me.ScaleWidth / 2 - picShowPic(Index).Width / 2
        picShowPic(Index).Visible = True

        ' if you want padding under the image add a little extra
        Me.Height = picShowPic(Index).Top + picShowPic(Index).Height + (Me.Height - Me.ScaleHeight)
End Sub

---

Attachment 116647

If this doesn't work then there is some kind of difference between your machine and mine that is causing problem. If on the other hand it does work then you need to try and find where you missed the changes I told you about.

MarkT's 1st change (post 14) works for me
