I have an aspx page which contains a table with 2 textboxes, and a nested table containing several other controls.
How can I autosize the main table so it fills the available page, and resize the 2 textbox rows to fill 50% each (height) of the remaining space and 100% width after the other fixed sized rows are displayed?
I am not really sure about your design. I mean i cannot grasp exactly what your design is.
With that said, you need to know that you cannot put percentages in "td" so this will have to be with either fixing the controls of the table or using divs.
Also i don't understand how will your textbox grow in height of 100%. Is it multicolumn?
Anyhow i put out a primitive design from what i can guess.
Also note that a post to html-css forum might help you better as there are some designers lurking there.
There is also the ability to use a prefixed css solution, like bootstrap but i haven't fully explored these solutions.Code:<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<style type="text/css">
.tbl
{
/* this will not do as you need to style the body and i am not sure you want that,
height:100%;
*/
}
.txtb
{
position:relative;
width:50%;
}
</style>
</head>
<body>
<form id="form1" runat="server">
<div>
<table width="100%" class="tbl" border="1" cellspacing="0" cellpadding="0" >
<tr>
<td>
<asp:TextBox ID="TextBox1" runat="server" CssClass="txtb"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:TextBox ID="TextBox2" runat="server" CssClass="txtb"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<table width="100%" border="1" cellspacing="0" cellpadding="0" >
<tr>
<td>inside table</td>
</tr>
</table>
</td>
</tr>
</table>
</div>
</form>
</body>
</html>
Thanks for answering. I tried that, but it doesn't autosize vertically.
This is what i'm trying, but it's not working:
Code:<head>
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1" />
<title>Untitled Document</title>
<style type="text/css">
* {/* for demo only */
margin:0;
padding:0;
}
html, body, outer {
height:100%;
width:100%;
border-collapse:collapse;
table-layout:fixed;
}
table#outer {
margin:0 0 -10px;
}
#outer td
{
background:red;
border:1px solid #000;
padding-bottom:10px;
vertical-align:top;
}
#row1 {
border-collapse:collapse;
table-layout:fixed;
width:100%;
height:3%;
}
#row1 td {
background:green;
padding:0;
}
#row2 {
border-collapse:collapse;
table-layout:fixed;
width:100%;
height:44%;
}
#row2 td {
background:yellow;
padding:0;
}
#row3 {
border-collapse:collapse;
table-layout:fixed;
width:100%;
height:3%;
}
#row3 td {
background:green;
padding:0;
}
#row4 {
border-collapse:collapse;
table-layout:fixed;
width:100%;
height:44%;
}
#row4 td {
background:yellow;
padding:0;
}
#row5 {
border-collapse:collapse;
table-layout:fixed;
width:100%;
height:3%;
}
#row5 td {
background:green;
padding:0;
}
#row6 {
border-collapse:collapse;
table-layout:fixed;
width:100%;
height:3%;
}
#row6 td {
background:green;
padding:0;
}
#footer {
position:relative;
height:10px;
background:blue;
}
</style>
</head>
<body>
<table id="outer">
<tr>
<td><table id="row1">
<tr>
<td width="5%";/>
<td width="90%";>Test</td>
<td width="5%";/>
</tr>
</table></td>
</tr>
<tr>
<td><table id="row2">
<tr>
<td width="5%";/>
<td width="90%";>Test</td>
<td width="5%";/>
</tr>
</table></td>
</tr>
<tr>
<td><table id="row3">
<tr>
<td width="5%";/>
<td width="90%";>Test</td>
<td width="5%";/>
</tr>
</table></td>
</tr>
<tr>
<td><table id="row4">
<tr>
<td width="5%";/>
<td width="90%";>Test</td>
<td width="5%";/>
</tr>
</table></td>
</tr>
<tr>
<td><table id="row5">
<tr>
<td width="5%";/>
<td width="90%";>Test</td>
<td width="5%";/>
</tr>
</table></td>
</tr>
<tr>
<td><table id="row6">
<tr>
<td width="5%";/>
<td width="90%";>Test</td>
<td width="5%";/>
</tr>
</table></td>
</tr>
</table>
<div id="footer">Footer</div>
</body>
</html>
Again, not sure what your design should look like.Can you draw an image or explain more?
P.S. I told you that td cannot use percentages.
Hmm. I show some examples of td with percentages. I need to brush up on my css as i was thinking it cannot be done.

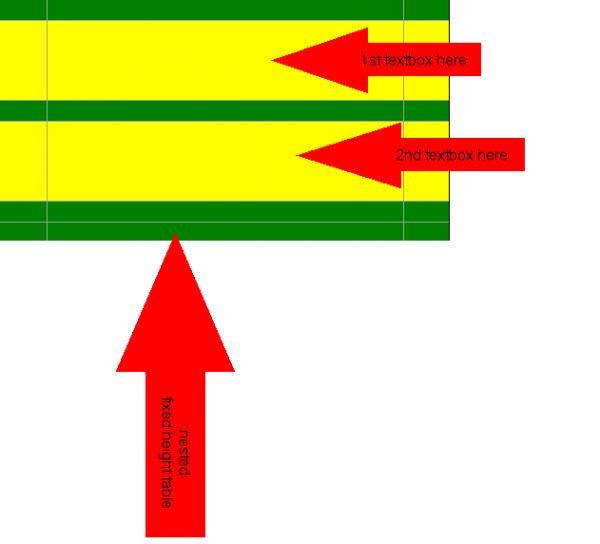

ok. here's a diagram:
Attachment 115559
edit: It's the yellow rows that I want to resize as the whole table resizes. The green rows are fixed height
So you either expand your row with some control or do this:
Code:#row2 td {
background:yellow;
padding:0;
min-height: 100px;
}
How do I expand the row with a textbox with the height being a percentage?
Also, the html/css I posted doesn't fill the page either horizontally or vertically
That is why i remembered that percentages will not do in "td".
I think you must expand with either pixels or with controls. I am not sure at this as my CSS is limited.
Your CSS fits the page horizontally.
Vertically it depends on what you need. You need to expand each "tr" according to a specific screen(like mobile)? This is very tricky and i think you will need a CSS class like bootstrap. You can also use Javascript to expand each row. Take the full screen size with JS and calculate the amount of expansion for each row.
Having said that, if you expand all the rows then the result will look bad as you will have huge expanded rows with small textboxes hanging on the top of each row.
Ok. Thanks.
No problem.
As i've said you can bring this to the HTML CSS forum that i suspect you will get more answers.
Thanks for the rep :)
