VB6 applied physics, using the chipmunk-engine (simple Demo for Starters)

This simple "Physics-Engine usage for Starters"-Demo depends on the vbRichClient5.dll,
downloadable here: http://vbrichclient.com/#/en/Downloads.htm

So, before you can run it you will have to unpack the 3 Dlls from the above linked vbRC5BaseDlls.zip
into a Folder (e.g. C:\RC5\)... and then only register (in AdminMode) the vbRichClient5.dll per regsvr32.

There's no need to copy the Dlls into the same Folder where you unpack the Zip of our small Demo-Project here:
http://vbRichClient.com/Downloads/ChipmunkCairo.zip
Meaning you can run all further RC5-based Demos directly from within their Unpack-Target-Folders,
without having to bother again with the (only once) to install RC5-BaseLibs.

The chipmunk Physic-Engine is wrapped up behind easy to use VB-Classes - no need to take care about
handle-freeing or other stuff (when you'd be using the "plain-C" chipmunk-API)...

For 2D-game-developers this should be quite interesting, since it allows all kinds of physics based games,
which involve e.g. true Car-Physics, or the whole class of "Rubberband-based games" - or shooting some Objects
around, which will follow true flight-parables with only a given Impulse... or all kind of simpler games where
Ball-bouncing-Physics are involved.

The Collision-Detection is sophisticated (respecting Mass, Elasticity, Friction, Momentum) though still quite performant,
even with a larger amount of moving Objects or irregularly shaped "fixed-bodies" in your scenes.

This last part, the construction of complex shapes is a speciality I've included in the Wrapper, since it allows
the Construction of any shape-form with ease over simple Cairo-Drawing-Calls (Cairo-Paths) - and that includes
even as complex shapes as rendered Text - the Demo here will already demonstrate, that the Ball-Objects take
even such complex-formed fixed shapes as rendered Text(Paths) seriously in their collisions...

One can see that easily witht a good look at the ScreenShot below... (where the Balls ended up finally after
bouncing around) - they "lean on each other" and rest with their bottoms on the TextChars exactly
(the left Ball on the "dot of an i" - and the right Ball is "hanging" between the highest points of "k" and "h"):

http://vbRichClient.com/Downloads/Chipmunk-Physics.png

The Drawing-Capabilities of Cairo include SubPixel-based Rendering of Png-based Sprites, as well as
normal Vectordrawn-Shapes ... this (antialiased) SubPixelprecision-output is quite important
especially with slower moving Objects - and cairos internally used Double-Precision matches exactly with
the Double-Precision each of the Body-Shape-Objects is internally repositioned by the Physics-Engine
in each (highres) Timer-Step.

I'll post some more Demos about this Engine, for the moment this simpler one may be sufficient as a
Base for your own experiments (with different Shapes or maybe only some Fiddling with the Parameters,
as e.g. the Gravity - or the Elasticity and Friction of the Balls).

Have fun with it.

Olaf

so amazing! expecting more demos .

Awakening this thread frooooooommmmm the deeeeaAAAAAdddd.

Olaf, do you have a pendulum example?

Quote:

---

Originally Posted by yereverluvinuncleber

...do you have a pendulum example?

---

Here's a Demo-Zip: https://vbRichClient.com/Downloads/ChipmunkPendulum.zip

And here, what it will produce:
https://www.vbforums.com/images/ieimages/2024/06/20.jpg


The RC6-chipmunk-wrapper is quite similar to the one for Python (PyMunk) -
a python-code-based pendulum-construction is covered e.g. by this youtube-vid:
https://www.youtube.com/watch?v=OJkcRl05gOk

HTH

Olaf

Well, thank you for that. I will give all that a good read.

Thank you. I have uploaded the latest version of a Matter-driven tear off calendar here:

https://icontalk.org/matter/index.html

As one can see, the calendar rotates around the nail (limited by the hole).

I would like to do this in VB6 instead. I appreciate the Pendulum demo very much.
Would it be possible to get a kick start on how to assign an image (Cairo surface / context) to such a Chipmunk pendulum?
This is what I would have to do to convert my matter html project to VB6 / RC6.

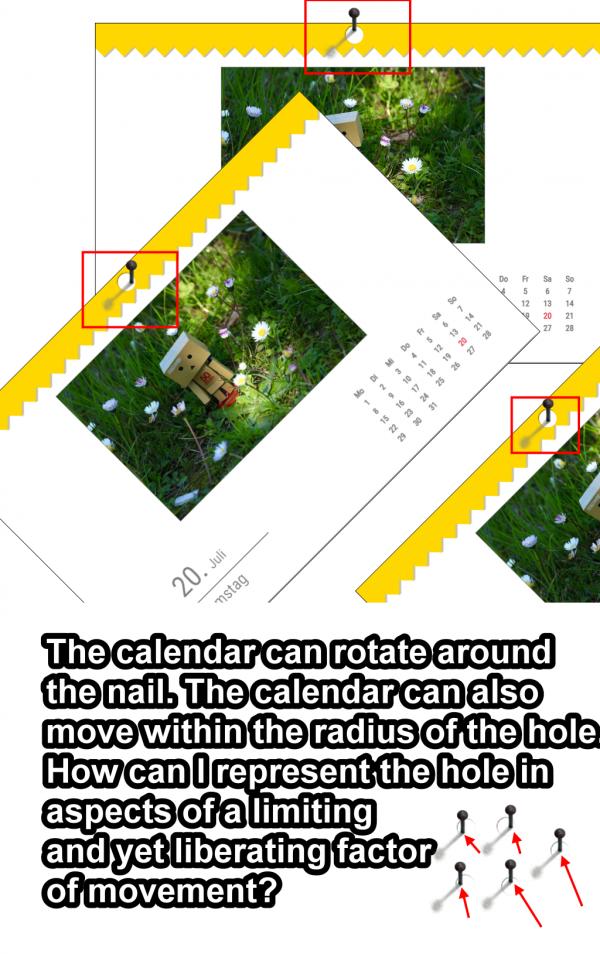

I would like to ask which type of physics object I should choose to represent a hold as seen in this calendar. The calendar can rotate around the nail, and the "inner movement" (I have no idea what I should call it) is limited by the hole.
I am looking at the ChipmunkPendulum sample, and I am looking for a way to integrate it in that.
Note the different positions of the nail in respect to the hole in a various screenshots of possible movements when being rotated / given a push.

Attachment 192338

I am using cpBoxShape for the calendar.

I believe that at drawing, I have to translate the drawing according to the calendar's current center of the shape.

In the basketball (Chipmunk Cairo) demo, it is done the following way for the ball (which is cpCircleShape):

CC.TranslateDrawings Shape.tC_X, Shape.tC_Y 'translate the CC to the current center of of the Shape
CC.RotateDrawings Cairo.CalcArc(Body.Rot_Y, Body.Rot_X) 'now rotate the Coord-System (according to the current Infos in our Body)

However, "tC_X" and "tC_Y" do not exists for cpBoxShape.

I thought that I have to calculate it myself using the vertices, but I did not find out how to access them.

Can somebody tell me how to do this?

The project is attached, and also here is my code for the calendar class:

Code:

---

Option Explicit

Public Body As cpBody, Shape As cpBoxShape

Public Sub Construct(ByVal X As Double, ByVal Y As Double, ByVal uWidth As Long, ByVal uHeight As Long, ByVal Mass As Double)

  Set Body = PhEngine.CreateBody(Mass, PhEngine.GetMomentForBox(Mass, uWidth, uHeight))
  PhEngine.Space.AddBody Body, X, Y

  Set Shape = Body.CreateBoxShape(uWidth, uHeight)
  PhEngine.Space.AddShape Shape, 0.78, 0.98

  'now - if it does not exists yet in our global Imagelist - we add a small sprite here from an Alpha-JPG-resource
  If Not Cairo.ImageList.Exists("calendar1") Then Cairo.ImageList.AddImage "calendar1", App.Path & "\calendar1.png", 500, 300
End Sub

Public Sub Draw(CC As cCairoContext, Optional ByVal SimpleOutlineOnly As Boolean)

    Static SrfPat As cCairoPattern
    CC.Save

    'todo: CC.TranslateDrawings Shape.tC_X, Shape.tC_Y
    CC.RotateDrawings Cairo.CalcArc(Body.Rot_Y, Body.Rot_X)  'now rotate the Coord-System (according to the current Infos in our Body)

    'Cairo.ImageList(SomeKey) delivers a Surface-Object (in our case our stored Sprite)
    'and to be able to shift the center of such a Surface-Object (just before we render it below),
    'we need to wrap it beforehand in some lightweight-container-Object, which allows transforms
    'And such a wrapper-object is the cCairoPattern, which can be derived from any Surface by:
    Set SrfPat = Cairo.ImageList("calendar1").CreateSurfacePattern

    'now the just mentioned shift "within the Sprite-Pattern", to finally bring
    'the pattern-wrapped Sprite-center into sync with our current center of the CC
    Set SrfPat.Matrix = SrfPat.Matrix.TranslateCoords(SrfPat.Surface.Width / 2, SrfPat.Surface.Height / 2)
    CC.SetSourcePattern SrfPat
    CC.Paint

    CC.Restore
End Sub

---

Attachment 192377

There is no documentation which I have overlooked which describe your implementation, right?
