Aligning controls with docking

Hi folks,

I have a DataRepeater.ItemTemplate I have added some items too as shown in the first image. From the left of the template I have 5 labels then a progress bar, then a button.

Attachment 104767

The DataRepeater is anchored to all sides of the form so that it grows and shrinks with the form as it is resized.

The button on the ItemTemplate is docked right so that it stays at the right hand side of the template.

The ProgressBar is where my issue lies. If I anchor it it stays where it is in position in relation to the ItemTemplate which is correct - but I also would like it to strech as the ItemTemplate does BUT not collide with the button...

If I dock the ProgressBar to the right it moves right up against the right edge and the button gets pushed to the left of it, if I anchor it to the right as well as its current top and left, it stretches out to have its right edge constantly underneath the button...

Attachment 104769

How can I get the progress bar to maintain position relative to the top left yet grow to the right - but not grow right to the edge of the containing template, only grow such that it has the same constant standoff from the right?

Thanks

The X button should be Dock Right but also Anchor Top, Left. The ProgressBar Dock None, Anchor Top, Left, Right.

Attachment 104807

Attachment 104809

Hey Dunfiddlin,

Thanks for helping out, unfortunately that still gives me the same as the second image in my OP.
Im still playing around with it (in between getting P'd off with it) but so far can only get it to either not stretch or stretch but finish behind the button.
Very annoying because now I know it *should* be working but isn't for some kooky reason....

Should it make a difference that the DataRepeater itself is anchored (top, bottom, left & right)?

EDIT: no, no difference - switched DataRepeater anchoring to top & left but not a lemon :(

Are the labels AutoSize? If they are being sized according to content rather than size of the window that could well mess things up.

Using both docking and anchoring at the same time tends to get confusing. I suggest you try anchoring the X button top right; and the progress bar top, left and right. No docking.

BB

OK I've tried setting the labels autosize to false (then had to widen them) then setting the docking and anchoring as boops boops mentioned... still no dice

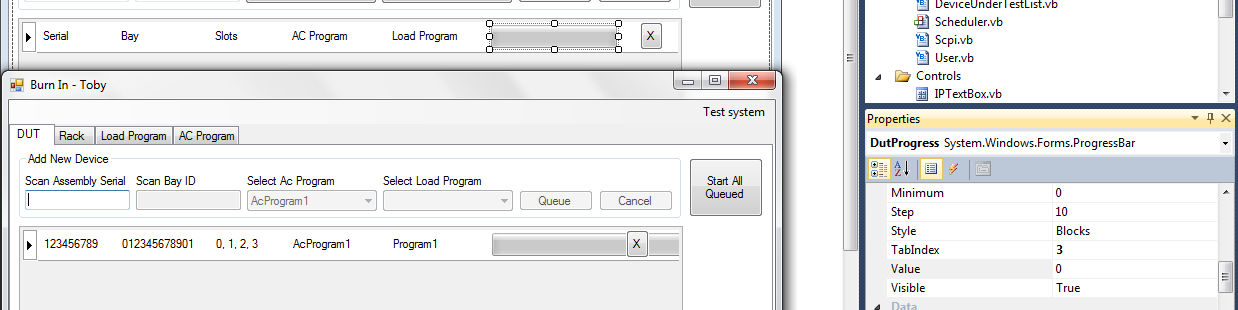

In this image you can see the layout in the design editor in the background and the running application in the foreground with the progress bar looking as if it is actually running off the right hand side of the ItemTemplate altogether :confused:
I tried switching the ItemTemplate Autosize property from True to false, but again, no change.

Attachment 104851

Yes, well. Boops is a bit off beam. Try with the settings I gave you in post #2 and AutoSize = False
